http tester a web appliance testing tool

HTTP-Tester- A web appliance testing tool

Kiran Komaravolu

Dept of Computer Science and Engg

Lehigh University

what is the need to test web appliances
What is the need to test Web Appliances
  • Need to use best components.
    • Compare performance of different web devices.
  • Verify if a device is performs as per specifications.
  • Choosing between different service providers.
related work
Related Work
  • The Ethereal network analyser (www.ethereal.com).
  • TCPDUMP/PCAP (www.tcpdump.org).
  • Httpflow (Grevnin and Davison)
  • Simultaneous proxy evaluation. (Davison).
  • Medusa Proxy. (Koletsou and Voelker).
http tester
Http-Tester
  • Replays captured requests to an existing server to one that is being evaluated.
  • No active deployment needed.
  • Does not affect existing services.
  • Can be used to evaluate any Web appliance running HTTP.
http tester5
HTTP-Tester
  • Topology setup
http tester6

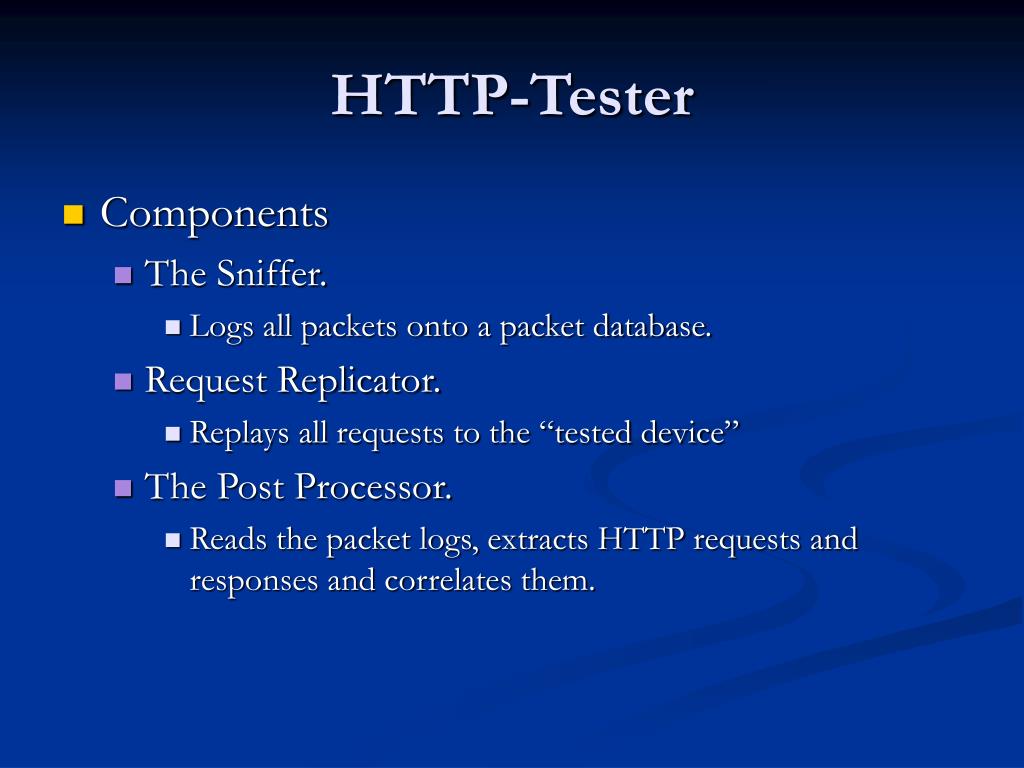

HTTP-Tester
  • Components
    • The Sniffer.
      • Logs all packets onto a packet database.
    • Request Replicator.
      • Replays all requests to the “tested device”
    • The Post Processor.
      • Reads the packet logs, extracts HTTP requests and responses and correlates them.
slide7
HTTP
  • HTTP Message Structure
    • A command line. (GET, POST, OK etc.)
      • GET http://www.google.com / HTTP 1.0
    • Zero or more header lines.
      • Content-Type: text/html; charset=iso-8859-1
    • Control Return + Line Feed.
    • Optional Message Body
      • Response message
http transactions

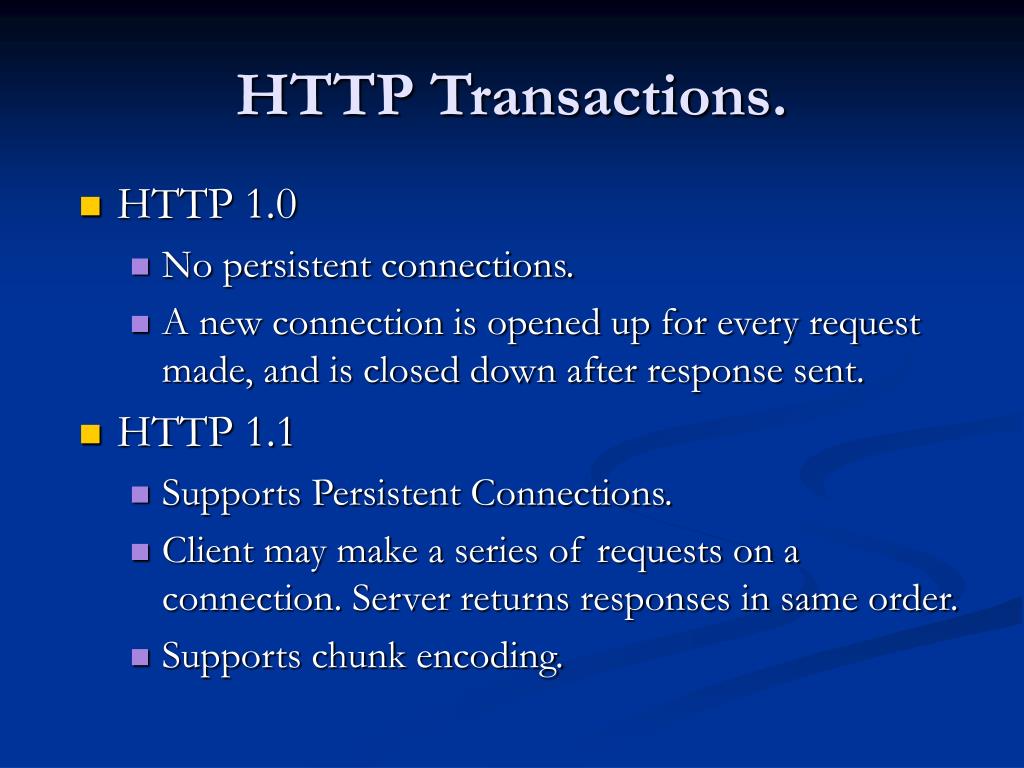

HTTP Transactions.
  • HTTP 1.0
    • No persistent connections.
    • A new connection is opened up for every request made, and is closed down after response sent.
  • HTTP 1.1
    • Supports Persistent Connections.
    • Client may make a series of requests on a connection. Server returns responses in same order.
    • Supports chunk encoding.
the sniffer

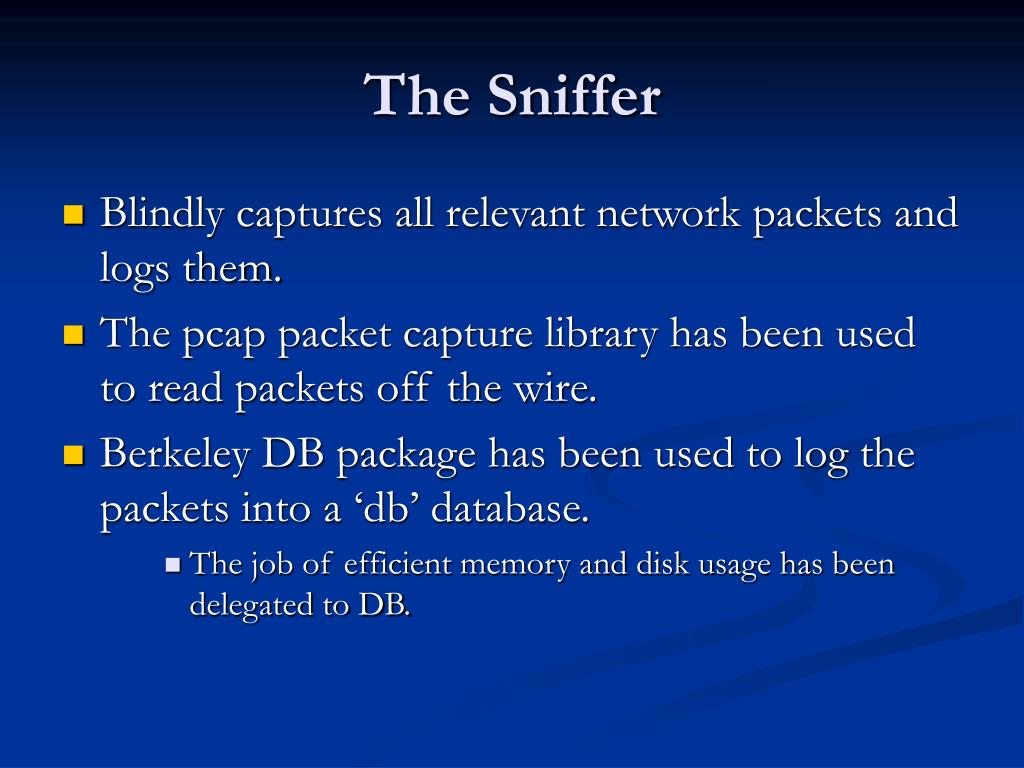

The Sniffer
  • Blindly captures all relevant network packets and logs them.
  • The pcap packet capture library has been used to read packets off the wire.
  • Berkeley DB package has been used to log the packets into a ‘db’ database.
      • The job of efficient memory and disk usage has been delegated to DB.
request replicator
Request Replicator
  • Replays all requests flowing into original device onto the tested device.
  • Works in parallel with the sniffer module.
  • Looks for TCP SYN packets and determines the beginning of a request flow. And opens up a new connection to the second device.
  • The payload every next packet sent to on this connection is sent to the second device.
request replicator11

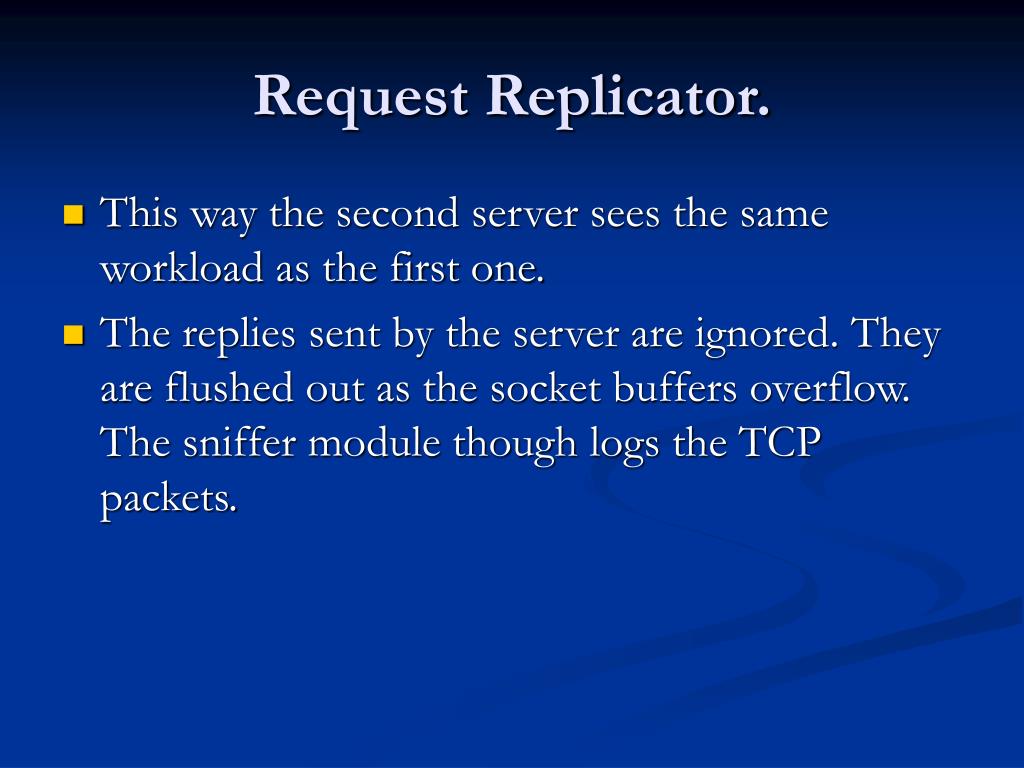

Request Replicator.
  • This way the second server sees the same workload as the first one.
  • The replies sent by the server are ignored. They are flushed out as the socket buffers overflow. The sniffer module though logs the TCP packets.
post processing
Post Processing.
  • Extracts HTTP requests/responses from the packet logs.
  • Every request is mapped onto its response. The same request response pair on the second connection is also identified.
  • Httpflow routines used to extract HTTP requests from packet stream.
identifying requests

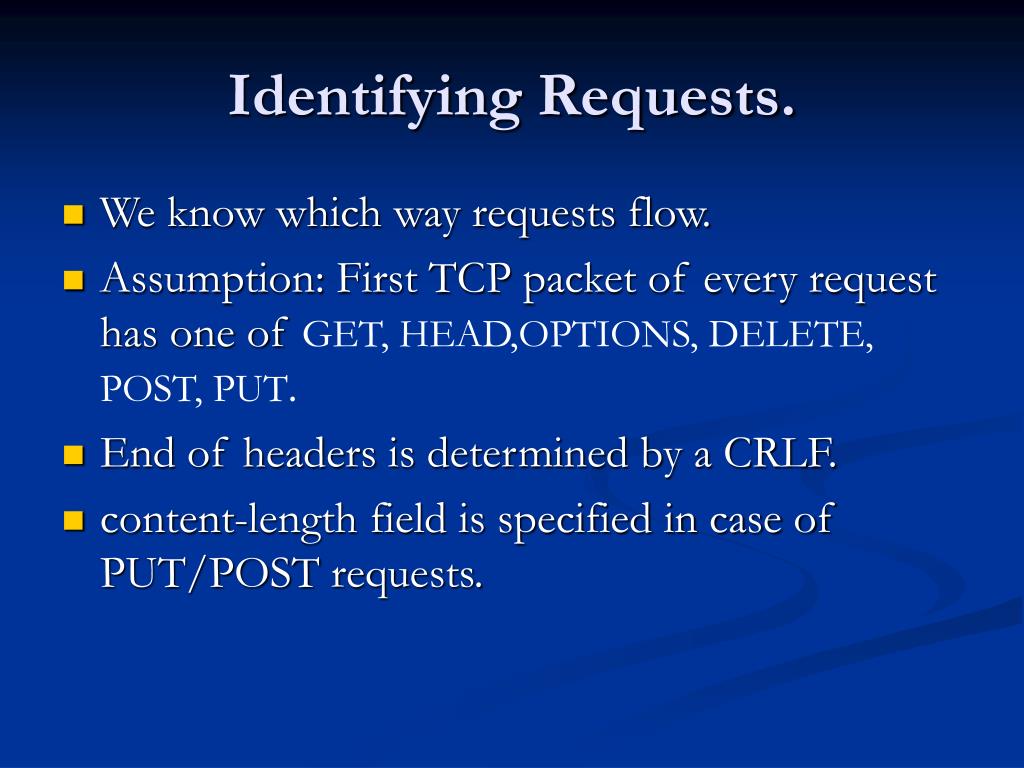

Identifying Requests.
  • We know which way requests flow.
  • Assumption: First TCP packet of every request has one of GET, HEAD,OPTIONS, DELETE, POST, PUT.
  • End of headers is determined by a CRLF.
  • content-length field is specified in case of PUT/POST requests.
identifying responses
Identifying responses
  • Response headers extrated by looking for a CRLF.
  • End of Response message determined in three ways:
    • Server sends a FIN or RST packet.
    • Response headers contain a “content-length” field.
    • Response is chunk encoded. Each chunk has its own length. Zero length chunk indicates end of stream.
