focal neuropathies

FOCAL NEUROPATHIES

William McKinley MD

Associate Professor PM&R

Virginia Commonwealth University

etiology
ETIOLOGY
  • Compression (any external pressure)
  • Entrapment (anatomical compression site)
  • Repetitive trauma/overuse
  • Direct trauma (missile, laceration)
  • ischemia
  • Stretch
pathophysiology compression vs ischemia
PATHOPHYSIOLOGY:Compression vs Ischemia
  • Compression vs Ischemia
    • Focal demylination vs axonal injury
  • Mechanical compression
    • 30 mmHg - decreased blood flow
    • 30-60 mmHg - block of axoplasmic transport
    • >60 mmHg - absent blood flow
  • Ischemia
    • 15-45 min causes dec conduction (neuropraxia)
      • less than 60 min - reversible
    • greater than 8 hours - not reversible
mechanical compression
MECHANICAL COMPRESSION
  • Pressure will lead to:
    • paranodal demyelination
      • conduction abnormalities (slowing, conduction block)
    • Axonal injury - wallerian degeneration
    • Pressure selectively affects
      • large Type A fibers (motor, LT, vib) > small Type C (pain/temp)
      • Peripheral (sensory) >central (motor) fibers
nerve recovery after injury
Nerve Recovery after injury
  • Peripheral N’s (unlike CNS) can regenerate.
  • Remyelination - takes up to 3 months
    • however myelin is thin and internodes short (slow!)
  • Axonal Reinnervation
    • Collateral Sprouts from adjacent intact axons
    • Growth cones (NGF) from axon stump - span “gap” & travel via endo tube 1-3 mm/d (1 inch/month)
      • Abberant re-innervation & neuroma
      • Muscle atrophy irreversible begins at one year
      • Sensory receptors survive for many years
classification of nerve injury
CLASSIFICATION OF NERVE INJURY
  • Seddan’s Classification
    • Neuropraxia - local cond. “block” with demyelination (reversible)
    • Axonotmesis - axonal injury w/wallarian degeneration (endoneurium intact, re-innervation possible)
    • Neurotmesis - complete disruption of axon and endoneurial sheath (no innervation possible)
pm r approach to the patient with focal neuropathy
PM&R approach to the patient with focal neuropathy
  • History
  • PE
  • ?Electrodiagnosis
  • ?additional tests (rad, U/S, vasc studies)
physical exam
PHYSICAL EXAM
  • Inspection, palpation, Motor/Sensory, DTR, provocative tests
    • Tinels, phalens, pinch, froments, spurlings, SLR
  • Know nerve anatomy & innervations!
  • Know common sites of entrapment!
history
HISTORY
  • Timing: acute vs. insidious, ? Inciting event, what…better/worse
  • Occupation & Handedness: association with repetitive trauma
  • PMH: related to diseases? (DM, CTD)
  • Location of: paresthesias (not always anatomically distributed), numbness, Weakness
differential dx
DIFFERENTIAL dx
  • Peripheral neuropathy (DM, ETOH, uremia; drugs, toxins)
  • Plexopathy
  • Radiculopathy
  • “Double Crush” or “vulnerable nerve syndrome (ie: radic + focal neuropathy)
  • Spinal Cord Injury
  • Myofacial/referred pain
electrodiagnosis edx
Electrodiagnosis (Edx):
  • Can assist with:
    • localization of injury
    • extent of injury (mild, moderate, severe)
    • assessment for underlying dz (DM, hypothy) and/or concomitant issues (“double crush”)
electrodiagnosis ncs nee
Electrodiagnosis = NCS + NEE
  • Sensory (SNAP) NCS
  • Motor (CMAP) NCS
  • Proximal (“late”) NCS: (H Reflex, F Wave)
    • limited use in focal neuropathy
  • Needle EMG (NEE)
ncs findings with focal demyelination
NCS findings with Focal Demyelination
  • Loss of conduction
    • prolonged latency, slow CV
  • Abnormal proximal (to injury) stim response - (dec amplitude) compared with distal
    • conduction block
    • if normal distal (to injury) amplitude = no axonal degeneration
ncs findings with axonal loss
NCS findings with Axonal loss
  • NCS amplitude (measures # of fibers) loss
      • Motor and sensory amplitudes can help predict degree of axon loss (comparison: with normal, proximal vs distal & side to side)
  • Distal wallerian degeneration
      • depends on distance (injury site to muscle)
    • Preservation of sensory NCS for up to 10 days
    • preservation of motor NCS for up to 7 days (NMJ)
needle emg nee
NEEDLE EMG (NEE)
  • Severe compression will cause axonal injury and lead to signs of muscle fiber injury (positive sharp waves, fibrillations).
    • Needle EMG is helpful 3- 4 weeks post injury
  • Nerve fiber recruitment is assessed.
  • “Pattern” of involvement will help localize!
  • You can also monitor “progression or recovery” (reinnervation) with needle EMG.
slide17

Conduction Block

CB & Axonal loss

case example axonal loss vs demyelination
Case Example: AXONAL loss vs DEMYELINATION
  • Ulnar Motor NCS to ADQ muscle
    • Rt Amplitude = 10 MV (BE), 10 MV (AE)
    • Lt Amplitude = 5 MV (BE), 2.5MV (AE)
  • Thus: Abnormal Lt ulnar motor with:
    • 50% Axonal loss, 5 vs 10 (BE) - Lt vs Rt
    • 50% Conduction block, 2.5 vs 5 -( AE vs BE) LT
proximal nerve entrapment syndromes
PROXIMAL NERVE ENTRAPMENT SYNDROMES

NERVE LOCATION SYNDROME MUSCLE INVOLVED

Facial Interosseus Bell’s palsy Facial, Frontalis

Sp Accessory Neck Tumor, Surg Upper Trapezius

Long Thoracic Supraclavic Trauma, Stretch Serratus Anterior

proximal nerve entrapment syndromes1
PROXIMAL NERVE ENTRAPMENT SYNDROMES

NERVE LOCATION SYNDROME MUSCLE INVOLVED

Suprascapular Suprascp Notch Backpack palsy Supra, infraspinatus

Musculo- Pierces Corac- Overuse Biceps, Brachials

cutaneous brachial coracobr.

Axillary Axilla Hum.fx Deltoid teres min

median nerve entrapment syndromes
MEDIAN NERVE ENTRAPMENT SYNDROMES

NERVE LOCATION SYNDROME MUSCLE INVOLVED

Median Lig. Struthers LOS Pro Teres Involved

Median Pro Teres M Pronator Pro Teres. Spared

Teres Syndrome

Median A.I.N Anterior FPL, FDP (I II),

Int Syn PQ

Median Carpal Tunnel Carpal Tunnel Intrinsic hand

Syndrome

median neuropathy
Median Neuropathy
  • Carpal Tunnel Syndrome- most common entrapment syndrome
    • CT encloses 9 tendons and median nerve under transverse carpal lig.
    • CTS site is 3-4 cms distal to wrist crease
    • CTS bilateral in 55%

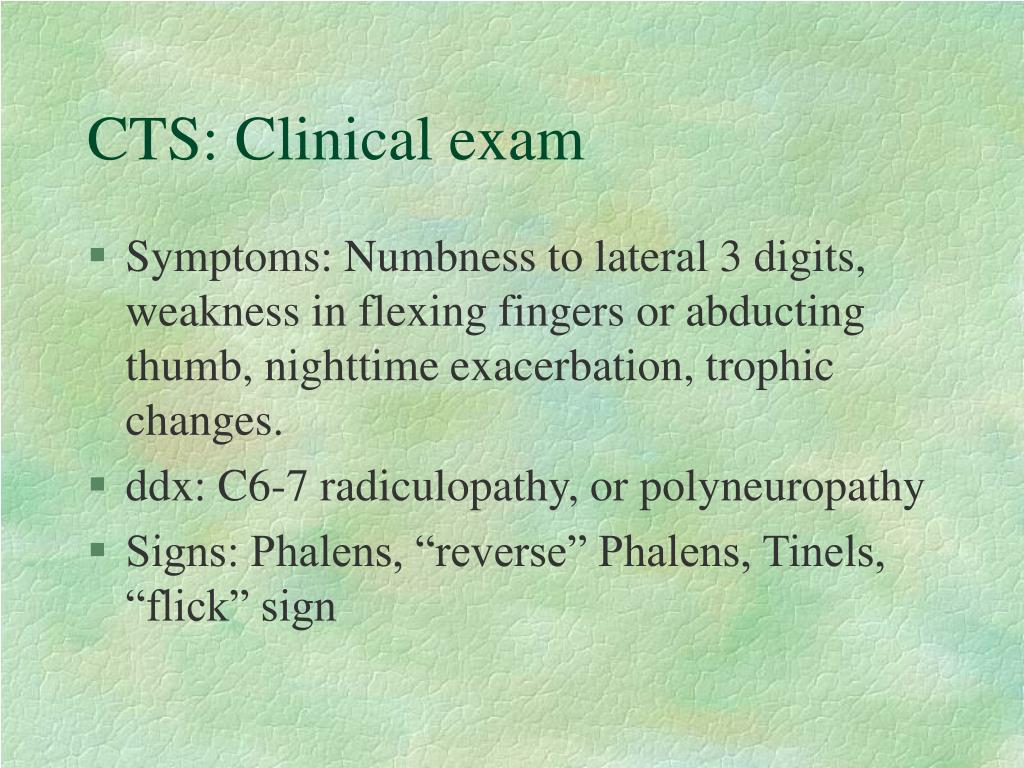

cts clinical exam
CTS: Clinical exam
  • Symptoms: Numbness to lateral 3 digits, weakness in flexing fingers or abducting thumb, nighttime exacerbation, trophic changes.
  • ddx: C6-7 radiculopathy, or polyneuropathy
  • Signs: Phalens, “reverse” Phalens, Tinels, “flick” sign
median neuropathy fun facts
Median Neuropathy: Fun Facts
  • “Hand of benedictine” - Median Neurop seen w/ finger flexion
  • “Double Crush” Syndrome (decreased axoplasmic flow predisposes for CTS) cervical radiculopathy and CTS
  • Martin-Gruber anastamosis (median to ulnar crossover of ulnar fibers). Seen 15-30%, bilat in 70% , most common M. innervated is FDI
    • larger amp with stim elbow (vs. wrist)
    • initial positive deflection in CTS
    • increased NCV in CTS
  • Canieu Riche Anomaly (Anastomosis between the recurrent branch of the median N. and the deep br. of the ulnar N.) “Ulnar hand “ to FPB and opponens
ulnar nerve entrapment syndromes
Ulnar NERVE ENTRAPMENT SYNDROMES

NERVE LOCATION SYNDROME MUSCLE INVOLVED

Lower trunk Thoracic outlet TOS All Ulnar M’s + median motor

Ulnar Ulnar Groove Tardy Ulnar +/- FCU

Palsy

Ulnar Betw Heads of Cubital Tunnel Spares FCU

FCU Syn

Ulnar Pisaform/Hamate Guyon’s Canal Ulnar Intrins

Ulnar Palm “Walker, Bike” Motor Only (FDI, Add Poll)

ulnar neuropathy at elbow
Ulnar Neuropathy at elbow
  • 2nd most common entrapment syn
    • Ulnar N superficial in UG & Cubital tunnel
    • Ulnar Groove (UG - behind med. epic) - Most common site
      • due to pressure (leaning on elbow), repetitive motion (F/E), subluxation (18%, prior trauma (“Tardy Ulnar Palsy”), valgus deformity
    • Cubital tunnel (beneath aponeurosis joining 2 heads of FCU) is 2 cm distal to UG.
ulnar neuropathy clinical exam
Ulnar Neuropathy: clinical exam
  • Ddx: C8-T1 radiculopathy, lower plexus lesion (TOS), CTS
  • Froment’s Sign, tinel, Horners (T-1),
  • Ulnar Claw hand - seen w finger extension
edx of ulnar neuropathy @elbow
Edx of Ulnar neuropathy @elbow
  • assess NCV across elbow
    • “tricky” Edx findings
    • ulnar N is “lax” in extension, and will tighten w/flexion, also can sublux
    • perform NCS with Elbox flexion 70-90 deg
    • consider SSIS (“inching”) testing across elbow (20% drop in amp is signif)
    • NEE - FDI & forearm m’s
ulnar nerve fun facts
Ulnar Nerve: Fun Facts
  • Guyon’s Canal - etiol: ganglion cyst 30%, 25% recurrent trauma, 23% acute trauma
    • Shea-McClean Classification
      • proximal canal: Motor and sensory deficits (30%)
      • distal canal : Deep motor branch only (50%)
      • superficial sensory branch to 4th and 5th digits (20%)
    • Dorsal ulnar Cutaneous N (DUC) - given off 8-10 cm proximal to wrist (does not go thru Guyons canal)
radial nerve entrapment syndromes
RADIAL NERVE ENTRAPMENT SYNDROMES

NERVE LOCATION SYNDROME MUSCLE INVOLVED

Radial Axilla Crutch Palsy Includes Triceps

Radial Spiral Groove Saturday Night Spares Triceps, weak Palsy/Fx ECR, sup, BR

Posterior Acrade of Posterior ECU, but spares

Inteross Frohse Inteross N. sup, ECR, BR

(Radial) (supinator) Synd (PIN)

SupRadial Wrist “Chiralgia” Sensory only

radial nerve fun facts
Radial Nerve: Fun Facts
  • Good prognosis in radial nerve injuries
  • Lead toxicity commonly affects radial nerve
  • Test BR muscle with forearm in “neutral” position
  • Superficial Radial N (sensory) given off proximal to supinator m
  • PIN (Post. Interosseous N.) traverses supinator thru Arcade of Froshe
  • Exam may reveal apperent weakness of interossei (ulnar) or thumb abduction (median)
le nerve entrapment syndromes
LE NERVE ENTRAPMENT SYNDROMES

NERVE LOCATION SYNDROME MUSCLE INVOLVED

Illioinguinal nerve, Genitofemoral nerve, Lateral femoral cutaneous nerve

(meralgia paresthetica), sural nerve, all rarely subject to isolated lesioins

Femoral Psoas/Retroperitoneal Hip Flex/Knee Ext

Femoral Inguinal Knee ext

Saphenous Hunter’s Sensory only

Canal

Obturator Pelvis Adductors

le nerve entrapment syndromes1
LE NERVE ENTRAPMENT SYNDROMES

NERVE LOCATION SYNDROME MUSCLE INVOLVED

Superior Gluteal Hip Injections Glut min/med

Inferior Gluteal Injections Glut max

Sciatic Under Pyriform Pyriform Short head bicep

Syndrome

sciatic nerve
SCIATIC NERVE
  • Course: thru greater Sciatic Foramen, beneath pyriformus M.
    • 20% pass “thru” pyriformis (esp. peroneal division)
  • Peroneal division is most commonly involved (larger, fixed at fibula)
  • Etiology: Pelvic, hip or SI joint fractures, stretch injury, injections (SN), vaginal delivery (OBT), retropetroneal hematoma
  • Stim.site between ischeal tuberosity and gr. trochanter
peroneal nerve entrapment syndromes
PERONEAL NERVE ENTRAPMENT SYNDROMES

NERVE LOCATION SYNDROME MUSCLE INVOLVED

Common Head of Fibula Dorsiflex,

Peroneal Evertors

Deep Peroneal Distal to Fib Boot Dorsiflex, Dorsal

Web Sens

Deep Per “Ant” tarsal E.D. Brevis

Tunnel

peroneal neuropathy
Peroneal Neuropathy
  • Ddx: L5 radiculopathy
    • check ankle inversion & hamstring DTR (both abnl in L5 radic), tib post, glu med m’s
  • Etiology : leg crossing, weight loss, depression, casts, ankle injuries (stretch)
  • SHB (short head of Biceps Femoris) - thigh
  • pierces PL m (fibular tunnel)
    • then divides into sup/deep peroneal
  • Accessory Peroneal (20%) - lat malleolus
tibial nerve entrapment syndromes
TIBIAL NERVE ENTRAPMENT SYNDROMES

NERVE LOCATION SYNDROME MUSCLE INVOLVED

Tibial Under Flexor Tarsal Tunnel Intrinscs

Compart

Plantar 3/4 Toe Morton’s Sens/Pain

(Digital) Neuroma
