assemble existing lbl subcoils in open midplane dipole configuration

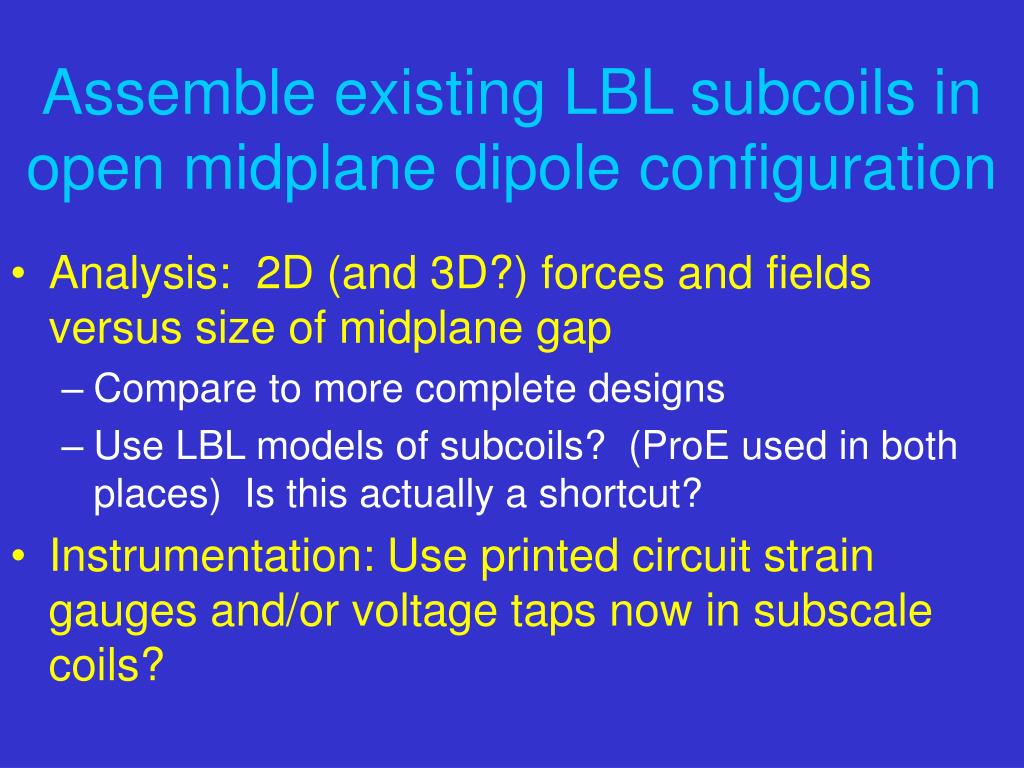

Assemble existing LBL subcoils in open midplane dipole configuration
  • Analysis: 2D (and 3D?) forces and fields versus size of midplane gap
    • Compare to more complete designs
    • Use LBL models of subcoils? (ProE used in both places) Is this actually a shortcut?
  • Instrumentation: Use printed circuit strain gauges and/or voltage taps now in subscale coils?
open midplane fixture

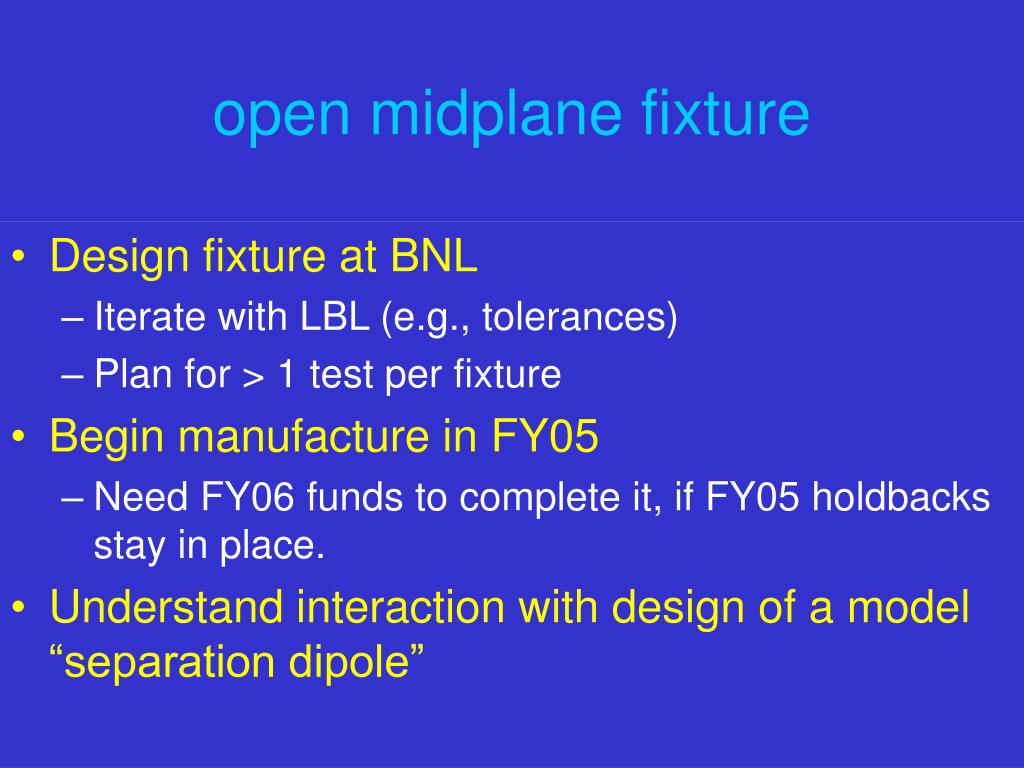

open midplane fixture
  • Design fixture at BNL
    • Iterate with LBL (e.g., tolerances)
    • Plan for > 1 test per fixture
  • Begin manufacture in FY05
    • Need FY06 funds to complete it, if FY05 holdbacks stay in place.
  • Understand interaction with design of a model “separation dipole”
base program topics

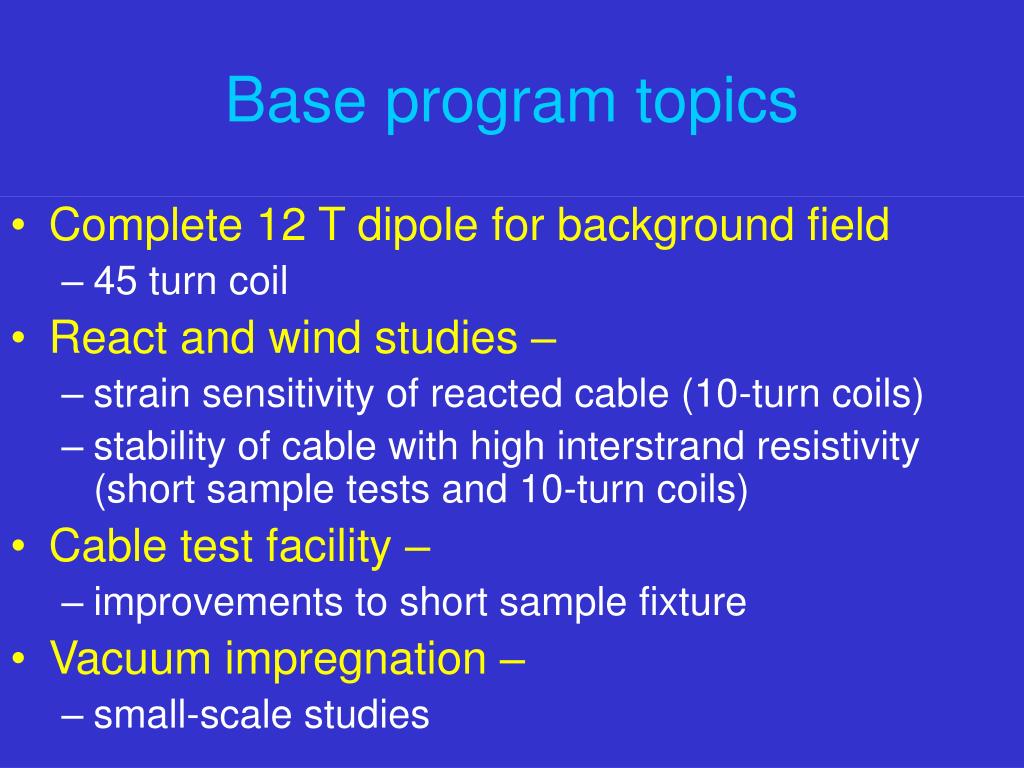

Base program topics
  • Complete 12 T dipole for background field
    • 45 turn coil
  • React and wind studies –
    • strain sensitivity of reacted cable (10-turn coils)
    • stability of cable with high interstrand resistivity (short sample tests and 10-turn coils)
  • Cable test facility –
    • improvements to short sample fixture
  • Vacuum impregnation –
    • small-scale studies
tasks for the near term
Tasks for the near term
  • Apply “explore the limits of the technologies” to FY05 and work on separation dipoles with available resources
    • Hardware deliverable important
  • Make agreements for collaborative work
  • Develop “resource-loaded schedule”
    • Milestones + budgets = task sheets

“task sheets”
