  1. PORTABLE TESTING SETUP FOR RADIO SETS

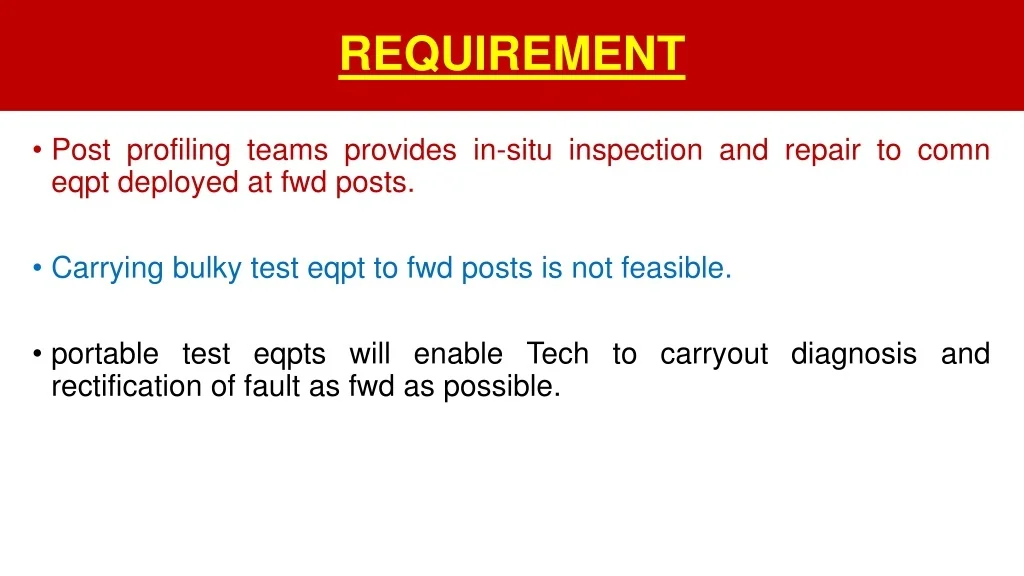

  2. REQUIREMENT • Post profiling teams provides in-situ inspection and repair to comn eqpt deployed at fwd posts. • Carrying bulky test eqpt to fwd posts is not feasible. • portable test eqpts will enable Tech to carryout diagnosis and rectification of fault as fwd as possible.

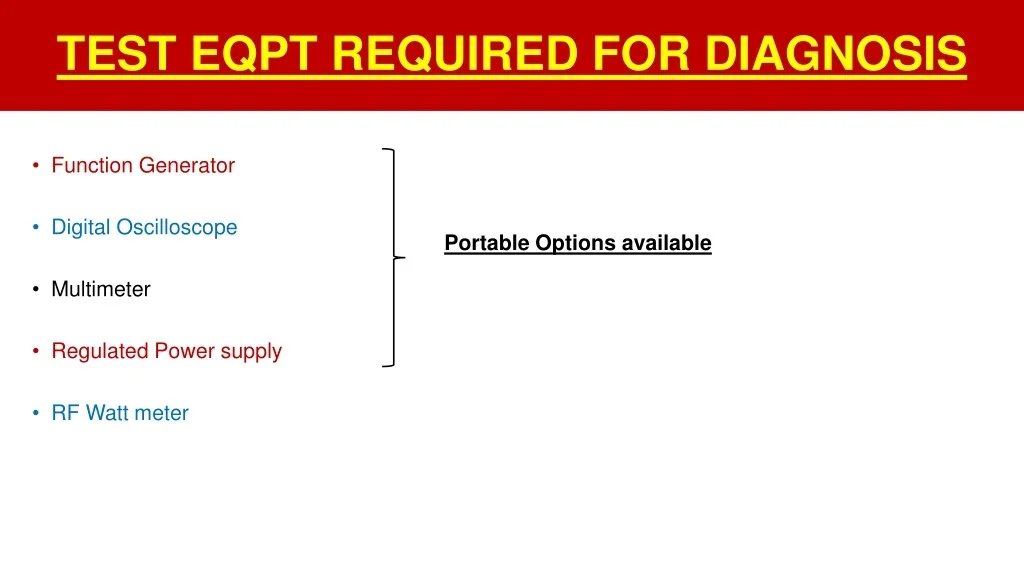

  3. TEST EQPT REQUIRED FOR DIAGNOSIS • Function Generator • Digital Oscilloscope • Multimeter • Regulated Power supply • RF Watt meter Portable Options available

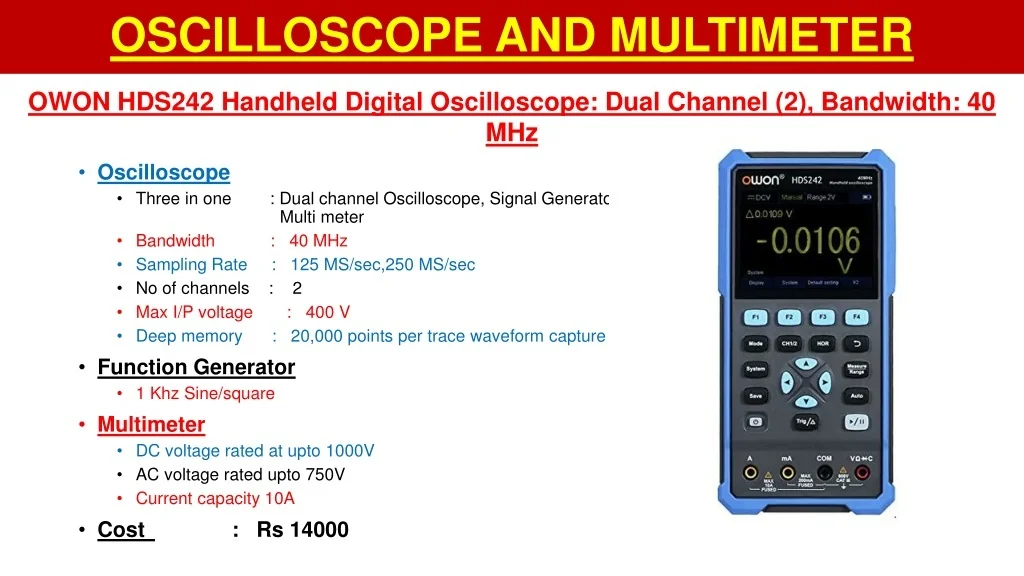

  4. OSCILLOSCOPE AND MULTIMETER OWON HDS242 Handheld Digital Oscilloscope: Dual Channel (2), Bandwidth: 40 MHz • Oscilloscope • Three in one : Dual channel Oscilloscope, Signal Generator, Multi meter • Bandwidth : 40 MHz • Sampling Rate : 125 MS/sec,250 MS/sec • No of channels : 2 • Max I/P voltage : 400 V • Deep memory : 20,000 points per trace waveform capture • Function Generator • 1 Khz Sine/square • Multimeter • DC voltage rated at upto 1000V • AC voltage rated upto 750V • Current capacity 10A • Cost : Rs 14000

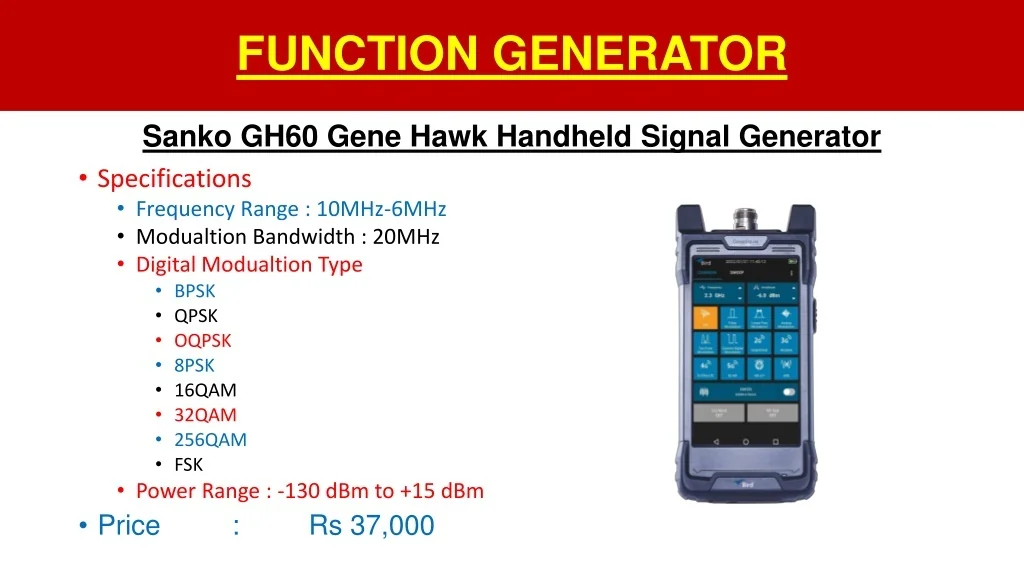

  5. FUNCTION GENERATOR Sanko GH60 Gene Hawk Handheld Signal Generator • Specifications • Frequency Range : 10MHz-6MHz • Modualtion Bandwidth : 20MHz • Digital Modualtion Type • BPSK • QPSK • OQPSK • 8PSK • 16QAM • 32QAM • 256QAM • FSK • Power Range : -130 dBm to +15 dBm • Price : Rs 37,000

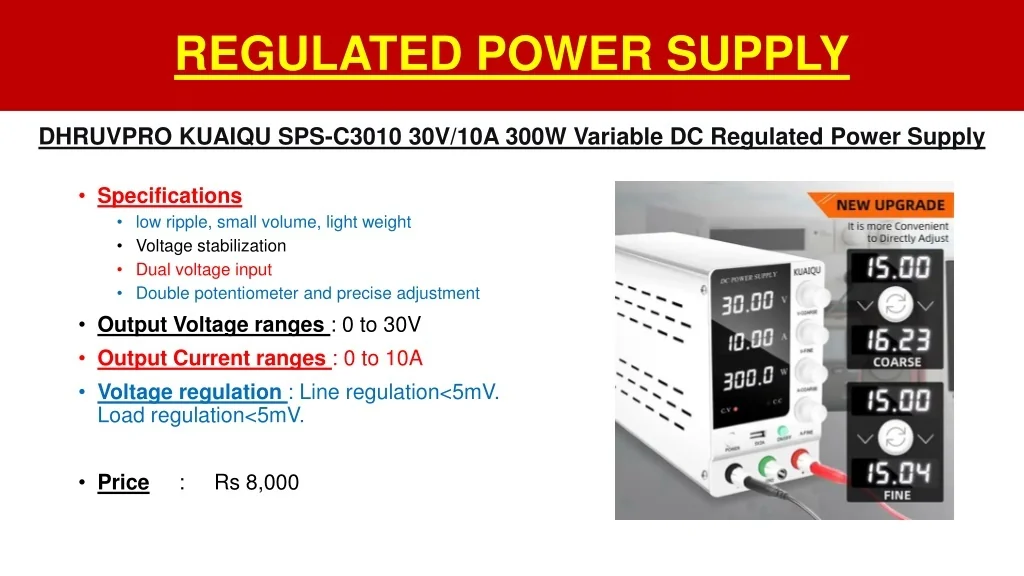

  6. REGULATED POWER SUPPLY DHRUVPRO KUAIQU SPS-C3010 30V/10A 300W Variable DC Regulated Power Supply • Specifications • low ripple, small volume, light weight • Voltage stabilization • Dual voltage input • Double potentiometer and precise adjustment • Output Voltage ranges : 0 to 30V • Output Current ranges : 0 to 10A • Voltage regulation : Line regulation<5mV. Load regulation<5mV. • Price : Rs 8,000

  7. THANK YOU
