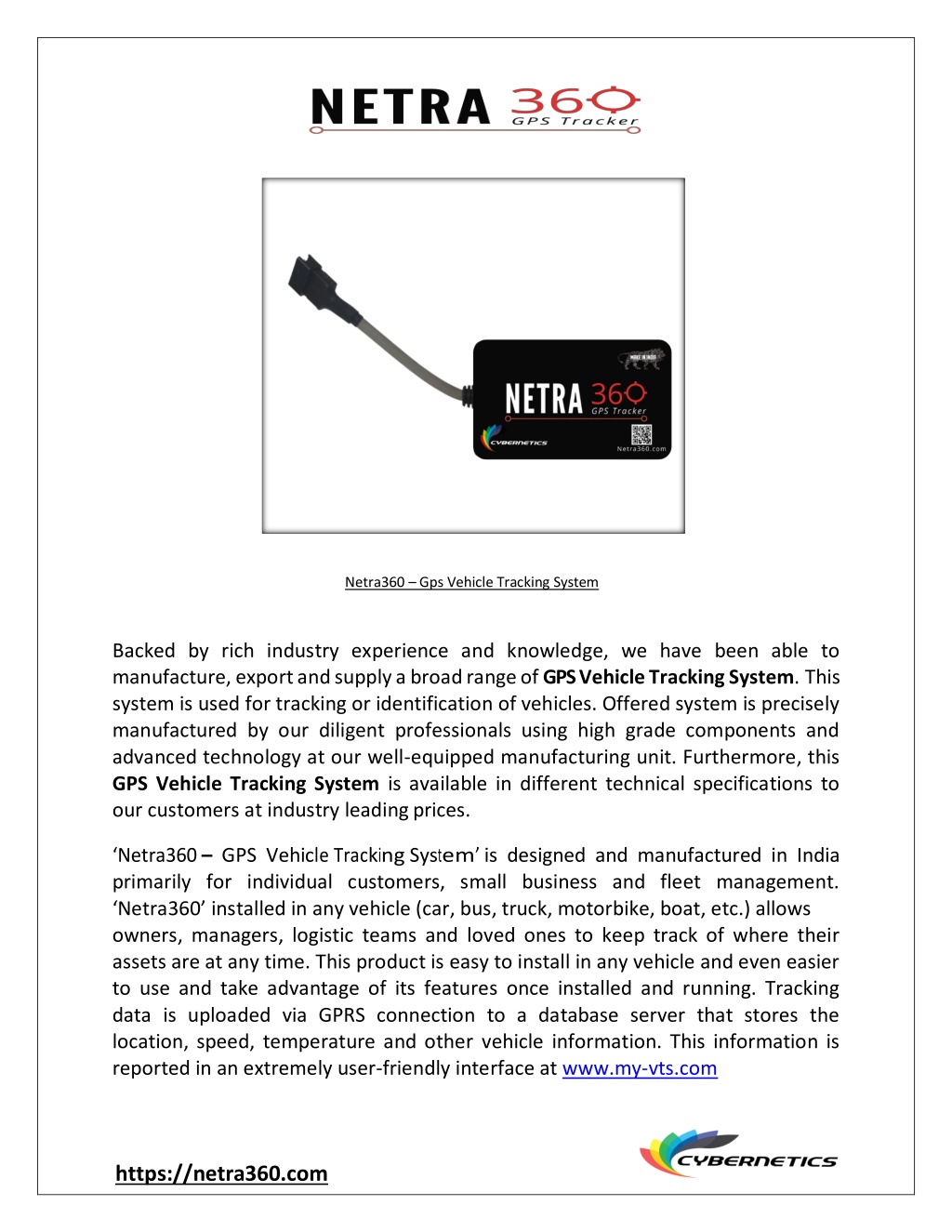

1. Netra360 – Gps Vehicle Tracking System Backed by rich industry experience and knowledge, we have been able to manufacture, export and supply a broad range of GPSVehicle Tracking System. This system is used for tracking or identification of vehicles. Offered system is precisely manufactured by our diligent professionals using high grade components and advanced technology at our well-equipped manufacturing unit. Furthermore, this GPSVehicle Tracking System is available in different technical specifications to our customers at industry leading prices. ‘Netra360–GPS VehicleTracking System’ is designed and manufactured in India primarily for individual customers, small business and fleet management. ‘Netra360’ installed in any vehicle (car, bus, truck, motorbike, boat, etc.) allows owners, managers, logistic teams and loved ones to keep track of where their assets are at any time. This product is easy to install in any vehicle and even easier to use and take advantage of its features once installed and running. Tracking data is uploaded via GPRS connection to a database server that stores the location, speed, temperature and other vehicle information. This information is reported in an extremely user-friendly interface at www.my-vts.com https://netra360.com

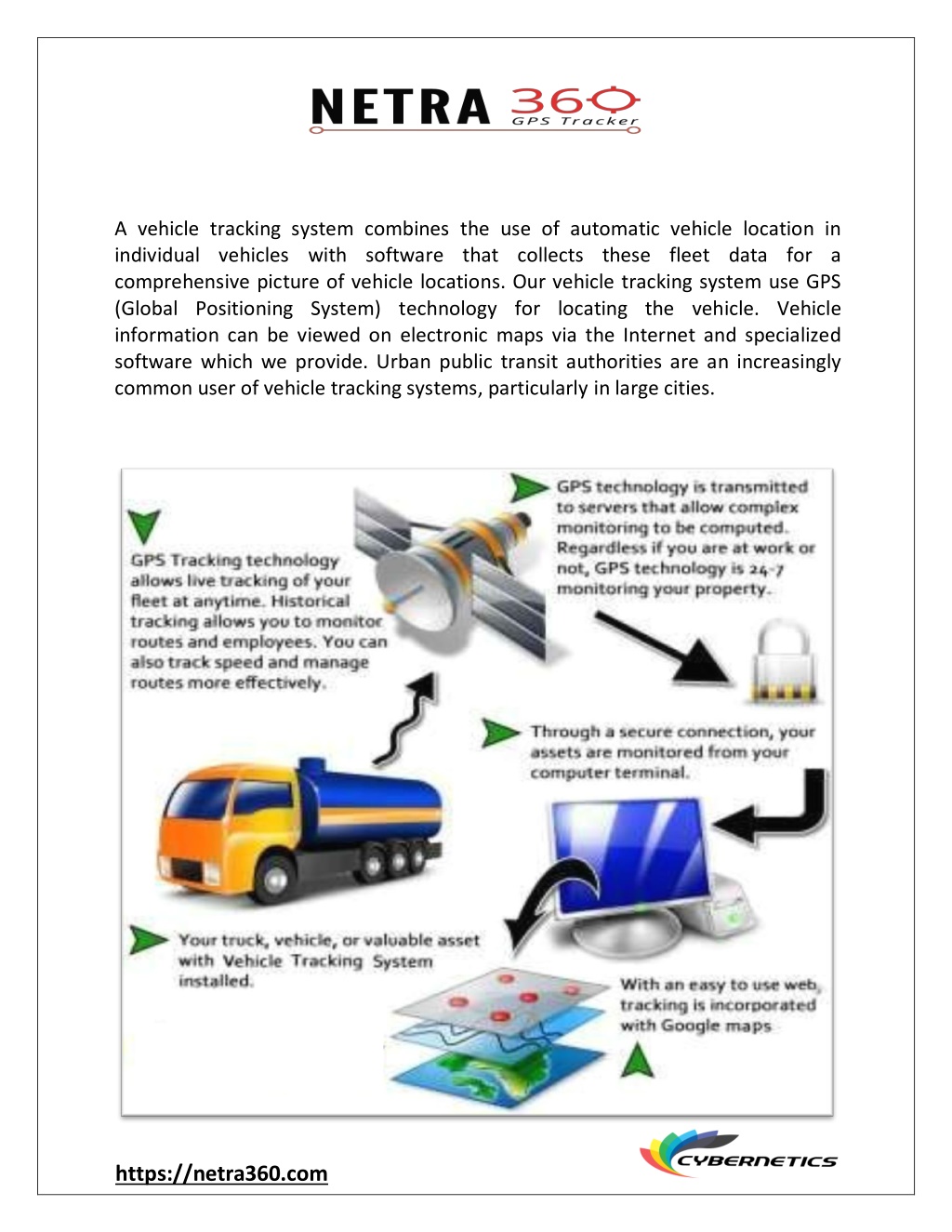

2. A vehicle tracking system combines the use of automatic vehicle location in individual vehicles with software that collects these fleet data for a comprehensive picture of vehicle locations. Our vehicle tracking system use GPS (Global Positioning System) technology for locating the vehicle. Vehicle information can be viewed on electronic maps via the Internet and specialized software which we provide. Urban public transit authorities are an increasingly common user of vehicle tracking systems, particularly in large cities. https://netra360.com

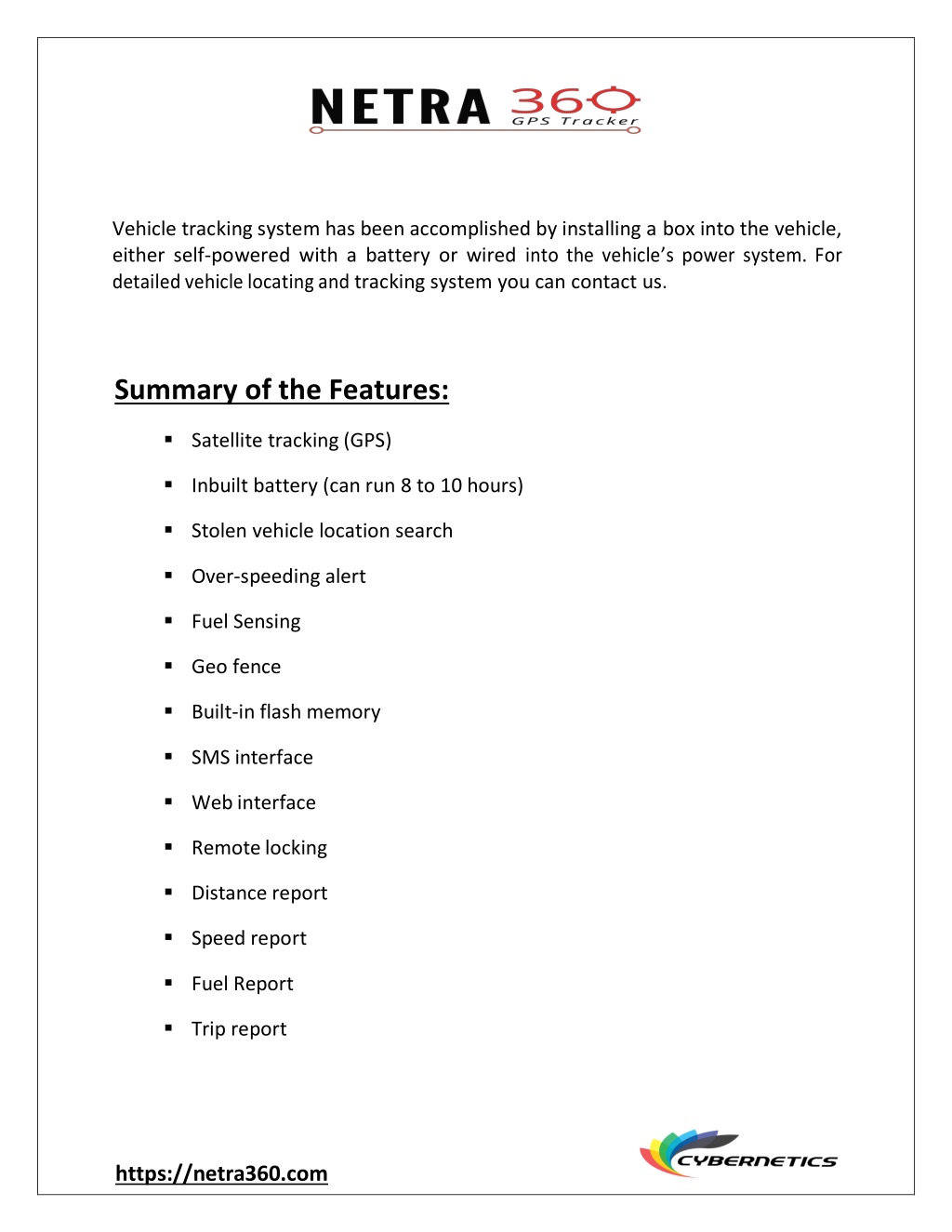

3. Vehicle tracking system has been accomplished by installing a box into the vehicle, either self-powered with a battery or wired into the vehicle’s power system. For detailed vehicle locating and tracking system you can contact us. Summary of the Features: Satellite tracking (GPS) Inbuilt battery (can run 8 to 10 hours) Stolen vehicle location search Over-speeding alert Fuel Sensing Geo fence Built-in flash memory SMS interface Web interface Remote locking Distance report Speed report Fuel Report Trip report https://netra360.com

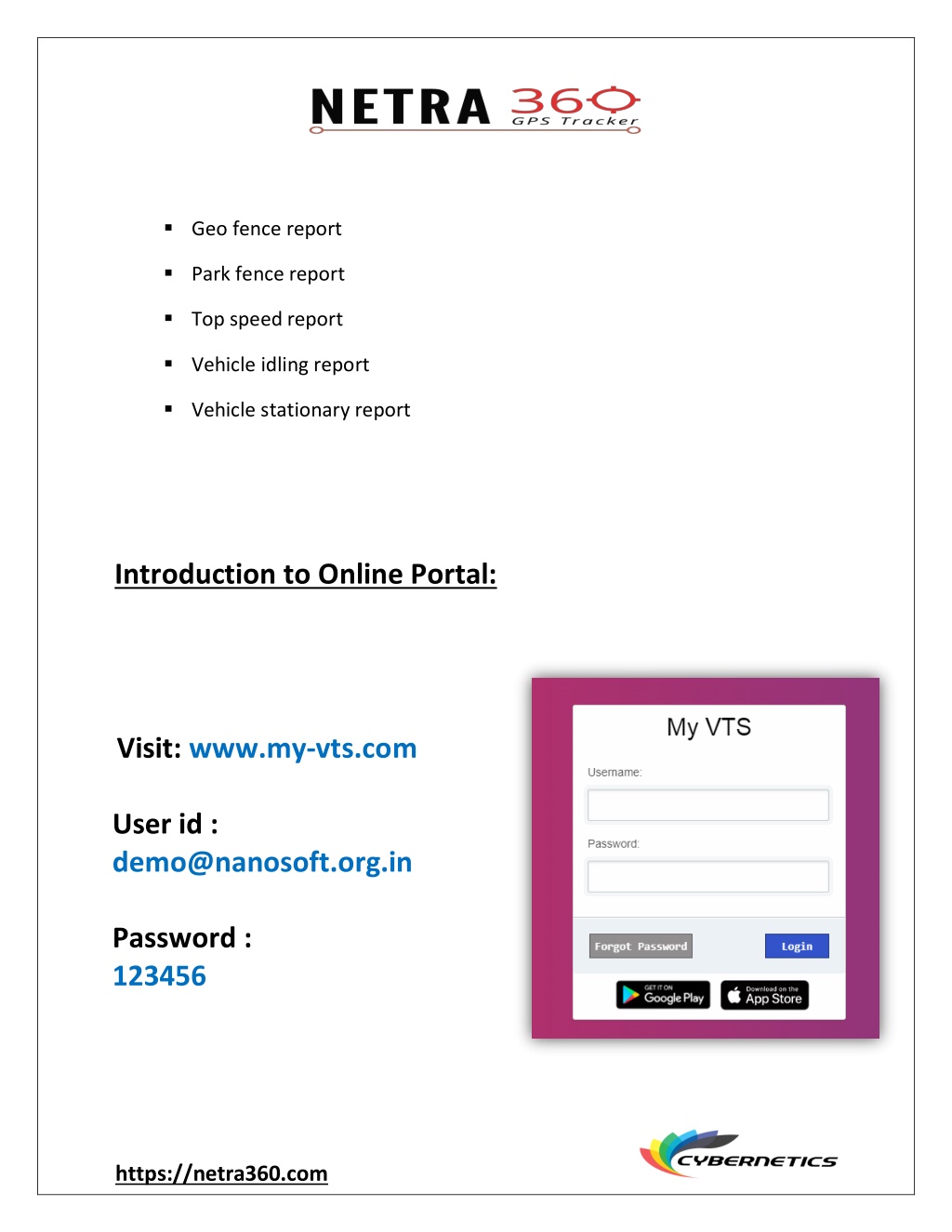

4. Geo fence report Park fence report Top speed report Vehicle idling report Vehicle stationary report Introduction to Online Portal: Visit: www.my-vts.com User id : demo@nanosoft.org.in Password : 123456 https://netra360.com

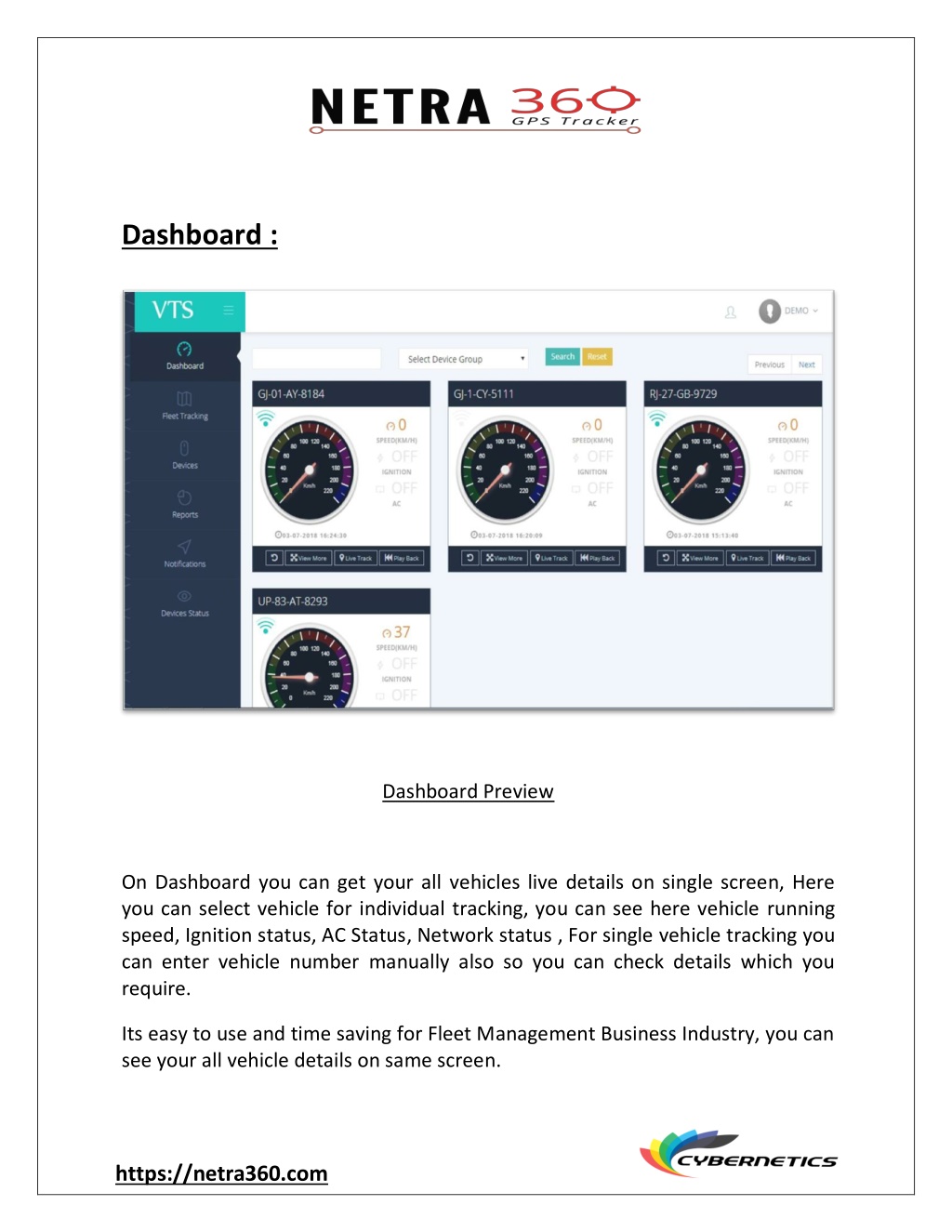

5. Dashboard : Dashboard Preview On Dashboard you can get your all vehicles live details on single screen, Here you can select vehicle for individual tracking, you can see here vehicle running speed, Ignition status, AC Status, Network status , For single vehicle tracking you can enter vehicle number manually also so you can check details which you require. Its easy to use and time saving for Fleet Management Business Industry, you can see your all vehicle details on same screen. https://netra360.com

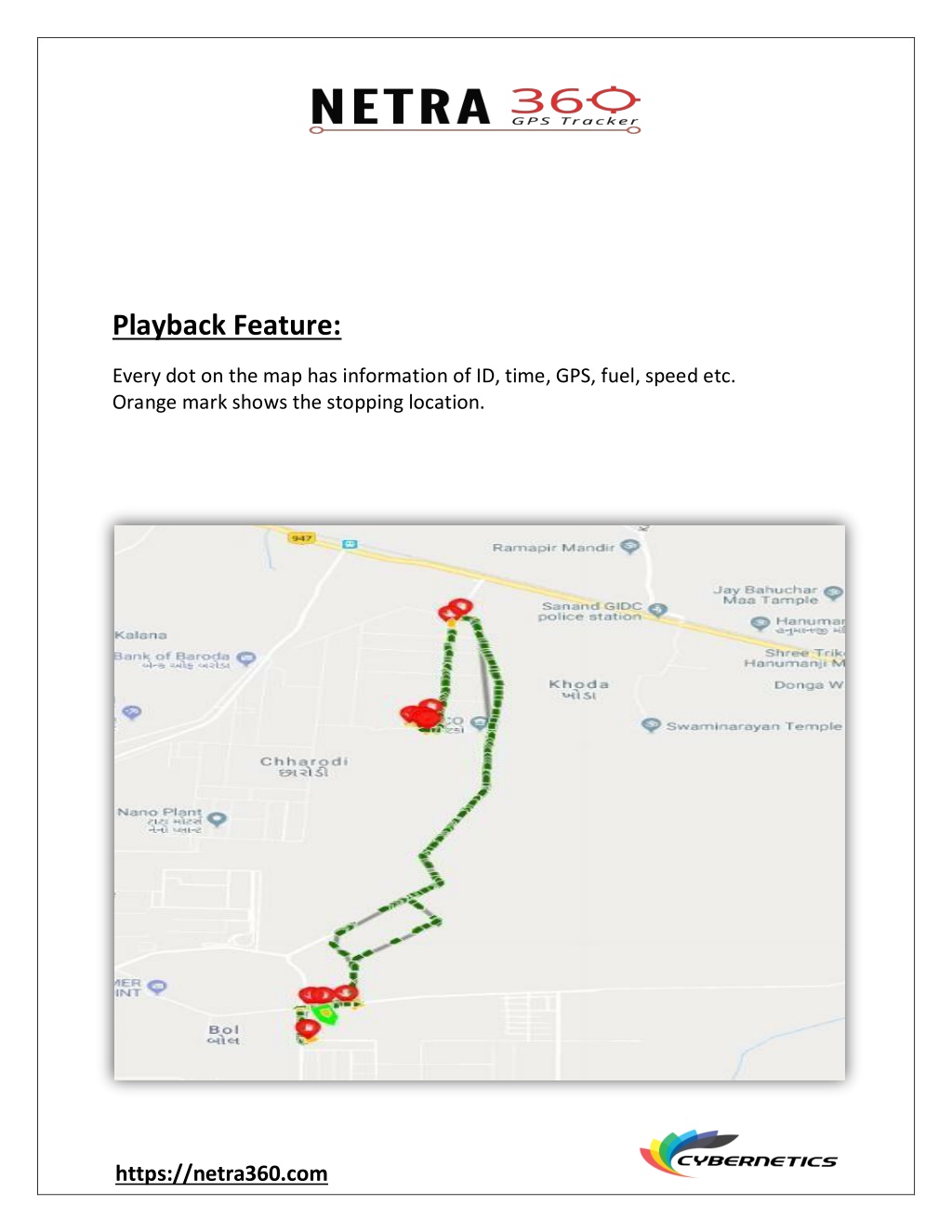

6. Playback Feature: Every dot on the map has information of ID, time, GPS, fuel, speed etc. Orange mark shows the stopping location. https://netra360.com

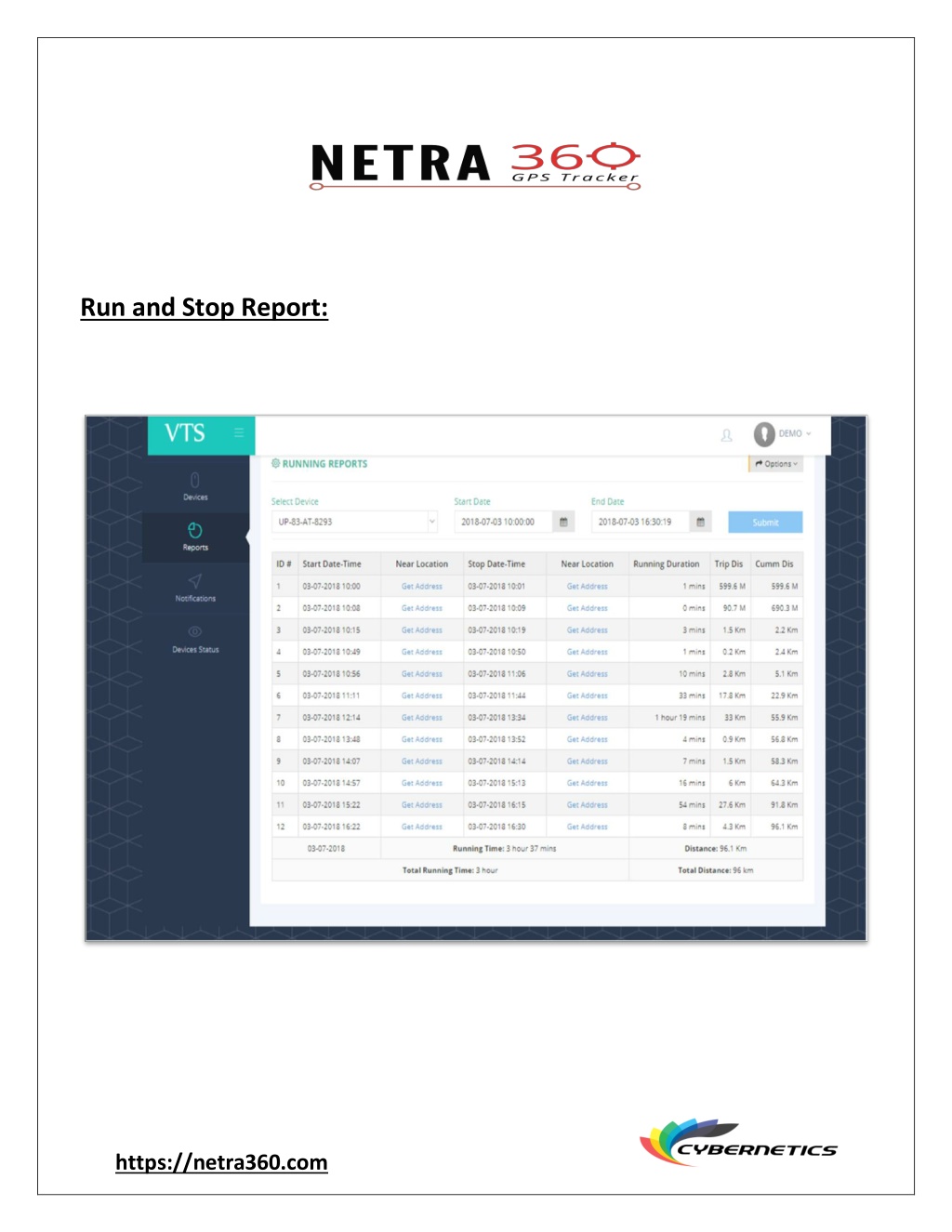

7. Run and Stop Report: https://netra360.com

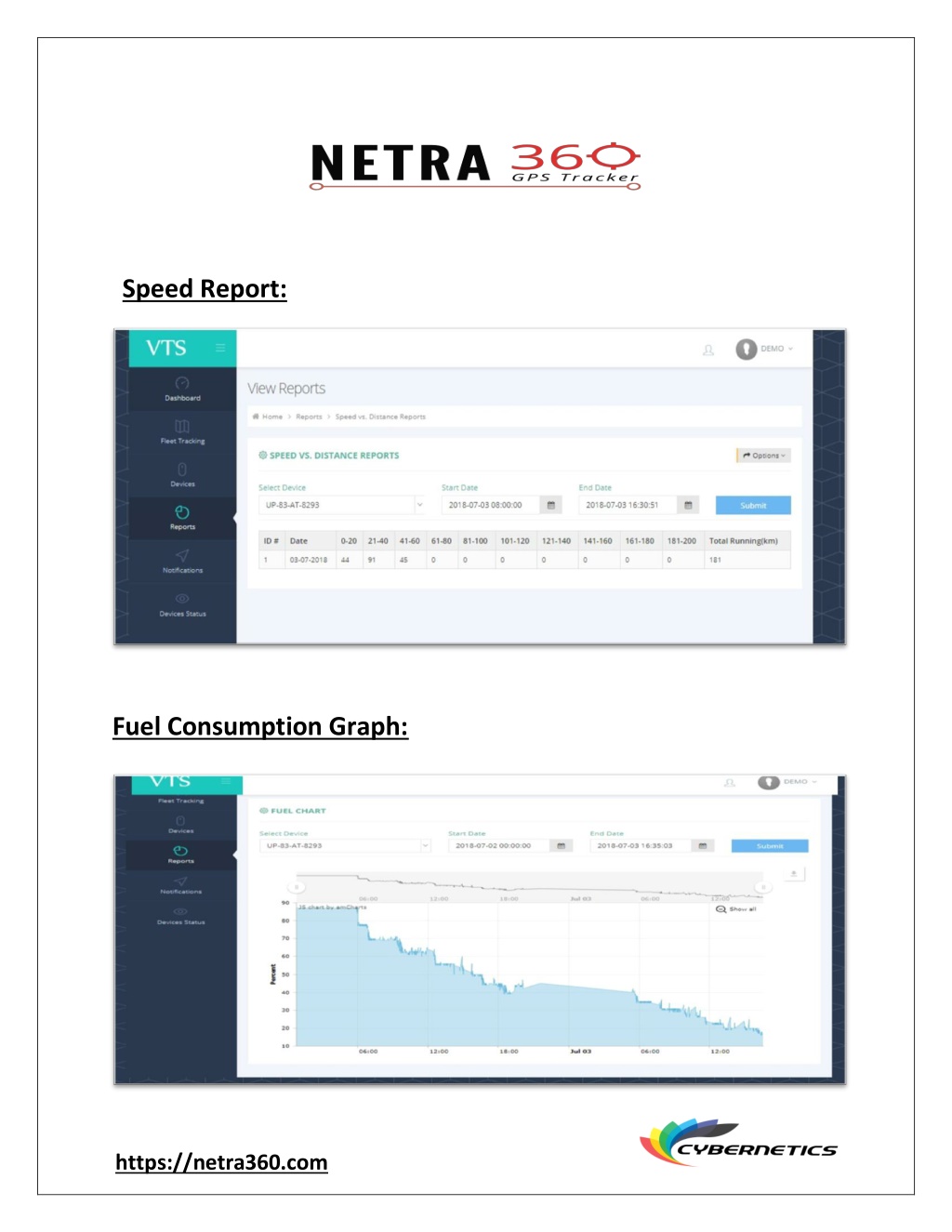

8. Speed Report: Fuel Consumption Graph: https://netra360.com

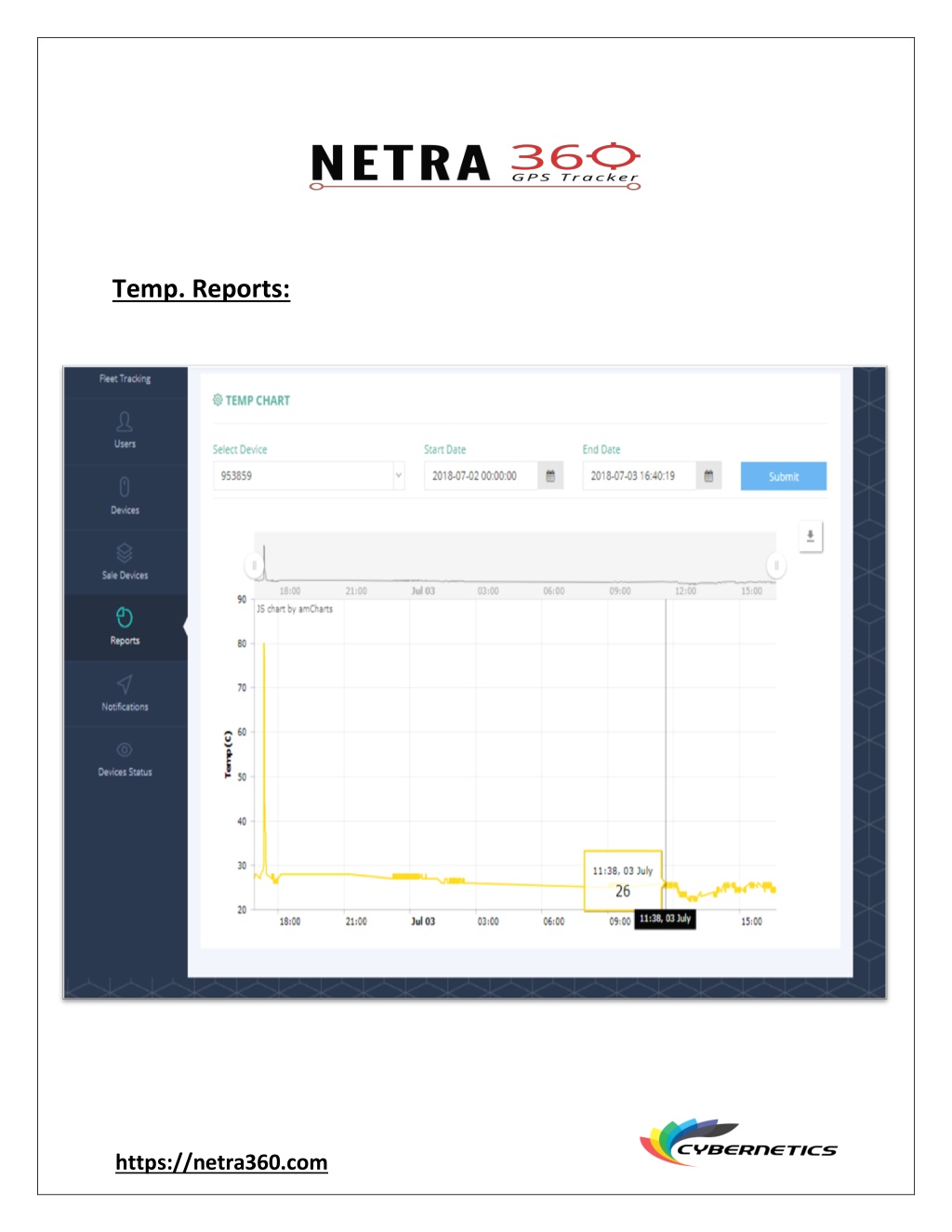

9. Temp. Reports: https://netra360.com

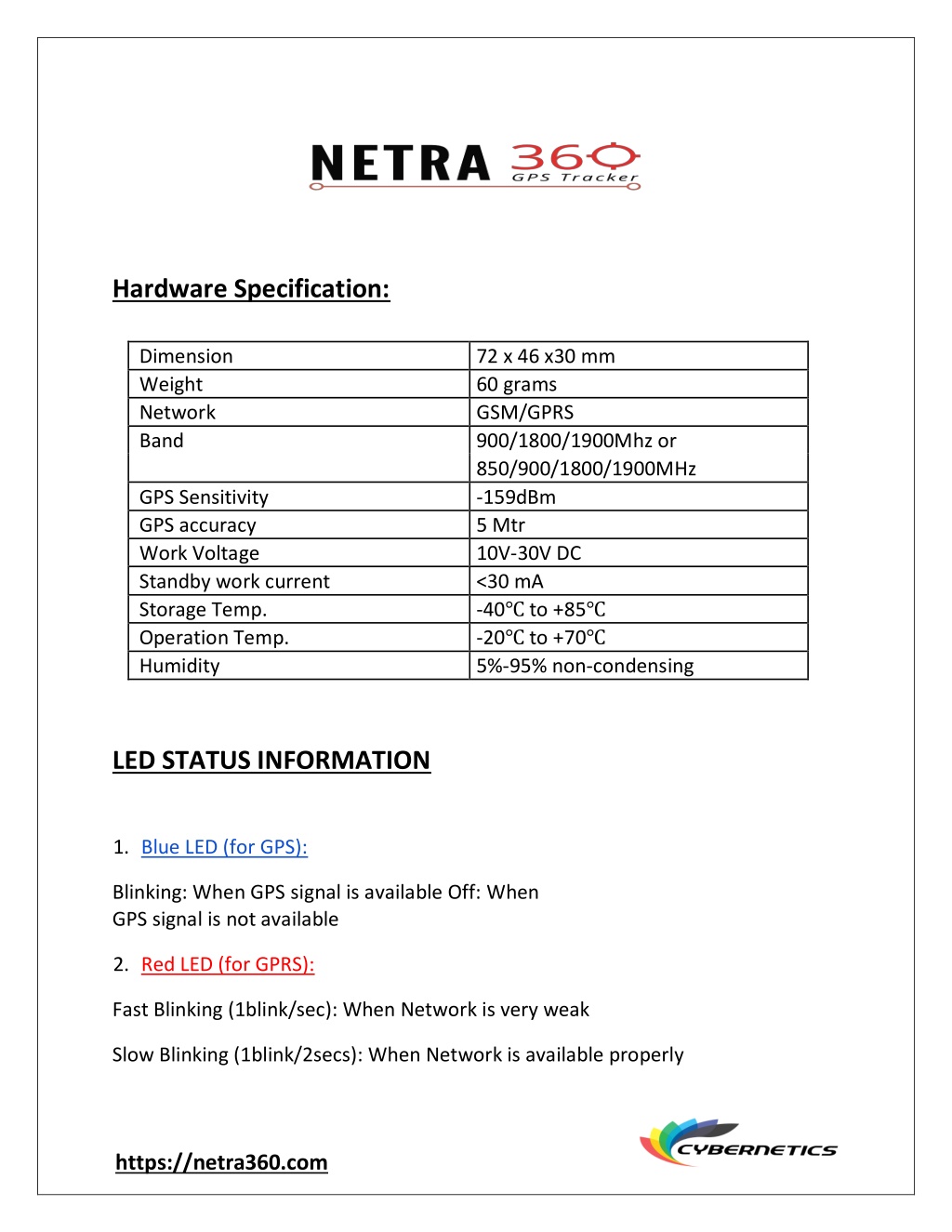

10. Hardware Specification: Dimension Weight Network Band 72 x 46 x30 mm 60 grams GSM/GPRS 900/1800/1900Mhz or 850/900/1800/1900MHz -159dBm 5 Mtr 10V-30V DC <30 mA -40℃ to +85℃ -20℃ to +70℃ 5%-95% non-condensing GPS Sensitivity GPS accuracy Work Voltage Standby work current Storage Temp. Operation Temp. Humidity LED STATUS INFORMATION 1.Blue LED (for GPS): Blinking: When GPS signal is available Off: When GPS signal is not available 2.Red LED (for GPRS): Fast Blinking (1blink/sec): When Network is very weak Slow Blinking (1blink/2secs): When Network is available properly https://netra360.com

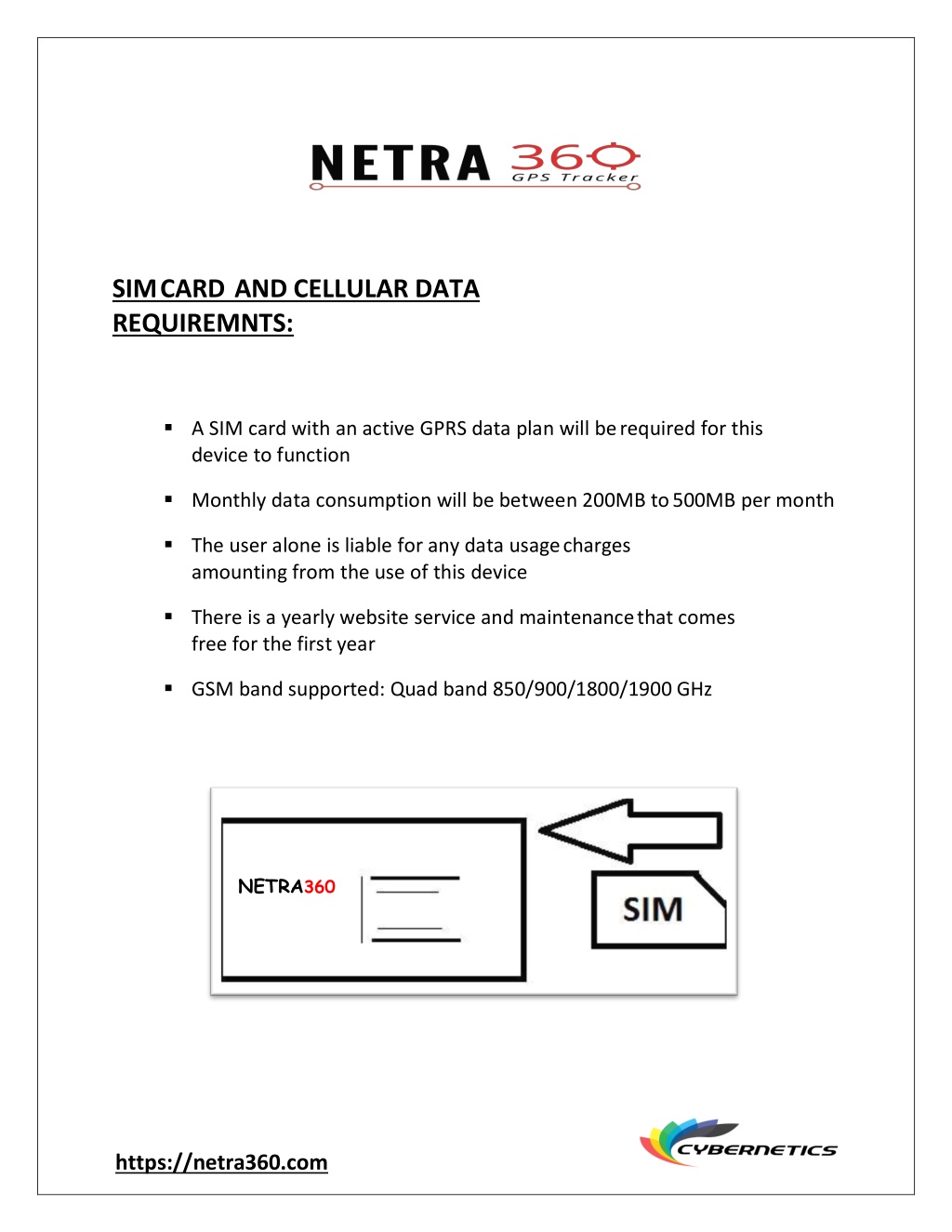

11. SIM CARD AND CELLULAR DATA REQUIREMNTS: A SIM card with an active GPRS data plan will be required for this device to function Monthly data consumption will be between 200MB to 500MB per month The user alone is liable for any data usage charges amounting from the use of this device There is a yearly website service and maintenance that comes free for the first year GSM band supported: Quad band 850/900/1800/1900 GHz NETRA360 https://netra360.com

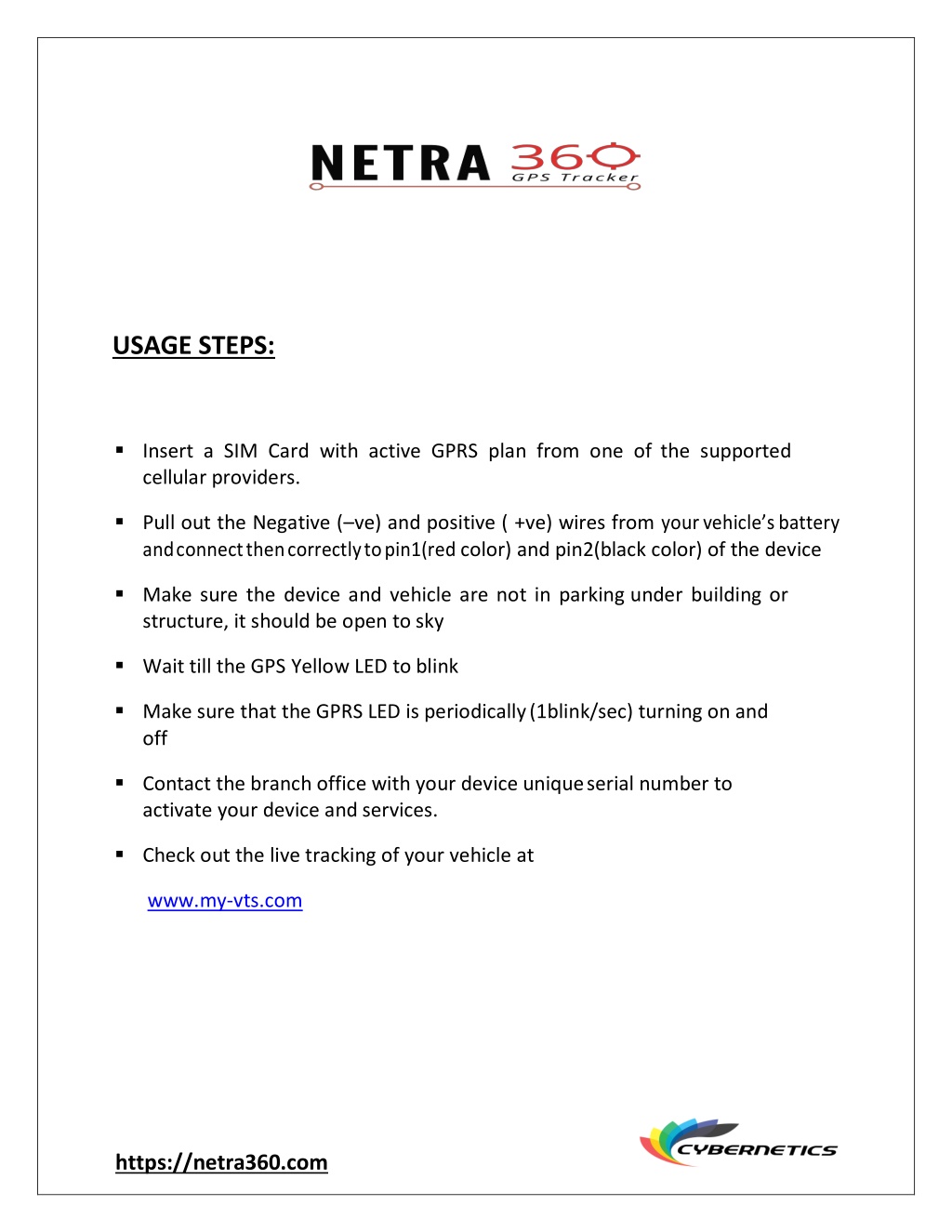

12. USAGE STEPS: Insert a SIM Card with active GPRS plan from one of the supported cellular providers. Pull out the Negative (–ve) and positive ( +ve) wires from your vehicle’s battery and connect then correctly to pin1(red color) and pin2(black color) of the device Make sure the device and vehicle are not in parking under building or structure, it should be open to sky Wait till the GPS Yellow LED to blink Make sure that the GPRS LED is periodically (1blink/sec) turning on and off Contact the branch office with your device unique serial number to activate your device and services. Check out the live tracking of your vehicle at www.my-vts.com https://netra360.com

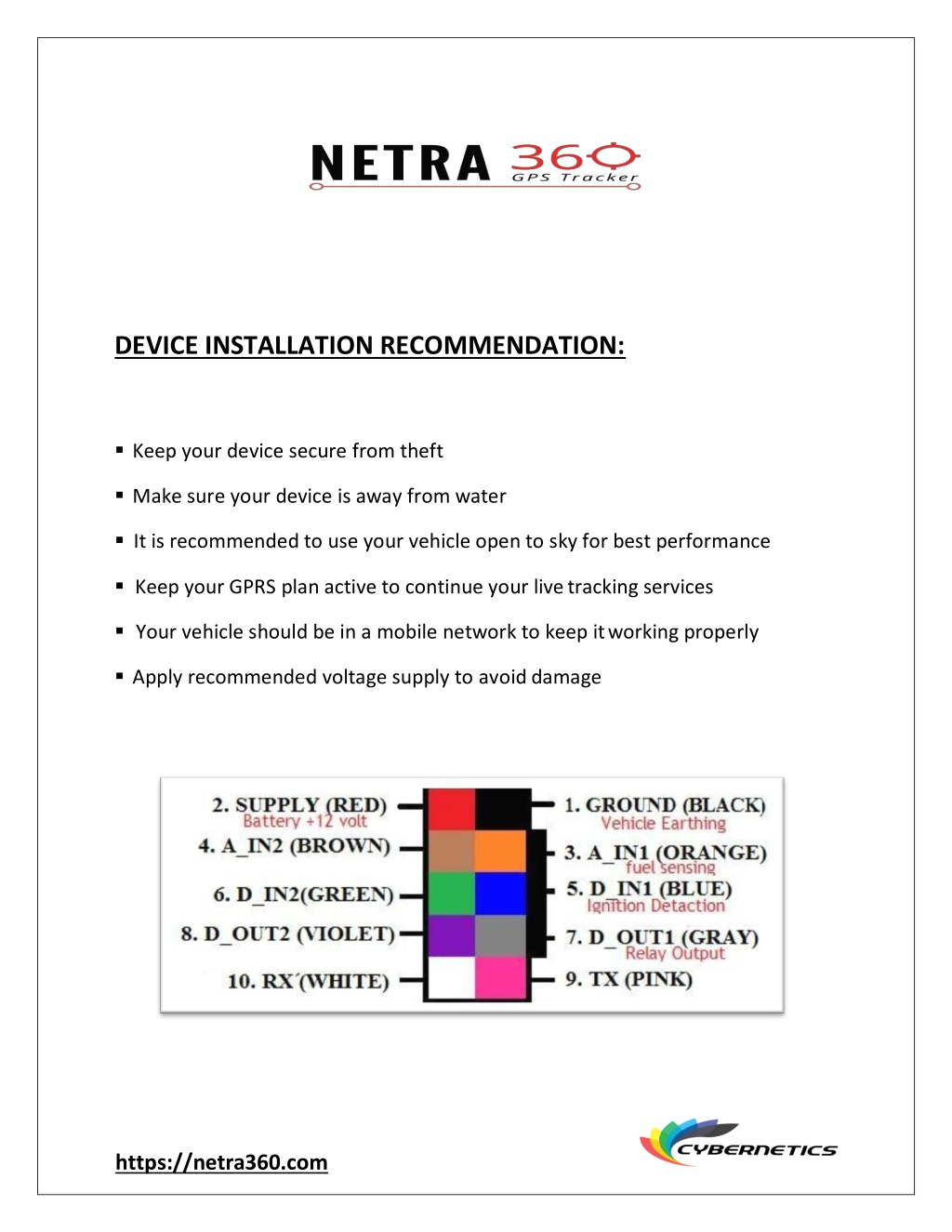

13. DEVICE INSTALLATION RECOMMENDATION:  Keep your device secure from theft  Make sure your device is away from water It is recommended to use your vehicle open to sky for best performance Keep your GPRS plan active to continue your live tracking services  Your vehicle should be in a mobile network to keep it working properly  Apply recommended voltage supply to avoid damage https://netra360.com

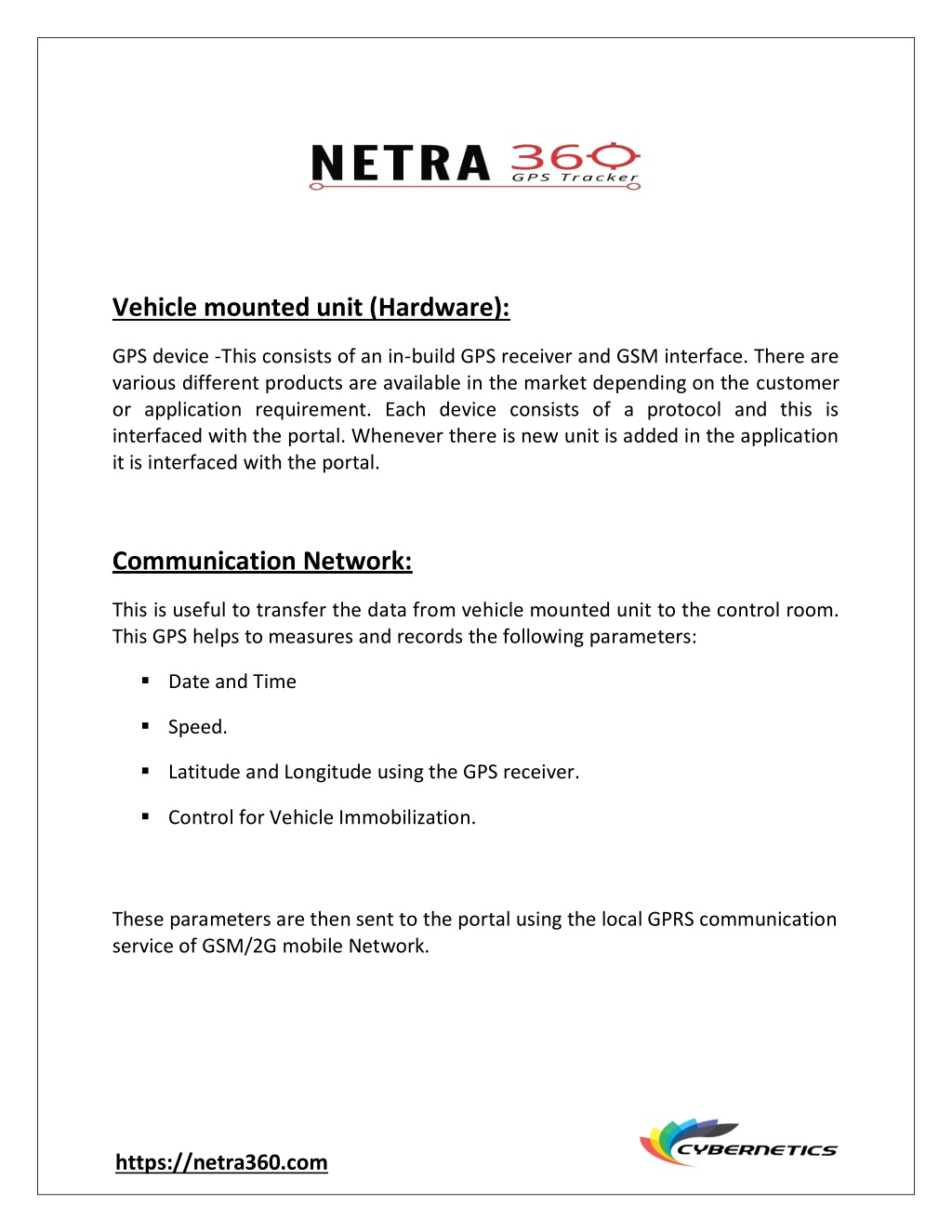

14. Vehicle mounted unit (Hardware): GPS device -This consists of an in-build GPS receiver and GSM interface. There are various different products are available in the market depending on the customer or application requirement. Each device consists of a protocol and this is interfaced with the portal. Whenever there is new unit is added in the application it is interfaced with the portal. Communication Network: This is useful to transfer the data from vehicle mounted unit to the control room. This GPS helps to measures and records the following parameters: Date and Time Speed. Latitude and Longitude using the GPS receiver. Control for Vehicle Immobilization. These parameters are then sent to the portal using the local GPRS communication service of GSM/2G mobile Network. https://netra360.com

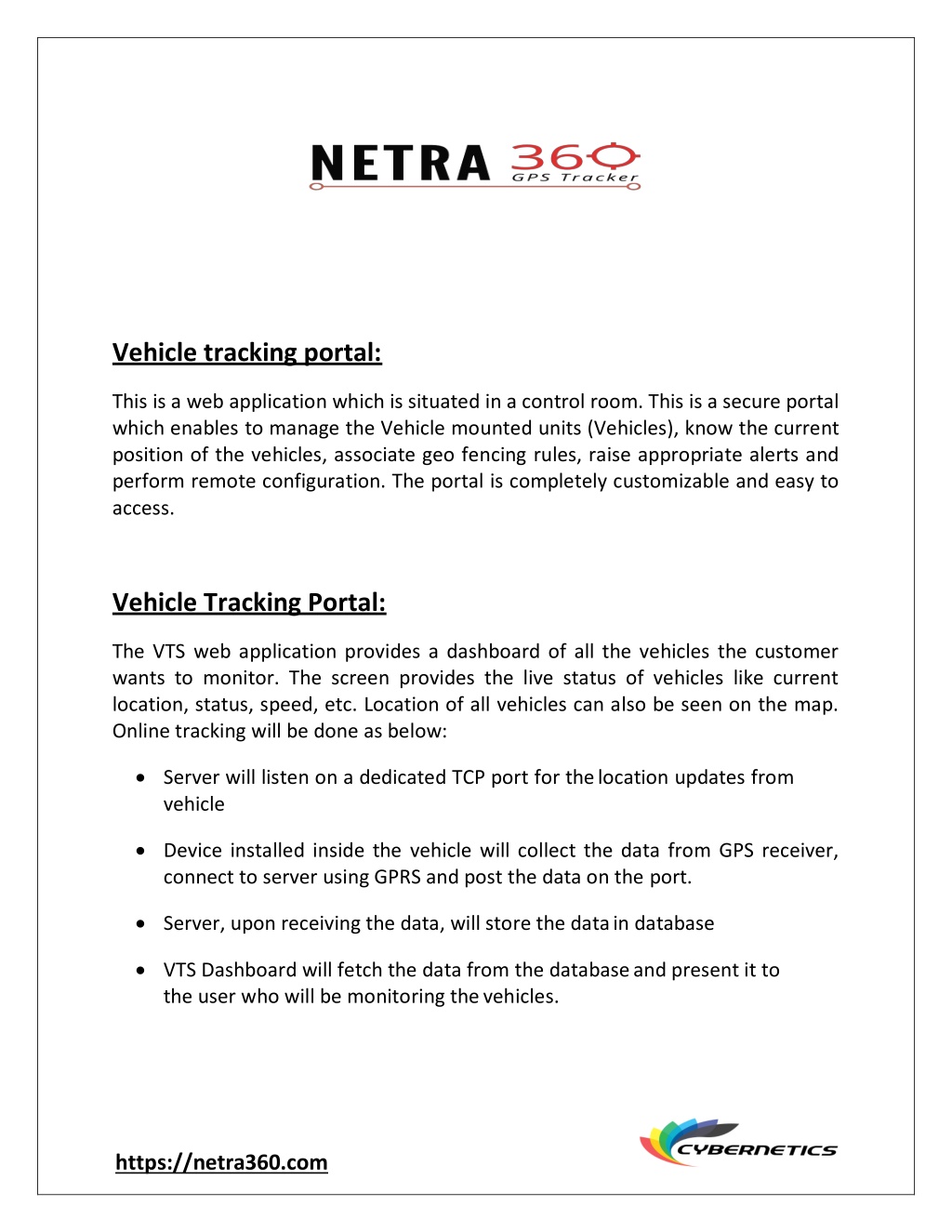

15. Vehicle tracking portal: This is a web application which is situated in a control room. This is a secure portal which enables to manage the Vehicle mounted units (Vehicles), know the current position of the vehicles, associate geo fencing rules, raise appropriate alerts and perform remote configuration. The portal is completely customizable and easy to access. Vehicle Tracking Portal: The VTS web application provides a dashboard of all the vehicles the customer wants to monitor. The screen provides the live status of vehicles like current location, status, speed, etc. Location of all vehicles can also be seen on the map. Online tracking will be done as below: Server will listen on a dedicated TCP port for the location updates from vehicle Device installed inside the vehicle will collect the data from GPS receiver, connect to server using GPRS and post the data on the port. Server, upon receiving the data, will store the data in database VTS Dashboard will fetch the data from the database and present it to the user who will be monitoring the vehicles. https://netra360.com

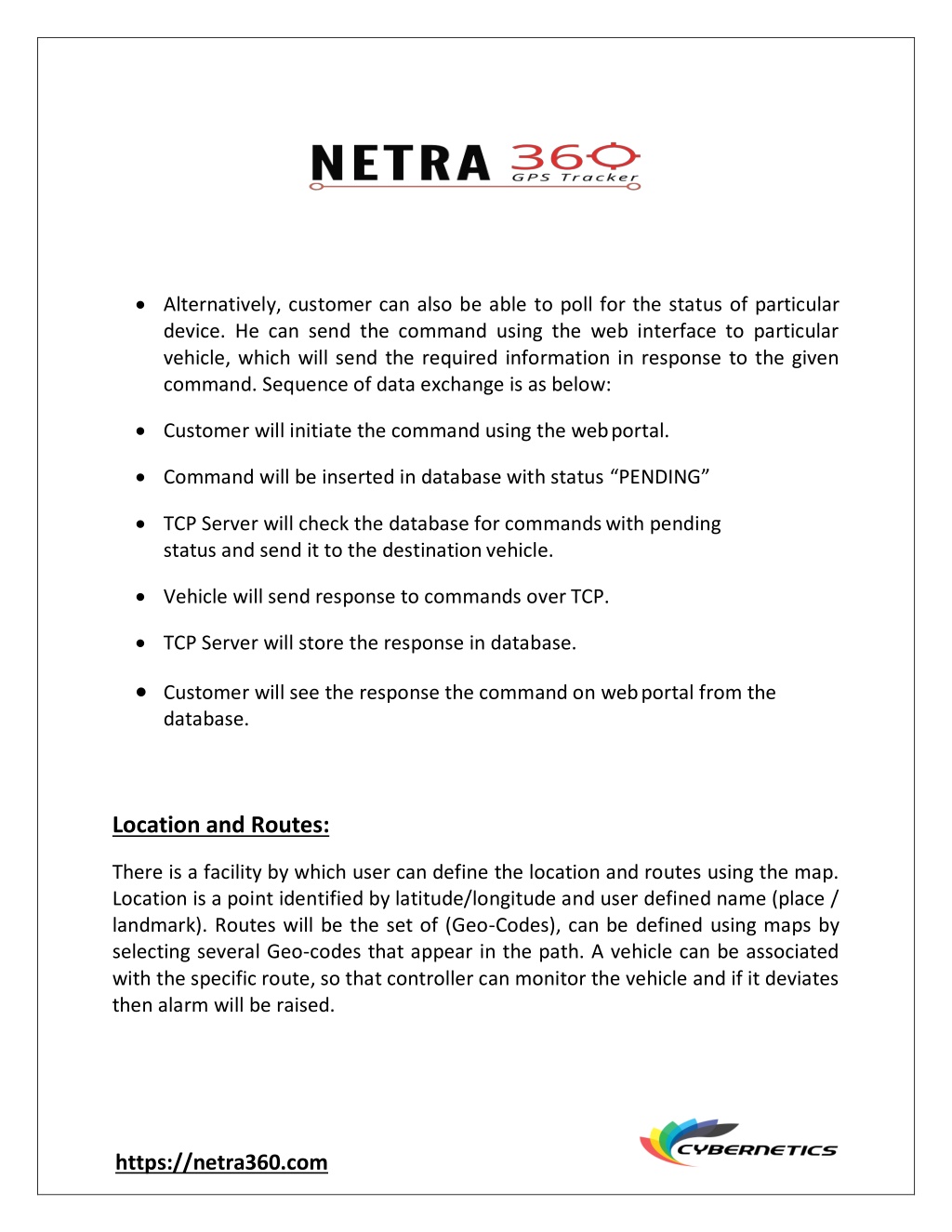

16. Alternatively, customer can also be able to poll for the status of particular device. He can send the command using the web interface to particular vehicle, which will send the required information in response to the given command. Sequence of data exchange is as below: Customer will initiate the command using the web portal. Command will be inserted in database with status “PENDING” TCP Server will check the database for commands with pending status and send it to the destination vehicle. Vehicle will send response to commands over TCP. TCP Server will store the response in database. Customer will see the response the command on web portal from the database. Location and Routes: There is a facility by which user can define the location and routes using the map. Location is a point identified by latitude/longitude and user defined name (place / landmark). Routes will be the set of (Geo-Codes), can be defined using maps by selecting several Geo-codes that appear in the path. A vehicle can be associated with the specific route, so that controller can monitor the vehicle and if it deviates then alarm will be raised. https://netra360.com

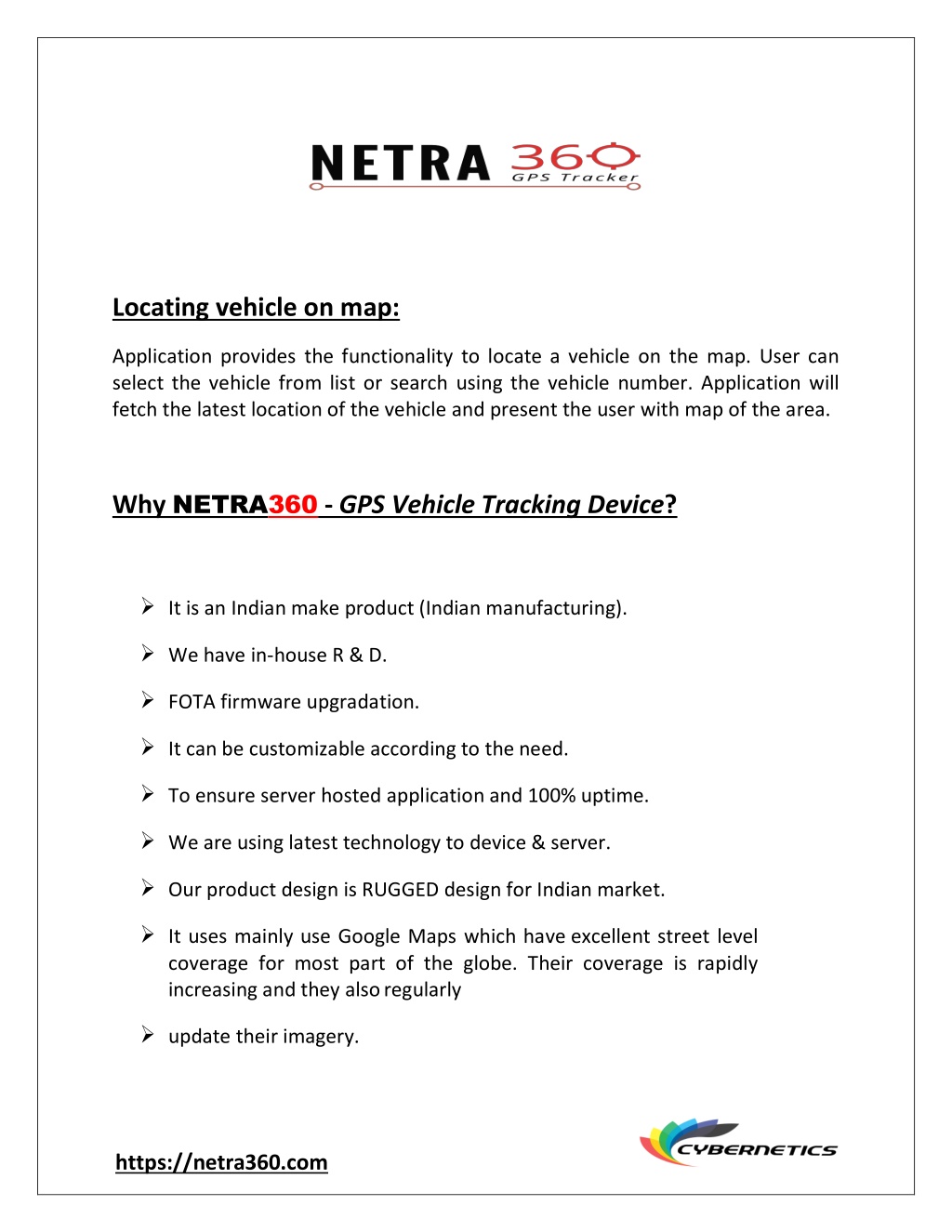

17. Locating vehicle on map: Application provides the functionality to locate a vehicle on the map. User can select the vehicle from list or search using the vehicle number. Application will fetch the latest location of the vehicle and present the user with map of the area. Why NETRA360 - GPS Vehicle Tracking Device? It is an Indian make product (Indian manufacturing). We have in-house R & D. FOTA firmware upgradation. It can be customizable according to the need. To ensure server hosted application and 100% uptime. We are using latest technology to device & server. Our product design is RUGGED design for Indian market. It uses mainly use Google Maps which have excellent street level coverage for most part of the globe. Their coverage is rapidly increasing and they also regularly update their imagery. https://netra360.com

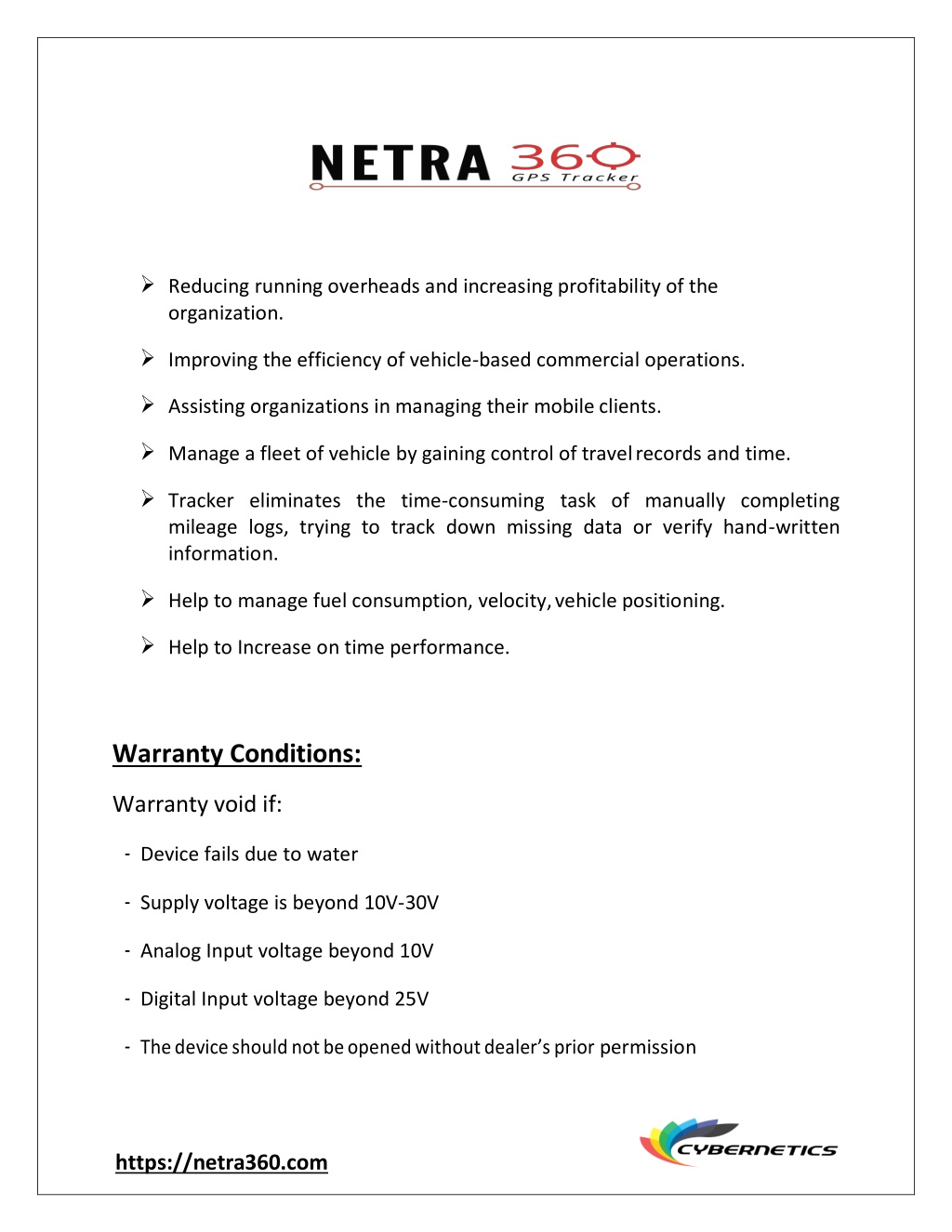

18. Reducing running overheads and increasing profitability of the organization. Improving the efficiency of vehicle-based commercial operations. Assisting organizations in managing their mobile clients. Manage a fleet of vehicle by gaining control of travel records and time. Tracker eliminates the time-consuming task of manually completing mileage logs, trying to track down missing data or verify hand-written information. Help to manage fuel consumption, velocity, vehicle positioning. Help to Increase on time performance. Warranty Conditions: Warranty void if: -Device fails due to water -Supply voltage is beyond 10V-30V -Analog Input voltage beyond 10V -Digital Input voltage beyond 25V -The device should not be opened without dealer’s prior permission https://netra360.com

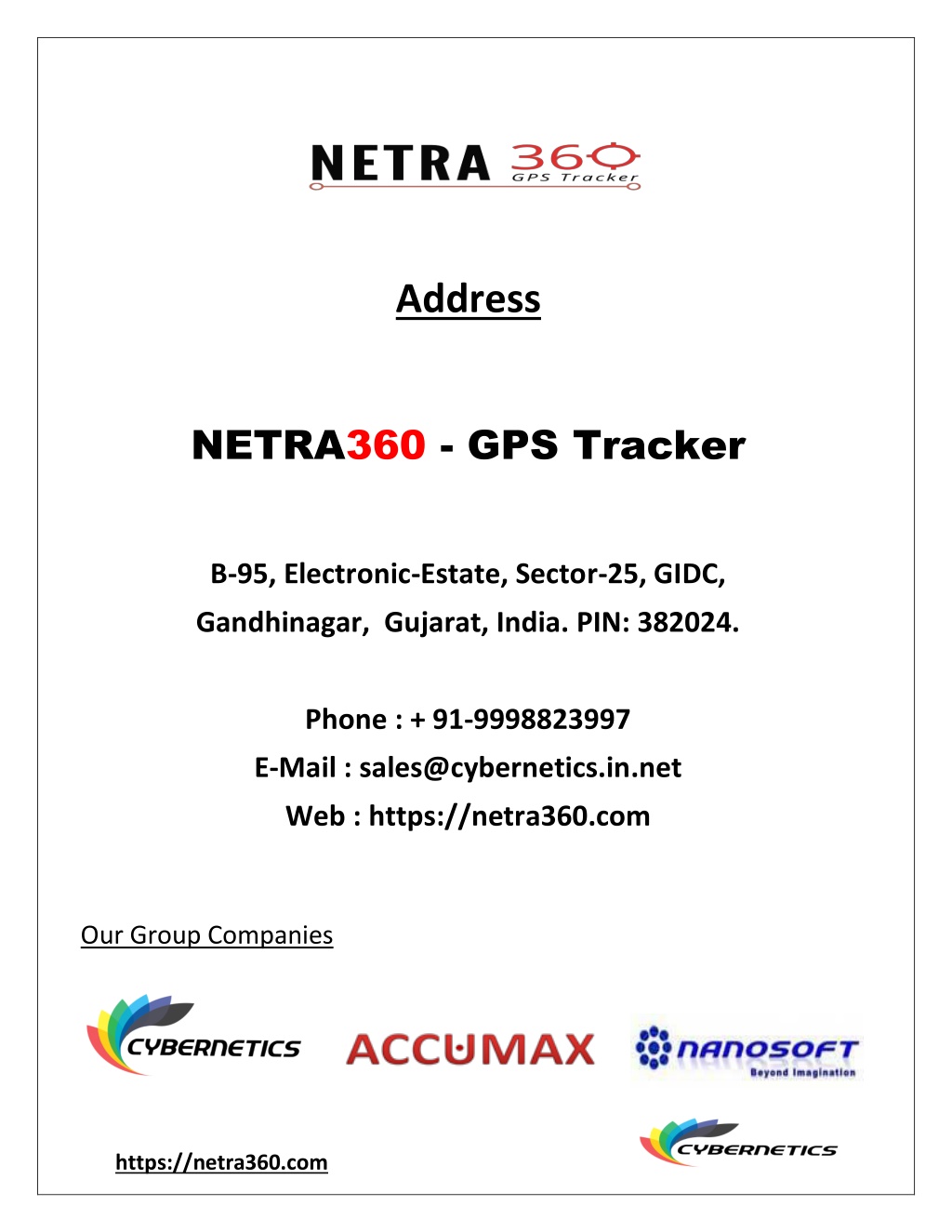

19. Address NETRA360 - GPS Tracker B-95, Electronic-Estate, Sector-25, GIDC, Gandhinagar, Gujarat, India. PIN: 382024. Phone : + 91-9998823997 E-Mail : sales@cybernetics.in.net Web : https://netra360.com Our Group Companies https://netra360.com
