The Complete Guide to Stick Welding Procedure & Fume Extraction Systems

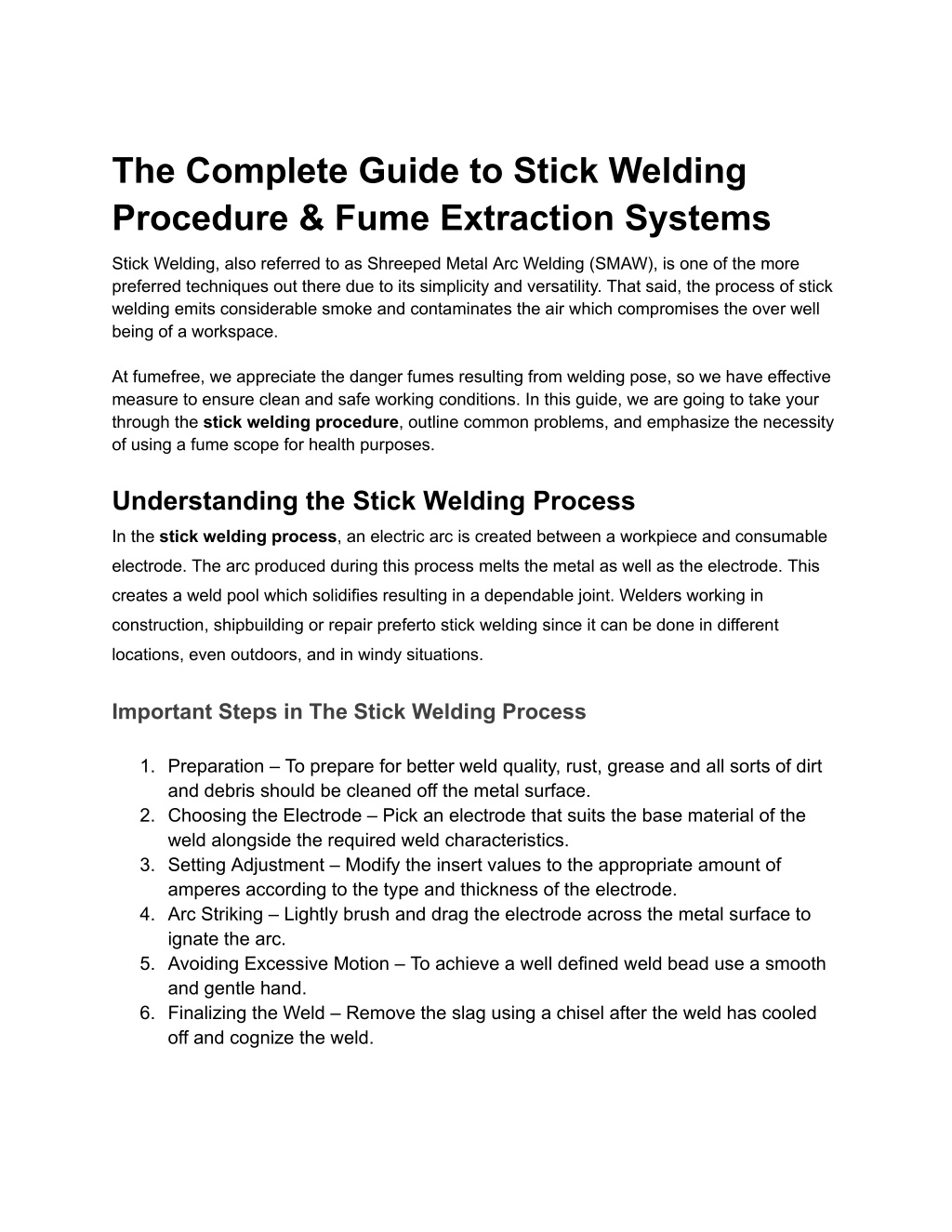

1. The Complete Guide to Stick Welding Procedure & Fume Extraction Systems Stick Welding, also referred to as Shreeped Metal Arc Welding (SMAW), is one of the more preferred techniques out there due to its simplicity and versatility. That said, the process of stick welding emits considerable smoke and contaminates the air which compromises the over well being of a workspace. At fumefree, we appreciate the danger fumes resulting from welding pose, so we have effective measure to ensure clean and safe working conditions. In this guide, we are going to take your through the stick welding procedure, outline common problems, and emphasize the necessity of using a fume scope for health purposes. Understanding the Stick Welding Process In the stick welding process, an electric arc is created between a workpiece and consumable electrode. The arc produced during this process melts the metal as well as the electrode. This creates a weld pool which solidifies resulting in a dependable joint. Welders working in construction, shipbuilding or repair preferto stick welding since it can be done in different locations, even outdoors, and in windy situations. Important Steps in The Stick Welding Process 1. Preparation – To prepare for better weld quality, rust, grease and all sorts of dirt and debris should be cleaned off the metal surface. 2. Choosing the Electrode – Pick an electrode that suits the base material of the weld alongside the required weld characteristics. 3. Setting Adjustment – Modify the insert values to the appropriate amount of amperes according to the type and thickness of the electrode. 4. Arc Striking – Lightly brush and drag the electrode across the metal surface to ignate the arc. 5. Avoiding Excessive Motion – To achieve a well defined weld bead use a smooth and gentle hand. 6. Finalizing the Weld – Remove the slag using a chisel after the weld has cooled off and cognize the weld.

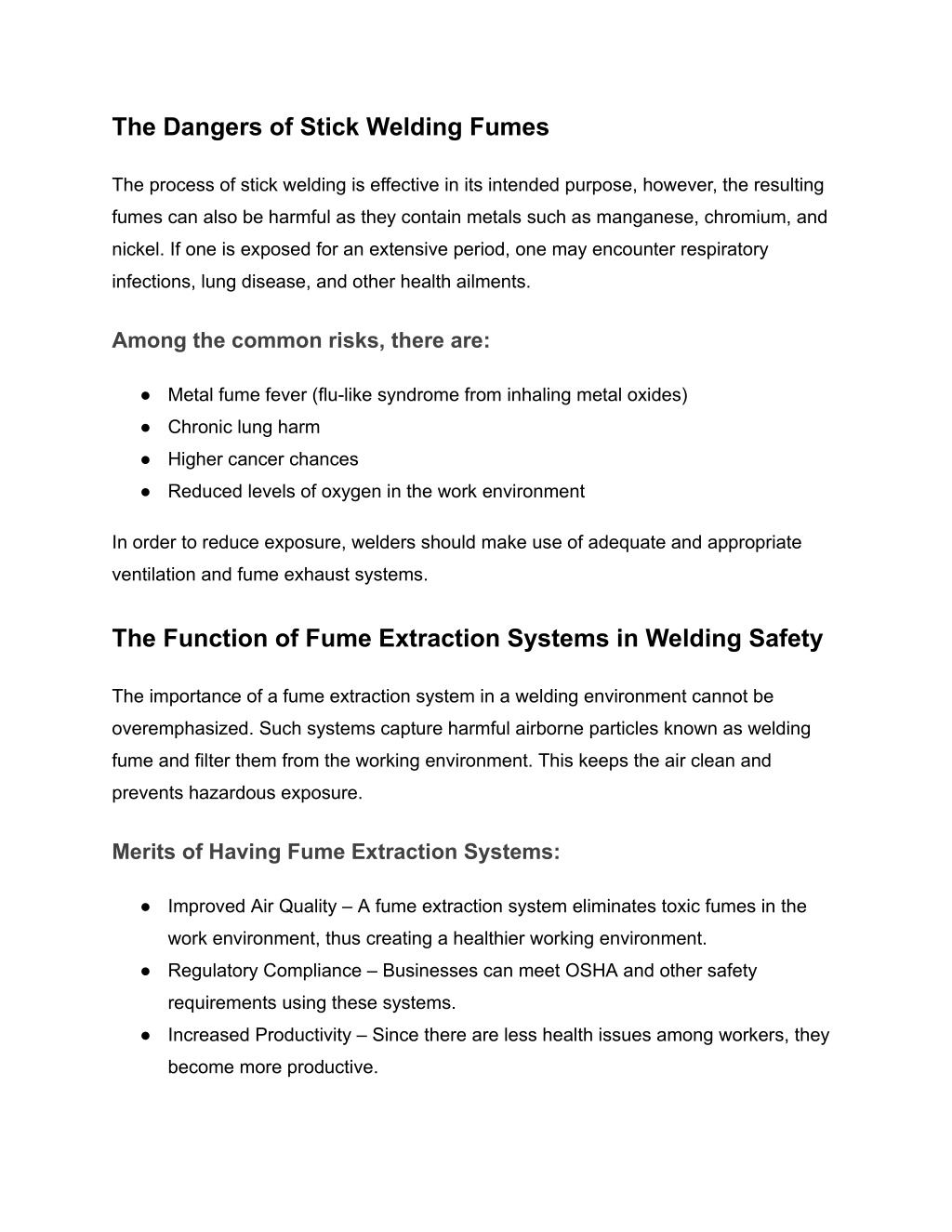

2. The Dangers of Stick Welding Fumes The process of stick welding is effective in its intended purpose, however, the resulting fumes can also be harmful as they contain metals such as manganese, chromium, and nickel. If one is exposed for an extensive period, one may encounter respiratory infections, lung disease, and other health ailments. Among the common risks, there are: ● Metal fume fever (flu-like syndrome from inhaling metal oxides) ● Chronic lung harm ● Higher cancer chances ● Reduced levels of oxygen in the work environment In order to reduce exposure, welders should make use of adequate and appropriate ventilation and fume exhaust systems. The Function of Fume Extraction Systems in Welding Safety The importance of a fume extraction system in a welding environment cannot be overemphasized. Such systems capture harmful airborne particles known as welding fume and filter them from the working environment. This keeps the air clean and prevents hazardous exposure. Merits of Having Fume Extraction Systems: ● Improved Air Quality – A fume extraction system eliminates toxic fumes in the work environment, thus creating a healthier working environment. ● Regulatory Compliance – Businesses can meet OSHA and other safety requirements using these systems. ● Increased Productivity – Since there are less health issues among workers, they become more productive.

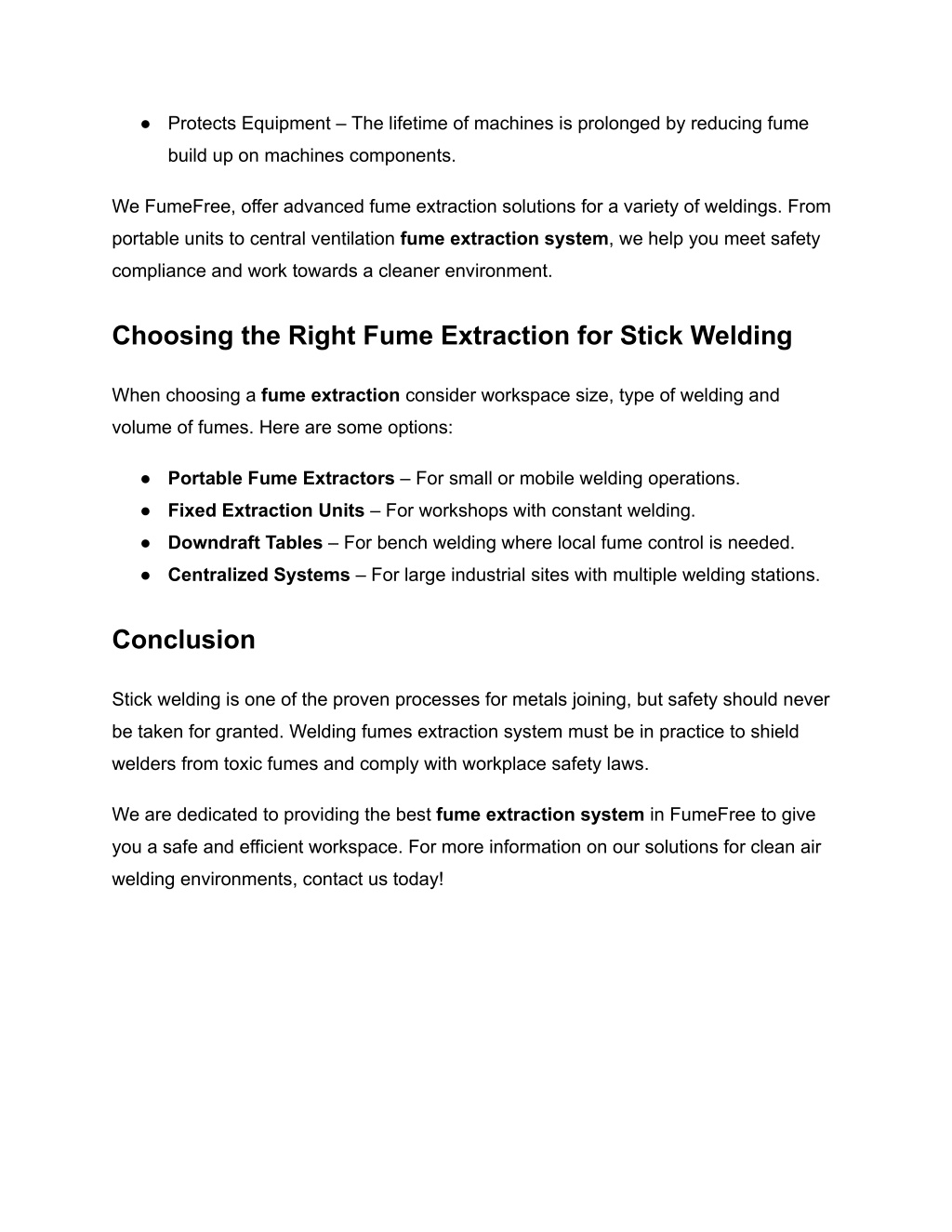

3. ● Protects Equipment – The lifetime of machines is prolonged by reducing fume build up on machines components. We FumeFree, offer advanced fume extraction solutions for a variety of weldings. From portable units to central ventilation fume extraction system, we help you meet safety compliance and work towards a cleaner environment. Choosing the Right Fume Extraction for Stick Welding When choosing a fume extraction consider workspace size, type of welding and volume of fumes. Here are some options: ● Portable Fume Extractors – For small or mobile welding operations. ● Fixed Extraction Units – For workshops with constant welding. ● Downdraft Tables – For bench welding where local fume control is needed. ● Centralized Systems – For large industrial sites with multiple welding stations. Conclusion Stick welding is one of the proven processes for metals joining, but safety should never be taken for granted. Welding fumes extraction system must be in practice to shield welders from toxic fumes and comply with workplace safety laws. We are dedicated to providing the best fume extraction system in FumeFree to give you a safe and efficient workspace. For more information on our solutions for clean air welding environments, contact us today!
