Fume Extraction System Installation_ What You Need to Know

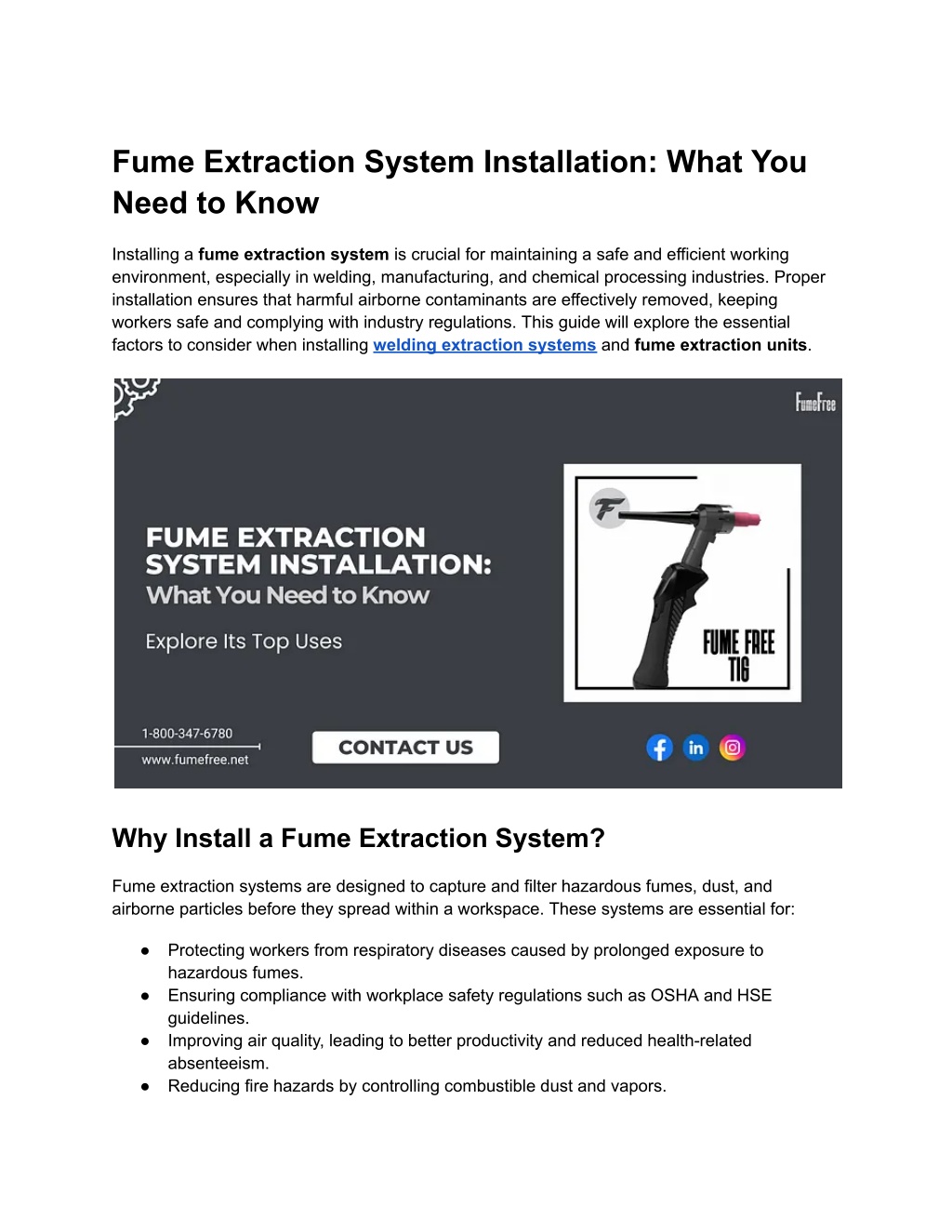

1. Fume Extraction System Installation: What You Need to Know Installing a fume extraction system is crucial for maintaining a safe and efficient working environment, especially in welding, manufacturing, and chemical processing industries. Proper installation ensures that harmful airborne contaminants are effectively removed, keeping workers safe and complying with industry regulations. This guide will explore the essential factors to consider when installing welding extraction systems and fume extraction units. Why Install a Fume Extraction System? Fume extraction systems are designed to capture and filter hazardous fumes, dust, and airborne particles before they spread within a workspace. These systems are essential for: ● Protecting workers from respiratory diseases caused by prolonged exposure to hazardous fumes. ● Ensuring compliance with workplace safety regulations such as OSHA and HSE guidelines. ● Improving air quality, leading to better productivity and reduced health-related absenteeism. ● Reducing fire hazards by controlling combustible dust and vapors.

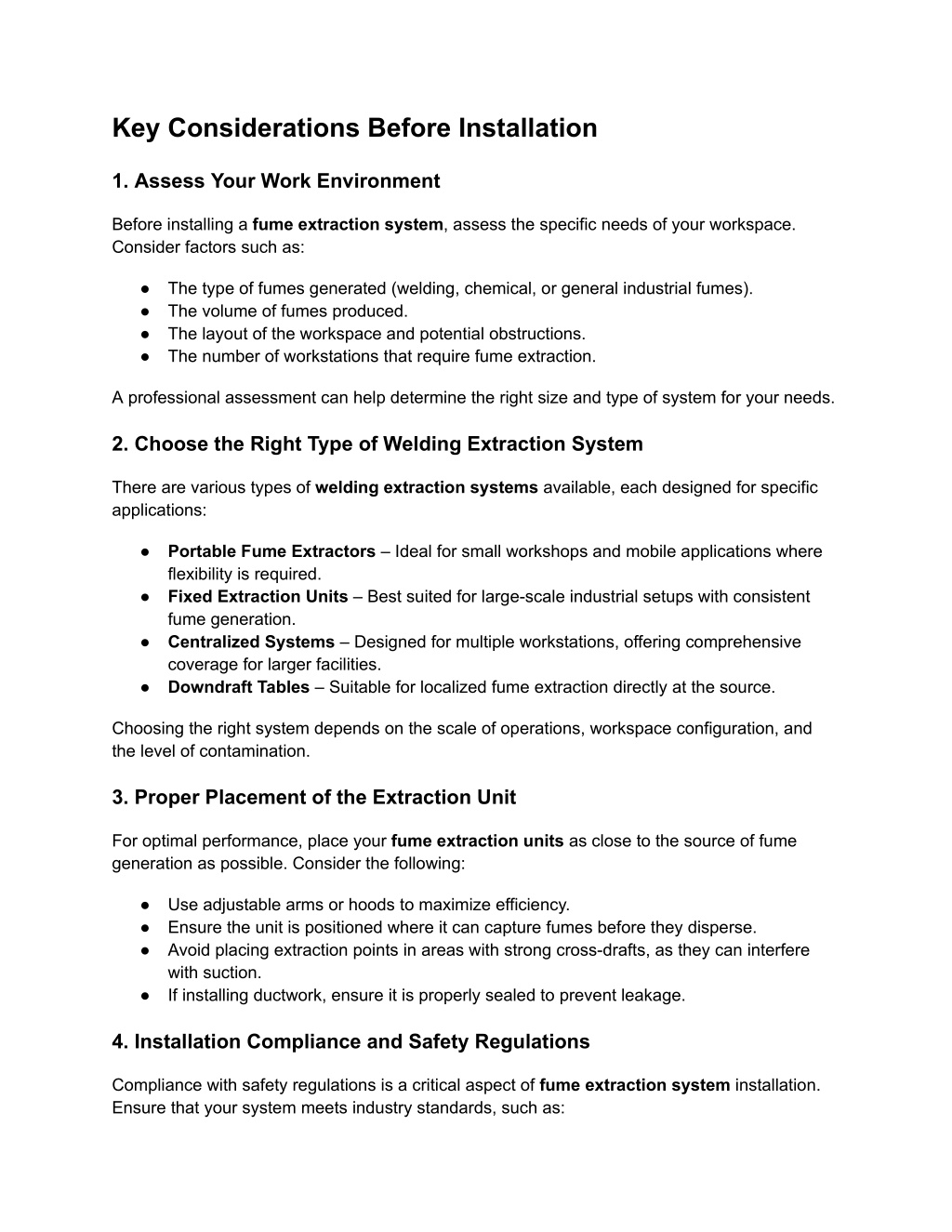

2. Key Considerations Before Installation 1. Assess Your Work Environment Before installing a fume extraction system, assess the specific needs of your workspace. Consider factors such as: ● The type of fumes generated (welding, chemical, or general industrial fumes). ● The volume of fumes produced. ● The layout of the workspace and potential obstructions. ● The number of workstations that require fume extraction. A professional assessment can help determine the right size and type of system for your needs. 2. Choose the Right Type of Welding Extraction System There are various types of welding extraction systems available, each designed for specific applications: ● Portable Fume Extractors – Ideal for small workshops and mobile applications where flexibility is required. ● Fixed Extraction Units – Best suited for large-scale industrial setups with consistent fume generation. ● Centralized Systems – Designed for multiple workstations, offering comprehensive coverage for larger facilities. ● Downdraft Tables – Suitable for localized fume extraction directly at the source. Choosing the right system depends on the scale of operations, workspace configuration, and the level of contamination. 3. Proper Placement of the Extraction Unit For optimal performance, place your fume extraction units as close to the source of fume generation as possible. Consider the following: ● Use adjustable arms or hoods to maximize efficiency. ● Ensure the unit is positioned where it can capture fumes before they disperse. ● Avoid placing extraction points in areas with strong cross-drafts, as they can interfere with suction. ● If installing ductwork, ensure it is properly sealed to prevent leakage. 4. Installation Compliance and Safety Regulations Compliance with safety regulations is a critical aspect of fume extraction system installation. Ensure that your system meets industry standards, such as:

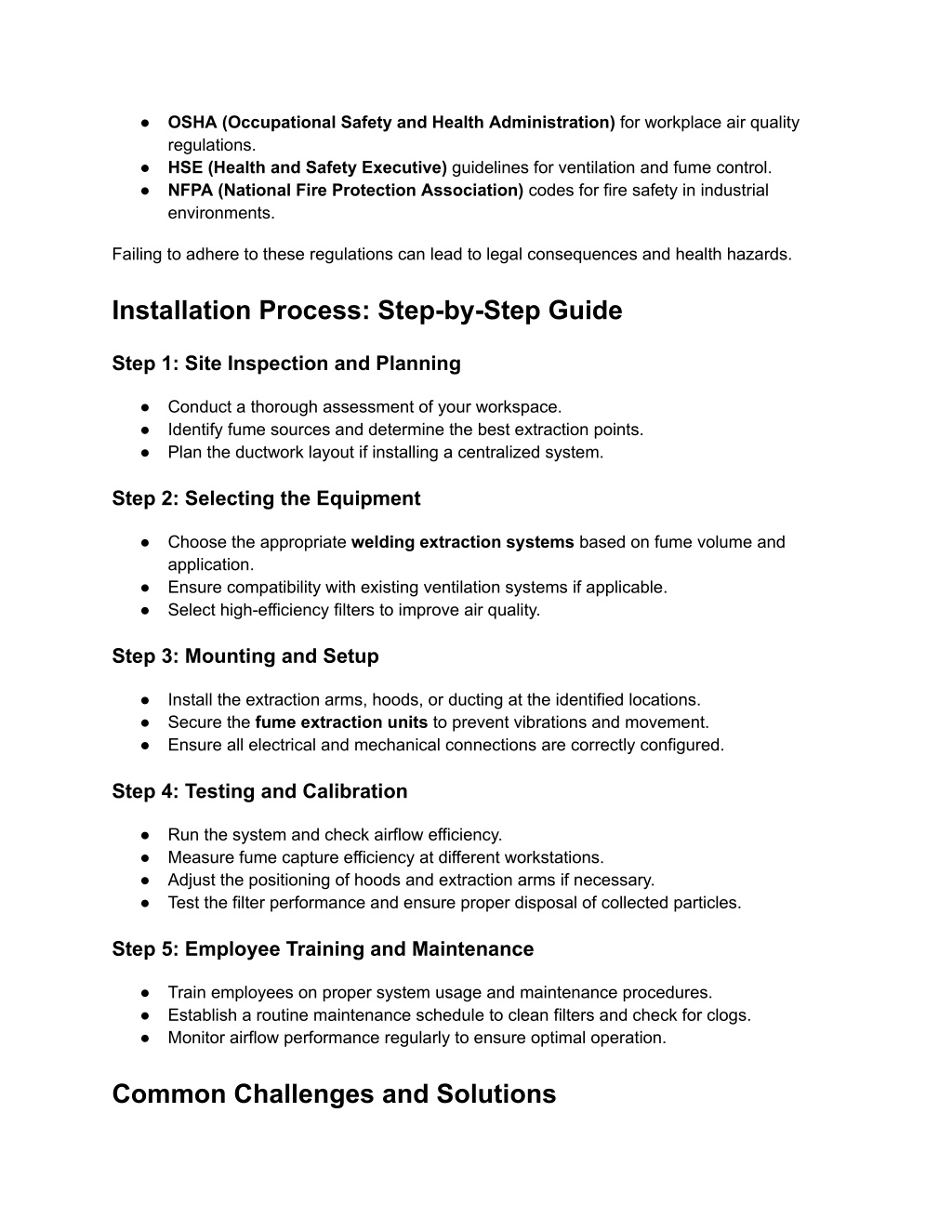

3. ● OSHA (Occupational Safety and Health Administration) for workplace air quality regulations. ● HSE (Health and Safety Executive) guidelines for ventilation and fume control. ● NFPA (National Fire Protection Association) codes for fire safety in industrial environments. Failing to adhere to these regulations can lead to legal consequences and health hazards. Installation Process: Step-by-Step Guide Step 1: Site Inspection and Planning ● Conduct a thorough assessment of your workspace. ● Identify fume sources and determine the best extraction points. ● Plan the ductwork layout if installing a centralized system. Step 2: Selecting the Equipment ● Choose the appropriate welding extraction systems based on fume volume and application. ● Ensure compatibility with existing ventilation systems if applicable. ● Select high-efficiency filters to improve air quality. Step 3: Mounting and Setup ● Install the extraction arms, hoods, or ducting at the identified locations. ● Secure the fume extraction units to prevent vibrations and movement. ● Ensure all electrical and mechanical connections are correctly configured. Step 4: Testing and Calibration ● Run the system and check airflow efficiency. ● Measure fume capture efficiency at different workstations. ● Adjust the positioning of hoods and extraction arms if necessary. ● Test the filter performance and ensure proper disposal of collected particles. Step 5: Employee Training and Maintenance ● Train employees on proper system usage and maintenance procedures. ● Establish a routine maintenance schedule to clean filters and check for clogs. ● Monitor airflow performance regularly to ensure optimal operation. Common Challenges and Solutions

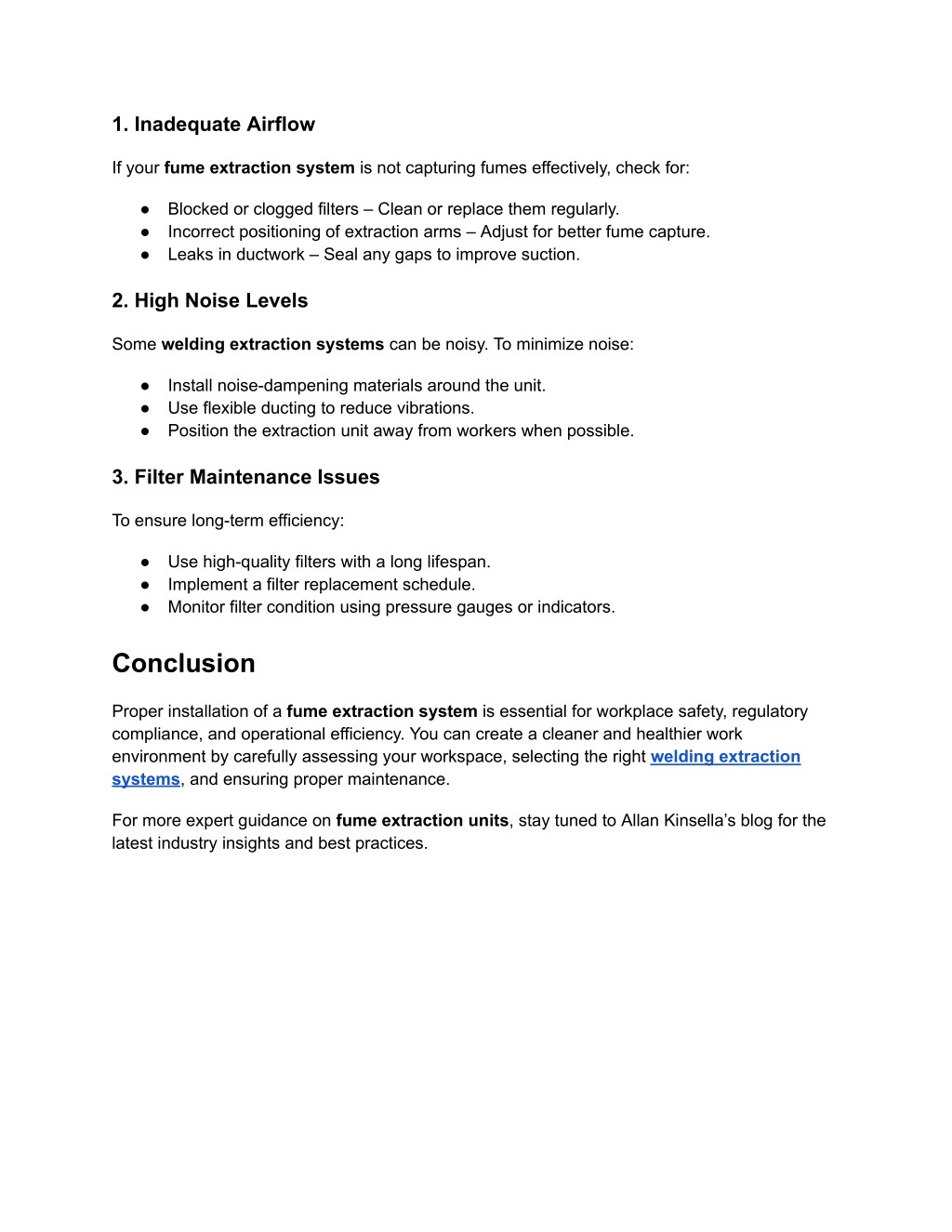

4. 1. Inadequate Airflow If your fume extraction system is not capturing fumes effectively, check for: ● Blocked or clogged filters – Clean or replace them regularly. ● Incorrect positioning of extraction arms – Adjust for better fume capture. ● Leaks in ductwork – Seal any gaps to improve suction. 2. High Noise Levels Some welding extraction systems can be noisy. To minimize noise: ● Install noise-dampening materials around the unit. ● Use flexible ducting to reduce vibrations. ● Position the extraction unit away from workers when possible. 3. Filter Maintenance Issues To ensure long-term efficiency: ● Use high-quality filters with a long lifespan. ● Implement a filter replacement schedule. ● Monitor filter condition using pressure gauges or indicators. Conclusion Proper installation of a fume extraction system is essential for workplace safety, regulatory compliance, and operational efficiency. You can create a cleaner and healthier work environment by carefully assessing your workspace, selecting the right welding extraction systems, and ensuring proper maintenance. For more expert guidance on fume extraction units, stay tuned to Allan Kinsella’s blog for the latest industry insights and best practices.
