Common Kold Draft Ice Machine Problem – How You Can Troubleshoot Them

When we are talking about making ice, kold draft manufactures the best equipment in the food service industry. From X-Series models and cocktails to stackable and under-counter units, there is a variety of commercial ice makers that kold draft make. Not just the equipment, the kold draft ice machine service is also the best in the market. To know more visit us - http://softserve.repair/common-kold-draft-ice-machine-problem-how-you-can-troubleshoot-them/

FixIce
Download Presentation

Common Kold Draft Ice Machine Problem – How You Can Troubleshoot Them

An Image/Link below is provided (as is) to download presentation Download Policy: Content on the Website is provided to you AS IS for your information and personal use and may not be sold / licensed / shared on other websites without getting consent from its author. Content is provided to you AS IS for your information and personal use only. Download presentation by click this link. While downloading, if for some reason you are not able to download a presentation, the publisher may have deleted the file from their server. During download, if you can't get a presentation, the file might be deleted by the publisher.

E N D

Presentation Transcript

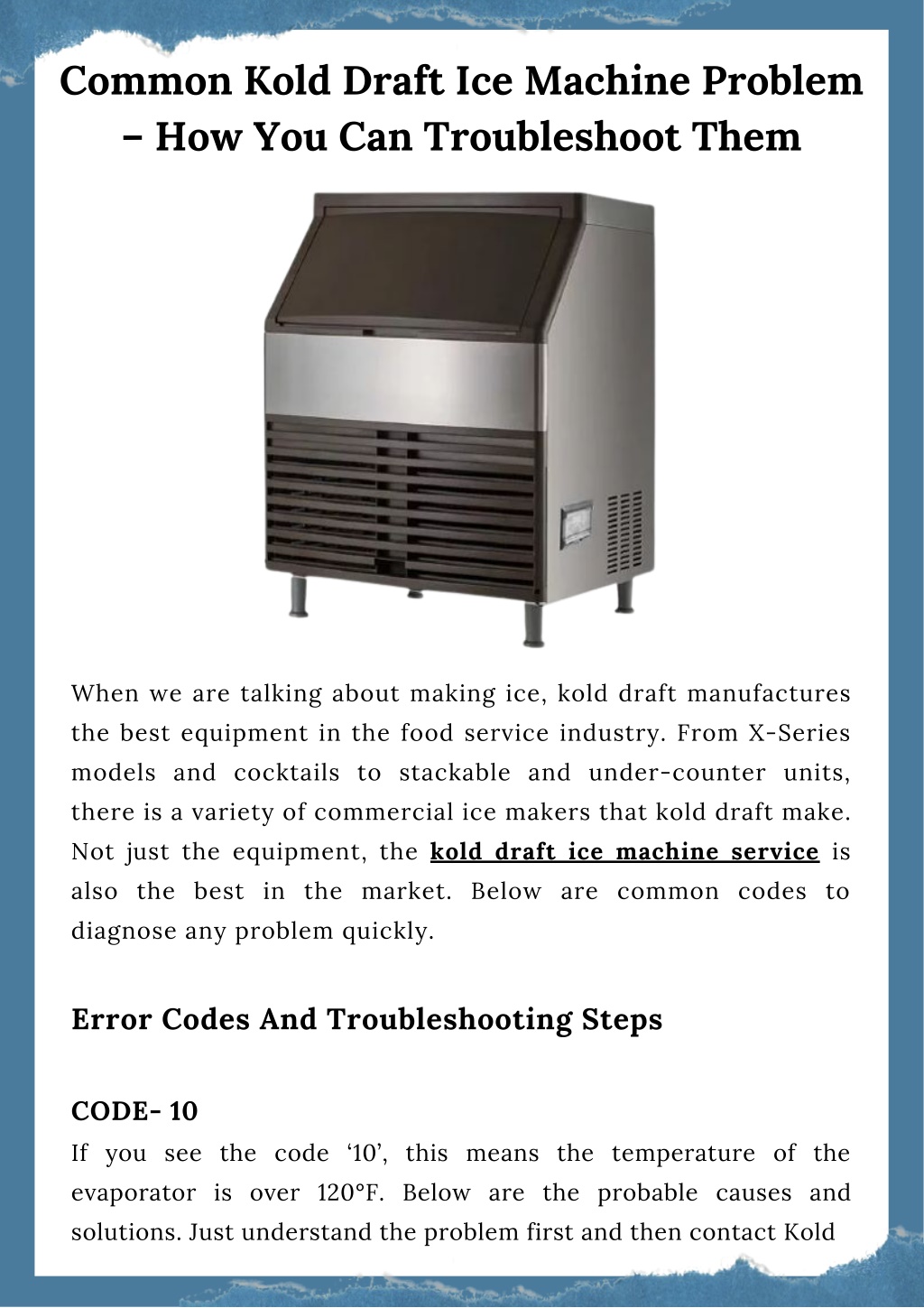

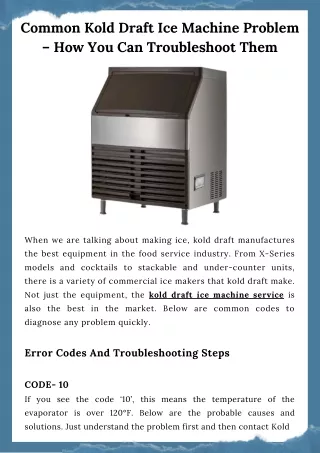

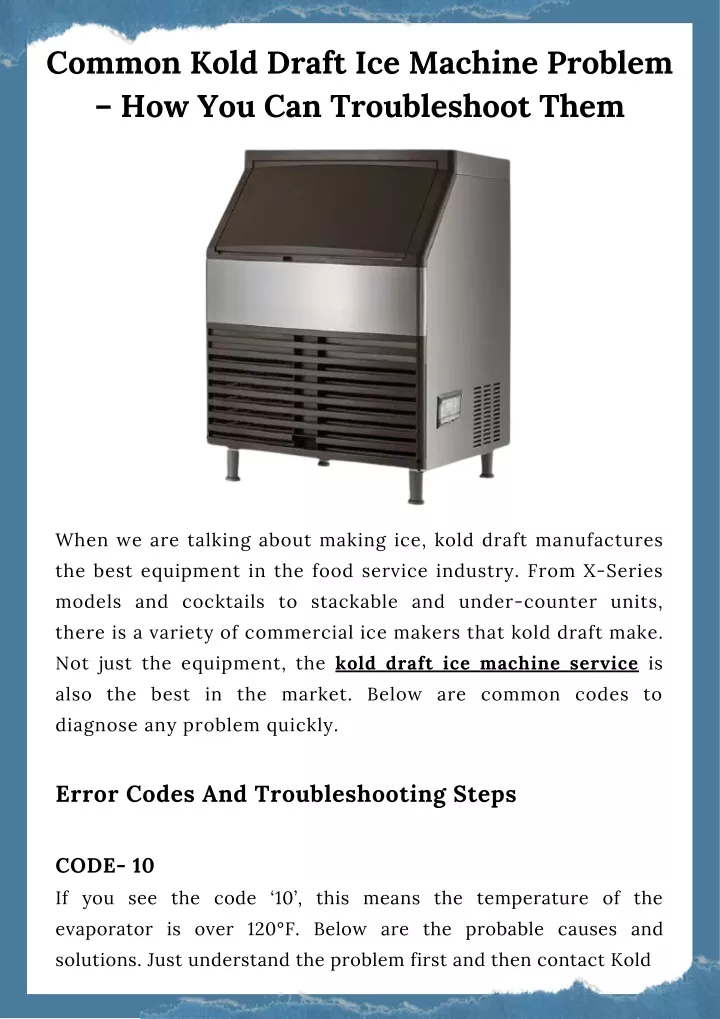

  1. Common Kold Draft Ice Machine Problem – How You Can Troubleshoot Them When we are talking about making ice, kold draft manufactures the best equipment in the food service industry. From X-Series models and cocktails to stackable and under-counter units, there is a variety of commercial ice makers that kold draft make. Not just the equipment, the kold draft ice machine service is also the best in the market. Below are common codes to diagnose any problem quickly. Error Codes And Troubleshooting Steps CODE- 10 If you see the code ‘10’, this means the temperature of the evaporator is over 120°F. Below are the probable causes and solutions. Just understand the problem first and then contact Kold

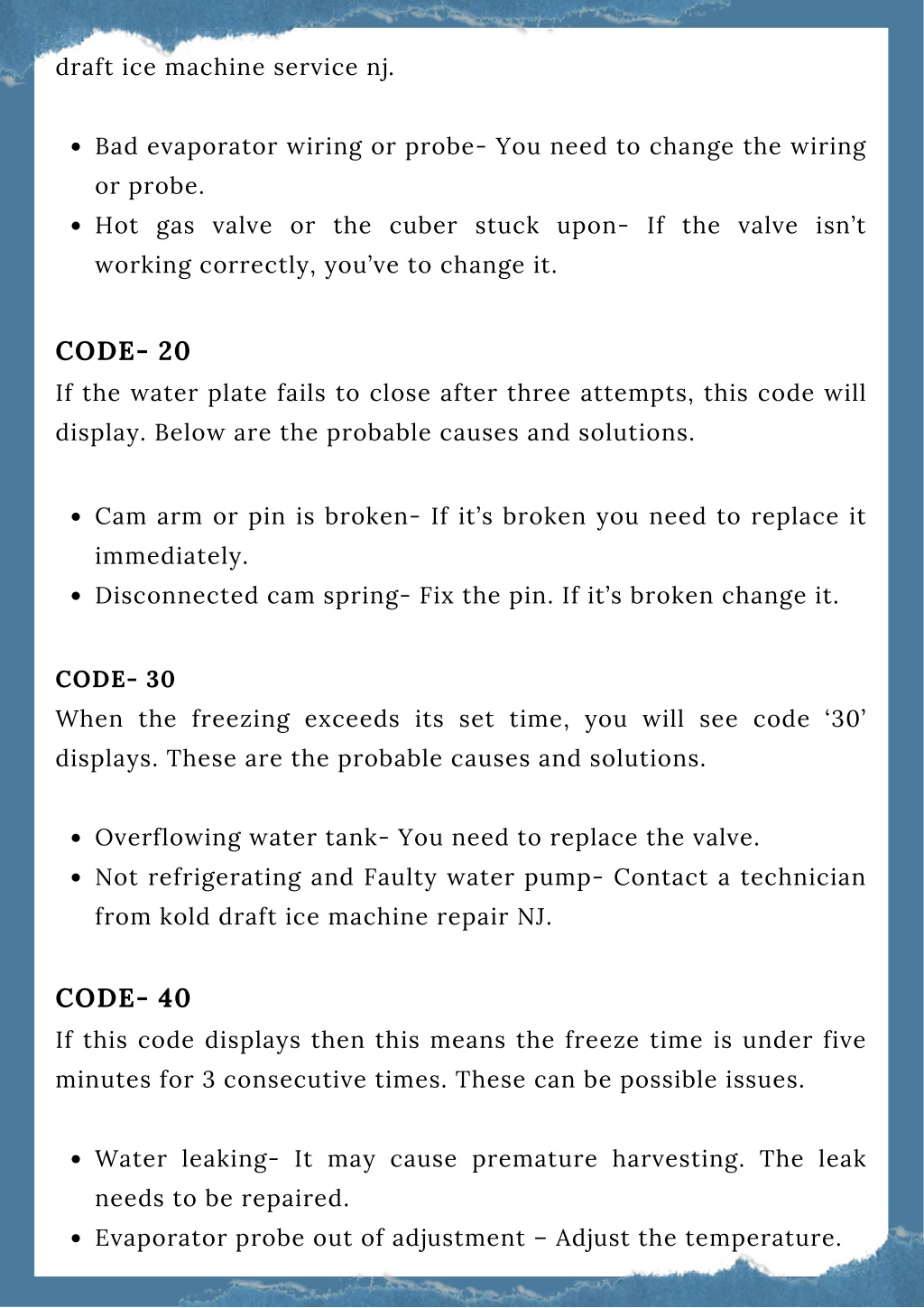

  2. draft ice machine service nj. Bad evaporator wiring or probe- You need to change the wiring or probe. Hot gas valve or the cuber stuck upon- If the valve isn’t working correctly, you’ve to change it. CODE- 20 If the water plate fails to close after three attempts, this code will display. Below are the probable causes and solutions. Cam arm or pin is broken- If it’s broken you need to replace it immediately. Disconnected cam spring- Fix the pin. If it’s broken change it. CODE- 30 When the freezing exceeds its set time, you will see code ‘30’ displays. These are the probable causes and solutions. Overflowing water tank- You need to replace the valve. Not refrigerating and Faulty water pump- Contact a technician from kold draft ice machine repair NJ. CODE- 40 If this code displays then this means the freeze time is under five minutes for 3 consecutive times. These can be possible issues. Water leaking- It may cause premature harvesting. The leak needs to be repaired. Evaporator probe out of adjustment – Adjust the temperature.

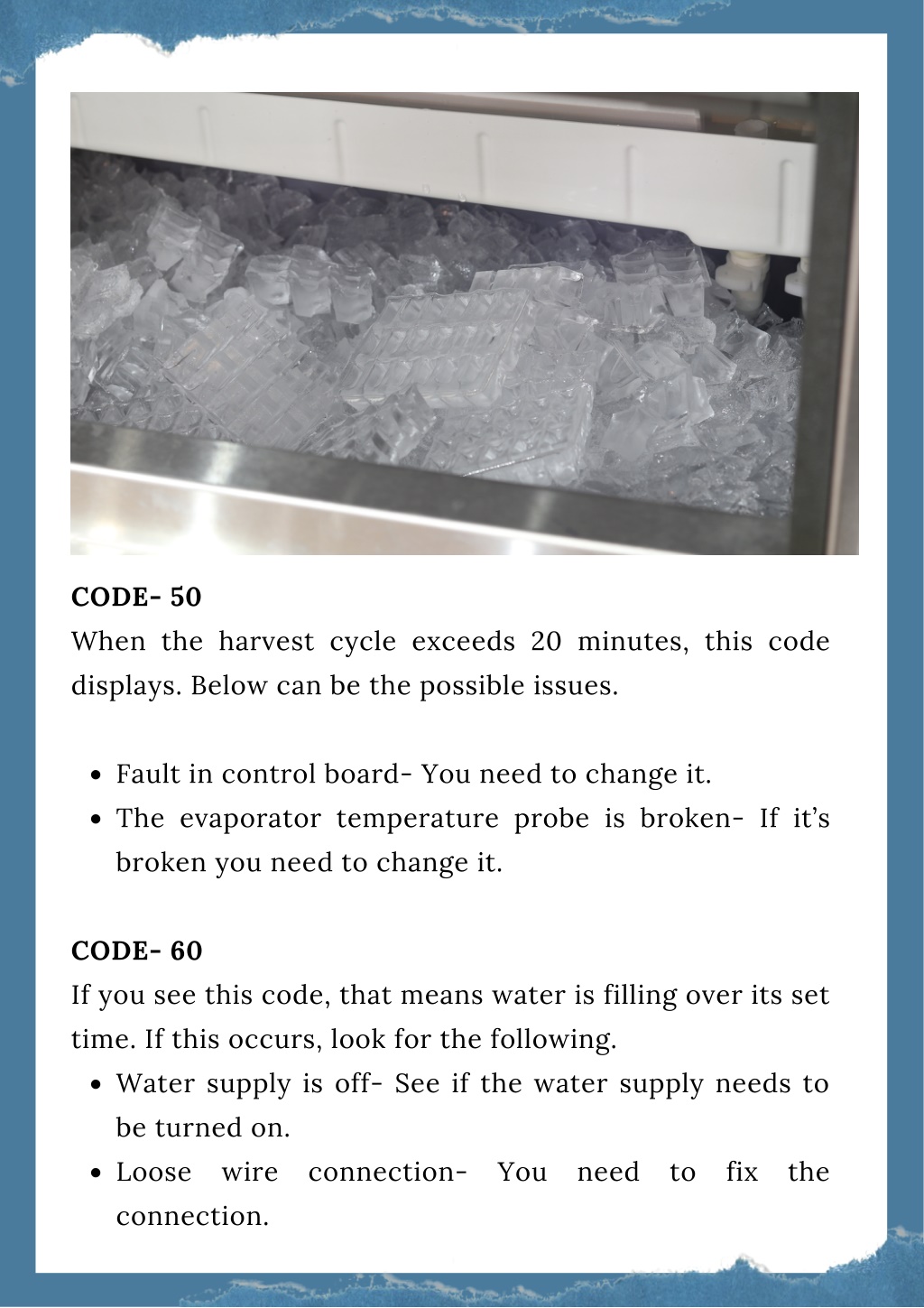

  3. CODE- 50 When the harvest cycle exceeds 20 minutes, this code displays. Below can be the possible issues. Fault in control board- You need to change it. The evaporator temperature probe is broken- If it’s broken you need to change it. CODE- 60 If you see this code, that means water is filling over its set time. If this occurs, look for the following. Water supply is off- See if the water supply needs to be turned on. Loose wire connection- You need to fix the connection.

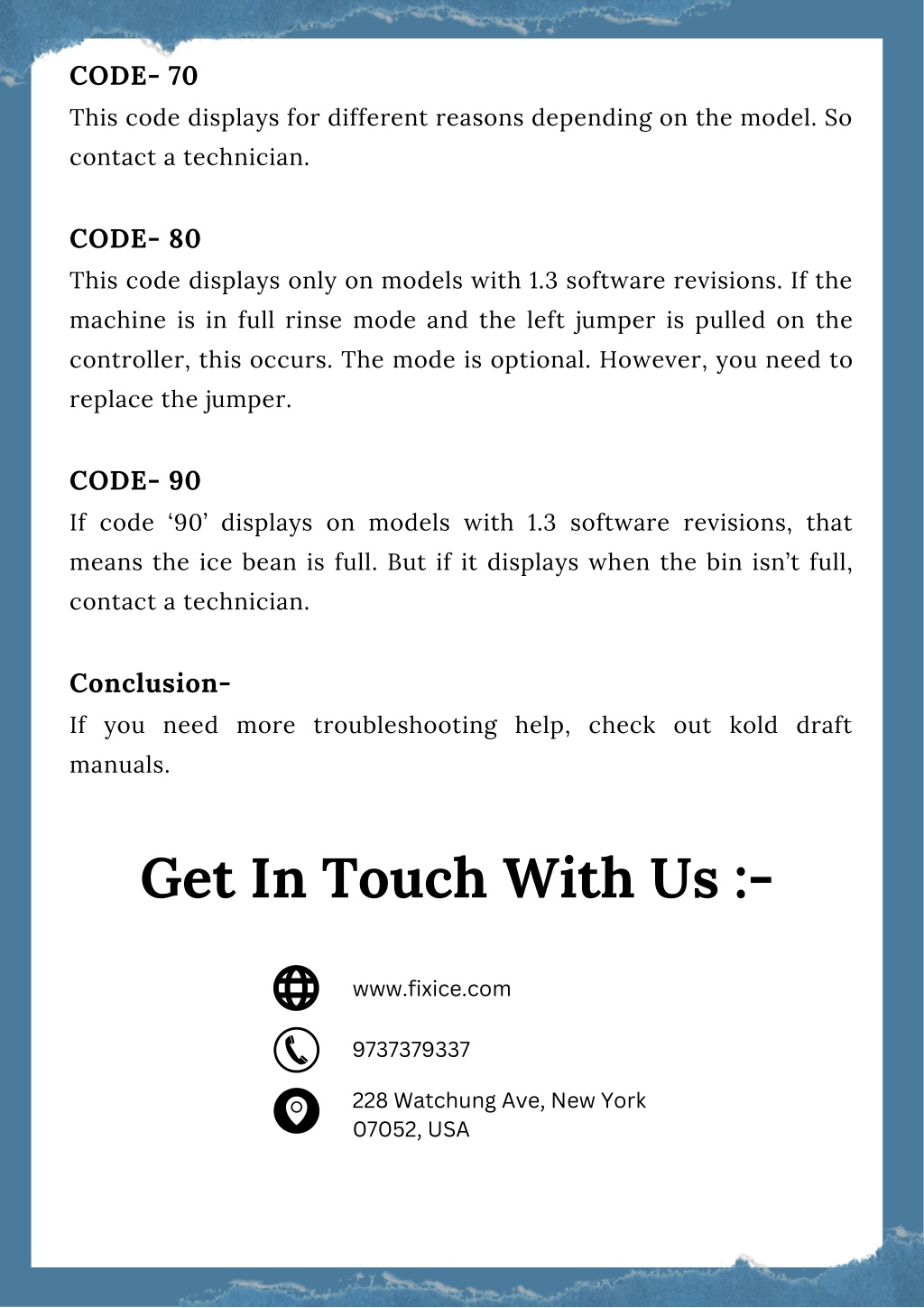

  4. CODE- 70 This code displays for different reasons depending on the model. So contact a technician. CODE- 80 This code displays only on models with 1.3 software revisions. If the machine is in full rinse mode and the left jumper is pulled on the controller, this occurs. The mode is optional. However, you need to replace the jumper. CODE- 90 If code ‘90’ displays on models with 1.3 software revisions, that means the ice bean is full. But if it displays when the bin isn’t full, contact a technician. Conclusion- If you need more troubleshooting help, check out kold draft manuals. Get In Touch With Us :- www.fixice.com 9737379337 228 Watchung Ave, New York 07052, USA
