Presentation Transcript
source and credits
Source and Credits
  • This presentation is based on the March 2006 AHRQ WebM&M Spotlight Case
  • See the full article at
  • CME credit is available through the Web site
    • Commentary by: Ronald Arenson, MD
    • Sidebar by: Michael B. Gotway, MD
    • Editor, AHRQ WebM&M: Robert Wachter, MD
    • Spotlight Editor: Tracy Minichiello, MD
    • Managing Editor: Erin Hartman, MS

At the conclusion of this educational activity, participants should be able to:

  • Appreciate the limitations of radiology resident emergency coverage
  • Understand alternative approaches to emergency radiology coverage, including teleradiology
  • Appreciate the diagnostic pitfalls of CT angiography for PE
  • Realize the limitations on subspecialists’ or general radiologists’ emergency coverage
case the wet read

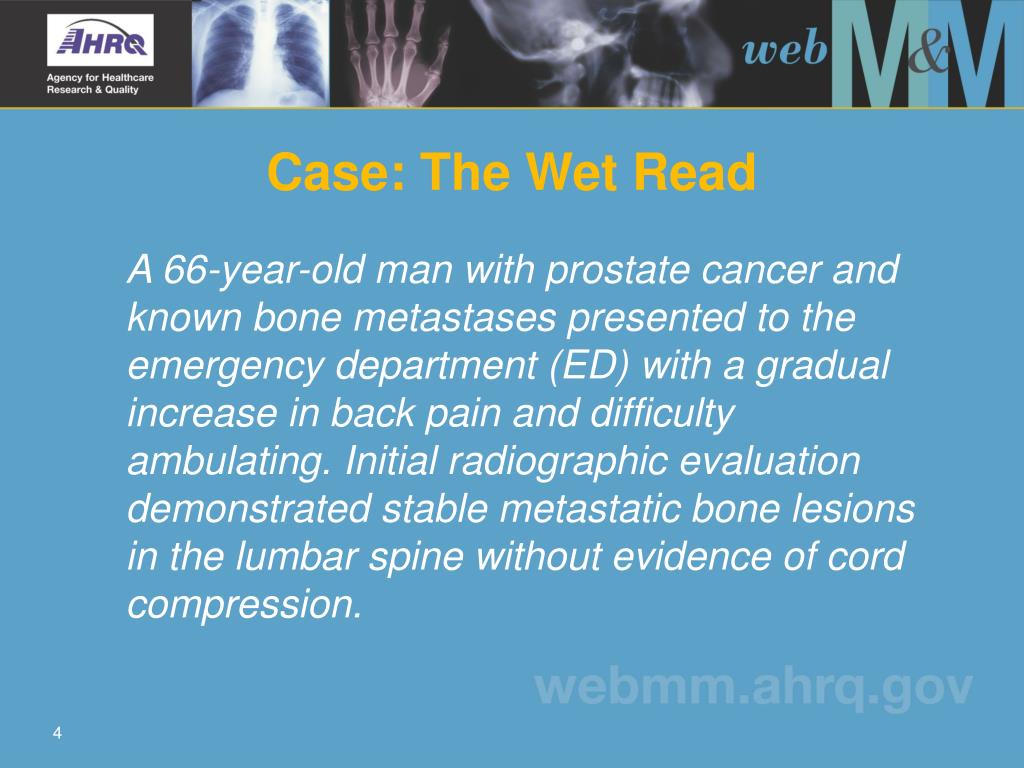

Case: The Wet Read

A 66-year-old man with prostate cancer and known bone metastases presented to the emergency department (ED) with a gradual increase in back pain and difficulty ambulating. Initial radiographic evaluation demonstrated stable metastatic bone lesions in the lumbar spine without evidence of cord compression.

case the wet read5
Case: The Wet Read

The patient was admitted for pain control with intravenous morphine and started on patient-controlled analgesia (PCA). Admitting laboratory studies were notable for mild anemia. Renal function, LFTs, and coags were within normal limits. CXR and urinalysis were unremarkable.

case the wet read6
Case: The Wet Read

On the night of hospital day #2, the patient developed acute shortness of breath and was tachycardic and slightly less responsive. His oxygenation was 78% on room air and 92% when placed on a non-rebreather mask. ECG showed evidence of right heart strain and a room air blood gas revealed a pH of 7.33, a CO2 of 50, and a paO2 of 55.

case the wet read7
Case: The Wet Read

Given suspicion for pulmonary embolism, the resident ordered a CT angiogram of the lungs. The on-call radiology resident read it and reported that his findings were consistent with a large pulmonary embolism in the right main pulmonary artery. As the patient was mildly hypotensive and had hypoxemic respiratory failure requiring intubation and mechanical ventilation, thrombolytic therapy was started.

case the wet read8
Case: The Wet Read

The next morning, the patient’s blood pressure, oxygenation, and level of consciousness had improved. While the team was rounding and discussing plans for extubation, the radiology attending contacted the ICU and reported that the final reading of the CT angiogram showed no evidence of pulmonary embolism. He explained that what was initially read that way was in fact a large artifact on the image cut reviewed by the overnight resident.

pitfalls in diagnosing pe with helical ct
Pitfalls in Diagnosing PE with Helical CT
  • Proper scan interpretation depends on awareness of several diagnostic entities that may simulate PE
    • Normal bronchovascular structures
    • Improper bolus timing
    • Streak artifacts
    • Patient motion artifacts
    • Pulmonary arterial catheters
    • Vascular shunts
example ct streak artifact
Example CT: Streak Artifact

Axial CT image shows decreased attenuation affecting right upper lobe pulmonary artery (arrow), potentially simulating PE. Decreased attenuation is caused by streak artifact emanating from dense contrast column in superior vena cava.

pitfalls in diagnosing pe with ct angiography
Pitfalls in Diagnosing PE with CT Angiography
  • Radiologists look for a filling defect within a blood vessel
    • Contrast either stops abruptly or is seen around a central defect
  • In this case, artifact mistaken for PE in right main pulmonary artery
  • Only a few artifacts could be mistaken for centrally located PE
    • A late-timed contrast bolus may create appearance of contrast at the periphery of vessel and unopacified blood in the center
    • Streak artifacts, cardiac motion, the tip of a pulmonary artery catheter, and lymph nodes
off hours radiographic interpretation in a teaching hospital
Off-Hours Radiographic Interpretationin a Teaching Hospital

Radiological study performed

Resident provides preliminary interpretation “wet read”

Referring physician receives report during off hours

Attending physician provides formal report after review of resident interpretation in the morning

Hunter TB, et al. Acad Radiol. 2000;7:165-170.

errors in interpretation by radiology residents
Errors in Interpretation by Radiology Residents
  • One study found major and minor rates of discrepancy of 5% and 11%, respectively

Velmahos GC, et al. Am Surg. 2001;67:1175-1177.

errors in interpretation by radiology residents16
Errors in Interpretation by Radiology Residents
  • Other studies have shown that the frequency of significant errors by radiology resident is very low
    • Major discrepancies: less than 1% - 2.3%
    • Minor discrepancies: 3% - 7%

See "Notes" for complete references.

errors by radiology residents
Errors by Radiology Residents
  • More common among junior trainees
  • Error rates are within reported interobserver differences among attending radiologist
  • Error rates substantially below those recorded for ED staff

Wyoski MG, et al. Radiology. 1998;208:125-128.Erly WK, et al. AJNR Am J Neuroradiol. 2002;23:103-107.Kangarloo H, et al. Acad Radiol. 2000;7:149-155.

errors by radiology residents18
Errors by Radiology Residents
  • Balance between learning and patient safety
  • Off-hours experience important part of training experience
    • Builds confidence
    • Improves judgment
    • Semi-independent environment

Carney E, et al. AJR Am J Roentgenol. 2003;181:367-373.

case cont the wet read
Case (cont.): The Wet Read

In light of the new reading, the team decided the clinical decompensation was likely due to aspiration and mucous plugging secondary to oversedation from narcotics. The right heart strain noted on ECG was an old finding from mild unexplained pulmonary hypertension. The patient had no bleeding complications from the thrombolytic therapy. He was extubated and discharged to a skilled nursing facility for rehabilitation.

could bronchial mucoid impaction be mistaken for pe
Could Bronchial Mucoid Impaction be Mistaken for PE?
  • For possible PE, radiologist is looking for a round structure with something dark in the middle
  • Impacted bronchi may have this appearance
    • Bronchial wall usually slightly denser than low attenuation mucus within lumen, especially if calcified
  • Distinguishing plugged bronchus from PE can be difficult as pulmonary arteries and bronchi run together
  • Right pulmonary artery is large, central structure
    • Mucoid impaction not likely to be misinterpreted as PE in this vessel; this mistake usually occurs at the lobar, segmental, and subsegmental vessels
radiology resident oversight solutions
Radiology Resident Oversight: Solutions
  • 24-hour in-house attending radiologist coverage
  • Teleradiology
  • Web-based simultaneous review with out-of- hospital attending
oversight in house attending coverage
Oversight: In-House Attending Coverage
  • Undesirable schedule with regular evening shifts
  • Academic subspecialist may not feel comfortable covering cases outside their expertise
    • Potential need for multiple in-house specialists
oversight teleradiology
Oversight: Teleradiology

Kangarloo H, et al. Acad Radiol. 2000;7:149-155.

oversight web based options
Oversight: Web-based Options
  • Attending back-up by Web-based access to Picture Archives and Communication System (PACS)
  • Home review limited by speed of Internet access and fewer features than hospital-based workstation
  • Concrete “rules” for contacting attending physician may help residents hesitant to do so, such as:
    • When results of radiological study may lead to immediate surgery or invasive procedure
    • When referring physician requests attending review

Hunter TB, et al. Acad Radiol. 2000;7:165-170.

interpretation discrepancies
Interpretation Discrepancies
  • Off-hours cases must be reviewed by attending early in the day
  • If discrepancy exists, change in interpretation must be immediately communicated to referring physician
  • A record of preliminary reports must continue to be accessible in the system, in the event the preliminary interpretation led to action such as procedure
documentation of interpretations wet read computer system
Documentation of Interpretations:“Wet Read” Computer System
  • ED physician can enter initial impression
  • Resident then reviews the film and enters preliminary findings into system; able to compare to ED physician’s initial impression
  • Interpretation immediately communicated to referring physicians via PACS workstation, pagers, hand-held devices

Tellis WM, Andriole KP. J Digit Imaging. 2005;18:316-325.


ED Form for Entering Impressions

UCSF Department of Radiology


Radiologist Form for Entering Wet-read

UCSF Department of Radiology


View from PACS Display

UCSF Department of Radiology

documentation of interpretations
Documentation of Interpretations
  • Following morning, the attending radiologist reviews the resident report, indicates agreement or changes the read, indicates magnitude of the change and whether it might alter care for the patient

Tellis WM, Andriole KP. J Digit Imaging. 2005;18:316-325


Form for Entering Attending Q/A Review

UCSF Department of Radiology

take home points
Take-Home Points
  • Radiology residents provide excellent emergency coverage off hours, but some significant errors do occur
  • Junior residents make more mistakes than more senior residents, fellows, or faculty
  • Without subspecialist review the next day, general radiologists who cover off-hours, often via teleradiology, appear to make more errors than residents
take home points33
Take-Home Points
  • Attending radiologists need to provide back-up for the residents, and can do so by accessing the images remotely via PACS
  • Computer systems can provide an excellent communication tool with referring physicians, including recording the frequency and significance of the discrepancies between the residents and attendings
