chapter 1 introduction to computers and c programming

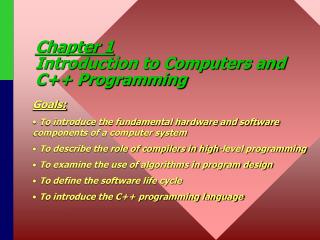

Chapter 1Introduction to Computers and C++ Programming

Goals:

  • To introduce the fundamental hardware and software components of a computer system
  • To describe the role of compilers in high-level programming
  • To examine the use of algorithms in program design
  • To define the software life cycle
  • To introduce the C++ programming language
slide2

Monitor

CD-ROM

Integrated Audio Card

Mouse

Integrated Network Card

Cache Memory

Keyboard

Graphics Connector

Graphics Card

Hard Drive

Additional Card Slots

Extra Bay

Main Memory

Floppy Drive

CPU

Computer Hardware

CS 140

slide3

Computer Memory

Random Access Memory: the electronic

memory used to run programs

The magnetic disks that store your

operating system and other files

Read Only Memory: the electronic memory

containing the machine’s boot process

Portable magnetic memory, with very

restrictive memory capacity

Optical memory, with greater capacity,

but limited writability

CS 140

slide4

Computer Software

Application

Software that performs high level operations (computation, graphics, etc.)

Specify resulting audio & video

“Hey, App!

key ‘P’!”

Operating System

Software that relays messages between application and hardware

Contact sound & graphics cards

“Hey, OS!

key ‘P’!”

Hardware

Direct access to circuitry, disks, mouse, keyboard, monitor, etc.

Send explosion sound to speaker and new pixel values to monitor

Key ‘P’ struck

CS 140

slide5

Low-Level Programming Languages

A computer processor is not smart!

Its vocabulary is limited to a simple “machine language” consisting of a small number of simple commands.

Move this number over there!

Move that number over here!

Add this number to that number!

Check to see if this number is zero!

CS 140

slide6

Programming

To get the computer to perform sophisticated operations, the programmer writes programs that tell the processor the sequence of primitive steps to take to get a result.

001001010110101010101010101010100001111110011100101111000001101010010010111010100010100100001101011001010100110101100101010010101001010010101011010010101000100101010101010101010101001010101001

Programming in machine language is a binary pain, so higher level languages have been developed to make the job of the programmer more efficient and more effective!

CS 140

slide7

Compiling a High-Level Program

A program caller a “compiler” is used to translate your “source program” (in a language like C++) into an “object program” (in your system’s machine language).

LEXICAL

ANALYSIS

Split the source program into words like “void”, “x”, “>”, and “;”.

PARSING

Analyze the grammatical syntax of the source program (e.g., “if (x > y)”

makes sense, but “if (x > ) y”

doesn’t).

CODE

GENERATION

Generate an equivalent program in machine language.

#include <iostream>

using namespace std;

void main()

{

int x, y;

cout << “Enter two integers: ”;

cin >> x >> y;

if (x > y)

cout << x << “ is the largest!”;

else

cout << y << “ is the largest!”;

}

110101000101100011000010010110110100010101011110010101011100000010011100101011001110101010111001010100101010101000000110110111011101010100111110101010101001001001010000010101010101000000101111100101100001011101010101010100010101111110010100100100101000

Source Program

Object Program

COMPILATION

CS 140

slide8

Compiled

Library

Programs

Linking and Loading

After being compiled, the object program must be “linked” (i.e., connected to other compiled code from libraries, like math functions or input/output operators)

and then “loaded” into main memory for execution.

Source

Program

Object

Program

Linked

Program

COMPILE

Executable

Code

LINK

LOAD

CS 140

slide9

47

28

56

30

61

19

Algorithms

After defining a problem that the programmer wants the computer to solve, the programmer must first design an algorithm, a sequence of precise instructions that lead to a solution.

47

47

Problem: Find the largest value in a list of numbers.

?

Algorithm:

1) Retrieve the list of numbers.

?

56

56

2) Consider the first number the largest value so far.

?

3) Starting at the second number in the list, compare

the number in the list to the largest value so far;

if it’s larger, then make it the largest value so far.

?

LARGEST!

61

61

4) After examining all of the numbers, announce the

largest value so far - it’s the largest in the list!.

?

CS 140

slide10

Another Algorithm

Problem: Find the phone number of a specific person in an alphabetized phonebook.

Algorithm:

1) Get the phonebook.

2) Crack what’s left of the phonebook open to the middle page.

3) Check to see if the name you’re seeking is on that page.

If so, announce the phone number and you’re done!.

Otherwise, throw away the “impossible” half of the phonebook,

and repeat the process, starting at step #2.

4) If the entire phonebook is ever thrown out, then the person is unlisted!

CS 140

slide11

The Software Life Cycle

Specification

Clearly state the purpose of the software, including full details of the problem being solved.

Maintenance

Respond to “bugs” and “sugs”, and determine when the software has become obsolete.

Design

Develop a solution to the problem, modularizing it and determining specific pre- and post-conditions.

DOCUMENTATION!!!

Testing

Design test scenarios for individual modules, interaction between modules, and the entire program.

Coding

Program the modules using a bottom-up approach (with dummy drivers) or a top-down approach (with stubs).

CS 140

slide12

Introduction to C++

Ancient Languages

Fortran - Great for scientific computations

COBOL - Great for business file processing

Very special purpose, not good in general

Old Languages

C - General purpose language for UNIX systems

Pascal - General purpose language for PCs

Emphasis upon procedures instead of data

Modern Languages

C++ - Object-oriented version of C

Java - Object-orientation with networking emphasis

Emphasis upon the objects being manipulated

CS 140

slide13

A Sample C++ Program

#include <iostream> // This library facilitates input & output.

#include <cmath> // This library enables math functions, like sqrt.

using namespace std;

void main() // Every C++ program must have a "main" function.

{ // Opening brace to contain main's statements.

int nbr; // Declare variable "nbr" to be an integer.

double root; // Declare variable "root" to be a long real number.

nbr = 2; // Set value of nbr to be 2.

root = sqrt(nbr); // Calculate square root of nbr.

cout << "The square root of " // Output a message to the memory file

<< nbr << " is " << root // associated with the monitor (i.e., cout),

<< endl << endl; // including nbr, root, and a skipped line.

cout << "Enter a number: "; // Ask the user for a value for nbr.

cin >> nbr; // Input from the file associated with the keyboard (cin).

root = sqrt(nbr); // Calculate the square root of nbr's new value.

cout << "The square root of " // Output a message to the cout file

<< nbr << " is " << root // concerning the values of nbr and root,

<< endl << endl << endl; // followed bt two skipped lines.

return; // Terminate the program's execution.

} // Closing brace to indicate end of main function.
