  1. Medical Informatics Introduction and Overview James J. Cimino, M.D. Departments of Medicine and Medical Informatics

  2. Medical Informatics • Medical • Information • Science

  3. We Are All Medical Informaticians • Medical Education • Patient Data Collection and Recording • Clinical Information Retrieval • Medical Knowledge Retrieval • Medical Decision Making

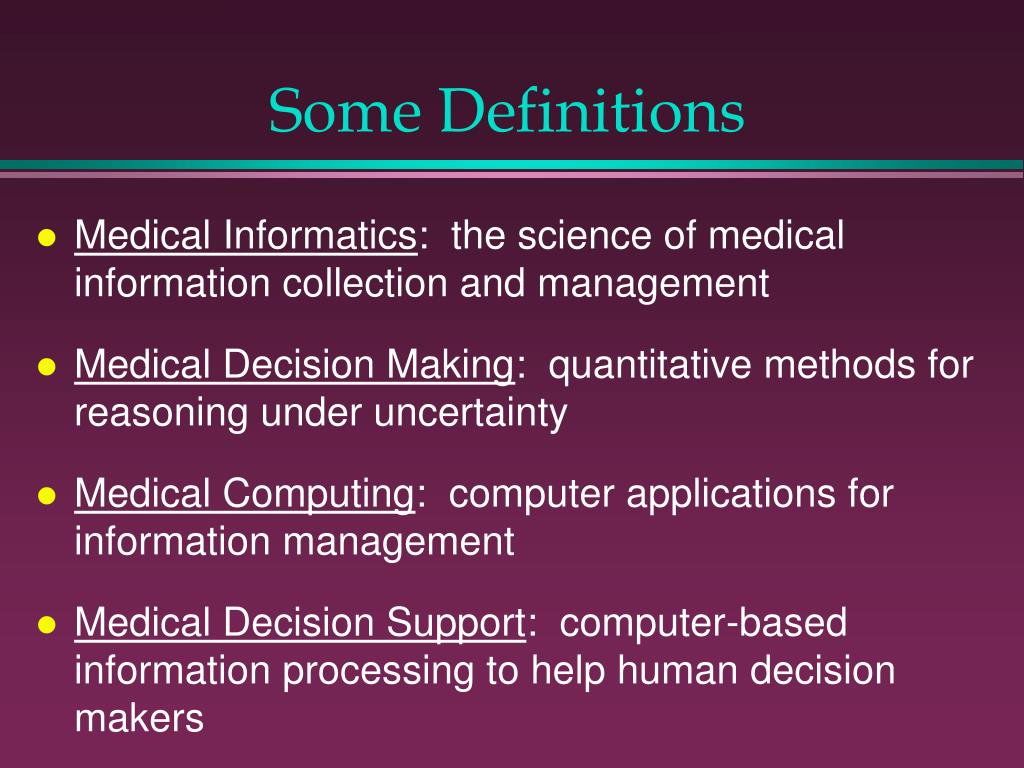

  4. Some Definitions • Medical Informatics: the science of medical information collection and management • Medical Decision Making: quantitative methods for reasoning under uncertainty • Medical Computing: computer applications for information management • Medical Decision Support: computer-based information processing to help human decision makers

  5. A Brief History - Past to Future • Ledley and Lusted - Reasoning foundations of medical diagnosis; Science 1959 • El Camino Hospital - 1965 • Help System - 1970 • Financial systems - driven by billing and reporting requirements • Clinical Systems • Information Resources • Expert Systems

  6. Medical Computing • Patient-Oriented Systems • Medical Information Resources • Medical Knowledge Systems

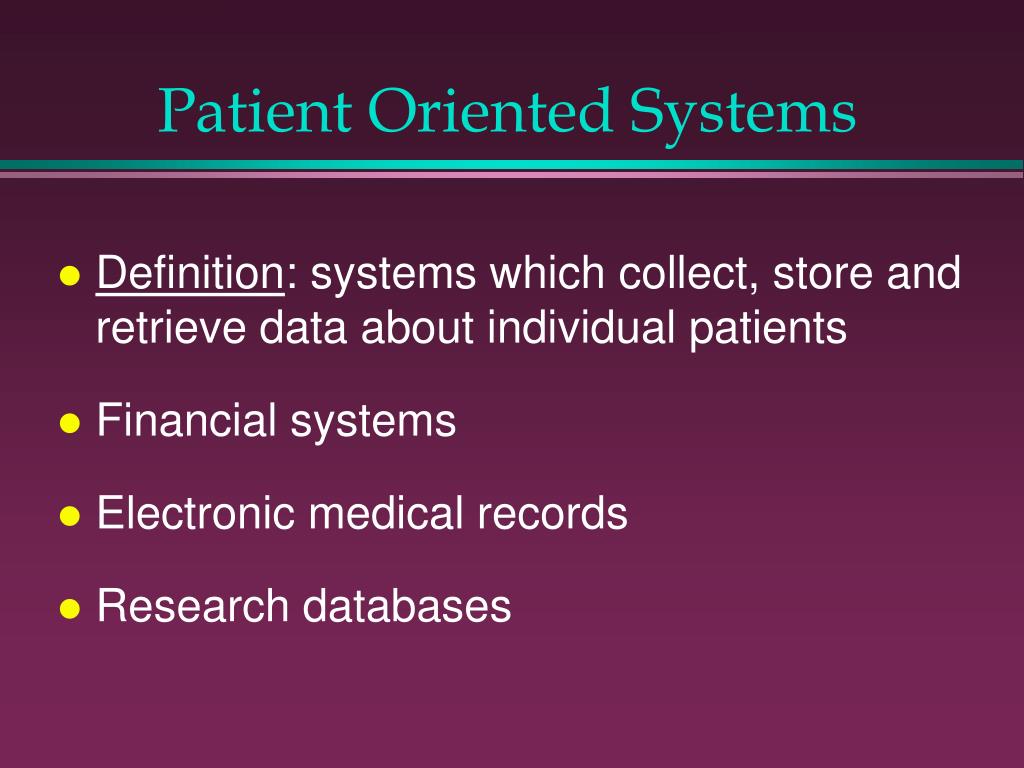

  7. Patient Oriented Systems • Definition: systems which collect, store and retrieve data about individual patients • Financial systems • Electronic medical records • Research databases

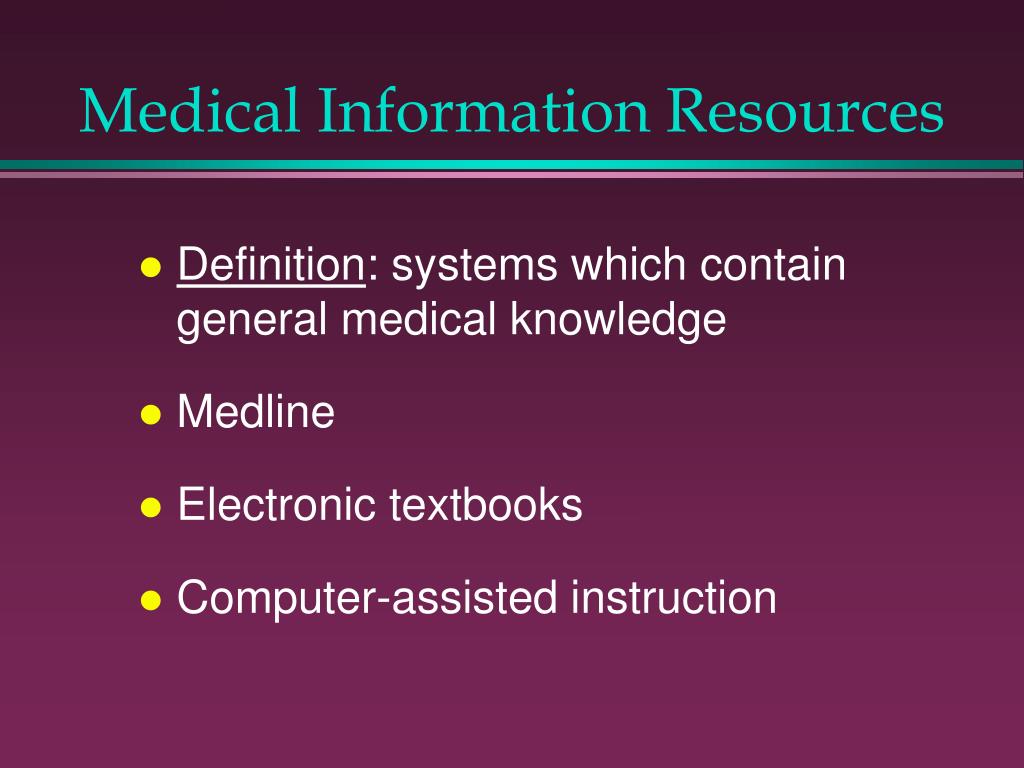

  8. Medical Information Resources • Definition: systems which contain general medical knowledge • Medline • Electronic textbooks • Computer-assisted instruction

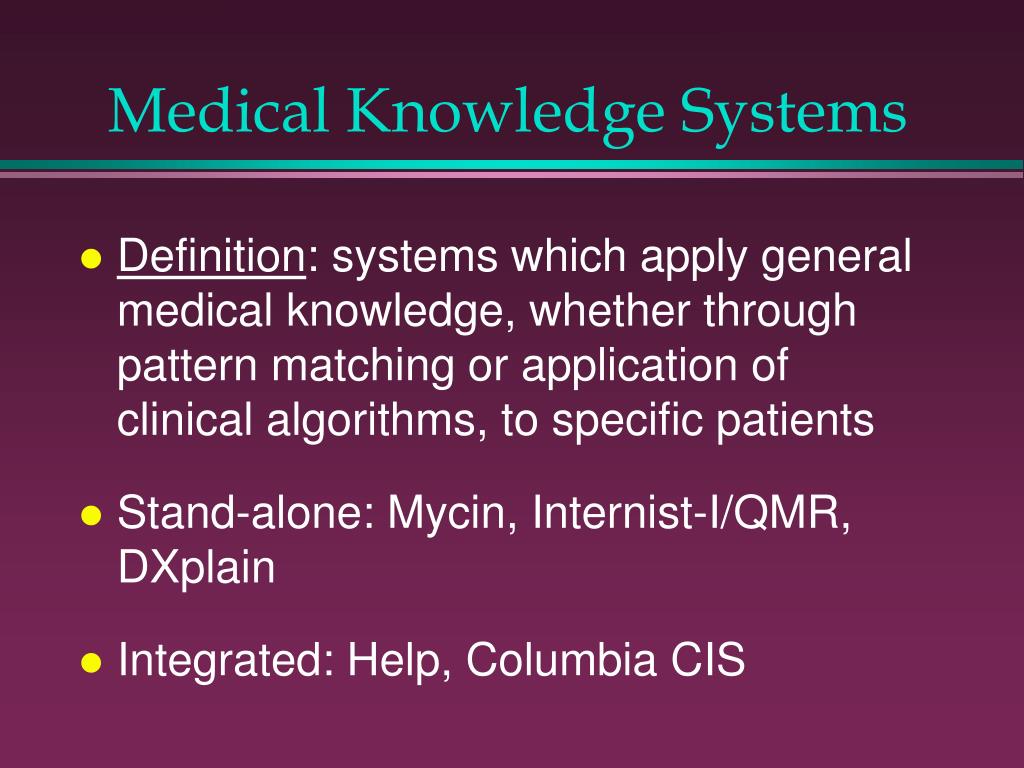

  9. Medical Knowledge Systems • Definition: systems which apply general medical knowledge, whether through pattern matching or application of clinical algorithms, to specific patients • Stand-alone: Mycin, Internist-I/QMR, DXplain • Integrated: Help, Columbia CIS

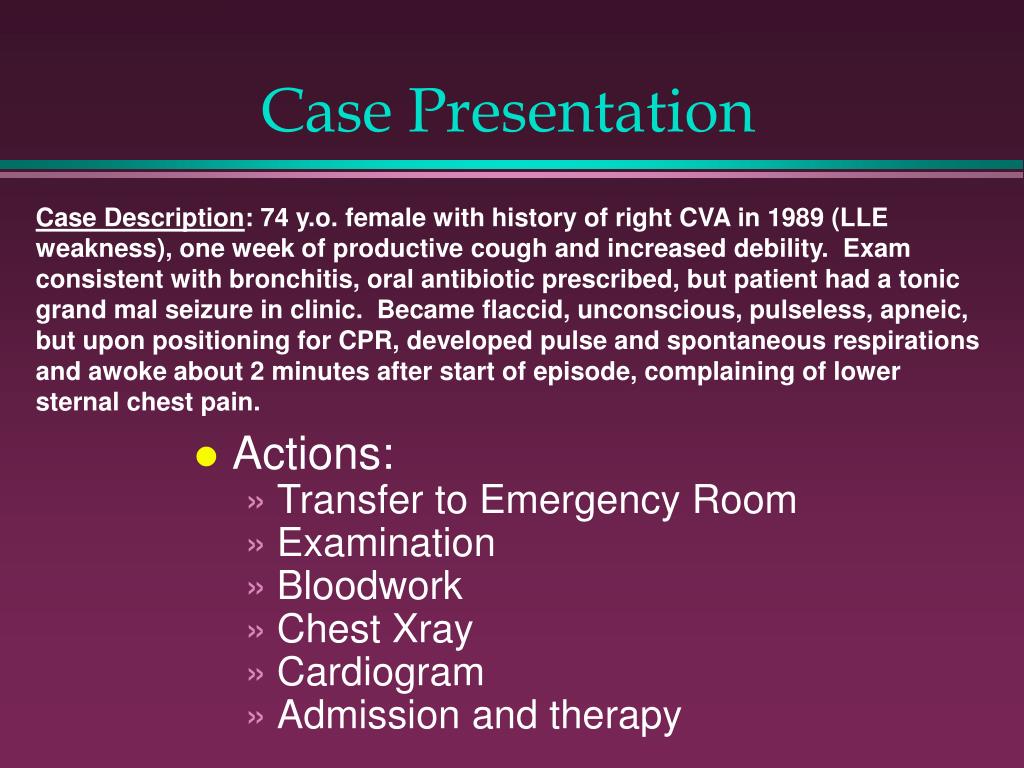

  10. Case Presentation Case Description: 74 y.o. female with history of right CVA in 1989 (LLE weakness), one week of productive cough and increased debility. Exam consistent with bronchitis, oral antibiotic prescribed, but patient had a tonic grand mal seizure in clinic. Became flaccid, unconscious, pulseless, apneic, but upon positioning for CPR, developed pulse and spontaneous respirations and awoke about 2 minutes after start of episode, complaining of lower sternal chest pain. • Actions: • Transfer to Emergency Room • Examination • Bloodwork • Chest Xray • Cardiogram • Admission and therapy

  11. CIS Demo - Part I • Lab Data: ABG and CPK/Isoenzymes • Radiology: CXR, VQ, Doppler • Cardiology: ECG, Cardiac Cath • Medications • Alerts • Discharge Summary

  12. Case Summary Case Description: bronchitis, bed-bound, venous thrombosis, pulmonary embolism, myocardial infarction, ventricular arrhythmia, hypotension, seizure, adult respiratory distress syndrome, methicillin-resistant Staph aureus • Discharge Plan • Where? • What happened? • Outpatient Follow-up • Medications • Laboratory • Health Maintenance

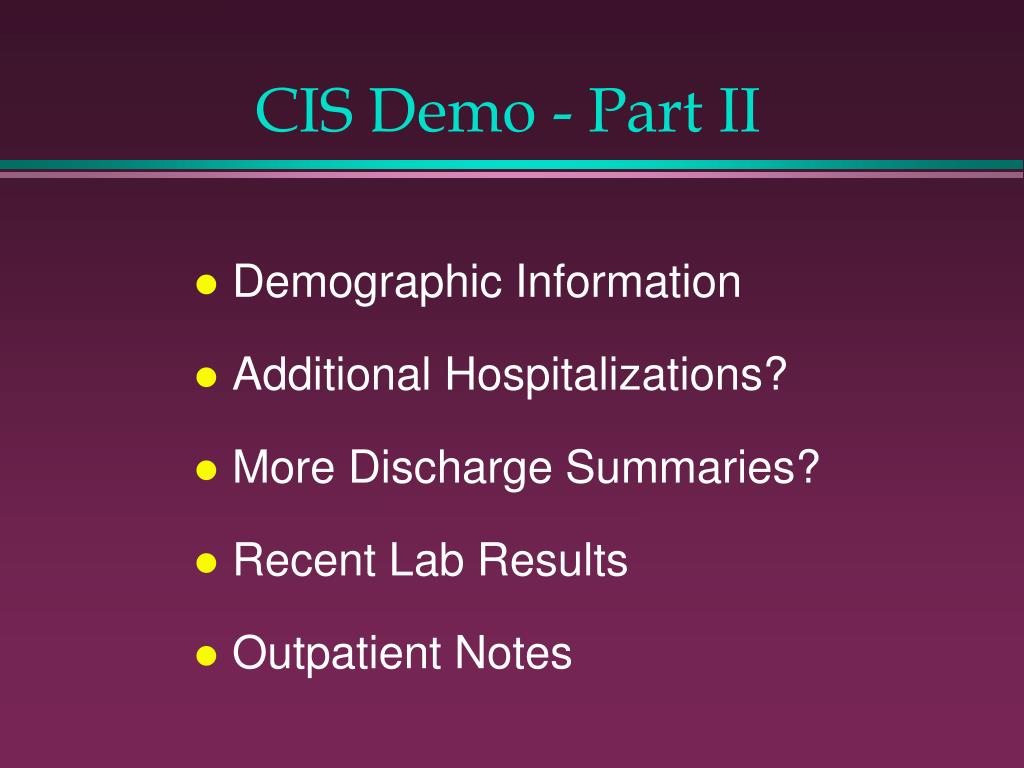

  13. CIS Demo - Part II • Demographic Information • Additional Hospitalizations? • More Discharge Summaries? • Recent Lab Results • Outpatient Notes

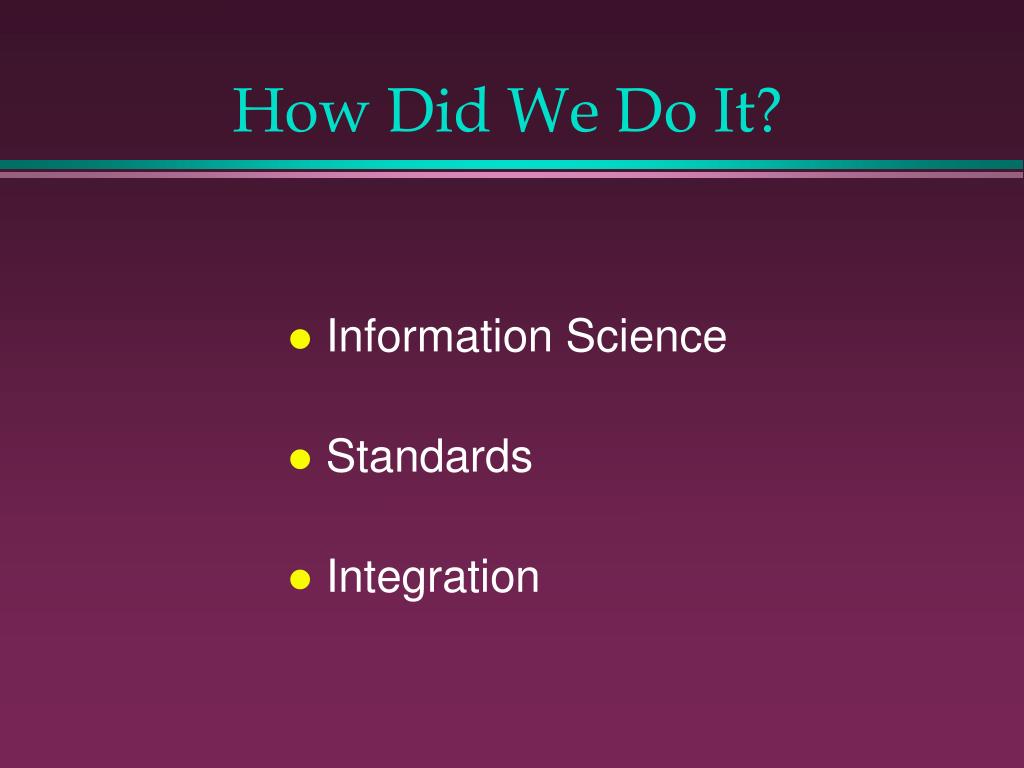

  14. How Did We Do It? • Information Science • Standards • Integration

  15. Medical Informatics - Lecture II • Information Science • Standards • Integration

  16. Information Science • Expert Systems • Decision Support Systems • Research Databases • Computer Assisted-Instruction

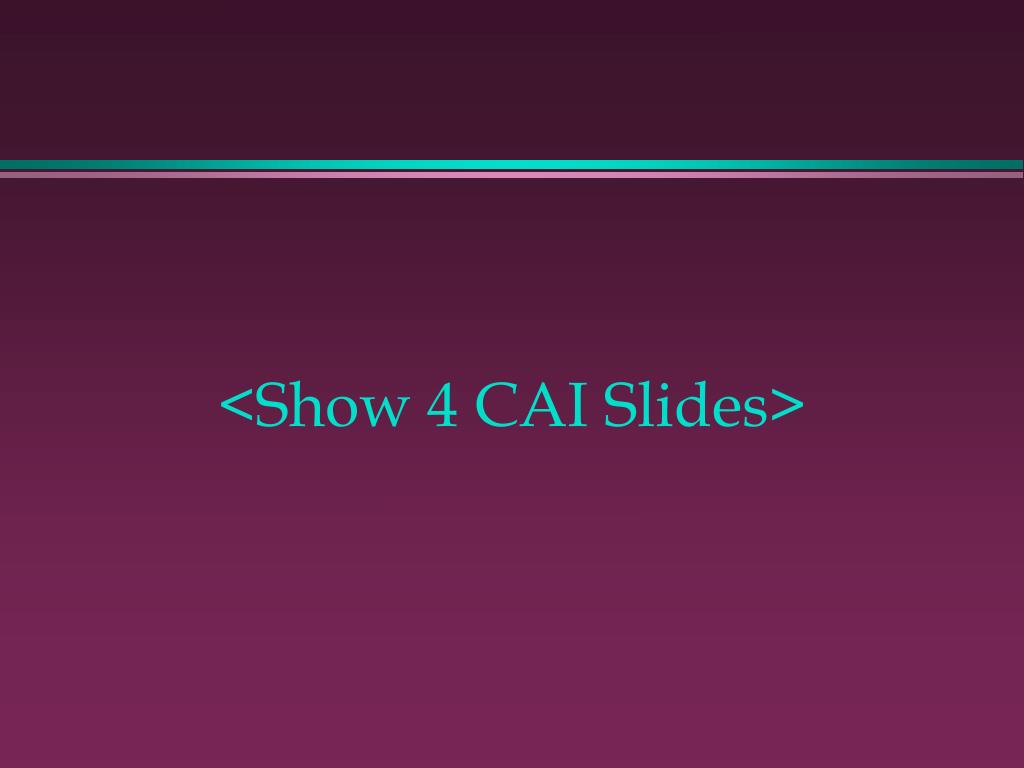

  17. <Show 4 CAI Slides>

  18. Standards • Messaging • Vocabulary • Logic • Databases

  19. Standards for Messaging • Structured Query Language • Z39.50 • Health Level 7 (HL7)

  20. HL7 Example MSH!^~\&!resquery!cicsu9!socratesqry!wash!19950314151110307!!ORF!199503141!! MSA!AA!19941125165590!RESULT LIST COMPLETED.!! QRD!19941125165542!R!I!0113142726!!!99!1644144!res!32309!! QRF!*!19901101000000!19941230170100!PDQRES2~*~OPSTA!95~95~95~PF~~ OBR!!!M136903542294808^0001!35422^^L!!!1994080807190000000!!!!!!!!!!!!!!!!!F!!!!!!!!! OBX!!TX!35456^^L!1^0!138$135-146]mM/l!!!!!!! OBR!!!M140333542394808^0001!35423^^L!!!1994080807100000000!!!!!!!!!!!!!!!!!F!!!!!!!!! OBX!!TX!35456^^L!1^0!136$135-146]mM/l!!!!!!! OBR!!!X263 3542294807^0001!35422^^L!!!1994080706520000000!!!!!!!!!!!!!!!!!F!!!!!!!!! OBX!!TX!35456^^L!1^0!140$135-146]mM/l!!!!!!!

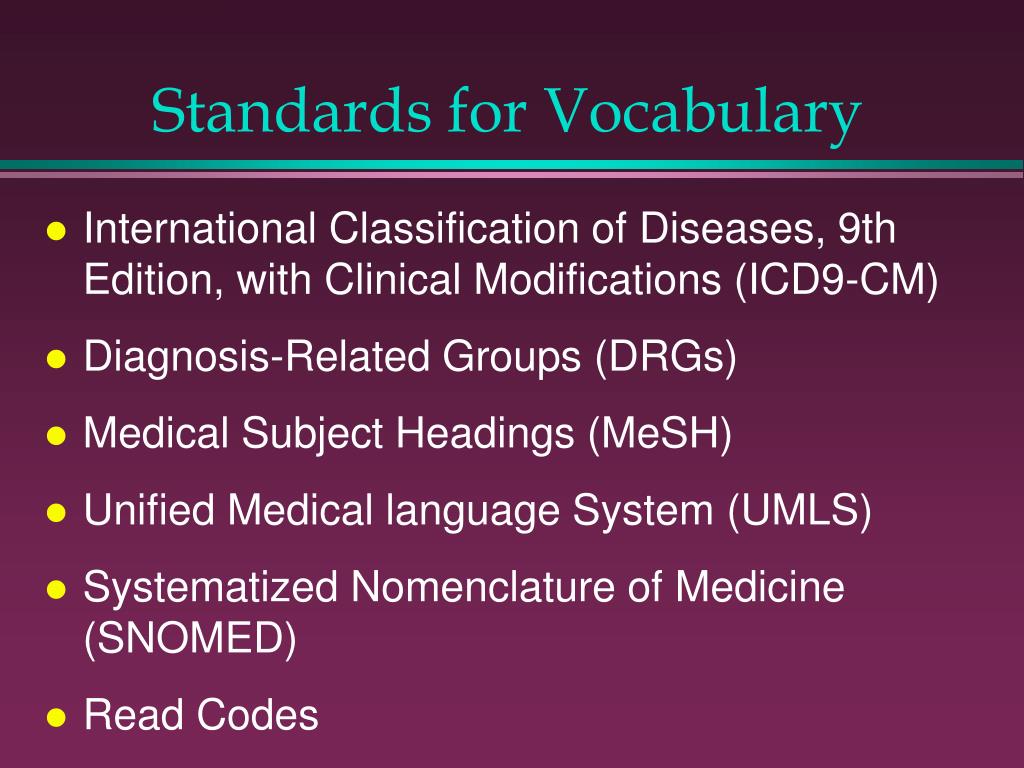

  21. Standards for Vocabulary • International Classification of Diseases, 9th Edition, with Clinical Modifications (ICD9-CM) • Diagnosis-Related Groups (DRGs) • Medical Subject Headings (MeSH) • Unified Medical language System (UMLS) • Systematized Nomenclature of Medicine (SNOMED) • Read Codes • Knowledge-Based Vocabularies

  22. ICD9- CM Example 003 Other Salmonella Infections 003.0 Salmonella Gastroenteritis 003.1 Salmonella Septicemia 003.2 Localized Salmonella Infections 003.20 Localized Salmonella Infection, Unspecified 003.21 Salmonella Meningitis 003.22 Salmonella Pneumonia 003.23 Salmonella Arthritis 003.24 Salmonella Osteomyelitis 003.29 Other Localized Salmonella Infection 003.8 Other specified salmonella infections 003.9 Salmonella infection, unspecified

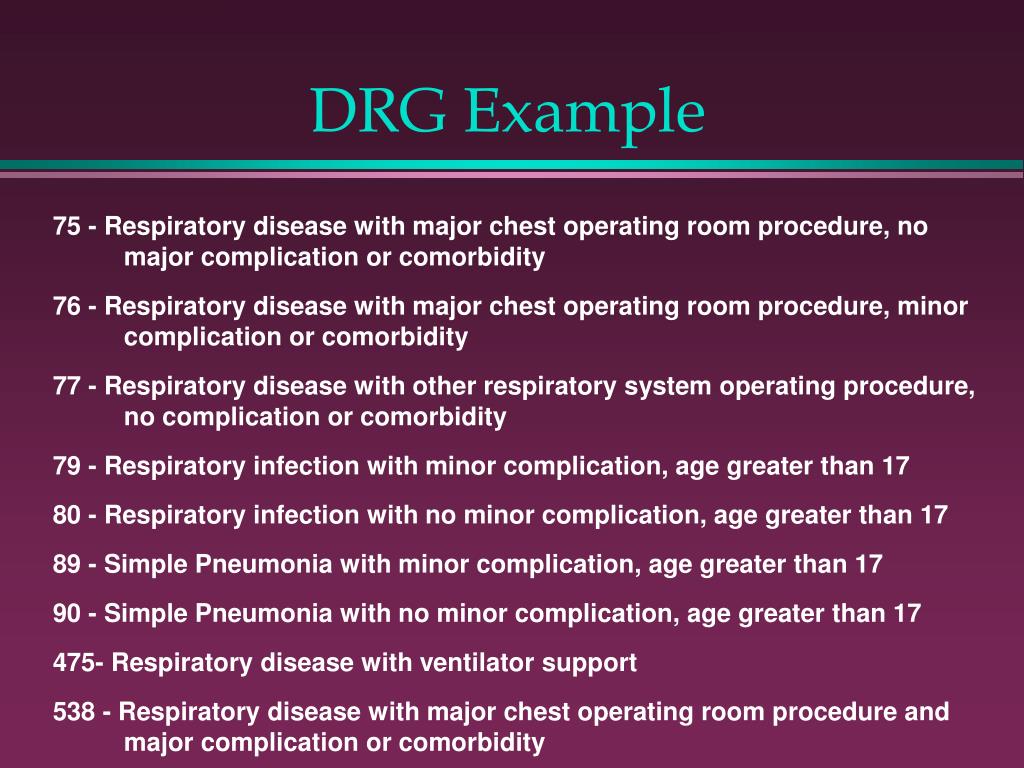

  23. DRG Example 75 - Respiratory disease with major chest operating room procedure, no major complication or comorbidity 76 - Respiratory disease with major chest operating room procedure, minor complication or comorbidity 77 - Respiratory disease with other respiratory system operating procedure, no complication or comorbidity 79 - Respiratory infection with minor complication, age greater than 17 80 - Respiratory infection with no minor complication, age greater than 17 89 - Simple Pneumonia with minor complication, age greater than 17 90 - Simple Pneumonia with no minor complication, age greater than 17 475- Respiratory disease with ventilator support 538 - Respiratory disease with major chest operating room procedure and major complication or comorbidity

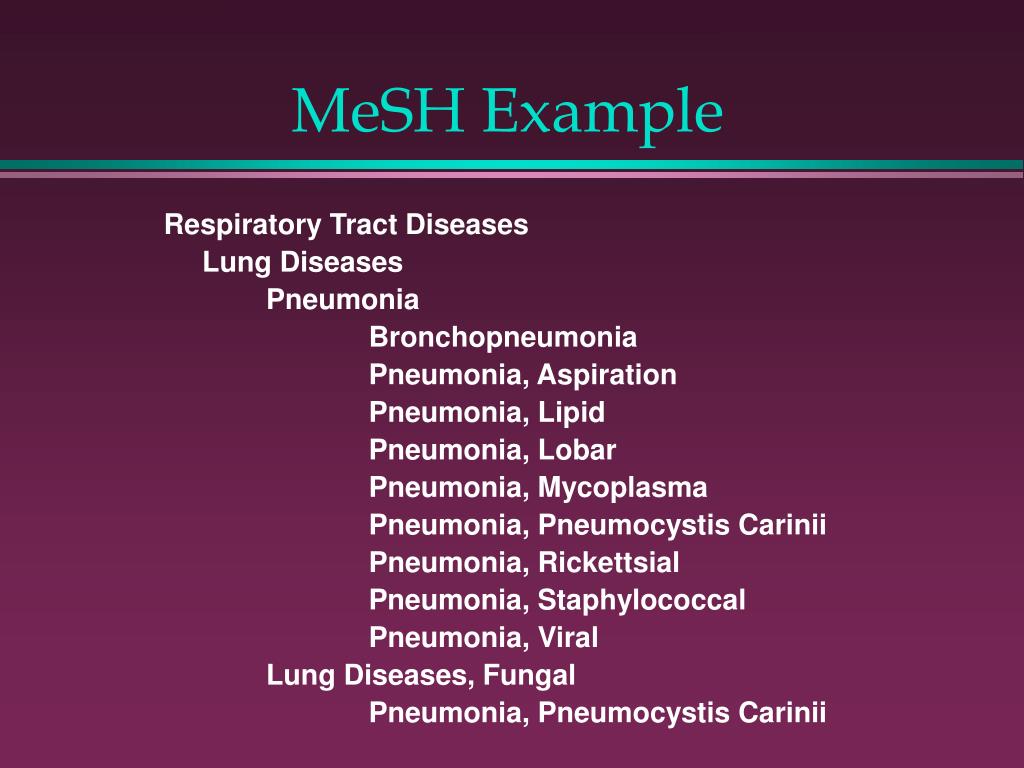

  24. MeSH Example Respiratory Tract Diseases Lung Diseases Pneumonia Bronchopneumonia Pneumonia, Aspiration Pneumonia, Lipid Pneumonia, Lobar Pneumonia, Mycoplasma Pneumonia, Pneumocystis Carinii Pneumonia, Rickettsial Pneumonia, Staphylococcal Pneumonia, Viral Lung Diseases, Fungal Pneumonia, Pneumocystis Carinii

  25. SNOMED Example D2-50000 SECTIONS 2-5-6 DISEASES OF THE LUNG D2-50100 2-501 NON-INFECTIOUS PNEUMONIAS D2-50100 Bronchopneumonia, NOS (T-26000) (M-40000) D2-50100 Lobular pneumonia (T-28040) (M-40000) D2-50100 Segmental pneumonia (T-280D0) (M-40000) D2-50100 Bronchial pneumonia (T-280D0) (M-40000) D2-50104 Peribronchial pneumonia (T-26090) (M-40000) D2-50110 Hemorrhagic bronchopneumonia (T-26000) (M-40790) D2-50120 Terminal bronchopneumonia (T-26000) (M-40000) D2-50130 Pleurobronchopneumonia (T-26000) (M-40000) D2-50130 Pleuropneumonia (T-26000) (M-40000) D2-50140 Pneumonia, NOS (T-28000) (M-40000) D2-50140 Pneumonitis, NOS (T-28000) (M-40000) D2-50142 Catarrhal pneumonia (T-28000) (M-40000) D2-50150 Unresolved pneumonia (T-28000) (M-40000) D2-50152 Unresolved lobar pneumonia (T-28770) (M-40000) D2-50160 Granulomatous pneumonia, NOS (T-28000) (M-44000) D2-50170 Airsacculitis, NOS (T-28850) (M-40000)

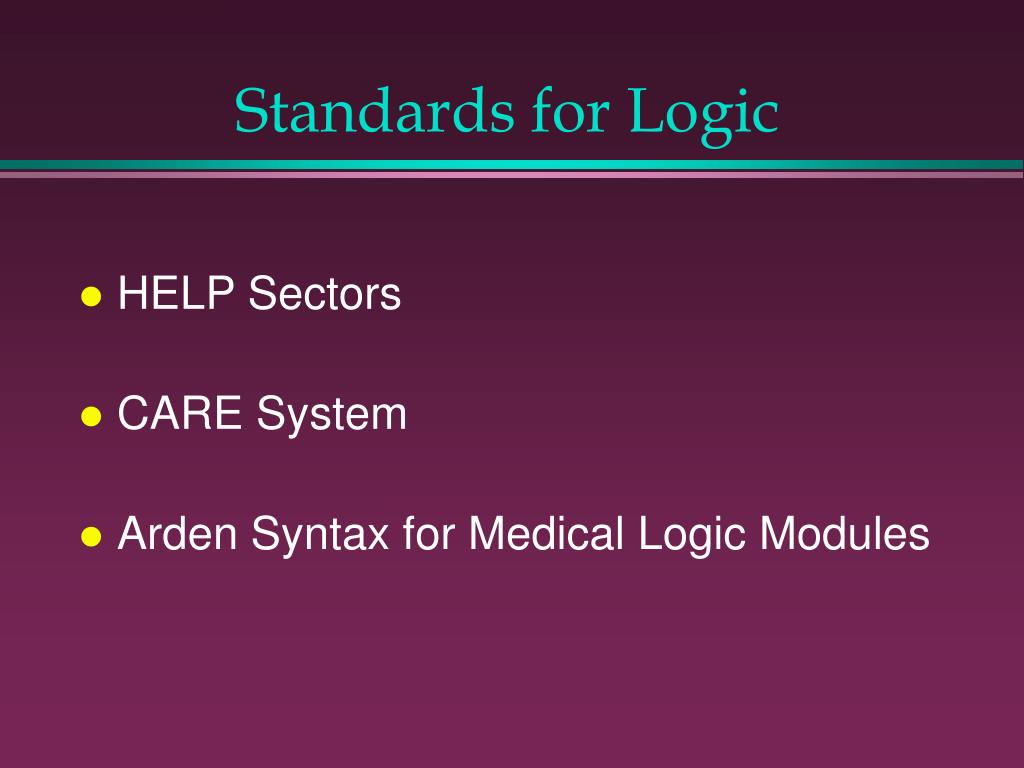

  26. Standards for Logic • HELP Sectors • CARE System • Arden Syntax for Medical Logic Modules

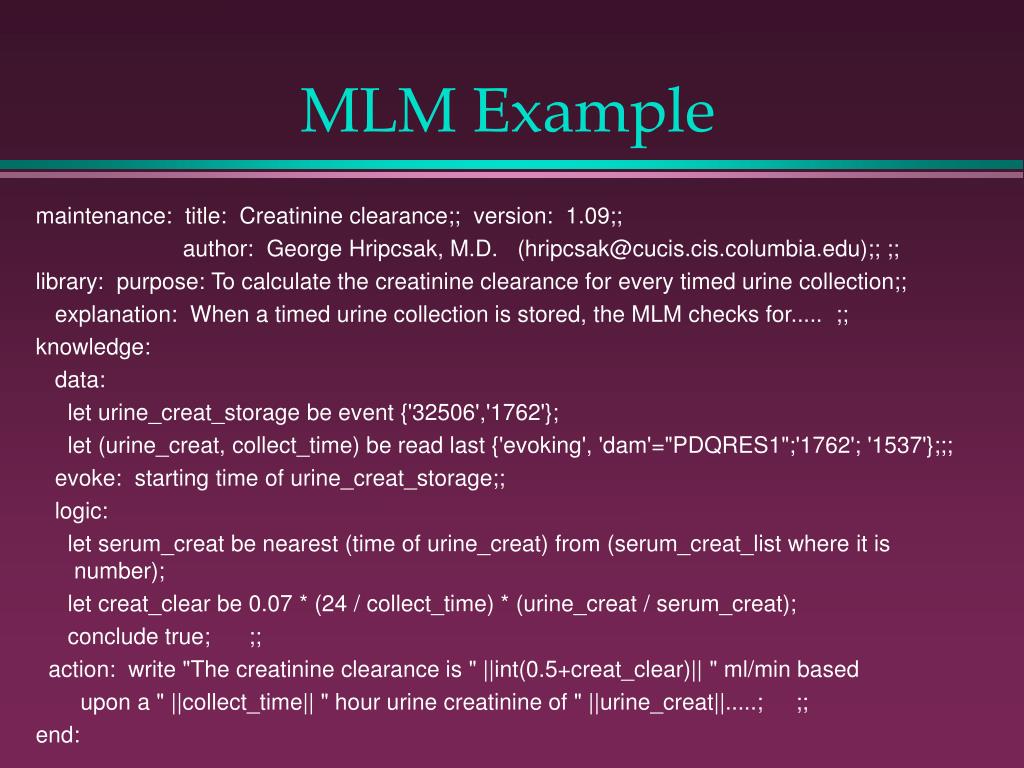

  27. MLM Example maintenance: title: Creatinine clearance;; version: 1.09;; author: George Hripcsak, M.D. (hripcsak@cucis.cis.columbia.edu);; ;; library: purpose: To calculate the creatinine clearance for every timed urine collection;; explanation: When a timed urine collection is stored, the MLM checks for..... ;; knowledge: data: let urine_creat_storage be event {'32506','1762'}; let (urine_creat, collect_time) be read last {'evoking', 'dam'="PDQRES1";'1762'; '1537'};;; evoke: starting time of urine_creat_storage;; logic: let serum_creat be nearest (time of urine_creat) from (serum_creat_list where it is number); let creat_clear be 0.07 * (24 / collect_time) * (urine_creat / serum_creat); conclude true; ;; action: write "The creatinine clearance is " ||int(0.5+creat_clear)|| " ml/min based upon a " ||collect_time|| " hour urine creatinine of " ||urine_creat||.....; ;; end:

  28. Standards for Databases • Definitions for Computer-Based Patient Records • Data Model Standards

  29. Integration • IAIMS: Integrated Advanced (Academic) Information Management Systems • Five Levels of Integration • World Wide Web (WWW)

  30. <5 Levels of Integration>

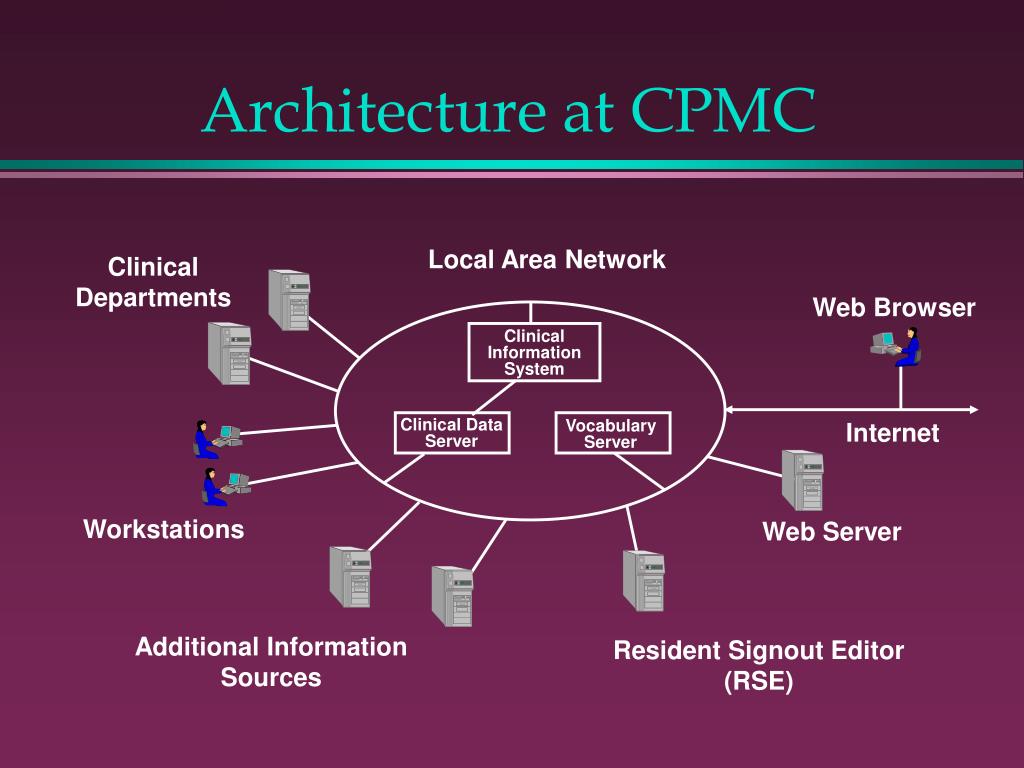

  31. Architecture at CPMC Local Area Network Clinical Departments Web Browser Clinical Information System Internet Clinical Data Server Vocabulary Server Workstations Web Server Additional Information Sources Resident Signout Editor (RSE)

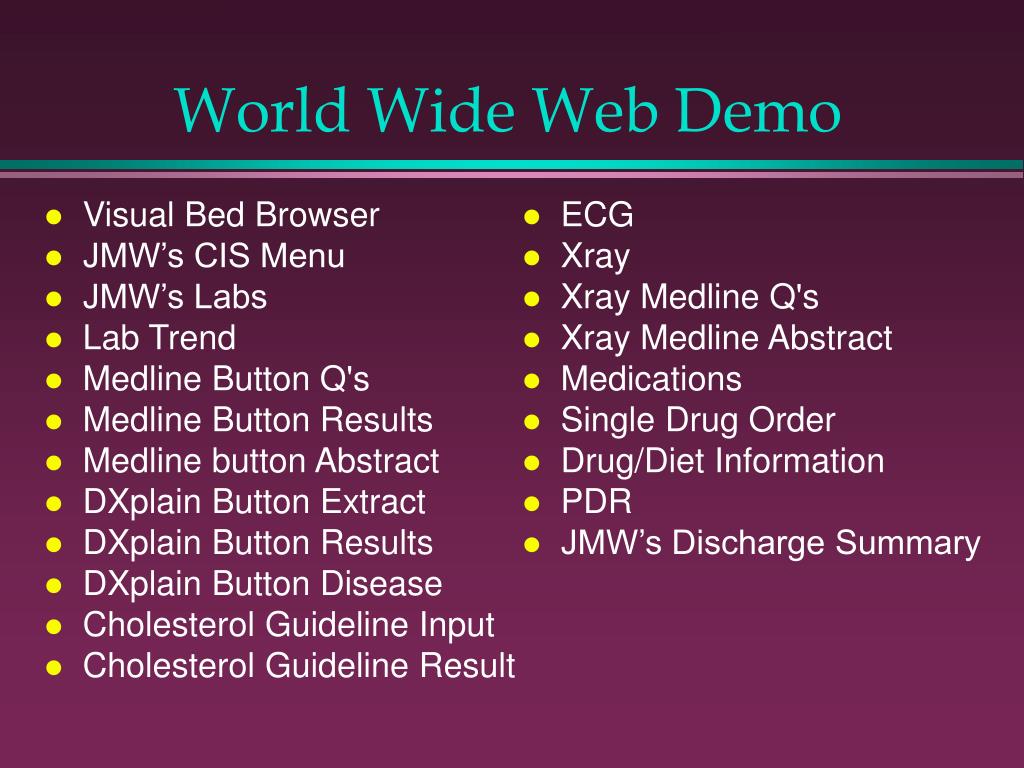

  32. World Wide Web Demo • ECG • Xray • Xray Medline Q's • Xray Medline Abstract • Medications • Single Drug Order • Drug/Diet Information • PDR • JMW’s Discharge Summary • Visual Bed Browser • JMW’s CIS Menu • JMW’s Labs • Lab Trend • Medline Button Q's • Medline Button Results • Medline button Abstract • DXplain Button Extract • DXplain Button Results • DXplain Button Disease • Cholesterol Guideline Input • Cholesterol Guideline Result

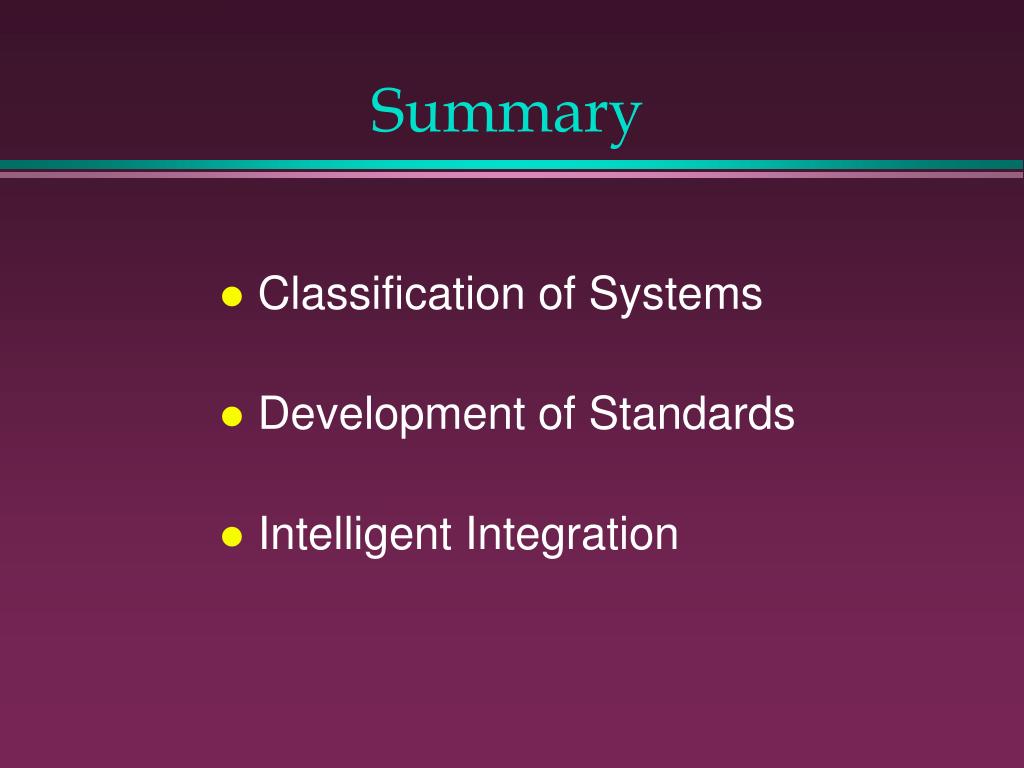

  33. Summary • Classification of Systems • Development of Standards • Intelligent Integration

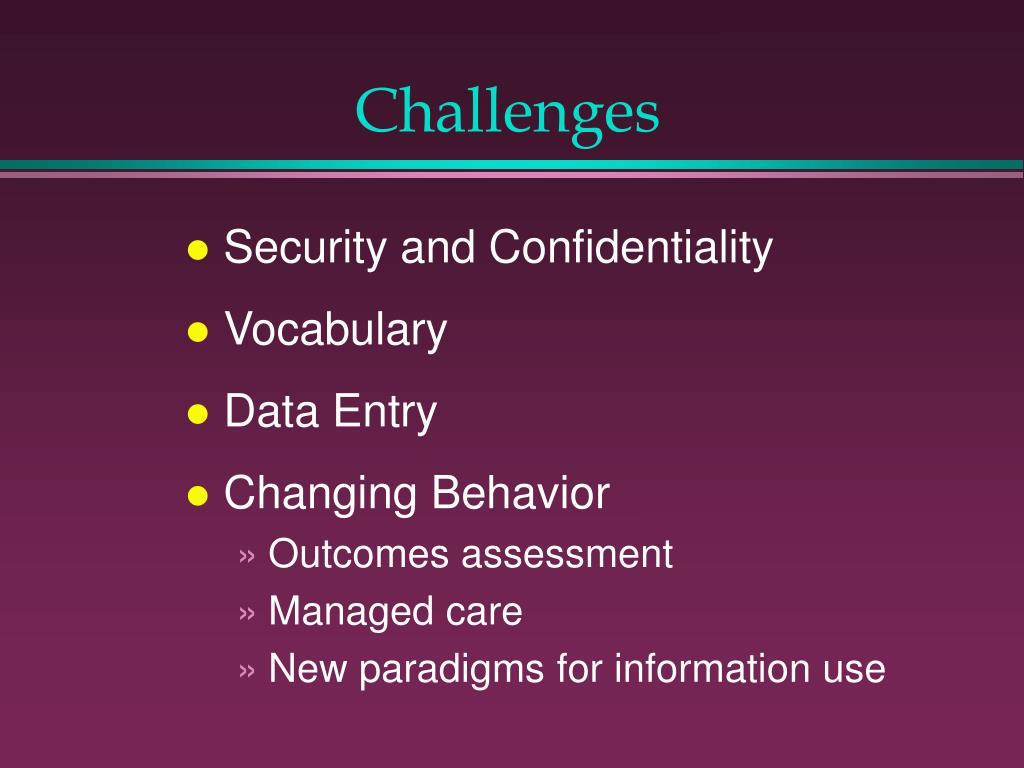

  34. Challenges • Security and Confidentiality • Vocabulary • Data Entry • Changing Behavior • Outcomes assessment • Managed care • New paradigms for information use
