ipsec ike protocol hacking toorcon 2k2 san diego ca

IPSec/IKE Protocol HackingToorCon 2K2 – San Diego, CA

Anton Rager Sr. Security Consultant Avaya Security Consulting

agenda
Agenda
  • IKE Overview and Protocol Weaknesses
  • Vendor Implementation Problems
  • IKE Tools discussion and demo
aggressive mode ike

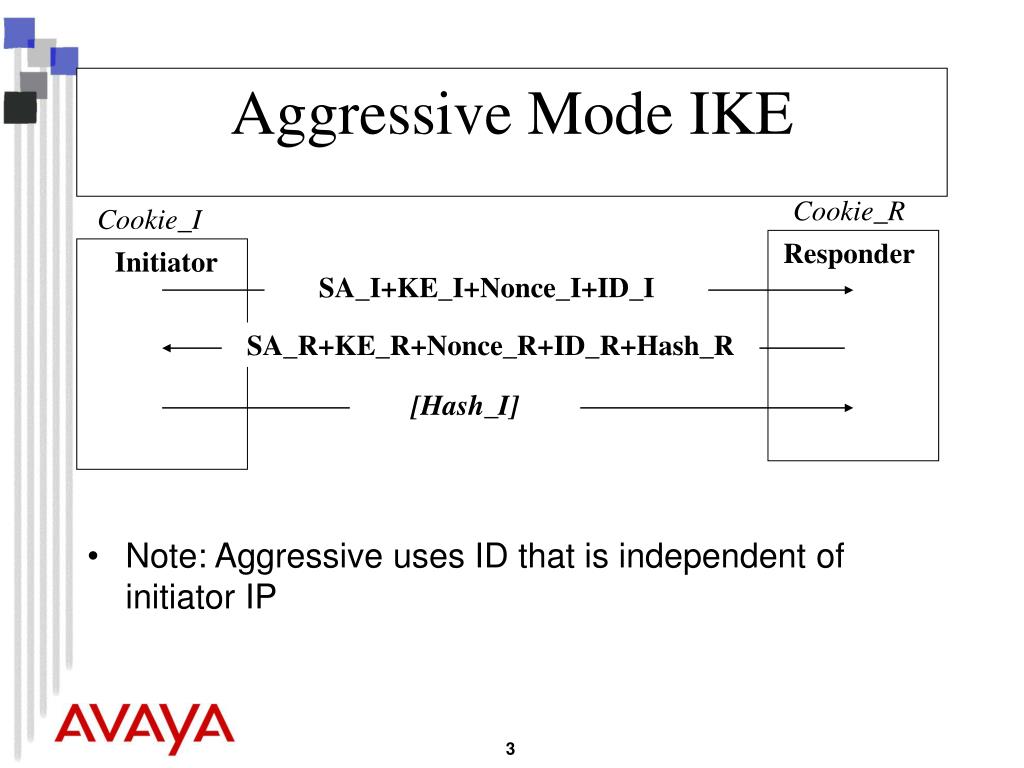

Aggressive Mode IKE

Cookie_R

Cookie_I

Responder

Initiator

SA_I+KE_I+Nonce_I+ID_I

SA_R+KE_R+Nonce_R+ID_R+Hash_R

[Hash_I]

  • Note: Aggressive uses ID that is independent of initiator IP
main mode ike
Main Mode IKE

Cookie_R

Cookie_I

Responder

Initiator

SA_I

SA_R

KE_I+Nonce_I

KE_R+Nonce_R

[ID_I]

[ID_R]

[Hash_I]

[Hash_R]

  • Note: ID is normally IP address of each endpoint
aggressive mode id
Aggressive Mode ID
  • ID sent in clear- Well known problem
  • IETF specifies that aggressive mode will send ID [UserID or GroupID] in clear
  • Eavesdropper can collect remote access user IDs
  • Some vendors have proprietary ways of hashing ID when using their client to hide ID
  • Interoperability [SafeNet/PGPNet] requires IETF adherence – ID leakage
aggressive mode psk attacks
Aggressive Mode PSK Attacks
  • PSK [password or shared-secret] authentication uses a hash sent in the clear
  • HASH is derived from public exchanged info + PSK
  • Bruteforce/Dictionary attacks possible against HASH as a passive listener
  • Some vendors use DH private value for hash derivation to prevent passive attacks – attack must be active MITM with knowledge of hashing method
attack process aggressive psk cracking
Attack ProcessAggressive PSK Cracking

Cookie_R

Cookie_I

Responder

Initiator

SA_I+KE_I+Nonce_I+ID_I

SA_R+KE_R+Nonce_R+ID_R+Hash_R

[Hash_I]

Assume MD5-HMAC for Hash function – based on hash in SA

Responder Hash:

HASH_R=MD5-HMAC(MD5-HMAC(Guessed PSK, Nonce_I + Nonce_R), resp DH pub, init DH pub + cookie_R + cookie_I + init SA header + resp ID header)

aggressive mode id enumeration
Aggressive Mode ID Enumeration
  • IKE protocol specification does not discuss how invalid ID should be handled. Many implementations respond with an invalid ID during the initial IKE negotiation – others just don’t respond
  • This can allow an active dictionary/bruteforce enumeration
  • Submit IKE initiator frame to concentrator with guessed ID. Concentrator will tell you if guess is wrong
  • Vendor Workarounds: Obfuscation responses
main mode psk attacks
Main Mode PSK Attacks
  • Similar problem to aggressive mode, except HASH is passed encrypted.
  • Main Mode requires an active or MITM attack to attack PSK to derive DH secret
  • IDs are normally the IPs of endpoints
  • We will guess the PSK and try to determine the encryption key for the 1st encrypted packet
attack process main mode psk cracking
Attack ProcessMain Mode PSK Cracking

Cookie_R

Cookie_I

Responder

(Attacker)

Initiator

SA_I

SA_R

KE_I+Nonce_I

KE_R+Nonce_R

[ID_I]

[ID_R]

[Hash_I]

[Hash_R]

attack process main mode psk cracking11
Attack ProcessMain Mode PSK Cracking
  • Collect public IKE values [Nonces, DH Public values, Cookies, headers, etc] and assume IDs are IP endpoint IPs
  • Collect 1ST encrypted packet
  • Calculate DH Secret
  • Choose PSK value and calculate SYKEYID, SKEYID_d, KEYID_a, KEYID_e
  • Generate IV from hash of DH Public values
  • Decrypt packet with IV and SKEYID_e – check for known plaintext to validate
main mode policy enumeration
Main Mode Policy Enumeration
  • Similar to aggressive mode ID enumeration
  • Peer will only respond to valid IP address that has a defined policy
  • Attacker can send spoofed init frames to “peer” to search IP address space
  • Correct IP will cause an SA proposal reply from “peer”
  • Some vendors will send a “no proposal choosen” if SA is from invalid host
implementation vulnerabilities
Implementation Vulnerabilities
  • Cisco VPN Client 3.5
  • Cisco VPN Client 1.1
  • SafeNet/IRE SoftPK and SoftRemote
  • PGPFreeware 7.03 - PGPNet
tools

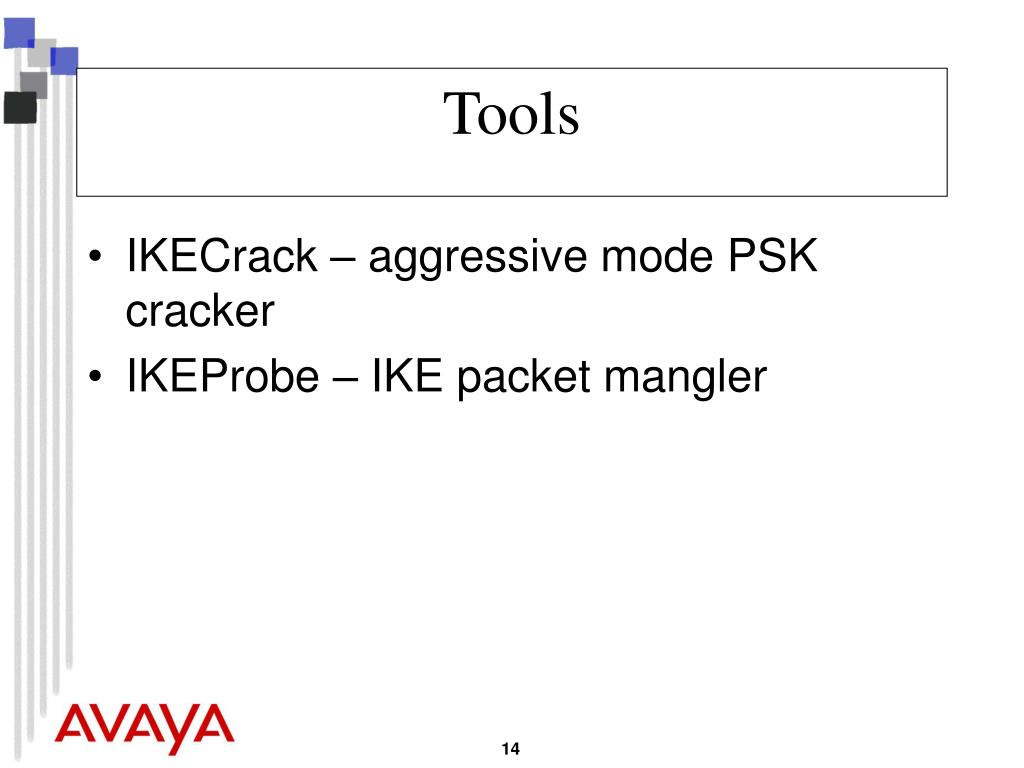

Tools
  • IKECrack – aggressive mode PSK cracker
  • IKEProbe – IKE packet mangler
ikecrack http ikecrack sourceforge net
IKECrackhttp://ikecrack.sourceforge.net
  • IKE PSK Cracker – dictionary, hybrid, brute
  • Simplistic implementation – Aggressive mode only
  • Must use IETF HASH_R calculations (RFC 2409)
  • MD5 HMAC only – 93K kps on 1.8ghz P4
  • PERL script that requires HMAC PerlMod and uses tcpdump –x output for capture – It’s a hack, but it works.
ikeprober http ikecrack sourceforge net
IKEProberhttp://ikecrack.sourceforge.net
  • Command-line utility for building arbitrary IKE packets
  • Supports common IKE options and allows user specified data or repeated chars
  • Useful for finding BoF problems with option parsing – Used to find Cisco/PGPNet/Safenet probs
  • Perl based and requires NetCat in Unix -- Also a hack.
  • Can also be used for user enumeration
contact info
Contact Info
  • IKE Tools and preso Download http://ikecrack.sourceforge.net
  • Anton Rager arager@avaya.com
  • Code criticism: This is proof-of-concept stuff -- fix it yourself
