an empirical study of collaborative acoustic source localization

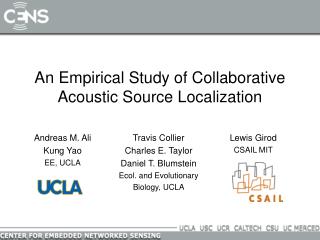

An Empirical Study of Collaborative Acoustic Source Localization

Andreas M. Ali

Kung Yao

EE, UCLA

Travis Collier

Charles E. Taylor

Daniel T. Blumstein

Ecol. and Evolutionary

Biology, UCLA

Lewis Girod

CSAIL MIT

contribution
Contribution
  • Online marmot detector based on Constant False Alarm Rate (CFAR)
  • A centralized marmot call localization system based on Approximate-ML (AML) bearing likelihood estimation
  • A field study on real animals in natural habitat

Yellow Bellied Marmot

Rocky Mountain Biological Lab (RMBL)

outline
Outline
  • Motivation to study Marmot alarm calls
  • Acoustic ENS Box Platform and Methods
  • Analysis and Results
  • Summary
motivation for using marmot alarm calls
Motivation for Using Marmot Alarm Calls

Rocky Mountain Colorado Lab (RMBL)

  • Biologically important
  • Infrequent
  • Difficult to observe
    • 30% identified by observation

Marmot at RMBL

acoustic ens box platform
Acoustic ENS Box Platform

Acoustic ENSBox V1

(2004-2005)

  • Wireless distributed system
  • Self-contained
  • Self-managing
  • Self-localization
  • Processors
  • Microphone array
  • Omni directional speaker

V2 (2007)

doa based localization system
DOA Based Localization System

CFAR

  • Constant False Alarm Rate (CFAR) based event detection
  • Combine AML Direction of Arrival (DOA) likelihood estimate to produce the source location estimate

J1

JN

J2

satellite picture of wide deployment
Satellite Picture of Wide Deployment
  • Rocky Mountain Biological Laboratory (RMBL), Colorado
  • 6 Sub-arrays
  • Burrow near Spruce
  • Wide deployment
    • Max range ~ 140 m
  • Compaq deployment
    • Max range ~ 50 m
aligning node position with gps coordinate
Aligning Node Position with GPS Coordinate
  • Compact Deployment
  • GPS (red)
  • Self-Loc (blue)
pseudo log likelihood map
Pseudo Log-likelihood Map
  • Compaq deployment
  • location estimate
  • spruce location
  • Normalized beam pattern
  • Collective result mitigate individual sub-array ambiguities
  • Marmot observed near Spruce
aligning node position with gps coordinate12
Aligning Node Position with GPS Coordinate
  • Wide Deployment
  • GPS (red)
  • Self-Loc (blue)
location estimates scatter plot for wide deployment
Location Estimates Scatter Plot for Wide Deployment

Meter

Meter

Meter

Meter

6 sub-arrays

4 sub-arrays

summary
Summary
  • Non-intrusive acoustic source localization is practical and tractable
  • Self-localization and synchronization feature of Acoustic ENS Box is essential for practical field deployment
  • Combining multiple AML based DOA likelihoods from multiple nodes effectively overcomes ambiguity individual node suffers
  • Redundancy can be used to identify and exclude sub-arrays which have especially poor data due to reverberations, multi-path, or other practically unavoidable problems.
generate pseudo log likelihood map from aml
Generate Pseudo Log-likelihood Map from AML

Meters

Meters

  • From a position, sum all the log-likelihood values of the bearing estimates
  • Beam crossing
deployment collection method
Deployment & Collection Method

Node n

Self-loc

  • Self-localization stage
    • Acoustic ENS Box
  • Detection/recording stage
    • Each node:
      • Runs CFAR event detector
      • Silent recording
      • Each node estimate bearing via AML (can be run in fusion center)
    • Fusion center:Generate a Pseudo Likelihood map to estimate source location
  • Deployment size (Compaq or Wide)

Store

Event?

CFAR event detector

AML

Yes

No

Fusion center

Pseudo

Log-likelihood

Estimate
