How to Use a Voltage Tester to Check for Ground Faults

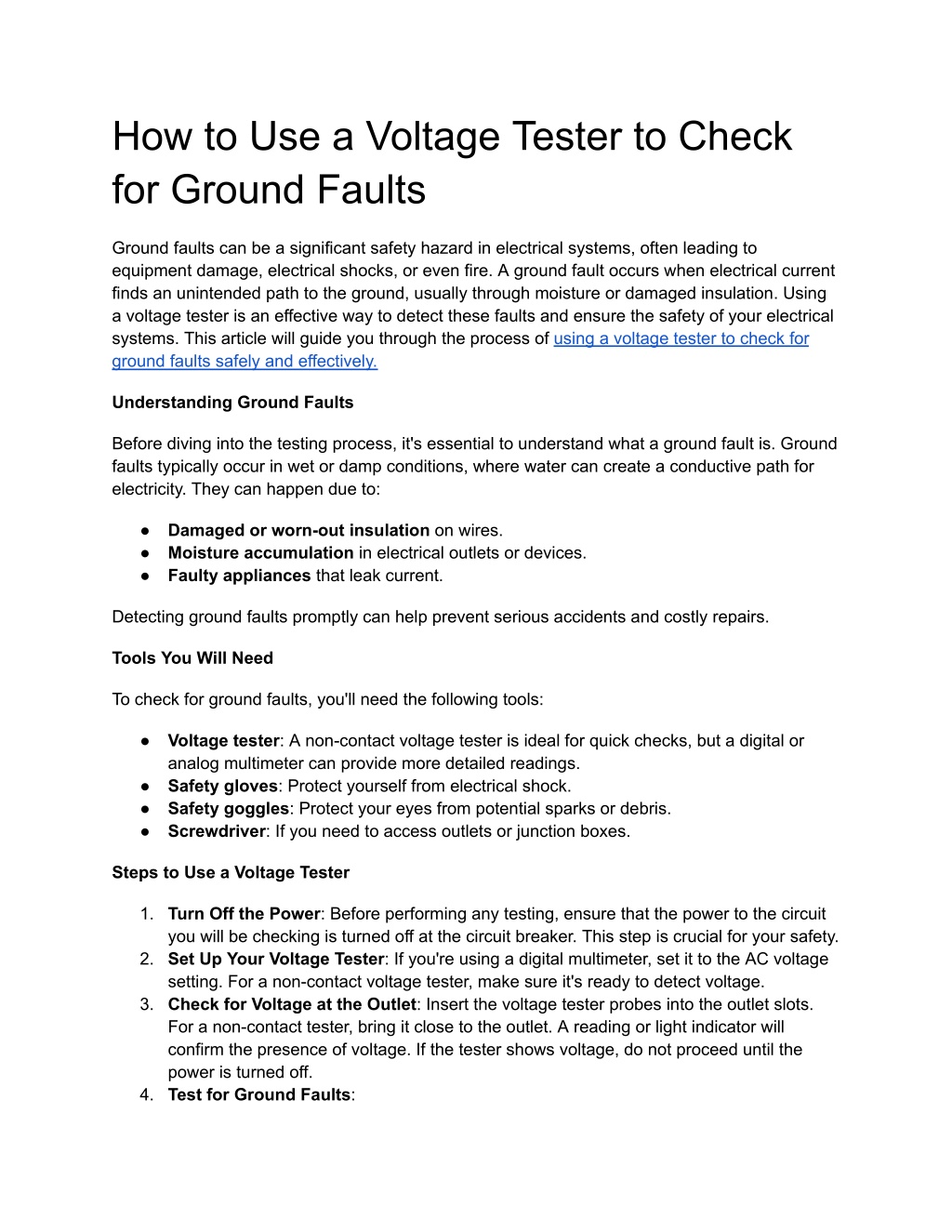

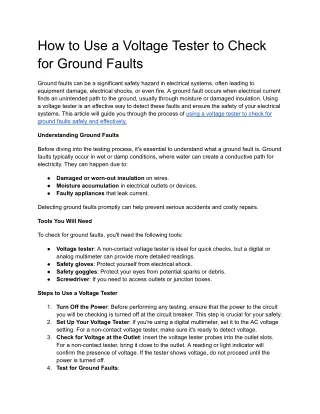

1. How to Use a Voltage Tester to Check for Ground Faults Ground faults can be a significant safety hazard in electrical systems, often leading to equipment damage, electrical shocks, or even fire. A ground fault occurs when electrical current finds an unintended path to the ground, usually through moisture or damaged insulation. Using a voltage tester is an effective way to detect these faults and ensure the safety of your electrical systems. This article will guide you through the process of using a voltage tester to check for ground faults safely and effectively. Understanding Ground Faults Before diving into the testing process, it's essential to understand what a ground fault is. Ground faults typically occur in wet or damp conditions, where water can create a conductive path for electricity. They can happen due to: ● ● ● Damaged or worn-out insulation on wires. Moisture accumulation in electrical outlets or devices. Faulty appliances that leak current. Detecting ground faults promptly can help prevent serious accidents and costly repairs. Tools You Will Need To check for ground faults, you'll need the following tools: ● Voltage tester: A non-contact voltage tester is ideal for quick checks, but a digital or analog multimeter can provide more detailed readings. Safety gloves: Protect yourself from electrical shock. Safety goggles: Protect your eyes from potential sparks or debris. Screwdriver: If you need to access outlets or junction boxes. ● ● ● Steps to Use a Voltage Tester 1. Turn Off the Power: Before performing any testing, ensure that the power to the circuit you will be checking is turned off at the circuit breaker. This step is crucial for your safety. 2. Set Up Your Voltage Tester: If you're using a digital multimeter, set it to the AC voltage setting. For a non-contact voltage tester, make sure it's ready to detect voltage. 3. Check for Voltage at the Outlet: Insert the voltage tester probes into the outlet slots. For a non-contact tester, bring it close to the outlet. A reading or light indicator will confirm the presence of voltage. If the tester shows voltage, do not proceed until the power is turned off. 4. Test for Ground Faults:

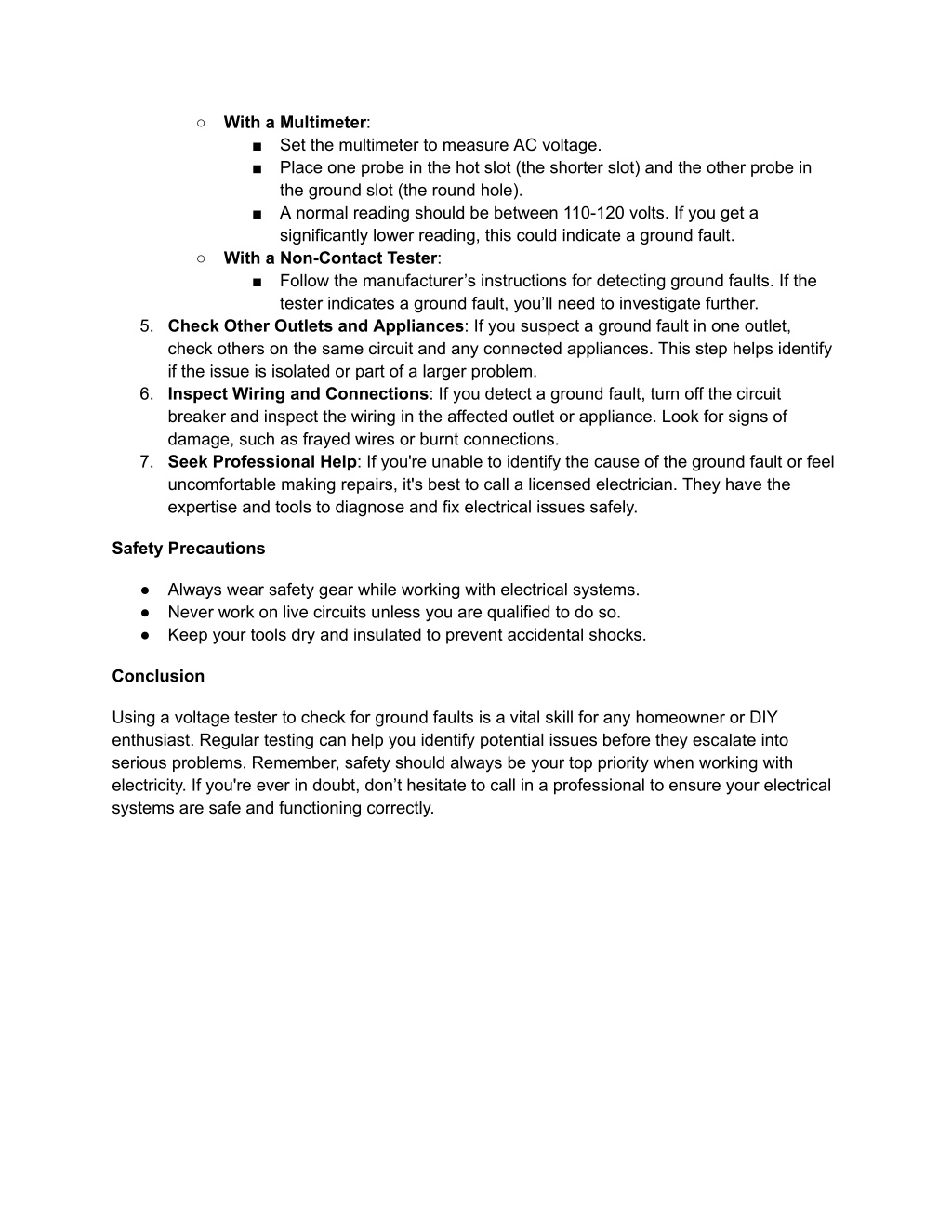

2. With a Multimeter: ■ Set the multimeter to measure AC voltage. ■ Place one probe in the hot slot (the shorter slot) and the other probe in the ground slot (the round hole). ■ A normal reading should be between 110-120 volts. If you get a significantly lower reading, this could indicate a ground fault. With a Non-Contact Tester: ■ Follow the manufacturer’s instructions for detecting ground faults. If the tester indicates a ground fault, you’ll need to investigate further. 5. Check Other Outlets and Appliances: If you suspect a ground fault in one outlet, check others on the same circuit and any connected appliances. This step helps identify if the issue is isolated or part of a larger problem. 6. Inspect Wiring and Connections: If you detect a ground fault, turn off the circuit breaker and inspect the wiring in the affected outlet or appliance. Look for signs of damage, such as frayed wires or burnt connections. 7. Seek Professional Help: If you're unable to identify the cause of the ground fault or feel uncomfortable making repairs, it's best to call a licensed electrician. They have the expertise and tools to diagnose and fix electrical issues safely. ○ ○ Safety Precautions ● ● ● Always wear safety gear while working with electrical systems. Never work on live circuits unless you are qualified to do so. Keep your tools dry and insulated to prevent accidental shocks. Conclusion Using a voltage tester to check for ground faults is a vital skill for any homeowner or DIY enthusiast. Regular testing can help you identify potential issues before they escalate into serious problems. Remember, safety should always be your top priority when working with electricity. If you're ever in doubt, don’t hesitate to call in a professional to ensure your electrical systems are safe and functioning correctly.
