POS Machine

Essae is a leading manufacturer of high-quality Point of Sale (POS) Machines, offering reliable and efficient solutions for businesses. Enhance your retail operations with Essae's advanced POS systems.<br>https://www.essae.com/pos-machine.php

Essae1
Download Presentation

POS Machine

An Image/Link below is provided (as is) to download presentation Download Policy: Content on the Website is provided to you AS IS for your information and personal use and may not be sold / licensed / shared on other websites without getting consent from its author. Content is provided to you AS IS for your information and personal use only. Download presentation by click this link. While downloading, if for some reason you are not able to download a presentation, the publisher may have deleted the file from their server. During download, if you can't get a presentation, the file might be deleted by the publisher.

E N D

Presentation Transcript

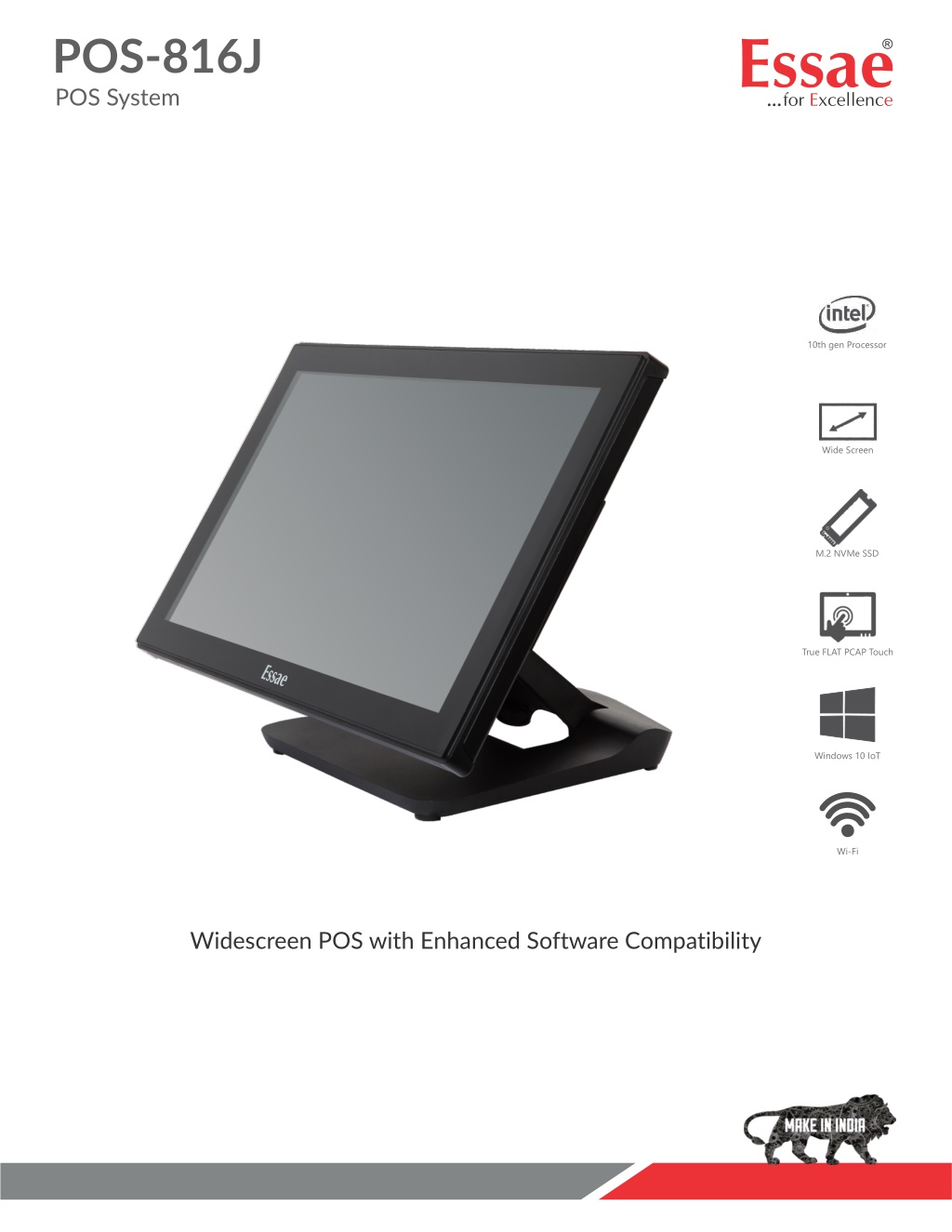

  1. POS-816J POS System 10th gen Processor Wide Screen M.2 NVMe SSD True FLAT PCAP Touch Windows 10 IoT Wi-Fi Widescreen POS with Enhanced Software Compatibility

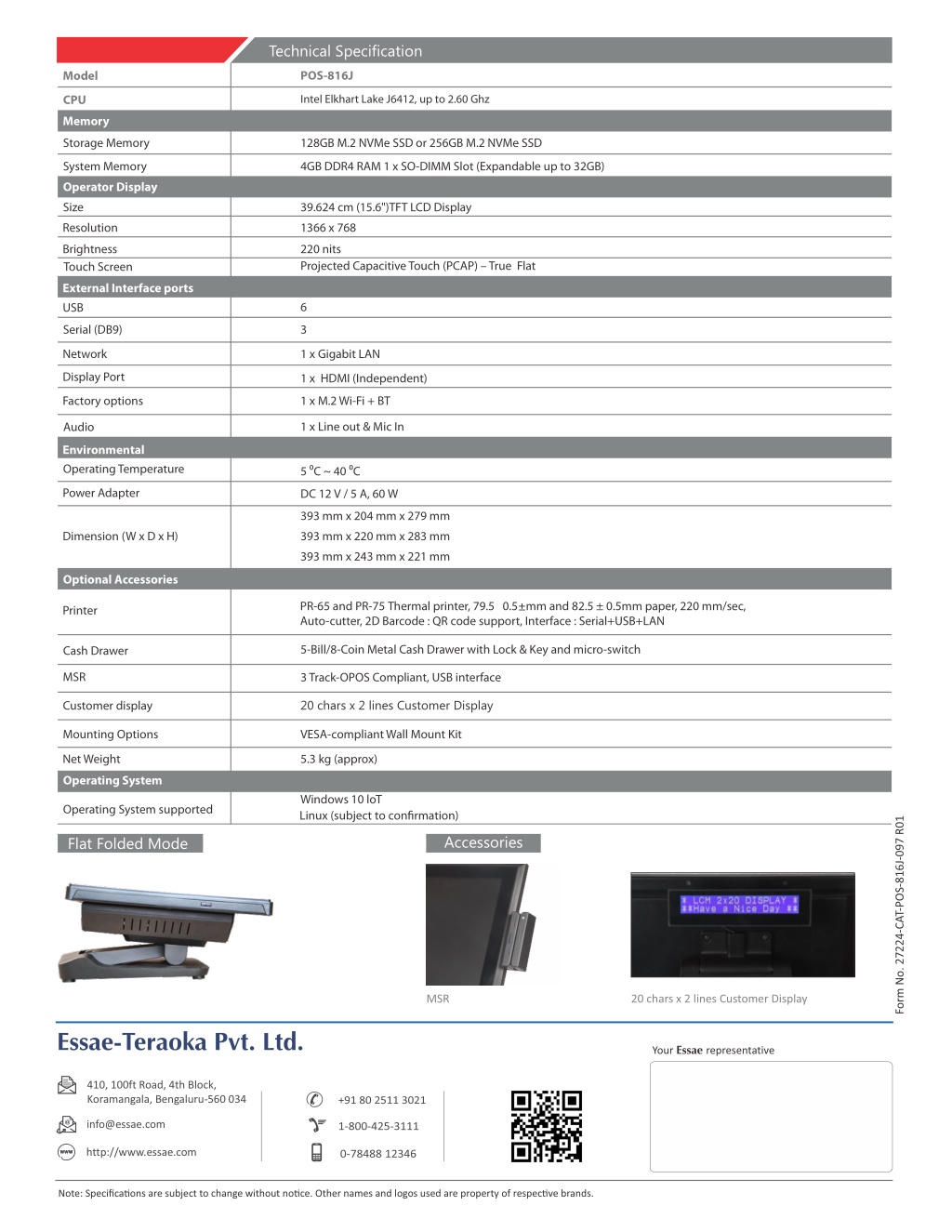

  2. Technical Specification POS-816J Model CPU Memory Intel Elkhart Lake J6412, up to 2.60 Ghz Storage Memory 128GB M.2 NVMe SSD or 256GB M.2 NVMe SSD System Memory Operator Display Size Resolution 4GB DDR4 RAM 1 x SO-DIMM Slot (Expandable up to 32GB) 39.624 cm (15.6")TFT LCD Display 1366 x 768 Brightness 220 nits Projected Capacitive Touch (PCAP) – True Flat Touch Screen External Interface ports USB 6 Serial (DB9) 3 Network 1 x Gigabit LAN Display Port 1 x HDMI (Independent) Factory options 1 x M.2 Wi-Fi + BT 1 x Line out & Mic In Audio Environmental Operating Temperature 5 ⁰C ~ 40 ⁰C Power Adapter DC 12 V / 5 A, 60 W 393 mm x 204 mm x 279 mm 393 mm x 220 mm x 283 mm 393 mm x 243 mm x 221 mm Dimension (W x D x H) Optional Accessories ± PR-65 and PR-75 Thermal printer, 79.5 0.5 mm and 82.5 ± 0.5mm paper, 220 mm/sec, Auto-cutter, 2D Barcode : QR code support, Interface : Serial+USB+LAN Printer 5-Bill/8-Coin Metal Cash Drawer with Lock & Key and micro-switch Cash Drawer MSR 3 Track-OPOS Compliant, USB interface 20 chars x 2 lines Customer Display Customer display Mounting Options VESA-compliant Wall Mount Kit Net Weight Operating System 5.3 kg (approx) Windows 10 loT Linux (subject to con?rmation) Operating System supported Form No. 27224-CAT-POS-816J-097 R01 Accessories Flat Folded Mode MSR 20 chars x 2 lines Customer Display Your representative 410, 100ft Road, 4th Block, Koramangala, Bengaluru-560 034 +91 80 2511 3021 info@essae.com 1-800-425-3111 http://www.essae.com 0-78488 12346 Note: Specifica?ons are subject to change without no?ce. Other names and logos used are property of respec?ve brands.
