Milk Fat Testing Machine

Discover Essae, the leading manufacturer of milk fat testing machines, offering advanced, accurate, and reliable solutions for dairy fat analysis. Trusted by dairy professionals worldwide!

Essae1
Download Presentation

Milk Fat Testing Machine

An Image/Link below is provided (as is) to download presentation Download Policy: Content on the Website is provided to you AS IS for your information and personal use and may not be sold / licensed / shared on other websites without getting consent from its author. Content is provided to you AS IS for your information and personal use only. Download presentation by click this link. While downloading, if for some reason you are not able to download a presentation, the publisher may have deleted the file from their server. During download, if you can't get a presentation, the file might be deleted by the publisher.

E N D

Presentation Transcript

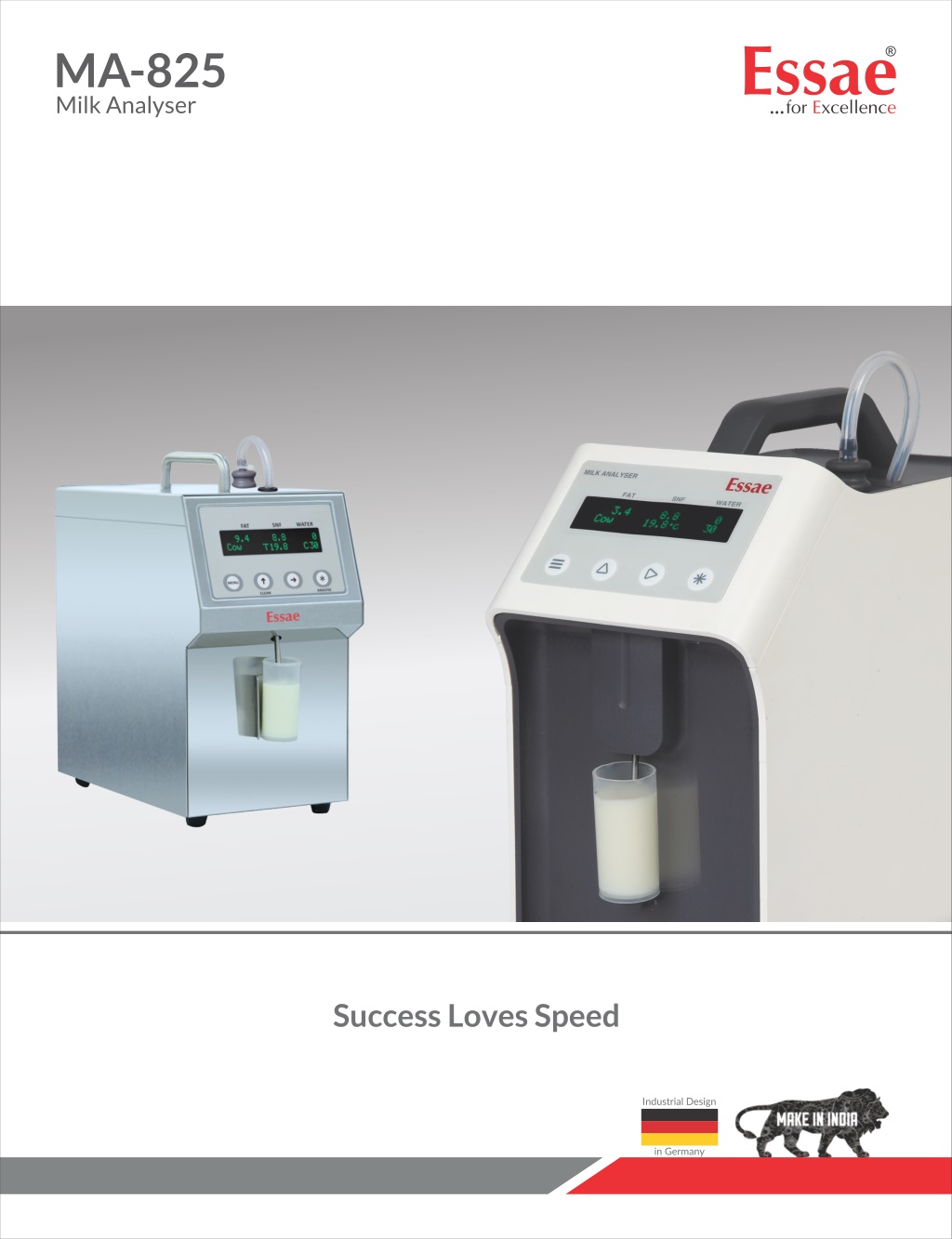

  1. MA-825 Milk Analyser Success Loves Speed

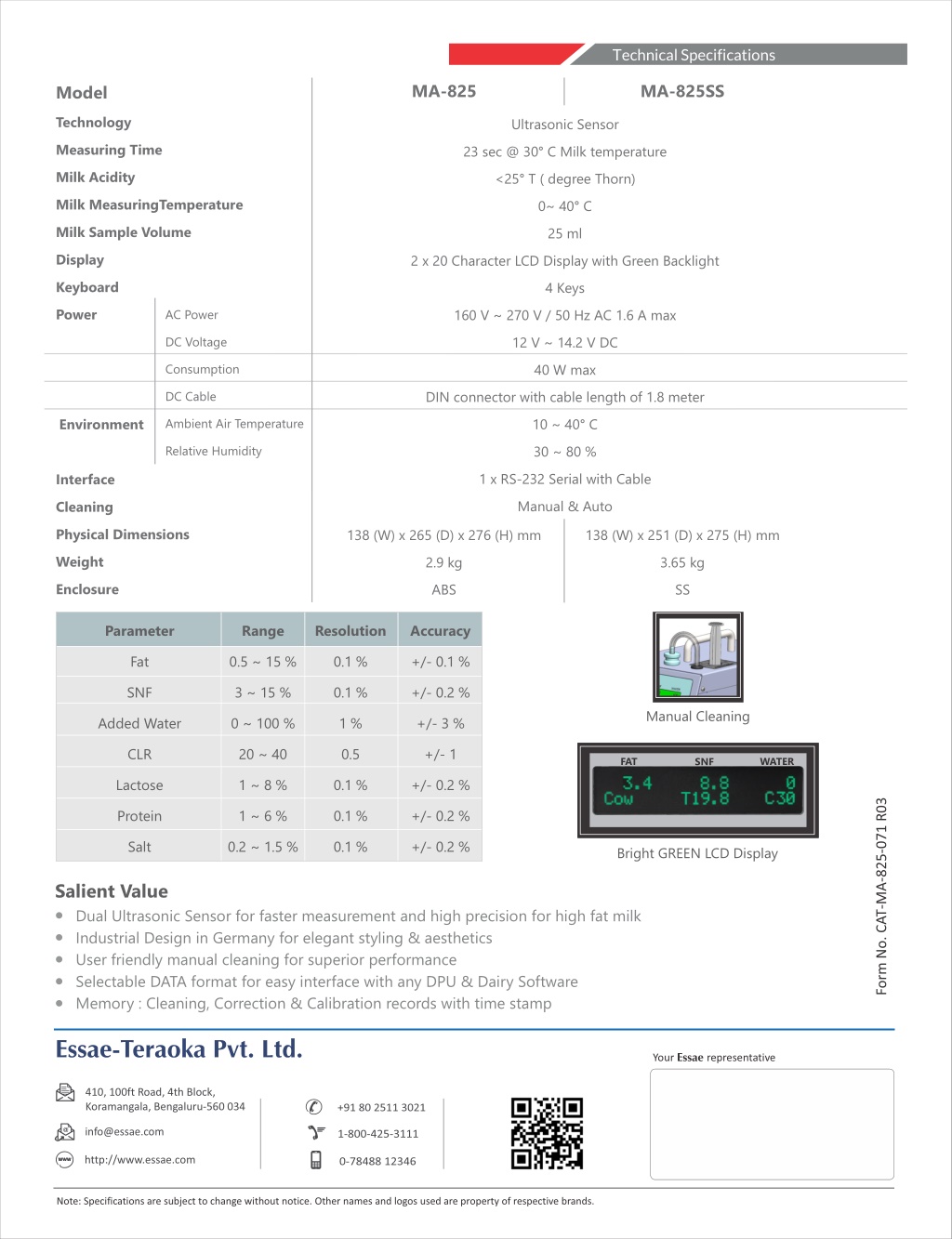

  2. Technical Specifications MA-825 MA-825SS Model Technology Measuring Time Milk Acidity Milk MeasuringTemperature Milk Sample Volume Display Keyboard Power Ultrasonic Sensor 23 sec @ 30° C Milk temperature <25° T ( degree Thorn) 0~ 40° C 25 ml 2 x 20 Character LCD Display with Green Backlight 4 Keys 160 V ~ 270 V / 50 Hz AC 1.6 A max 12 V ~ 14.2 V DC 40 W max DIN connector with cable length of 1.8 meter 10 ~ 40° C 30 ~ 80 % 1 x RS-232 Serial with Cable Manual & Auto 138 (W) x 265 (D) x 276 (H) mm 2.9 kg ABS AC Power DC Voltage Consumption DC Cable Ambient Air Temperature Relative Humidity Environment Interface Cleaning Physical Dimensions Weight Enclosure 138 (W) x 251 (D) x 275 (H) mm 3.65 kg SS Parameter Fat SNF Added Water CLR Lactose Protein Salt Range 0.5 ~ 15 % 3 ~ 15 % 0 ~ 100 % 20 ~ 40 1 ~ 8 % 1 ~ 6 % 0.2 ~ 1.5 % Resolution 0.1 % 0.1 % 1 % 0.5 0.1 % 0.1 % 0.1 % Accuracy +/- 0.1 % +/- 0.2 % +/- 3 % +/- 1 +/- 0.2 % +/- 0.2 % +/- 0.2 % Manual Cleaning FAT WATER SNF Form No. CAT-MA-825-071 R03 Bright GREEN LCD Display Salient Value Dual Ultrasonic Sensor for faster measurement and high precision for high fat milk Industrial Design in Germany for elegant styling & aesthetics User friendly manual cleaning for superior performance Selectable DATA format for easy interface with any DPU & Dairy Software Memory : Cleaning, Correction & Calibration records with time stamp Your representative 410, 100ft Road, 4th Block, Koramangala, Bengaluru-560 034 +91 80 2511 3021 info@essae.com 1-800-425-3111 http://www.essae.com 0-78488 12346 Note: Specifications are subject to change without notice. Other names and logos used are property of respective brands.
