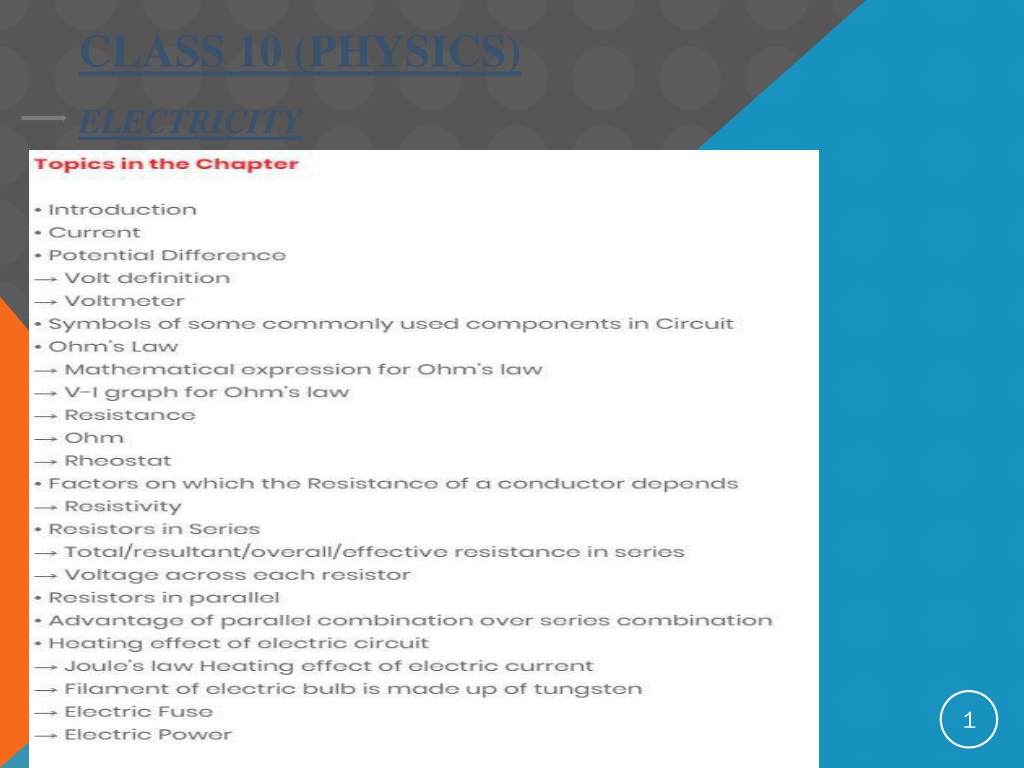

  1. CLASS 10 (PHYSICS)ELECTRICITY

  2. MIND MAP (OVERVIEW)

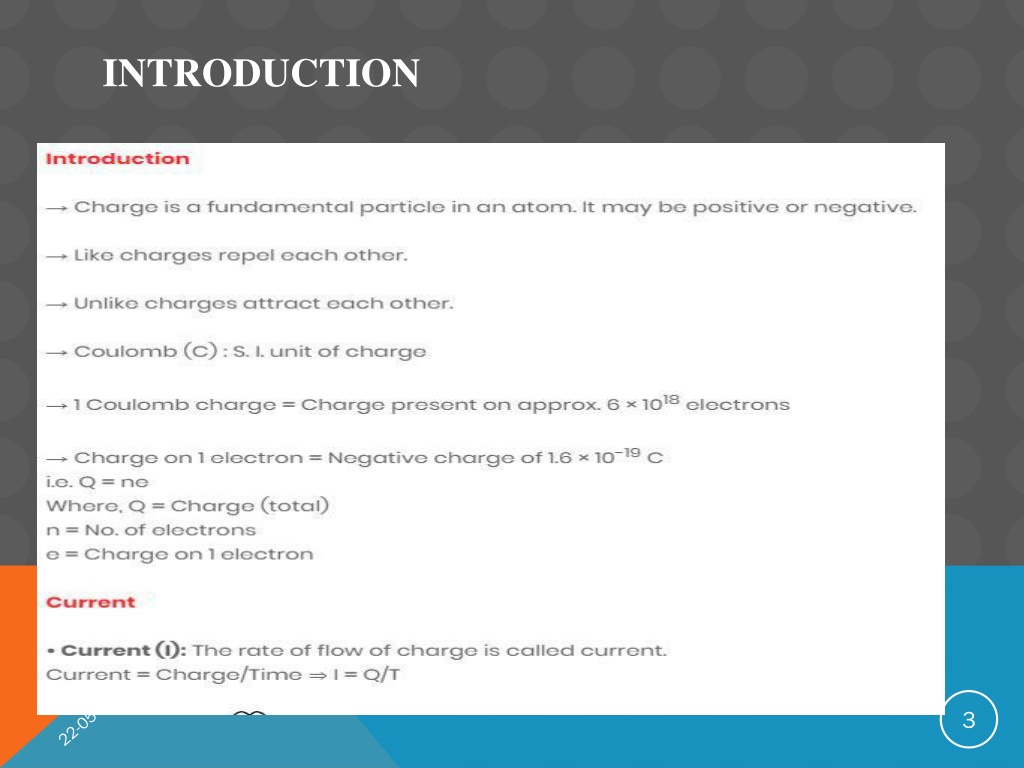

  3. INTRODUCTION

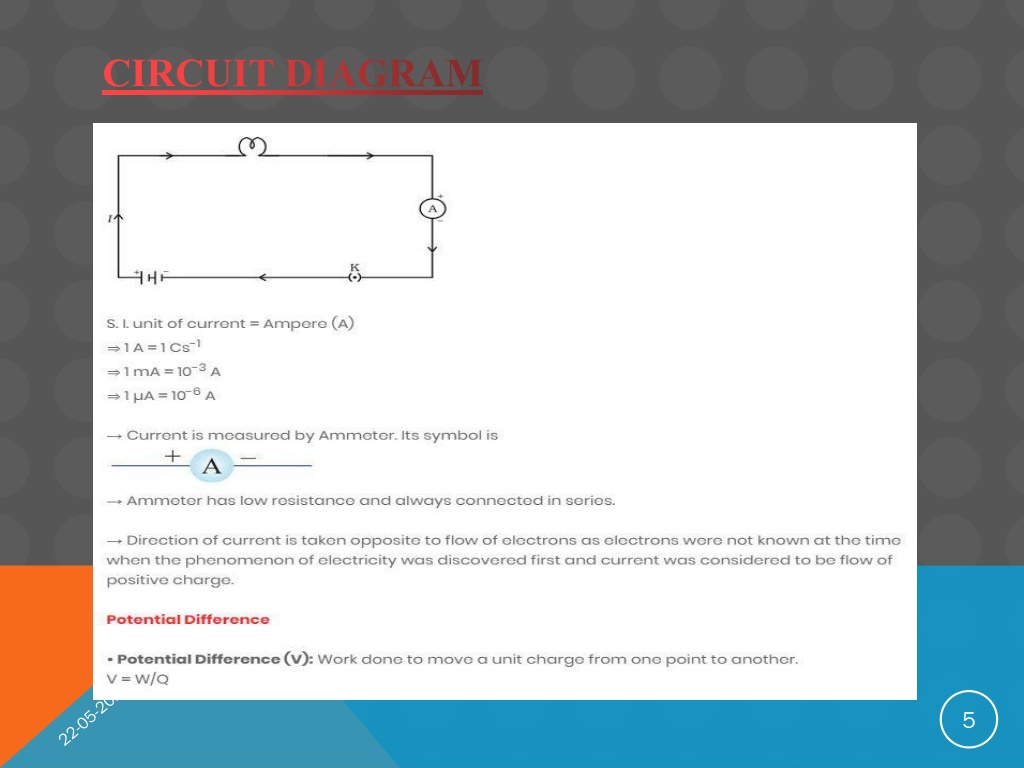

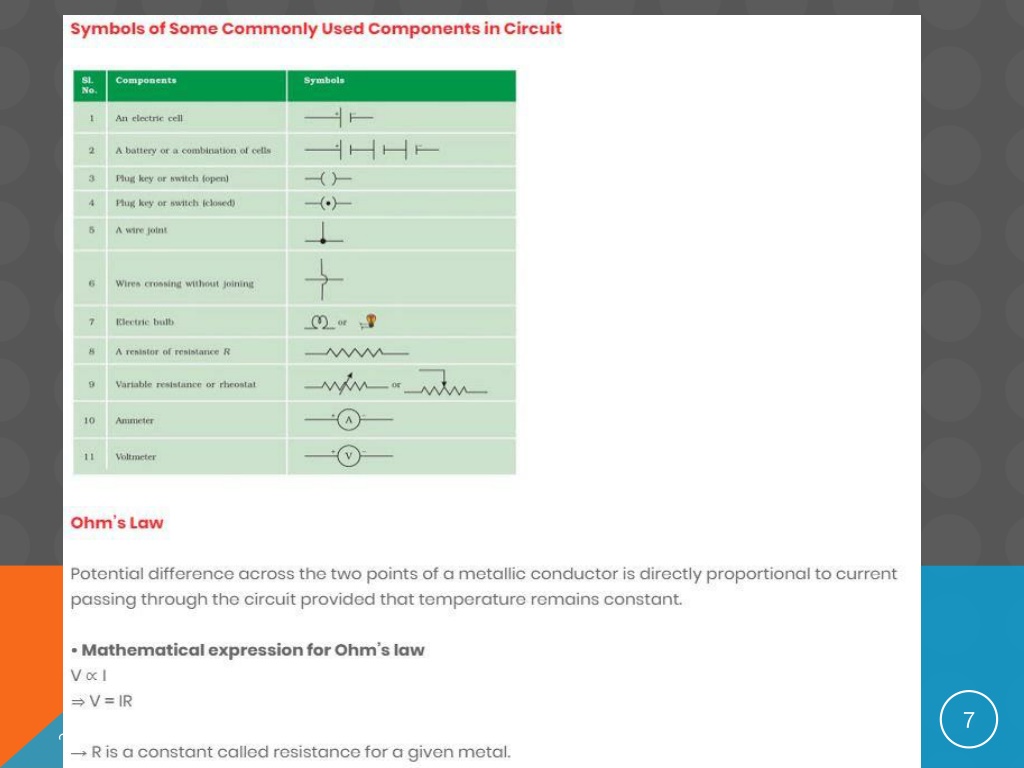

  4. CIRCUIT DIAGRAM

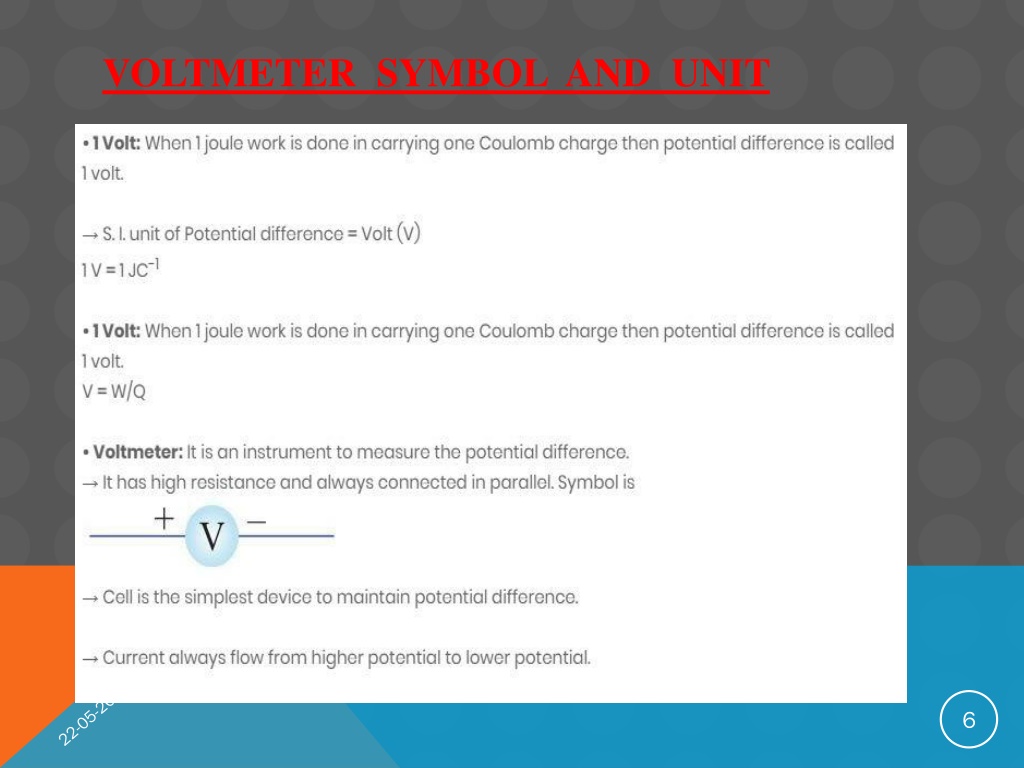

  5. VOLTMETER SYMBOL AND UNIT

  6. CIRCUIT DIAGRAM

  7. OHM’S LAW VERIFICATION BY “V-I” GRAPH

  8. RESISTOR

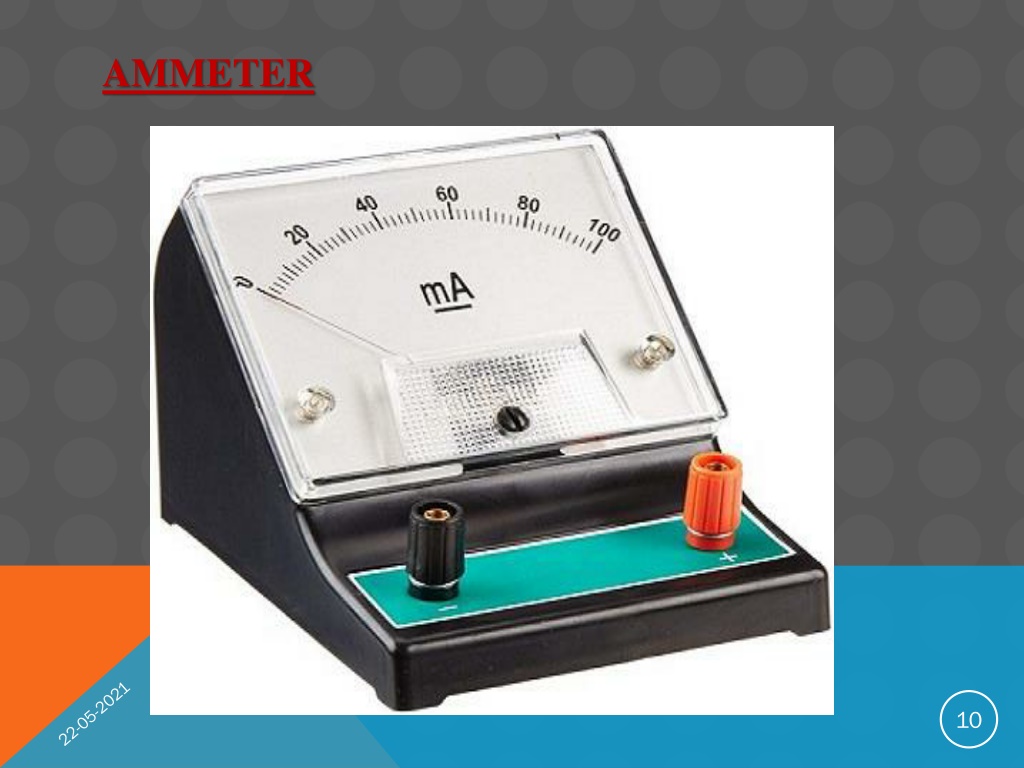

  9. AMMETER

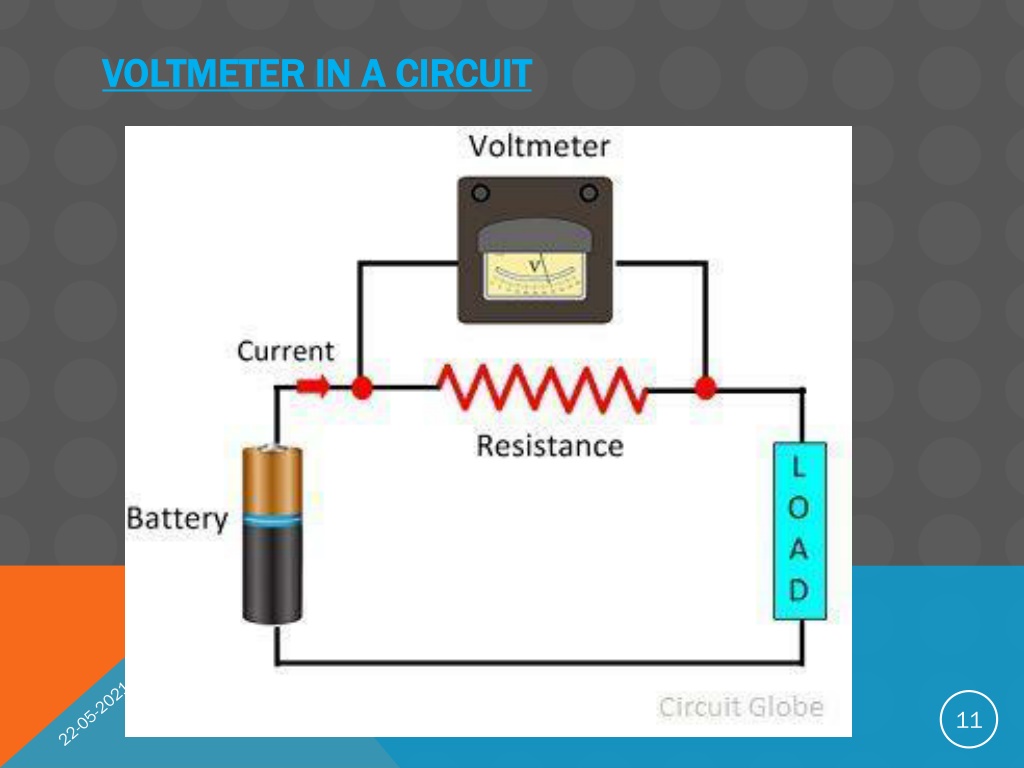

  10. VOLTMETER IN A CIRCUIT

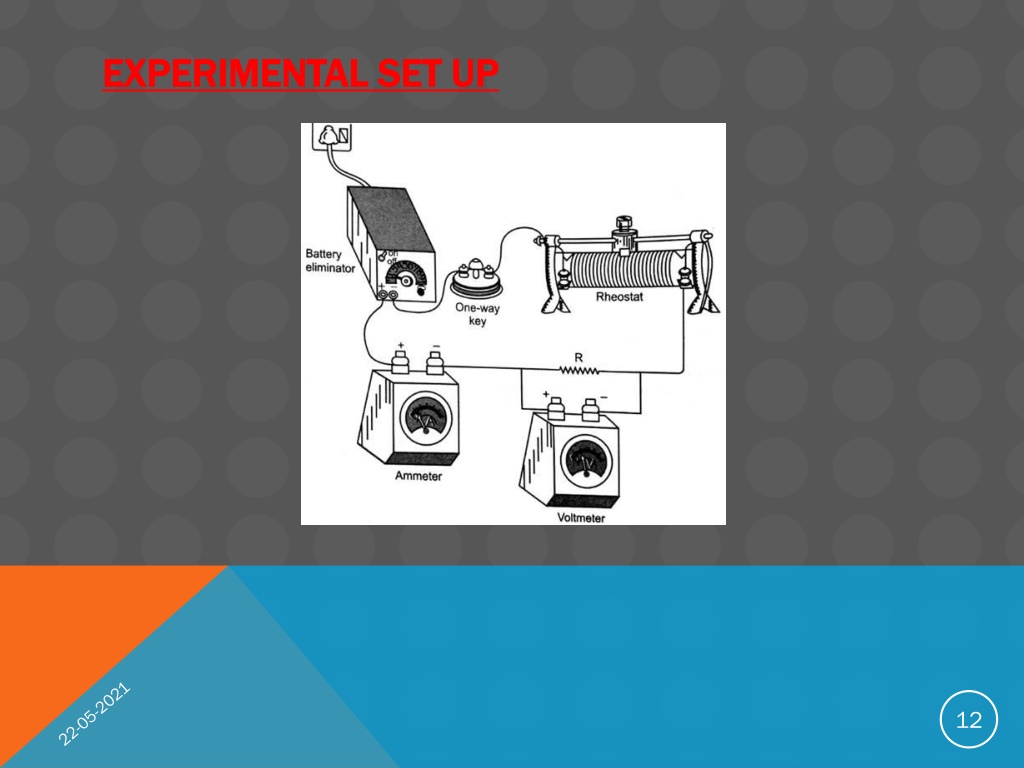

  11. EXPERIMENTAL SET UP

  12. PICTORIAL REPRESENTATION OF CIRCUIT

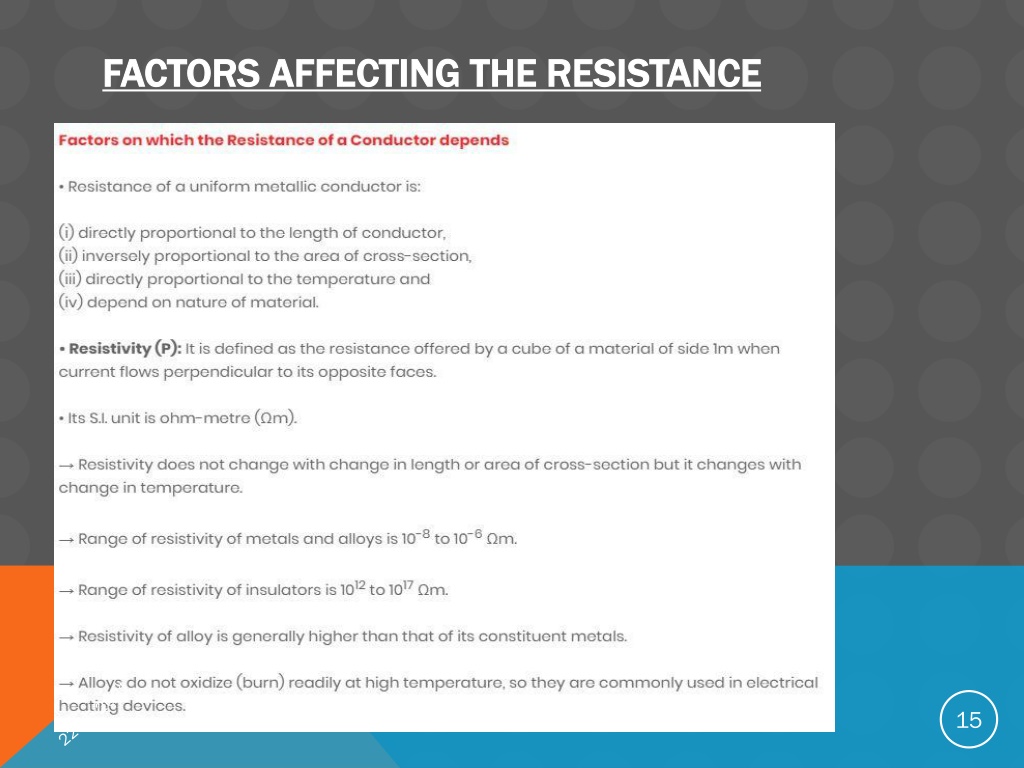

  13. FACTORS AFFECTING THE RESISTANCE

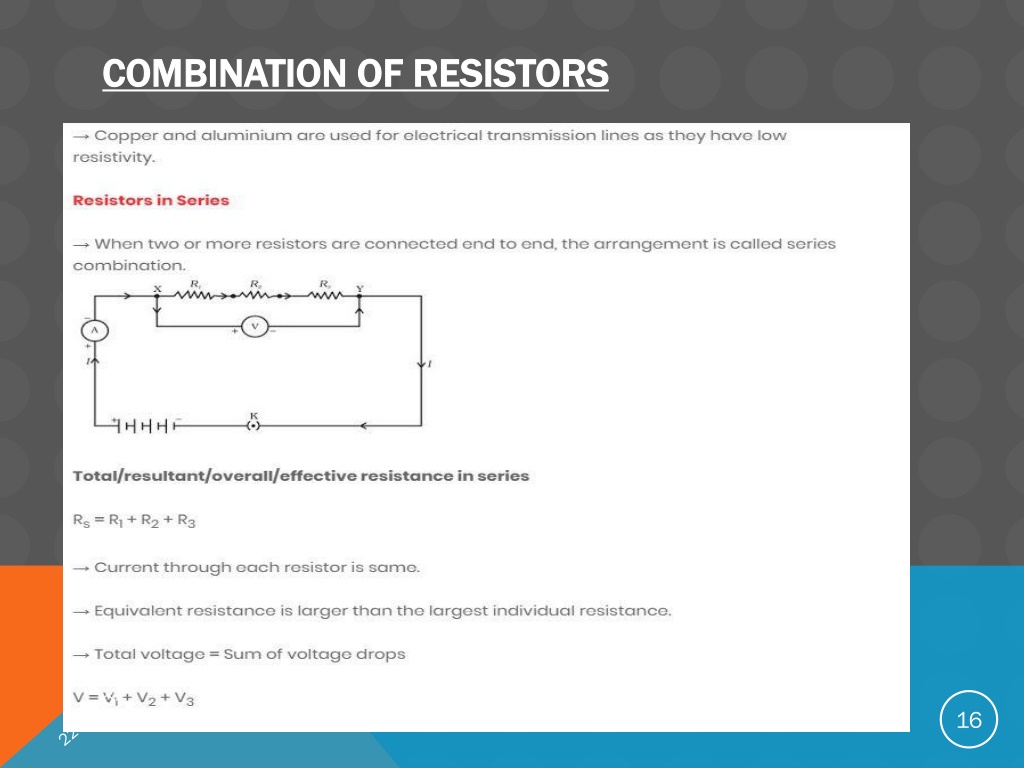

  14. COMBINATION OF RESISTORS

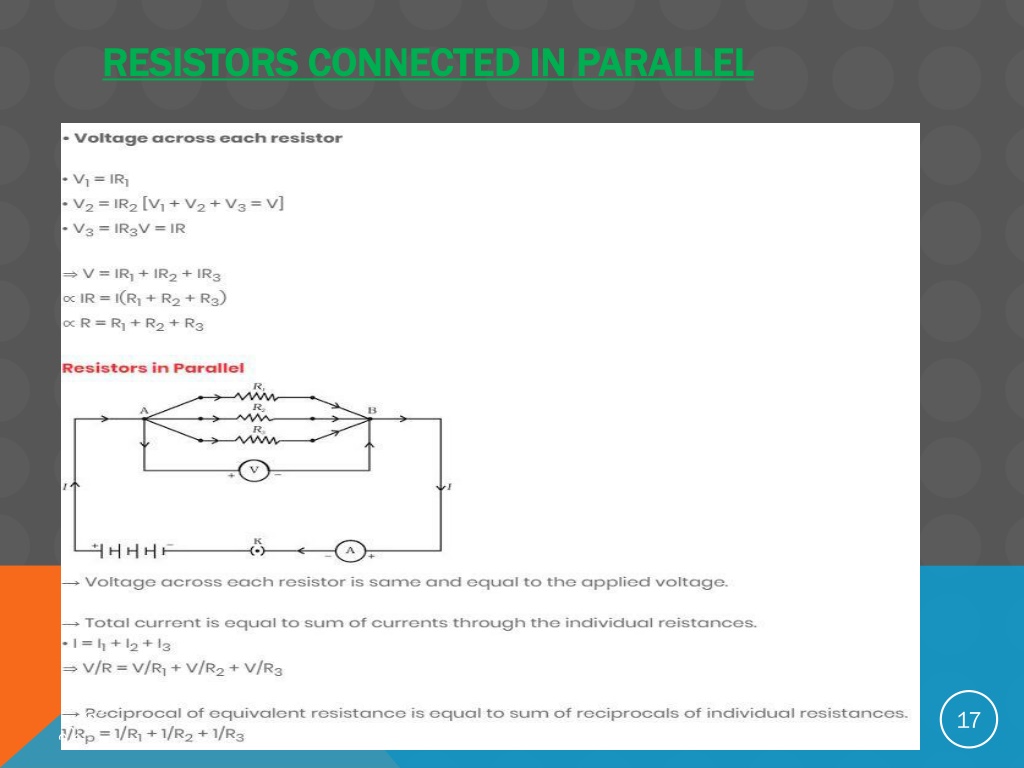

  15. RESISTORS CONNECTED IN PARALLEL

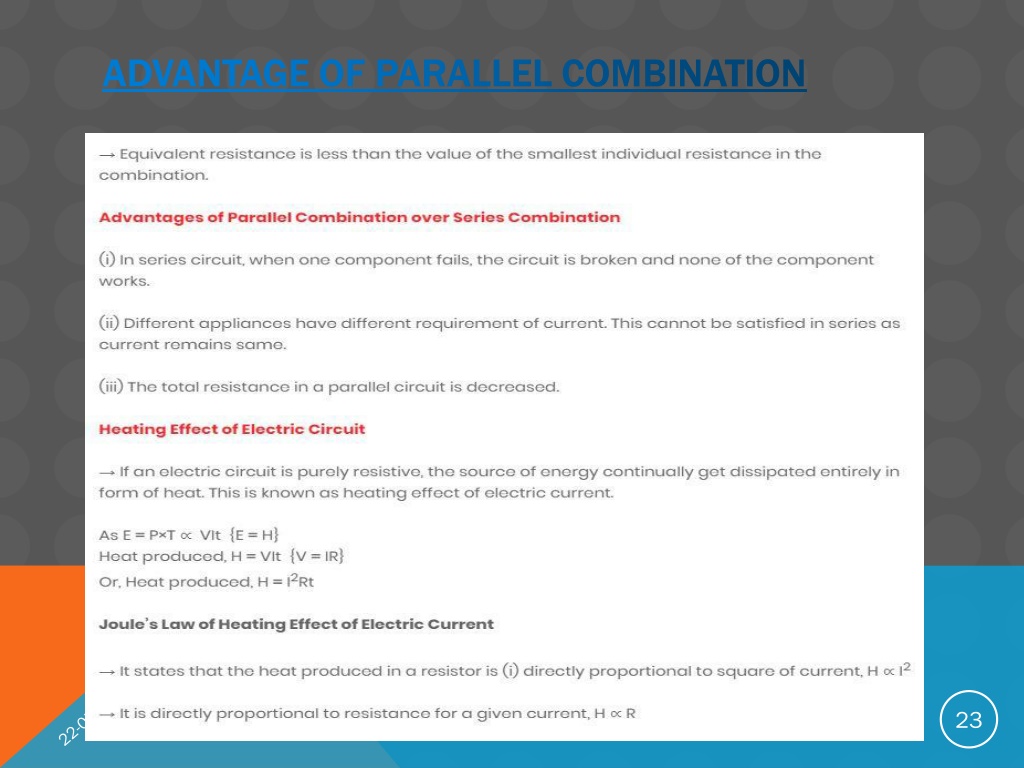

  16. ADVANTAGE OF PARALLEL COMBINATION

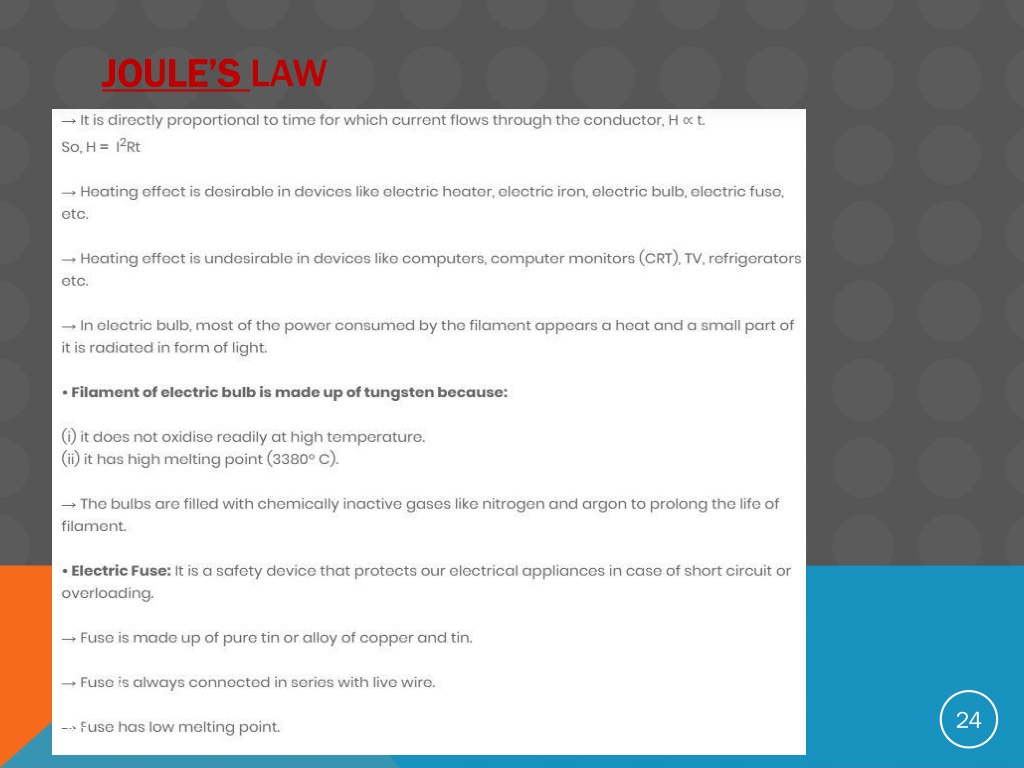

  17. JOULE’S LAW

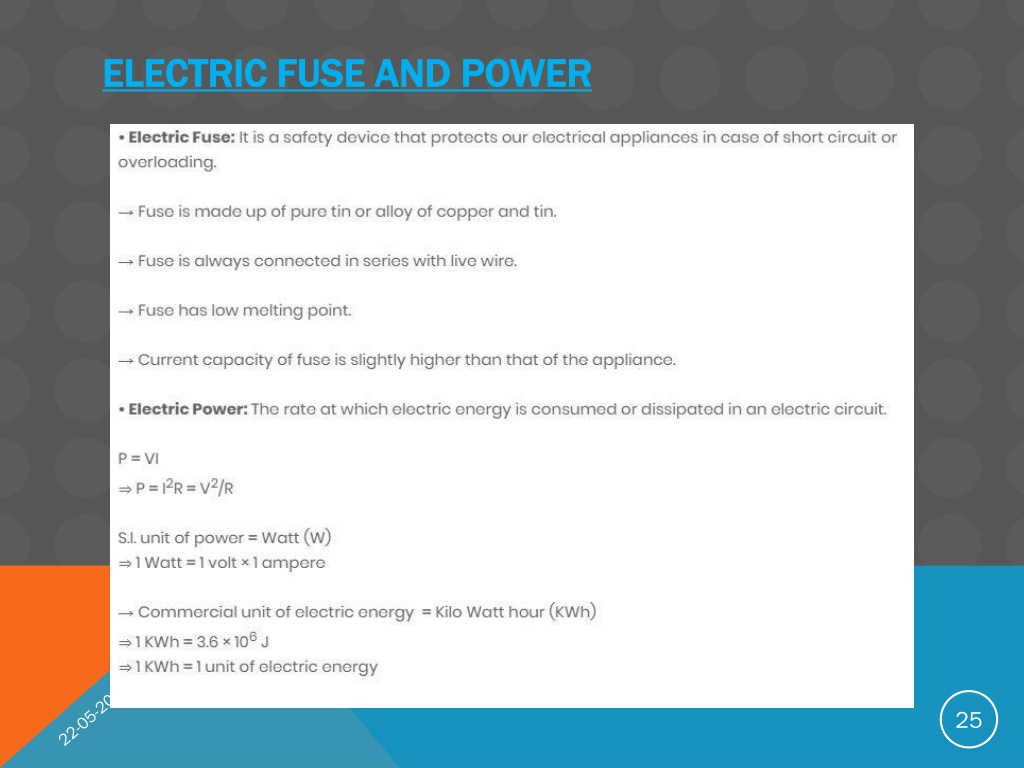

  18. ELECTRIC FUSE AND POWER
