PMCC-Flash-Point-Tester-35°C

Labtron automatic PMCC flash point tester features RS-323 and RS-485 ports for barometric pressure calibration. It operates between 10u00b0C and 40u00b0C with 80% humidity and 0.005 accuracy. It includes an LCD display and can store up to 100 test data sets. It also allows for modification of initial test data and parameters.

Erica57
Download Presentation

PMCC-Flash-Point-Tester-35°C

An Image/Link below is provided (as is) to download presentation Download Policy: Content on the Website is provided to you AS IS for your information and personal use and may not be sold / licensed / shared on other websites without getting consent from its author. Content is provided to you AS IS for your information and personal use only. Download presentation by click this link. While downloading, if for some reason you are not able to download a presentation, the publisher may have deleted the file from their server. During download, if you can't get a presentation, the file might be deleted by the publisher.

E N D

Presentation Transcript

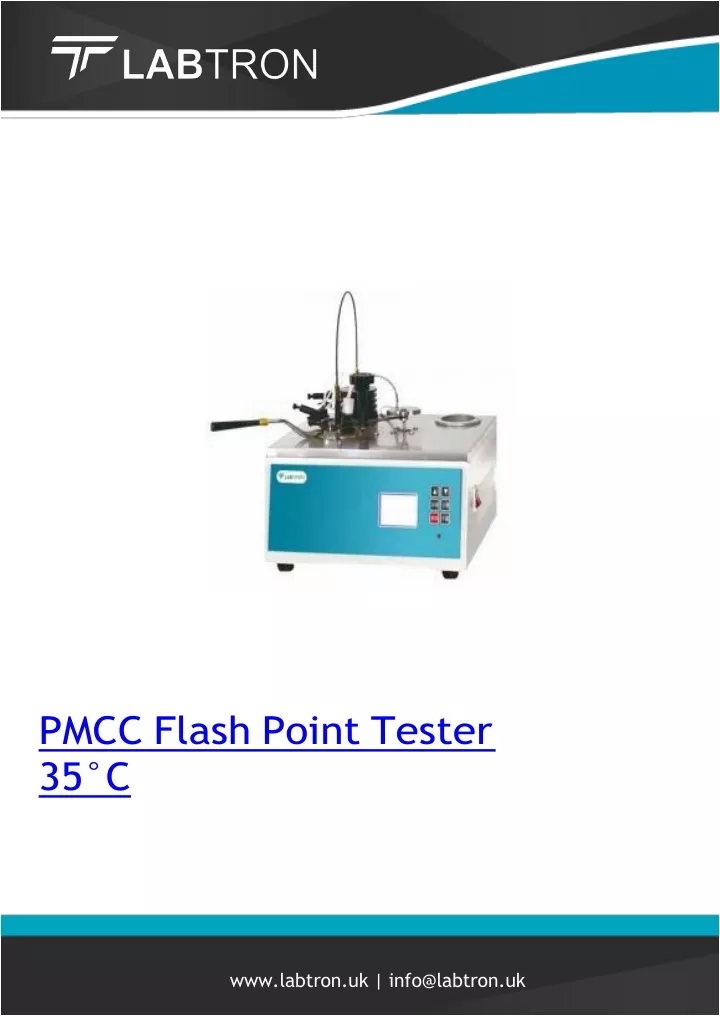

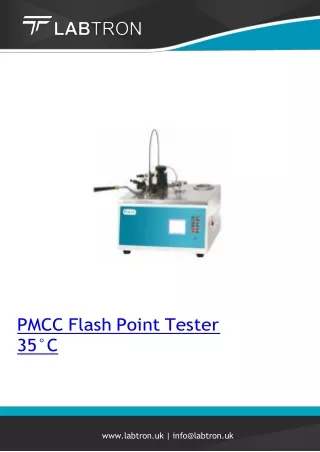

  1. PMCC Flash Point Tester 35°C www.labtron.uk | info@labtron.uk

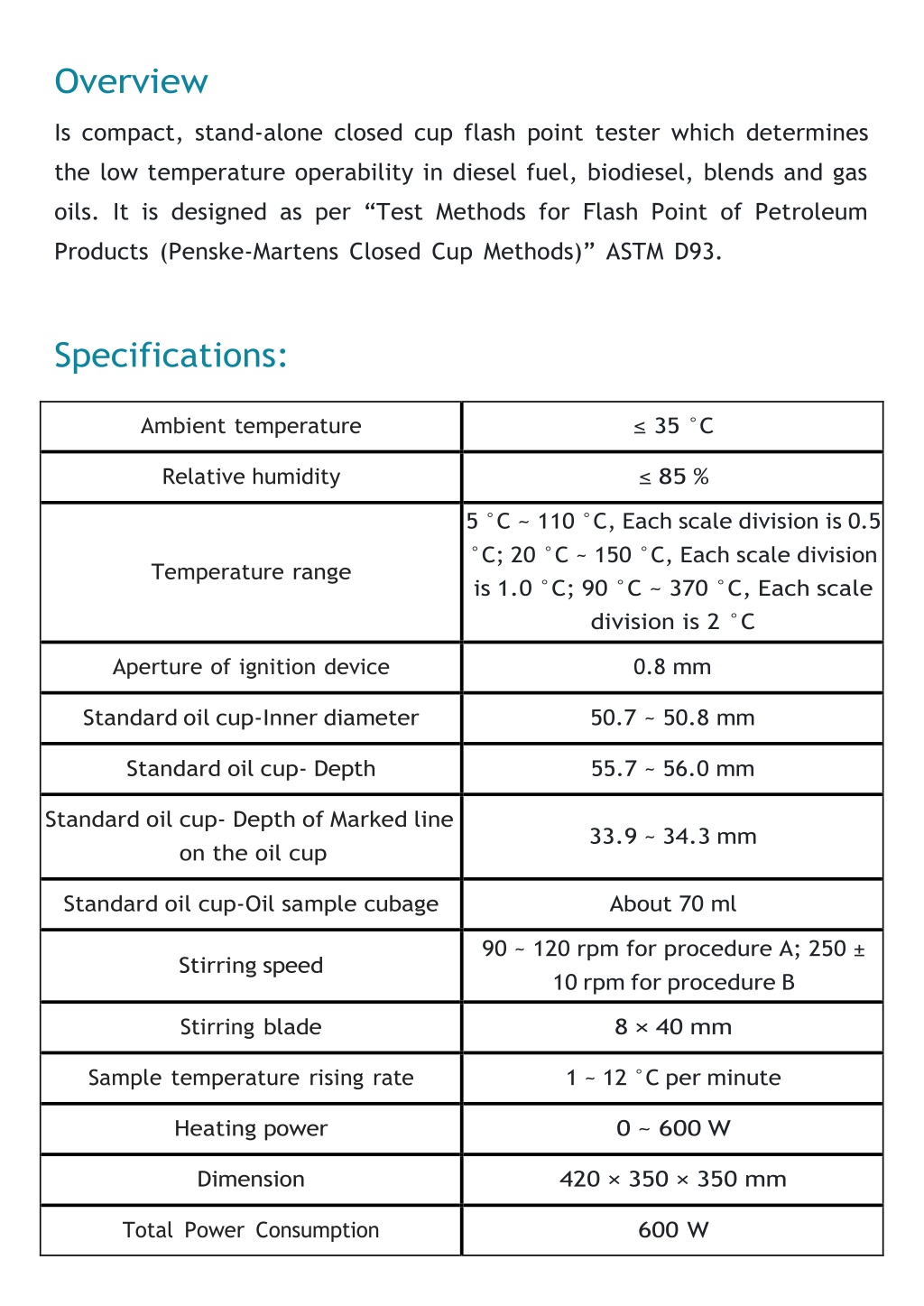

  2. Overview Is compact, stand-alone closed cup flash point tester which determines the low temperature operability in diesel fuel, biodiesel, blends and gas oils. It is designed as per “Test Methods for Flash Point of Petroleum Products (Penske-Martens Closed Cup Methods)” ASTM D93. Specifications: Ambient temperature ≤35 °C Relative humidity ≤ 85 % 5 °C ~ 110 °C, Each scale division is 0.5 °C; 20 °C ~ 150 °C, Each scale division is 1.0 °C; 90 °C ~ 370 °C, Each scale division is 2 °C Temperature range Aperture of ignition device 0.8 mm Standard oil cup-Inner diameter 50.7 ~ 50.8 mm Standard oil cup- Depth 55.7 ~ 56.0 mm Standard oil cup- Depth of Marked line on the oil cup 33.9 ~ 34.3 mm Standard oil cup-Oil sample cubage About 70 ml 90 ~ 120 rpm for procedure A; 250 ± 10 rpm for procedure B Stirring speed Stirring blade 8 × 40 mm Sample temperature rising rate 1 ~ 12 °C per minute Heating power 0 ~ 600 W Dimension 420 × 350 × 350 mm Total Power Consumption 600 W

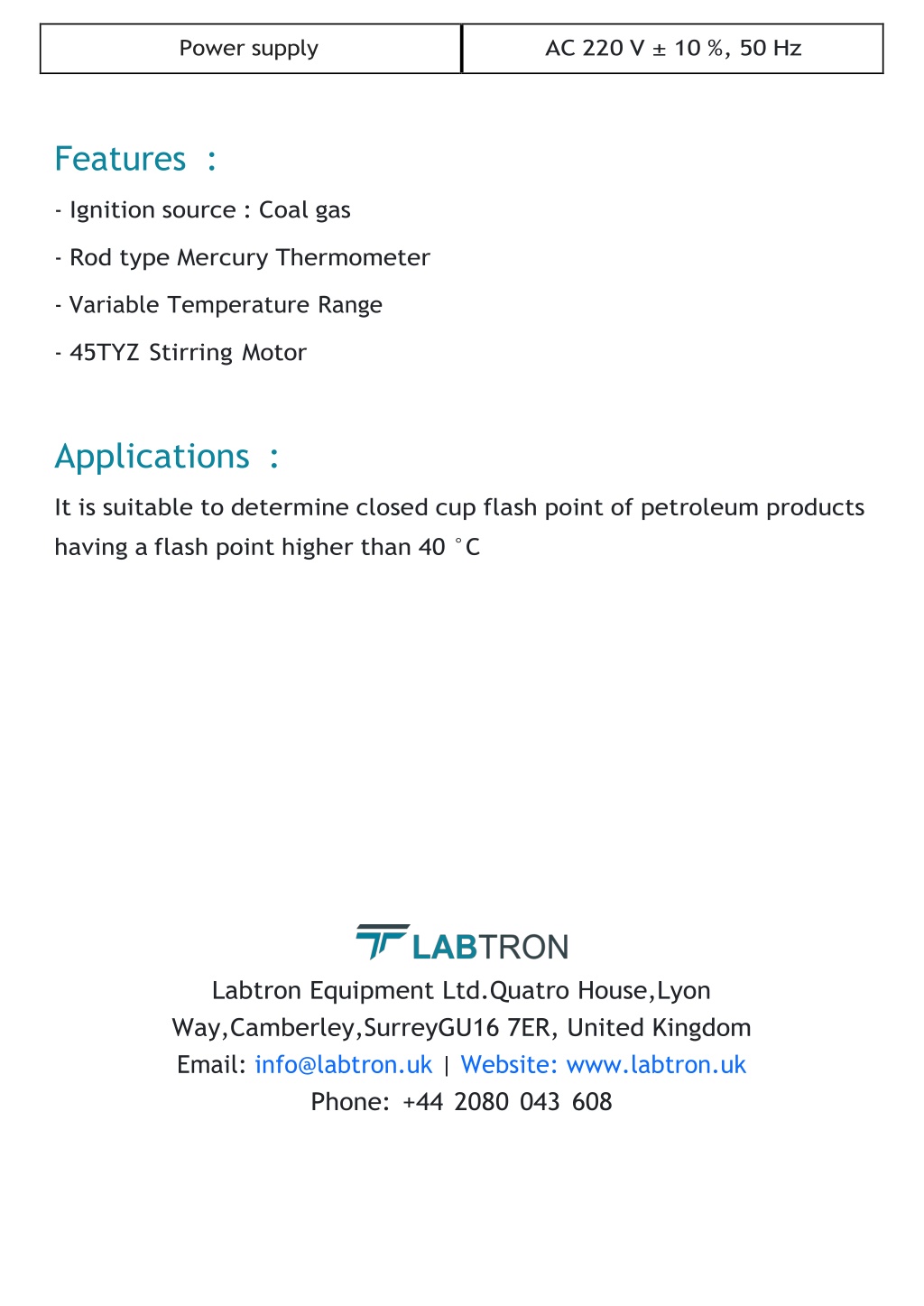

  3. Power supply AC 220 V ± 10 %, 50 Hz Features: -Ignition source : Coal gas -Rod type Mercury Thermometer -Variable Temperature Range -45TYZ Stirring Motor Applications: It is suitable to determine closed cup flash point of petroleum products having a flash point higher than 40 °C Labtron Equipment Ltd.Quatro House,Lyon Way,Camberley,SurreyGU16 7ER, United Kingdom Email: info@labtron.uk | Website: www.labtron.uk Phone: +44 2080 043 608
