Halogen Lamp Biological-Microscope

Labtron siedentop trinocular biological microscope features a user-friendly design with a finite optical system and a sliding, 360u00b0 inclined trinocular head. It includes an iris diaphragm and filter, focus 200mm eyepieces, a quadruple nosepiece with quick-stop, and a double-layer mechanical stage with wire movement.

Erica57
Download Presentation

Halogen Lamp Biological-Microscope

An Image/Link below is provided (as is) to download presentation Download Policy: Content on the Website is provided to you AS IS for your information and personal use and may not be sold / licensed / shared on other websites without getting consent from its author. Content is provided to you AS IS for your information and personal use only. Download presentation by click this link. While downloading, if for some reason you are not able to download a presentation, the publisher may have deleted the file from their server. During download, if you can't get a presentation, the file might be deleted by the publisher.

E N D

Presentation Transcript

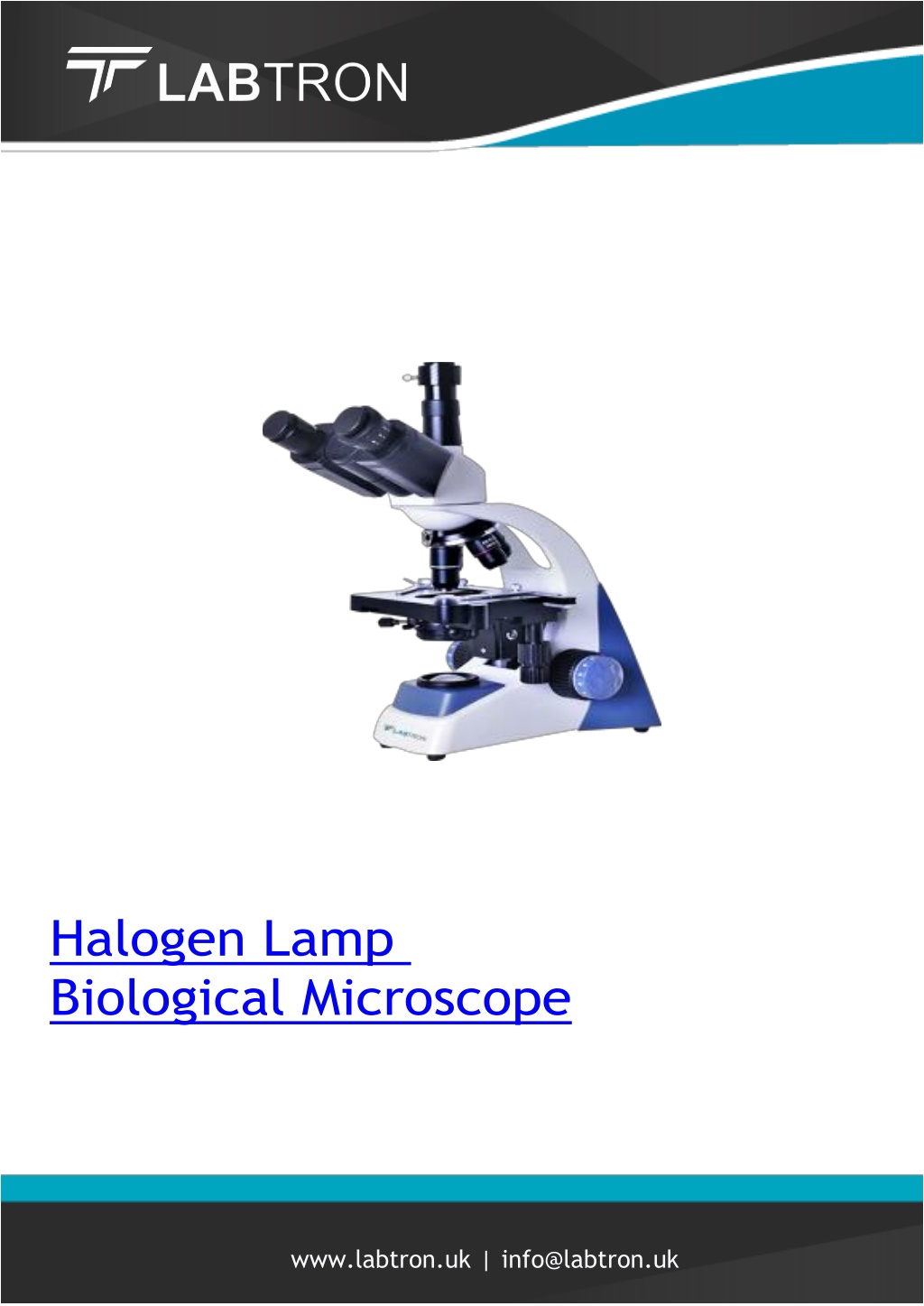

  1. Halogen Lamp Biological Microscope www.labtron.uk | info@labtron.uk

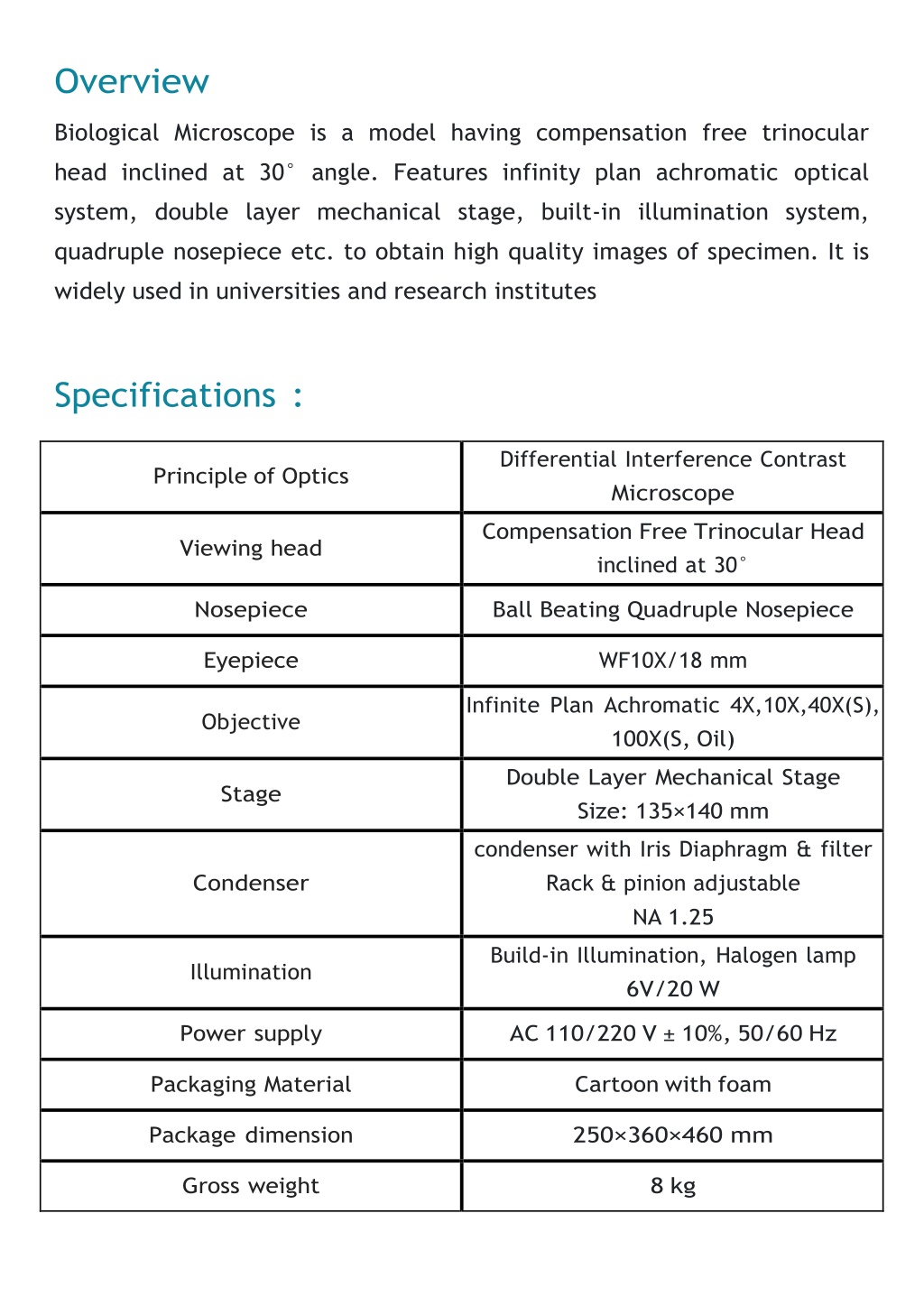

  2. Overview Biological Microscope is a model having compensation free trinocular head inclined at 30° angle. Features infinity plan achromatic optical system, double layer mechanical stage, built-in illumination system, quadruple nosepiece etc. to obtain high quality images of specimen. It is widely used in universities and research institutes Specifications : Differential Interference Contrast Microscope Principle of Optics Compensation Free Trinocular Head inclined at 30° Viewing head Nosepiece Ball Beating Quadruple Nosepiece Eyepiece WF10X/18 mm Infinite Plan Achromatic 4X,10X,40X(S), 100X(S, Oil) Objective Double Layer Mechanical Stage Size: 135×140 mm Stage condenser with Iris Diaphragm & filter Rack & pinion adjustable NA 1.25 Condenser Build-in Illumination, Halogen lamp 6V/20 W Illumination Power supply AC 110/220 V ± 10%, 50/60 Hz Packaging Material Cartoon with foam Package dimension 250×360×460 mm Gross weight 8 kg

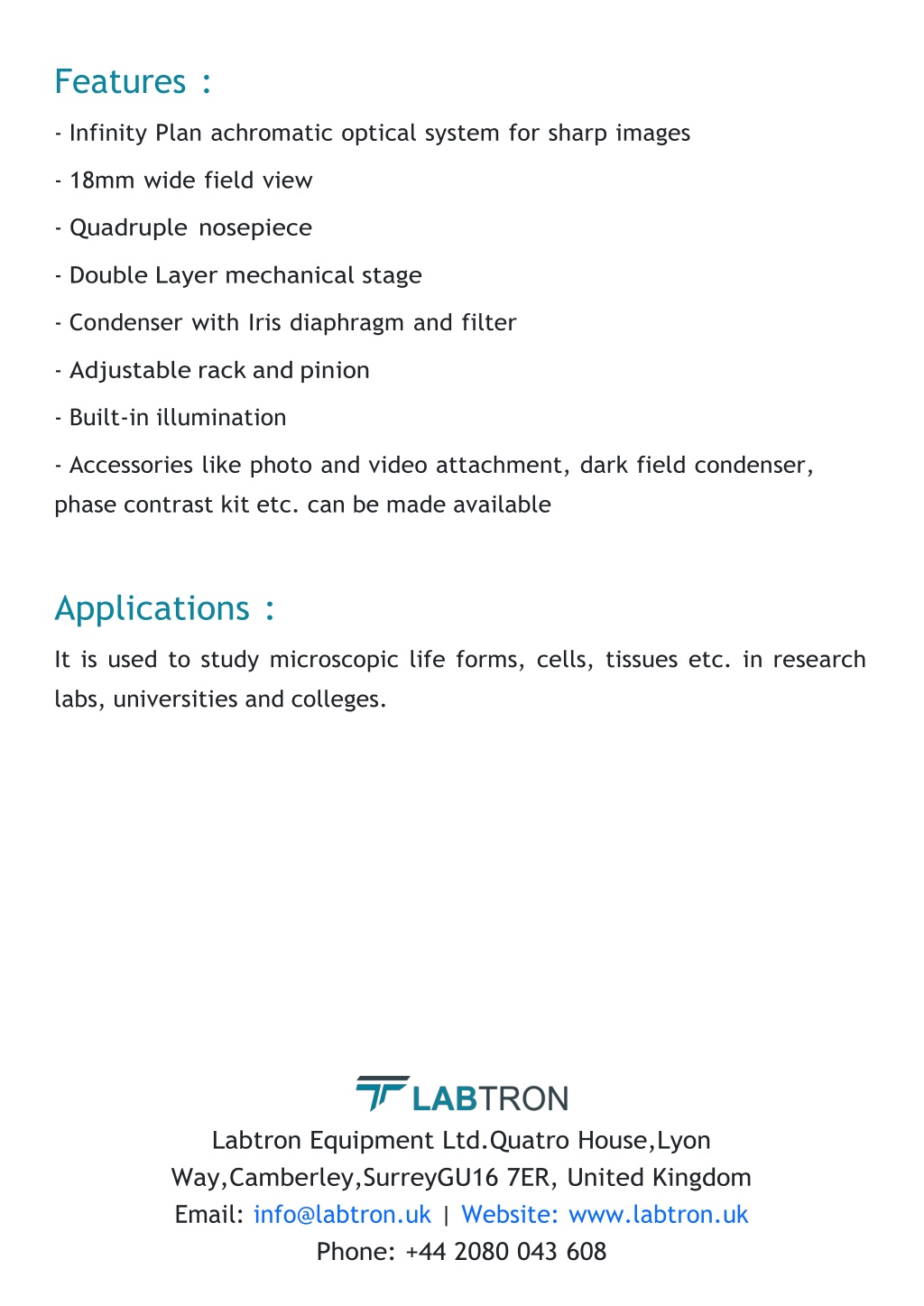

  3. Features : -Infinity Plan achromatic optical system for sharp images -18mm wide field view -Quadruple nosepiece -Double Layer mechanical stage -Condenser with Iris diaphragm and filter -Adjustable rack and pinion -Built-in illumination -Accessories like photo and video attachment, dark field condenser, phase contrast kit etc. can be made available Applications : It is used to study microscopic life forms, cells, tissues etc. in research labs, universities and colleges. Labtron Equipment Ltd.Quatro House,Lyon Way,Camberley,SurreyGU16 7ER, United Kingdom Email: info@labtron.uk | Website: www.labtron.uk Phone: +44 2080 043 608
