Cube-Ice-Makers 3000 Kg

Labtron cube ice maker is a production capacity of 3000 kg/24 hours and a 550 kg storage bin. Features an insulated storage bin and door to reduce air condensation and surface moisture. Constructed with stainless steel and durable plastic, it offers a user-friendly interface and automatic ice indicator.

Erica57
Download Presentation

Cube-Ice-Makers 3000 Kg

An Image/Link below is provided (as is) to download presentation Download Policy: Content on the Website is provided to you AS IS for your information and personal use and may not be sold / licensed / shared on other websites without getting consent from its author. Content is provided to you AS IS for your information and personal use only. Download presentation by click this link. While downloading, if for some reason you are not able to download a presentation, the publisher may have deleted the file from their server. During download, if you can't get a presentation, the file might be deleted by the publisher.

E N D

Presentation Transcript

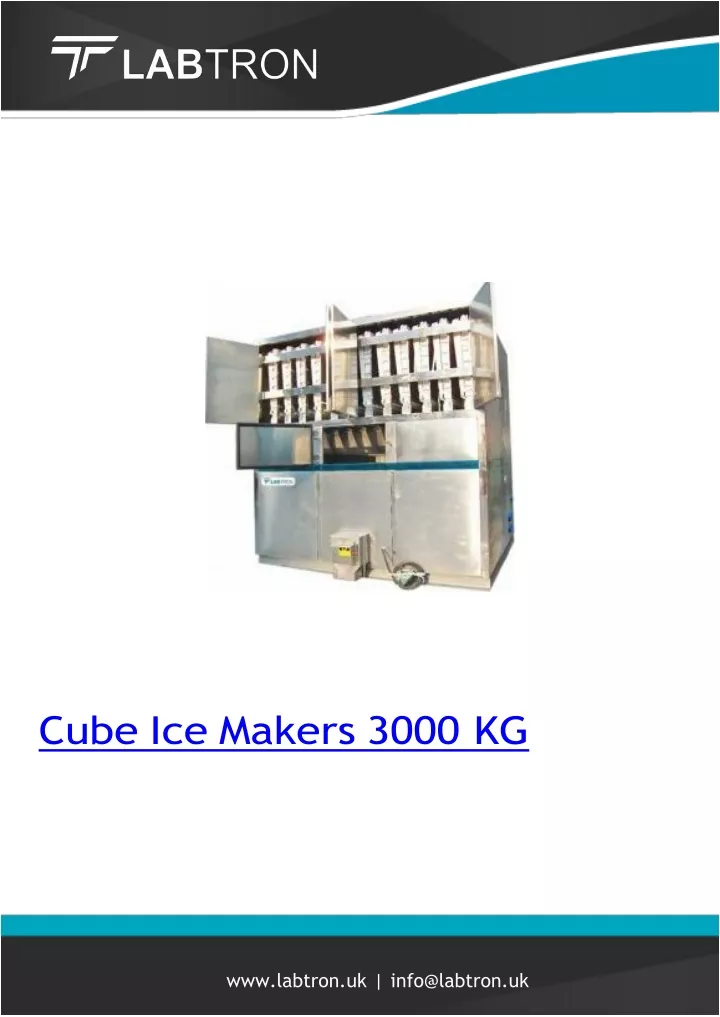

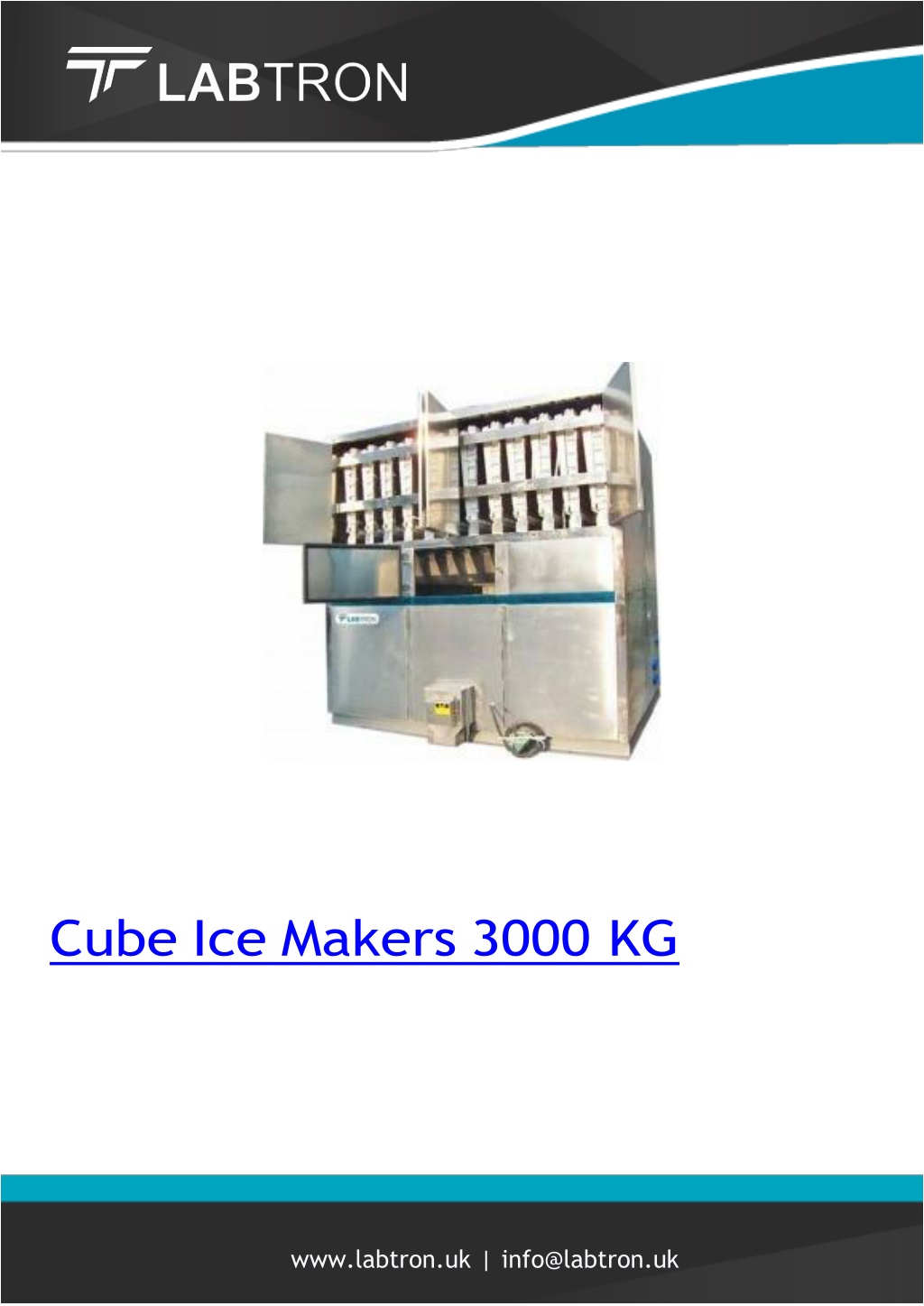

  1. Cube Ice Makers 3000 KG www.labtron.uk | info@labtron.uk

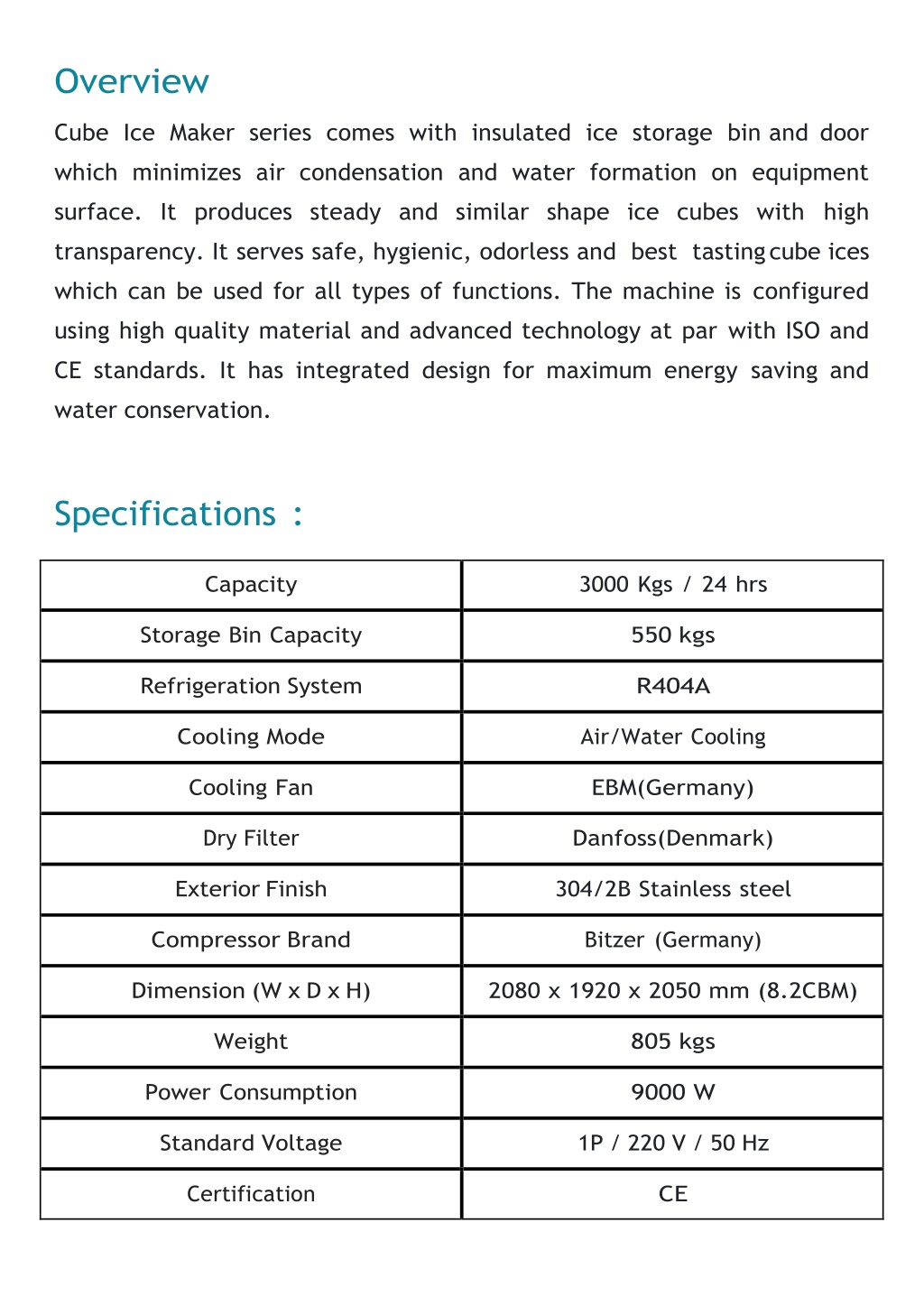

  2. Overview Cube Ice Maker series comes with insulated ice storage bin and door which minimizes air condensation and water formation on equipment surface. It produces steady and similar shape ice cubes with high transparency. It serves safe, hygienic, odorless and best tasting cube ices which can be used for all types of functions. The machine is configured using high quality material and advanced technology at par with ISO and CE standards. It has integrated design for maximum energy saving and water conservation. Specifications : Capacity 3000 Kgs / 24 hrs Storage Bin Capacity 550 kgs Refrigeration System R404A Cooling Mode Air/Water Cooling Cooling Fan EBM(Germany) Dry Filter Danfoss(Denmark) Exterior Finish 304/2B Stainless steel Compressor Brand Bitzer (Germany) Dimension (W x D x H) 2080 x 1920 x 2050 mm (8.2CBM) Weight 805 kgs Power Consumption 9000 W Standard Voltage 1P / 220 V / 50 Hz Certification CE

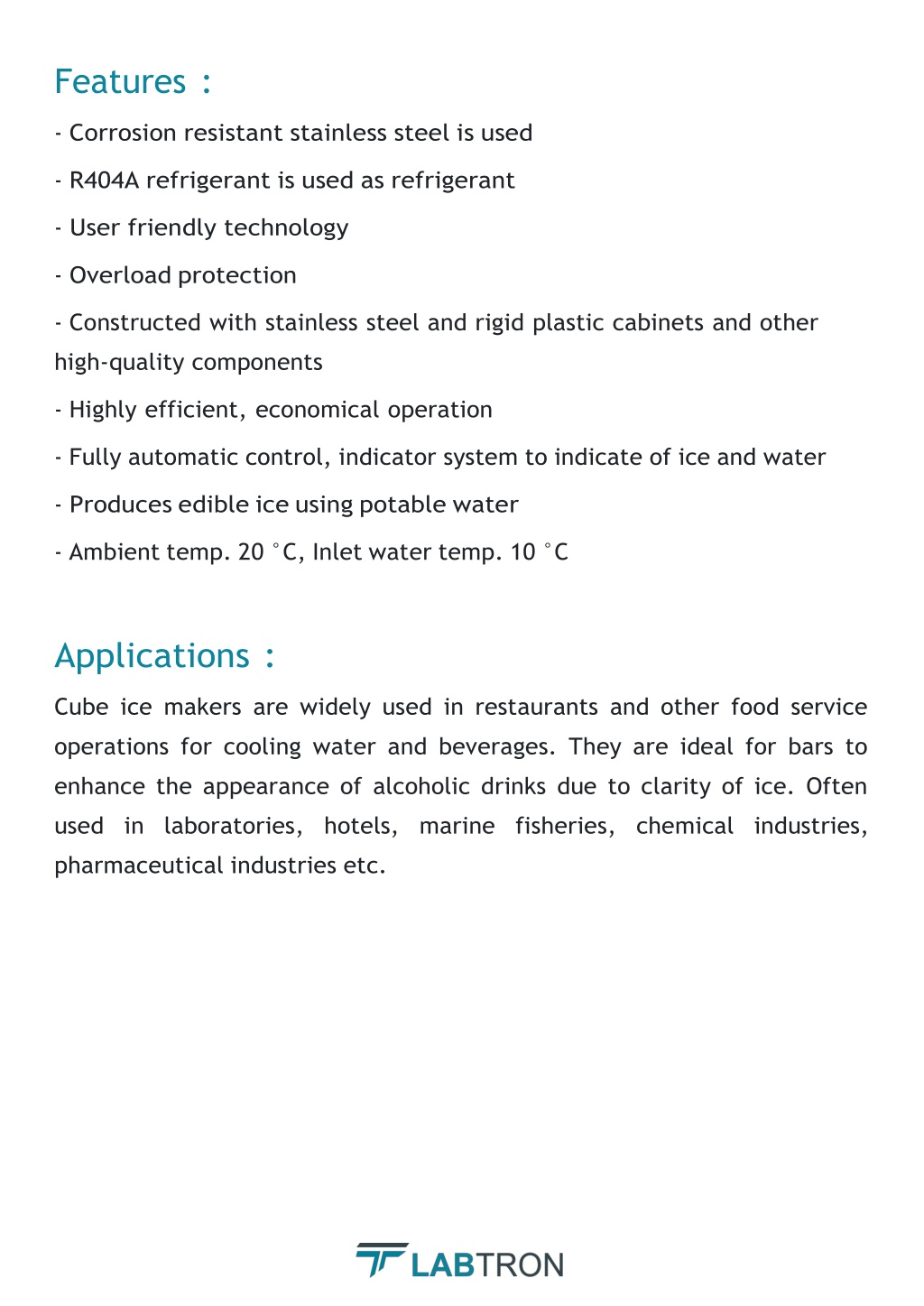

  3. Features : -Corrosion resistant stainless steel is used -R404A refrigerant is used as refrigerant -User friendly technology -Overload protection -Constructed with stainless steel and rigid plastic cabinets and other high-quality components -Highly efficient, economical operation -Fully automatic control, indicator system to indicate of ice and water -Produces edible ice using potable water -Ambient temp. 20 °C, Inlet water temp. 10 °C Applications : Cube ice makers are widely used in restaurants and other food service operations for cooling water and beverages. They are ideal for bars to enhance the appearance of alcoholic drinks due to clarity of ice. Often used in laboratories, hotels, marine fisheries, chemical industries, pharmaceutical industries etc.

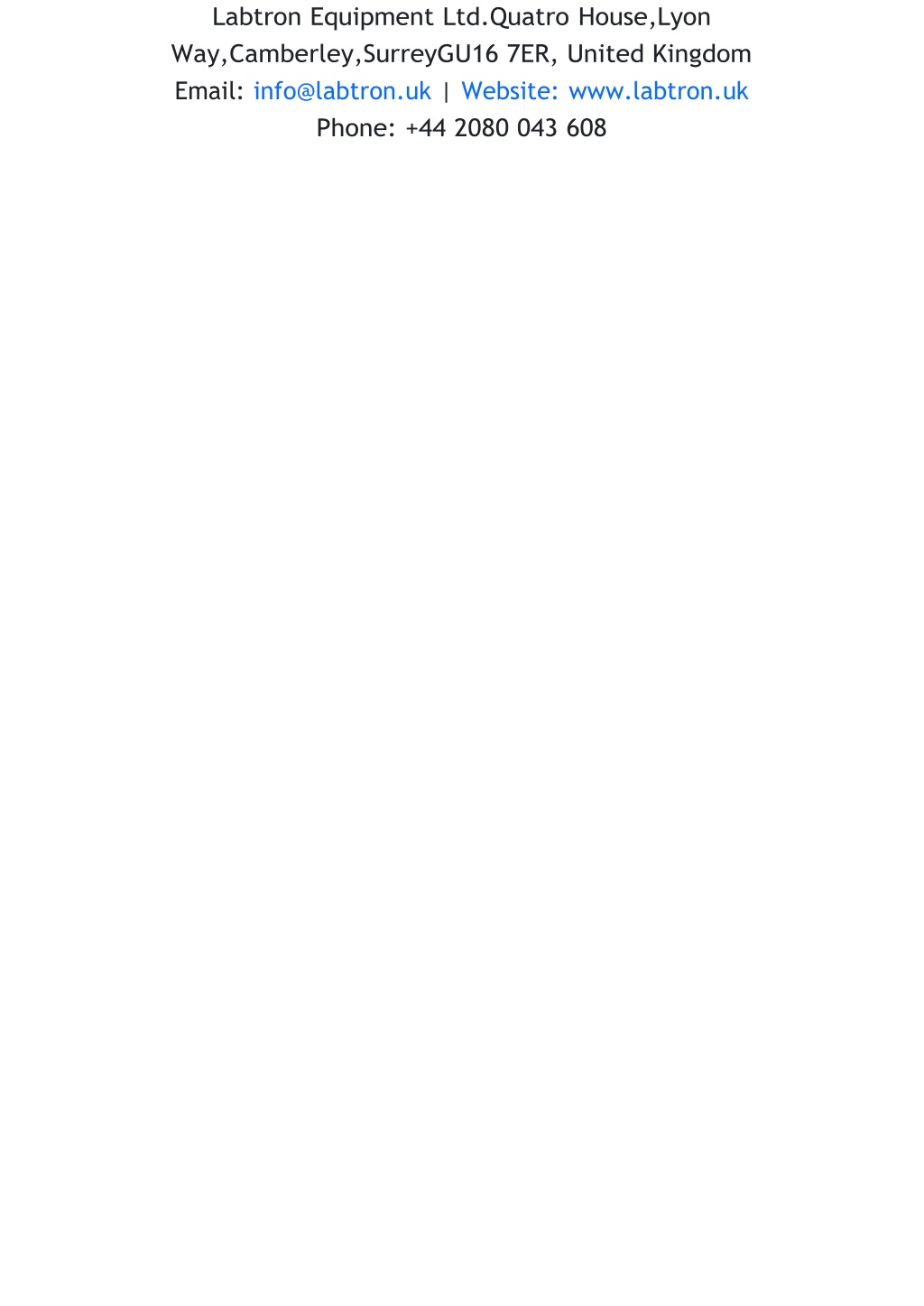

  4. Labtron Equipment Ltd.Quatro House,Lyon Way,Camberley,SurreyGU16 7ER, United Kingdom Email: info@labtron.uk | Website: www.labtron.uk Phone: +44 2080 043 608
