Biological-microscope 5.5 kg

Labtron biological microscope features a user-friendly design with a finite optical system and a sliding, 45u00b0 inclined binocular head. It includes an iris diaphragm and filter, WF10X eyepieces, a quadruple nosepiece with quick-stop, and a double-layer mechanical stage with wire movement.

Erica57
Download Presentation

Biological-microscope 5.5 kg

An Image/Link below is provided (as is) to download presentation Download Policy: Content on the Website is provided to you AS IS for your information and personal use and may not be sold / licensed / shared on other websites without getting consent from its author. Content is provided to you AS IS for your information and personal use only. Download presentation by click this link. While downloading, if for some reason you are not able to download a presentation, the publisher may have deleted the file from their server. During download, if you can't get a presentation, the file might be deleted by the publisher.

E N D

Presentation Transcript

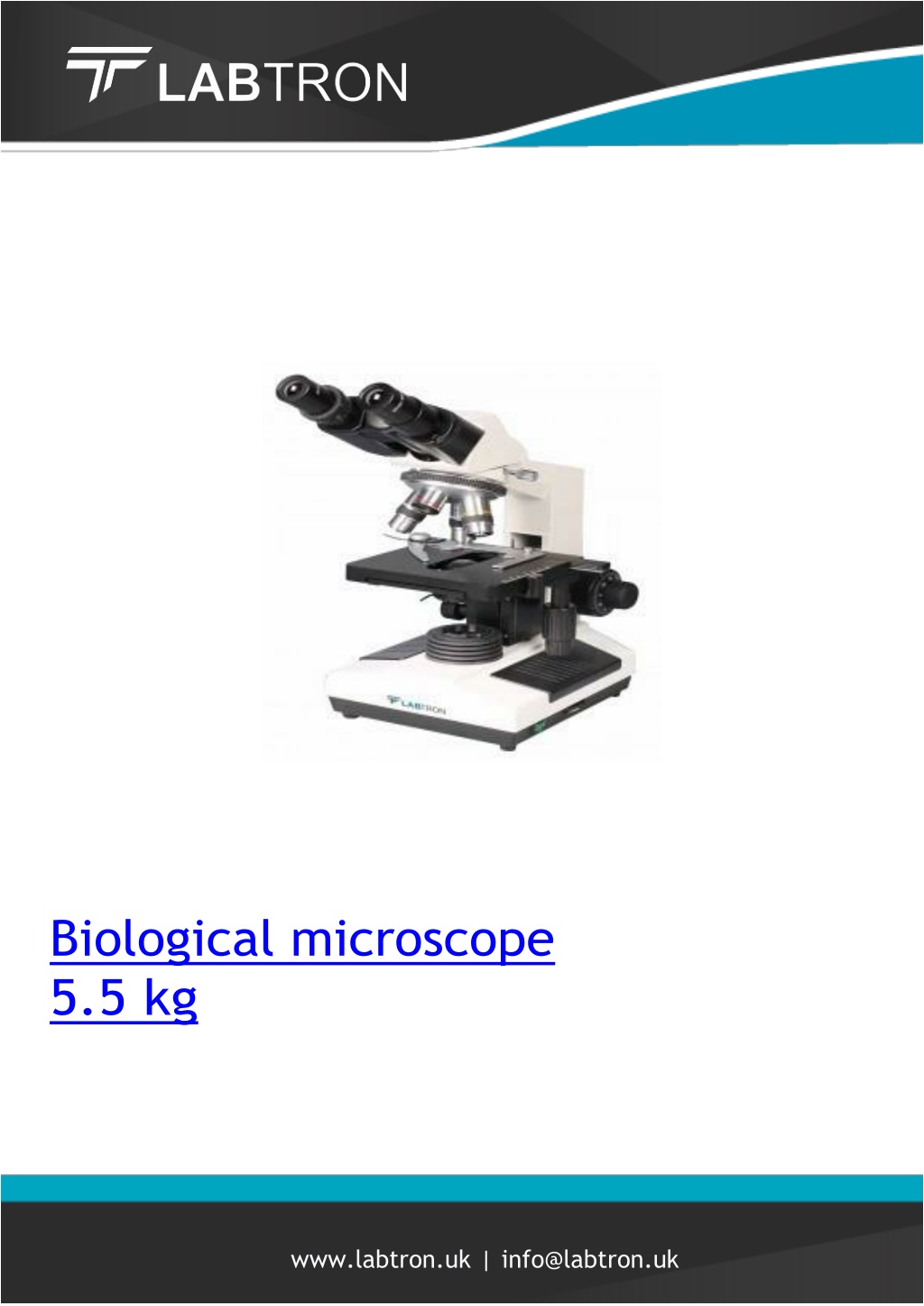

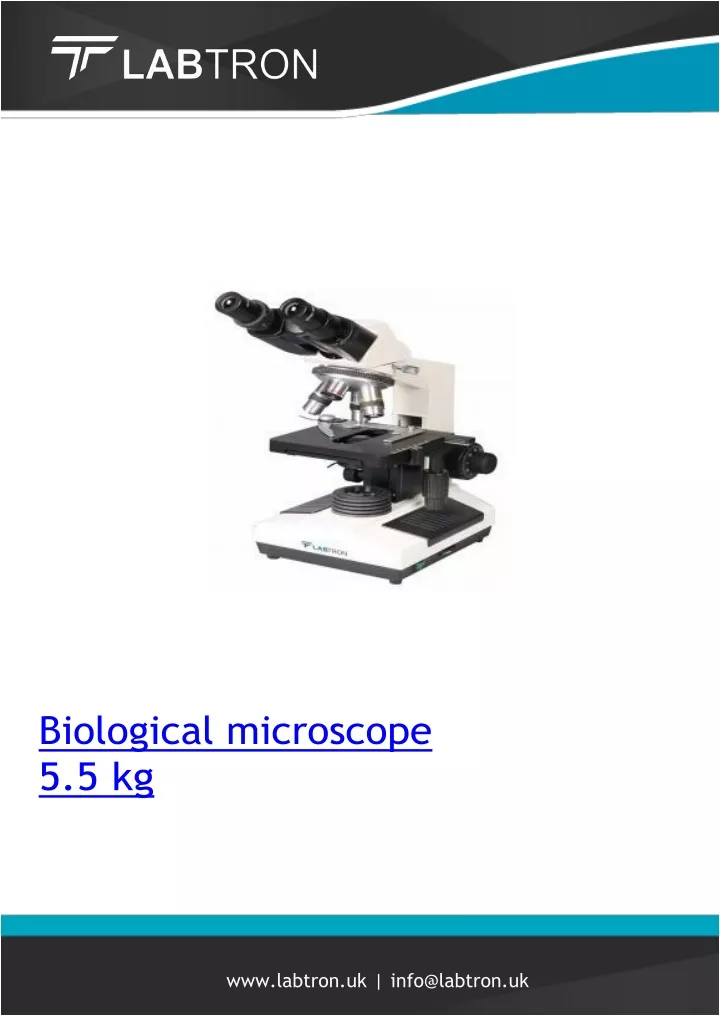

  1. Biological microscope 5.5 kg www.labtron.uk | info@labtron.uk

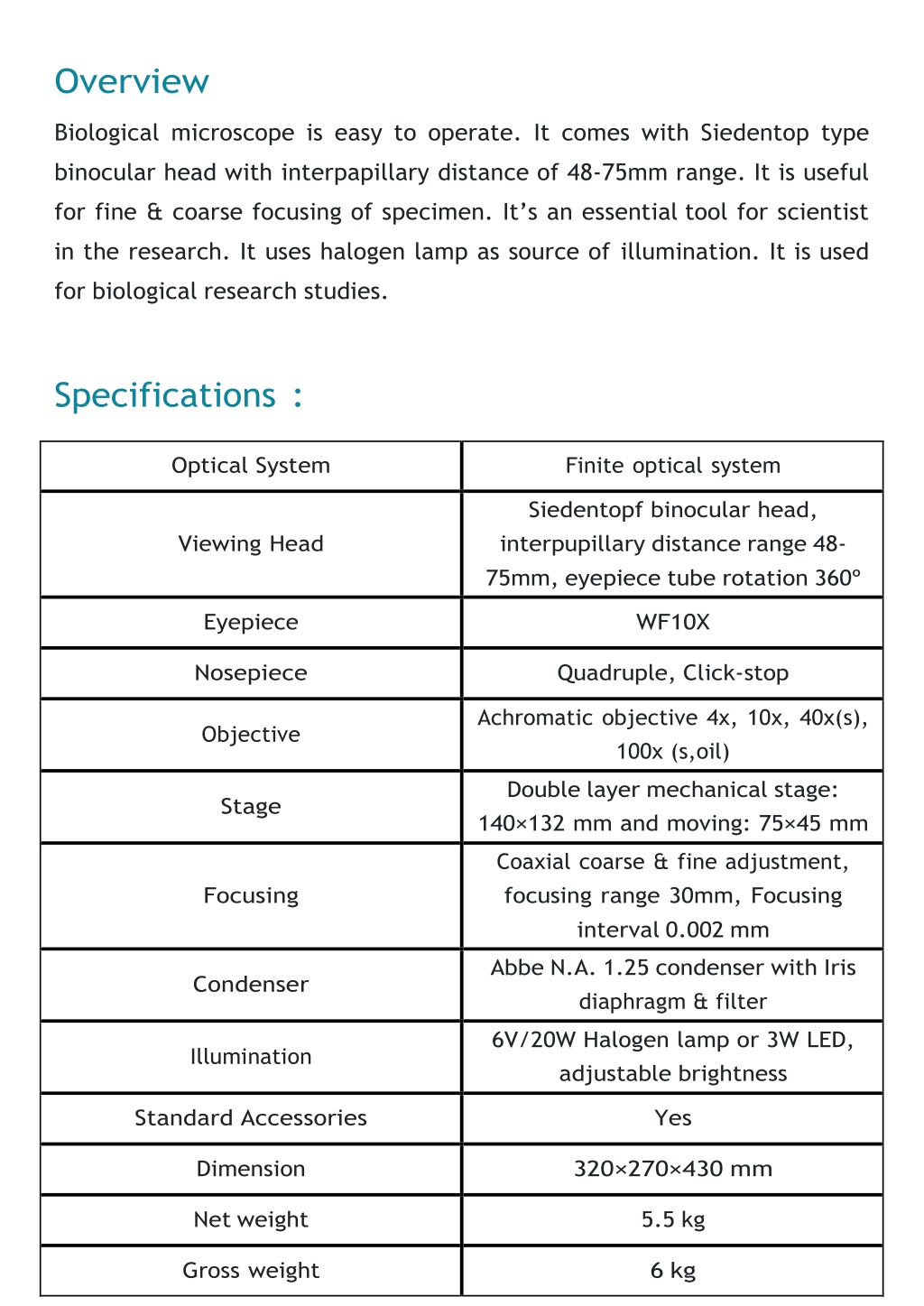

  2. Overview Biological microscope is easy to operate. It comes with Siedentop type binocular head with interpapillary distance of 48-75mm range. It is useful for fine & coarse focusing of specimen. It’s an essential tool for scientist in the research. It uses halogen lamp as source of illumination. It is used for biological research studies. Specifications : Optical System Finite optical system Siedentopf binocular head, interpupillary distance range 48- 75mm, eyepiece tube rotation 360º Viewing Head Eyepiece WF10X Nosepiece Quadruple, Click-stop Achromatic objective 4x, 10x, 40x(s), 100x (s,oil) Objective Double layer mechanical stage: 140×132 mm and moving: 75×45 mm Stage Coaxial coarse & fine adjustment, focusing range 30mm, Focusing interval 0.002 mm Focusing Abbe N.A. 1.25 condenser with Iris diaphragm & filter Condenser 6V/20W Halogen lamp or 3W LED, adjustable brightness Illumination Standard Accessories Yes Dimension 320×270×430 mm Net weight 5.5 kg Gross weight 6 kg

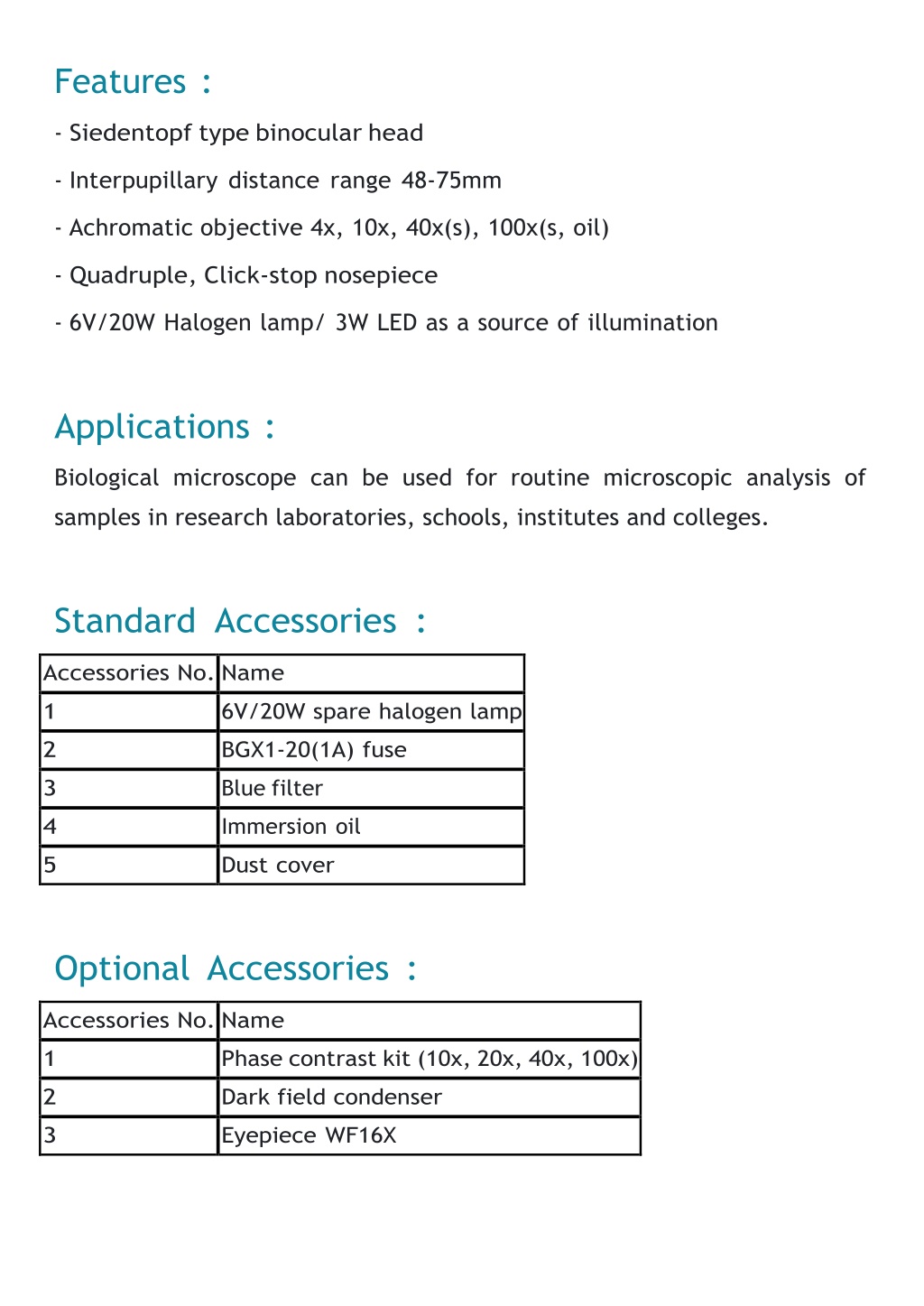

  3. Features : -Siedentopf type binocular head -Interpupillary distance range 48-75mm -Achromatic objective 4x, 10x, 40x(s), 100x(s, oil) -Quadruple, Click-stop nosepiece -6V/20W Halogen lamp/ 3W LED as a source of illumination Applications : Biological microscope can be used for routine microscopic analysis of samples in research laboratories, schools, institutes and colleges. Standard Accessories : Accessories No.Name 1 6V/20W spare halogen lamp 2 BGX1-20(1A) fuse 3 Blue filter 4 Immersion oil 5 Dust cover Optional Accessories : Accessories No.Name 1 Phase contrast kit (10x, 20x, 40x, 100x) 2 Dark field condenser 3 Eyepiece WF16X

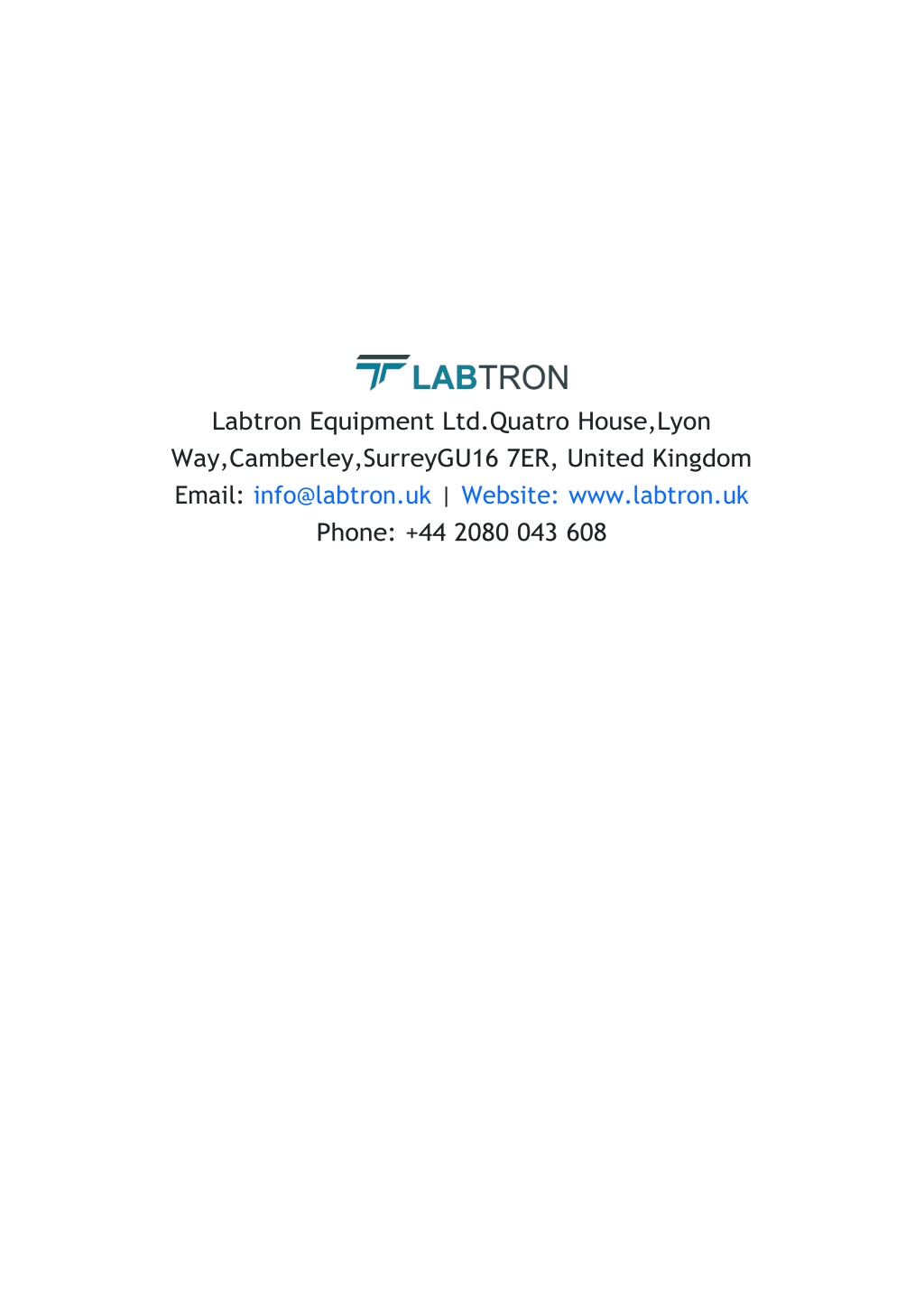

  4. Labtron Equipment Ltd.Quatro House,Lyon Way,Camberley,SurreyGU16 7ER, United Kingdom Email: info@labtron.uk | Website: www.labtron.uk Phone: +44 2080 043 608
