Biological binocular Microscope

Labtron biological microscope features a user-friendly design with a finite optical system and a sliding, 45u00b0 inclined binocular head. It includes an iris diaphragm and filter, WF10X eyepieces, a quadruple nosepiece with quick-stop, and a double-layer mechanical stage with wire movement.

Erica57
Download Presentation

Biological binocular Microscope

An Image/Link below is provided (as is) to download presentation Download Policy: Content on the Website is provided to you AS IS for your information and personal use and may not be sold / licensed / shared on other websites without getting consent from its author. Content is provided to you AS IS for your information and personal use only. Download presentation by click this link. While downloading, if for some reason you are not able to download a presentation, the publisher may have deleted the file from their server. During download, if you can't get a presentation, the file might be deleted by the publisher.

E N D

Presentation Transcript

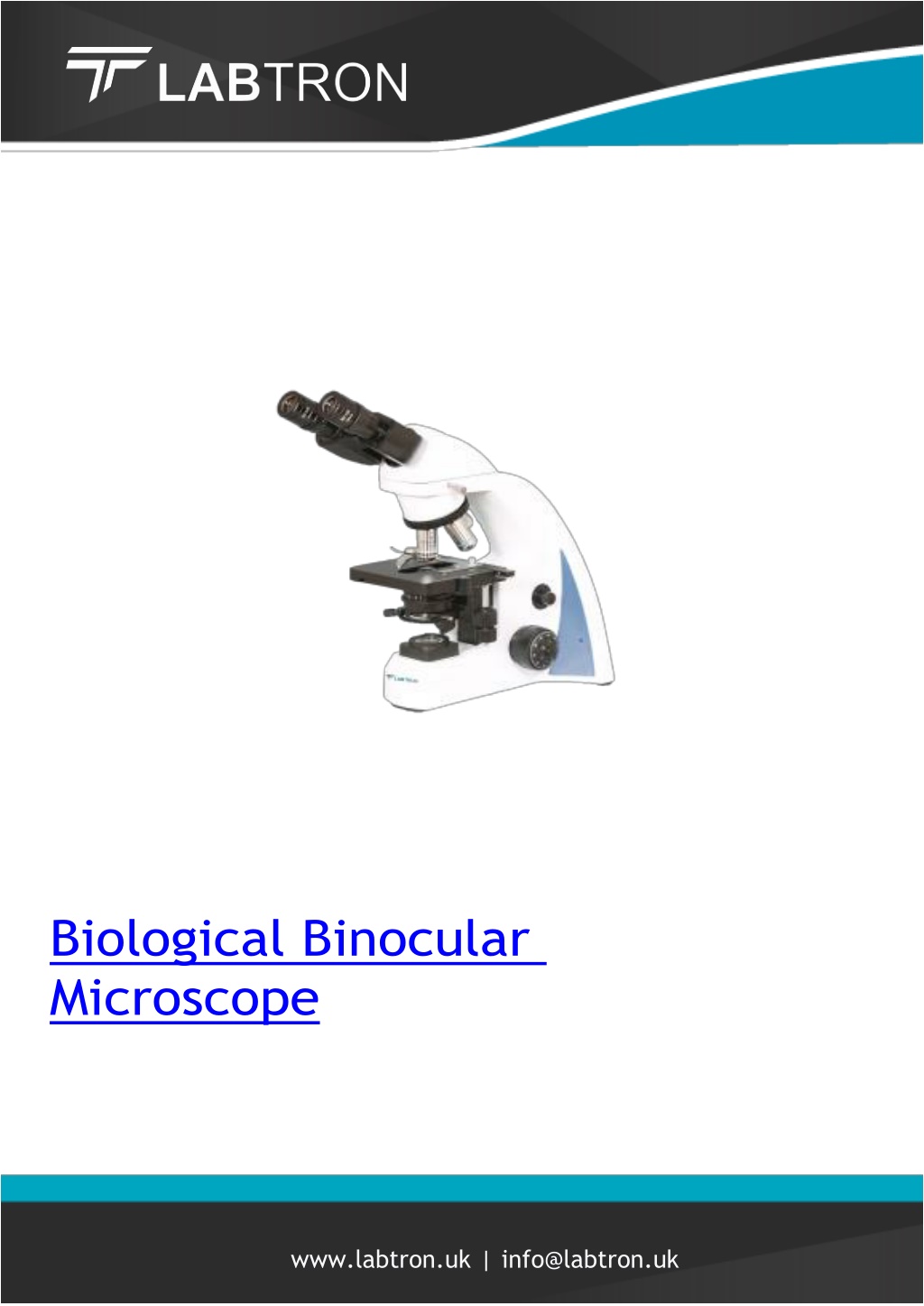

  1. Biological Binocular Microscope www.labtron.uk | info@labtron.uk

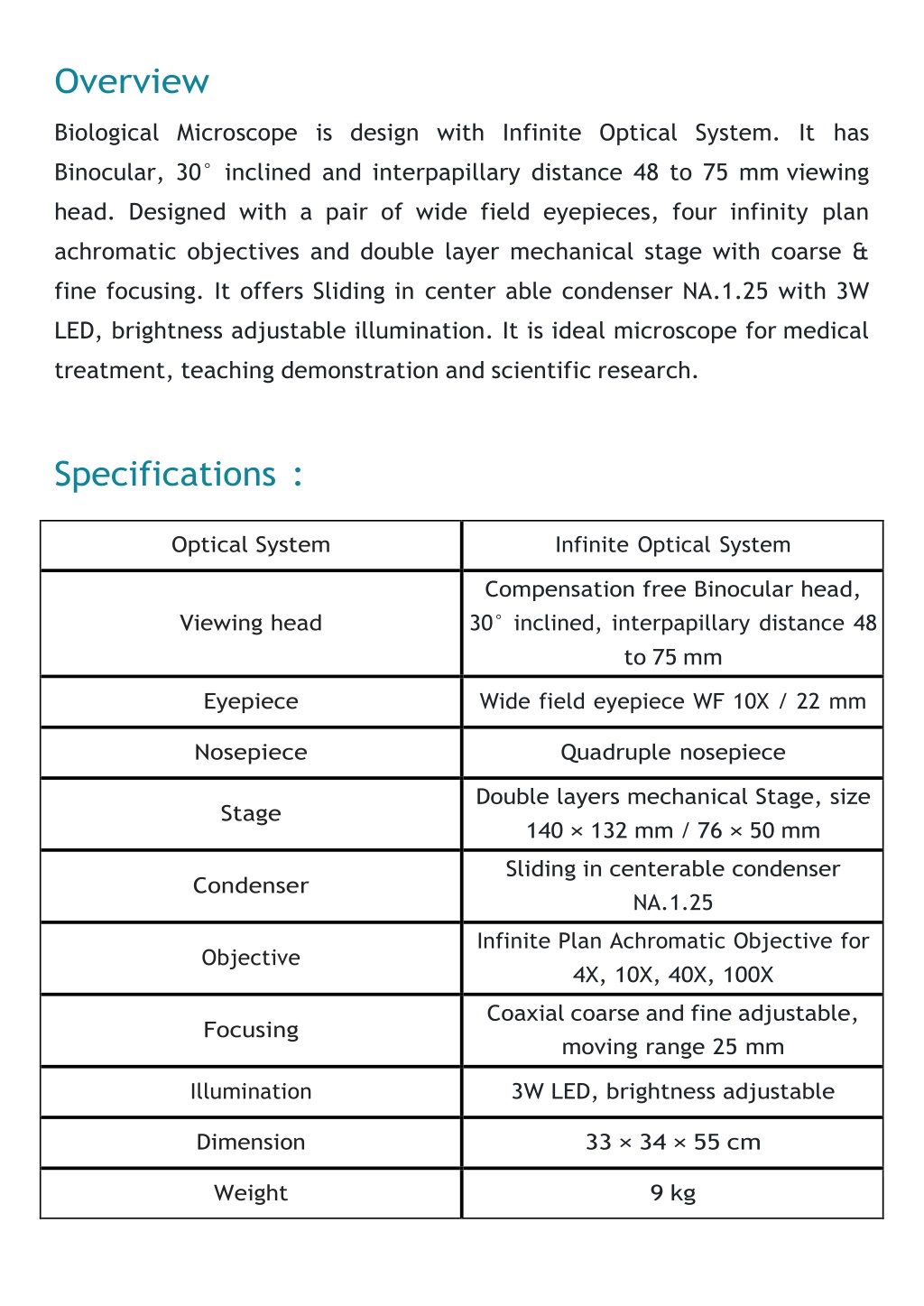

  2. Overview Biological Microscope is design with Infinite Optical System. It has Binocular, 30° inclined and interpapillary distance 48 to 75 mm viewing head. Designed with a pair of wide field eyepieces, four infinity plan achromatic objectives and double layer mechanical stage with coarse & fine focusing. It offers Sliding in center able condenser NA.1.25 with 3W LED, brightness adjustable illumination. It is ideal microscope for medical treatment, teaching demonstration and scientific research. Specifications : Optical System Infinite Optical System Compensation free Binocular head, 30° inclined, interpapillary distance 48 to 75 mm Viewing head Eyepiece Wide field eyepiece WF 10X / 22 mm Nosepiece Quadruple nosepiece Double layers mechanical Stage, size 140 × 132 mm / 76 × 50 mm Stage Sliding in centerable condenser NA.1.25 Condenser Infinite Plan Achromatic Objective for 4X, 10X, 40X, 100X Objective Coaxial coarse and fine adjustable, moving range 25 mm Focusing Illumination 3W LED, brightness adjustable Dimension 33 × 34 × 55 cm Weight 9 kg

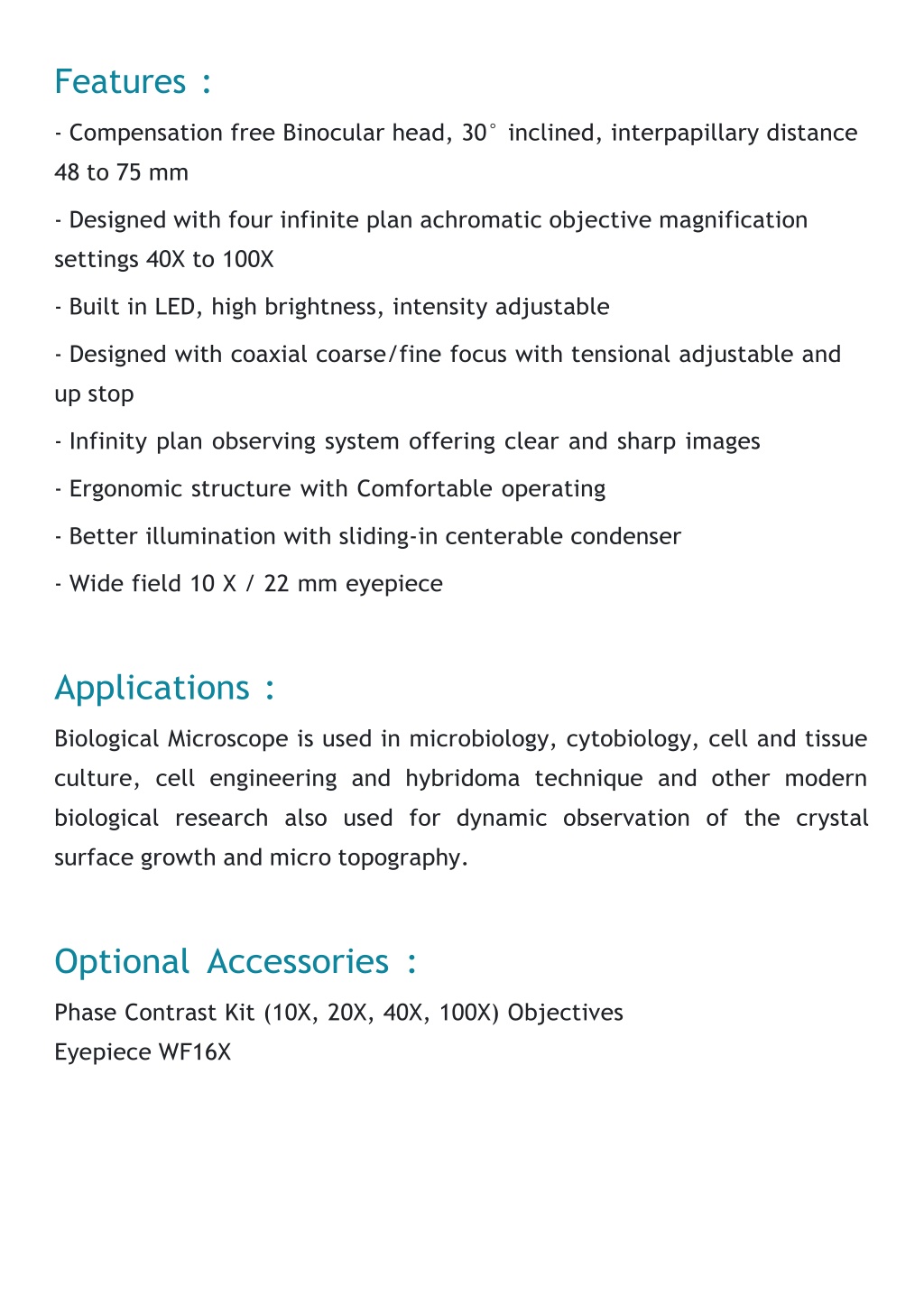

  3. Features : -Compensation free Binocular head, 30° inclined, interpapillary distance 48 to 75 mm -Designed with four infinite plan achromatic objective magnification settings 40X to 100X -Built in LED, high brightness, intensity adjustable -Designed with coaxial coarse/fine focus with tensional adjustable and up stop -Infinity plan observing system offering clear and sharp images -Ergonomic structure with Comfortable operating -Better illumination with sliding-in centerable condenser -Wide field 10 X / 22 mm eyepiece Applications : Biological Microscope is used in microbiology, cytobiology, cell and tissue culture, cell engineering and hybridoma technique and other modern biological research also used for dynamic observation of the crystal surface growth and micro topography. Optional Accessories : Phase Contrast Kit (10X, 20X, 40X, 100X) Objectives Eyepiece WF16X

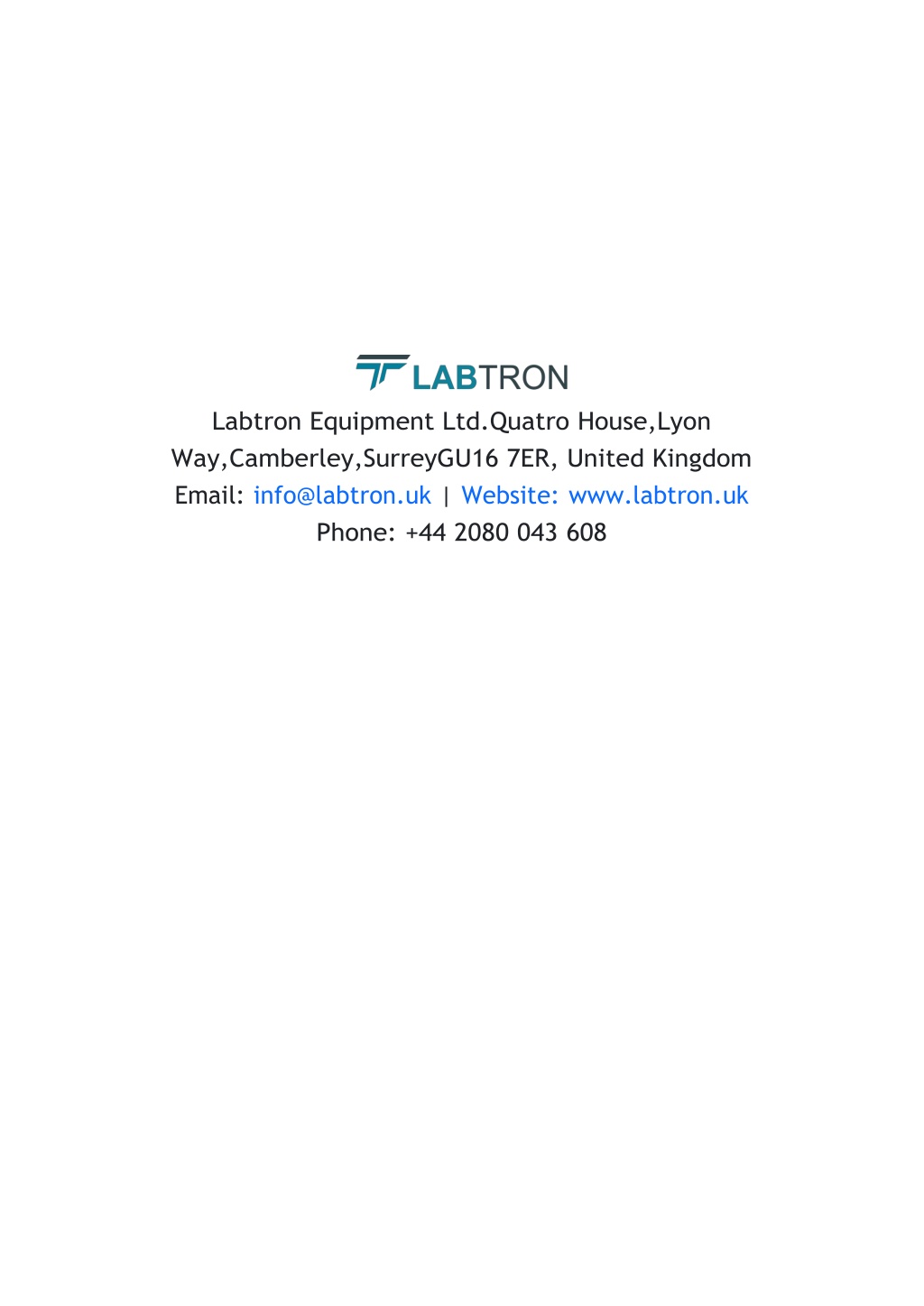

  4. Labtron Equipment Ltd.Quatro House,Lyon Way,Camberley,SurreyGU16 7ER, United Kingdom Email: info@labtron.uk | Website: www.labtron.uk Phone: +44 2080 043 608
