Benchtop-conductivity-meter

Labtron Benchtop Conductivity Meter offers a user-friendly interface with a 1-3-point calibration system. It measures conductivity from 0u20132000 <0xC6><0x86>/cm and 200.0 mS/cm. Features include auto temperature compensation, auto-hold for stable readings, and a reset function to default settings.

Erica57
Download Presentation

Benchtop-conductivity-meter

An Image/Link below is provided (as is) to download presentation Download Policy: Content on the Website is provided to you AS IS for your information and personal use and may not be sold / licensed / shared on other websites without getting consent from its author. Content is provided to you AS IS for your information and personal use only. Download presentation by click this link. While downloading, if for some reason you are not able to download a presentation, the publisher may have deleted the file from their server. During download, if you can't get a presentation, the file might be deleted by the publisher.

E N D

Presentation Transcript

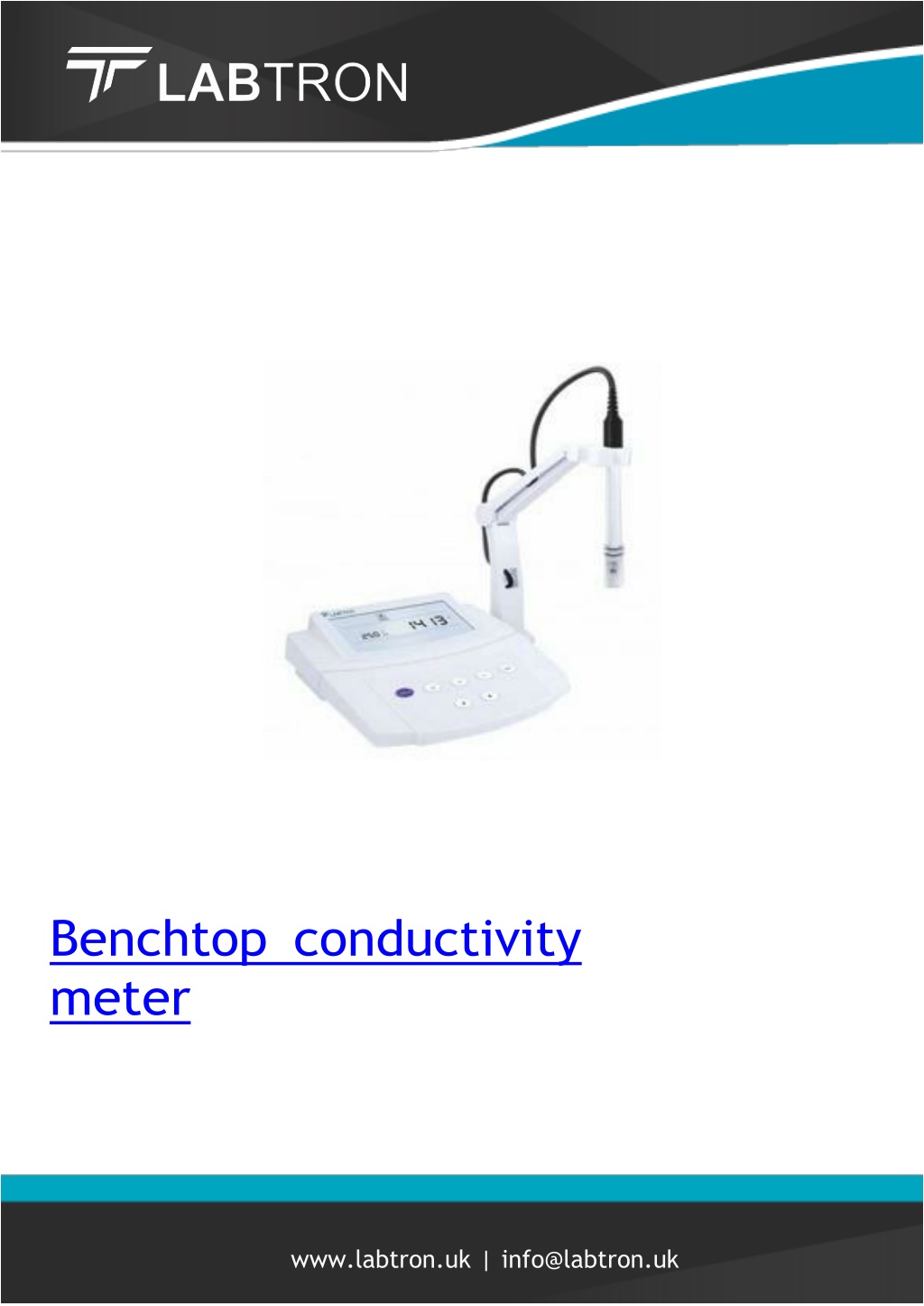

  1. Benchtop conductivity meter www.labtron.uk | info@labtron.uk

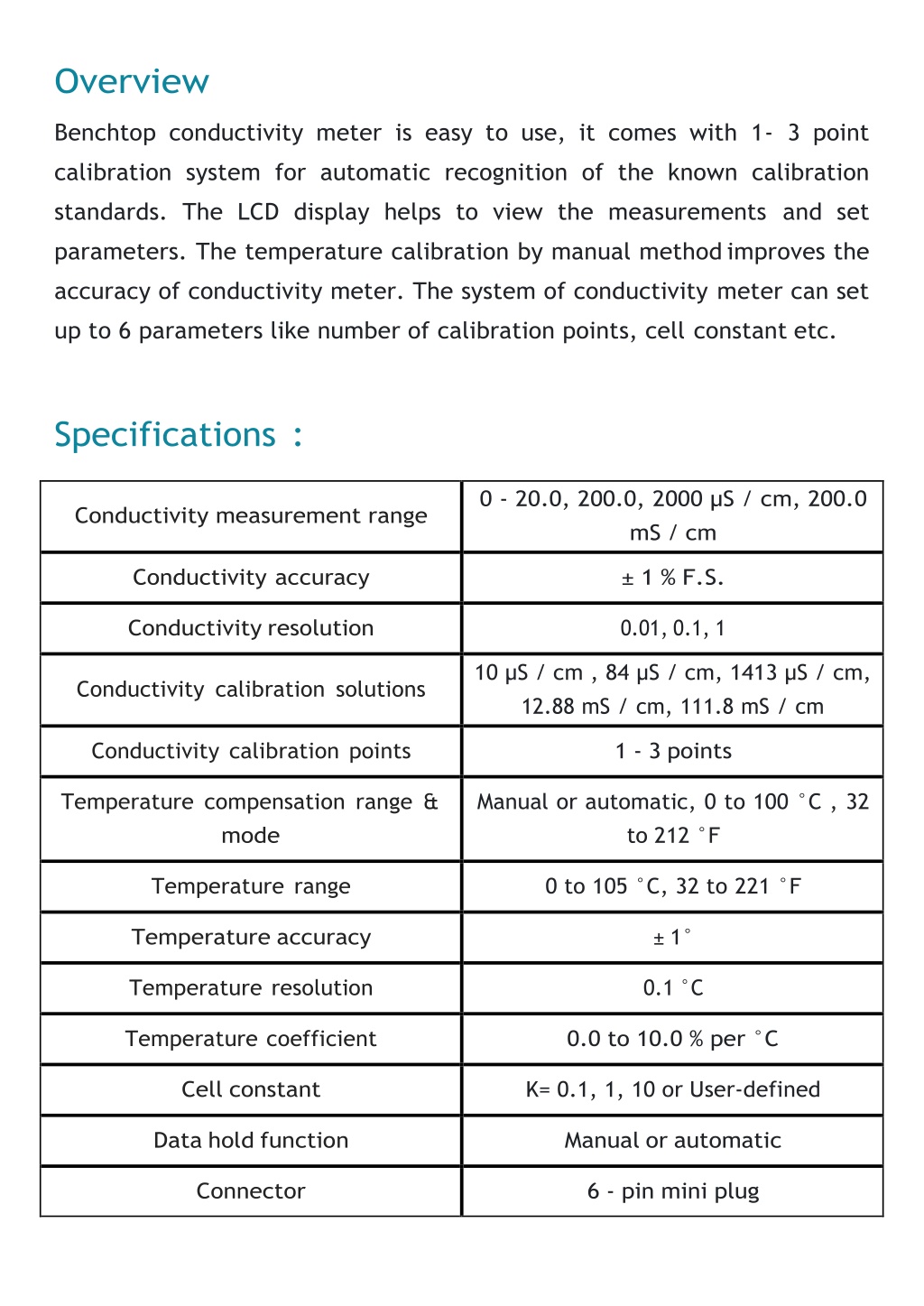

  2. Overview Benchtop conductivity meter is easy to use, it comes with 1- 3 point calibration system for automatic recognition of the known calibration standards. The LCD display helps to view the measurements and set parameters. The temperature calibration by manual method improves the accuracy of conductivity meter. The system of conductivity meter can set up to 6 parameters like number of calibration points, cell constant etc. Specifications : 0 - 20.0, 200.0, 2000 µS / cm, 200.0 mS / cm Conductivity measurement range Conductivity accuracy ± 1 % F.S. Conductivity resolution 0.01, 0.1, 1 10 µS / cm , 84 µS / cm, 1413 µS / cm, 12.88 mS / cm, 111.8 mS / cm Conductivity calibration solutions Conductivity calibration points 1 - 3 points Temperature compensation range & mode Manual or automatic, 0 to 100 °C , 32 to 212 °F Temperature range 0 to 105 °C, 32 to 221 °F Temperature accuracy ± 1° Temperature resolution 0.1 °C Temperature coefficient 0.0 to 10.0 % per °C Cell constant K= 0.1, 1, 10 or User-defined Data hold function Manual or automatic Connector 6 - pin mini plug

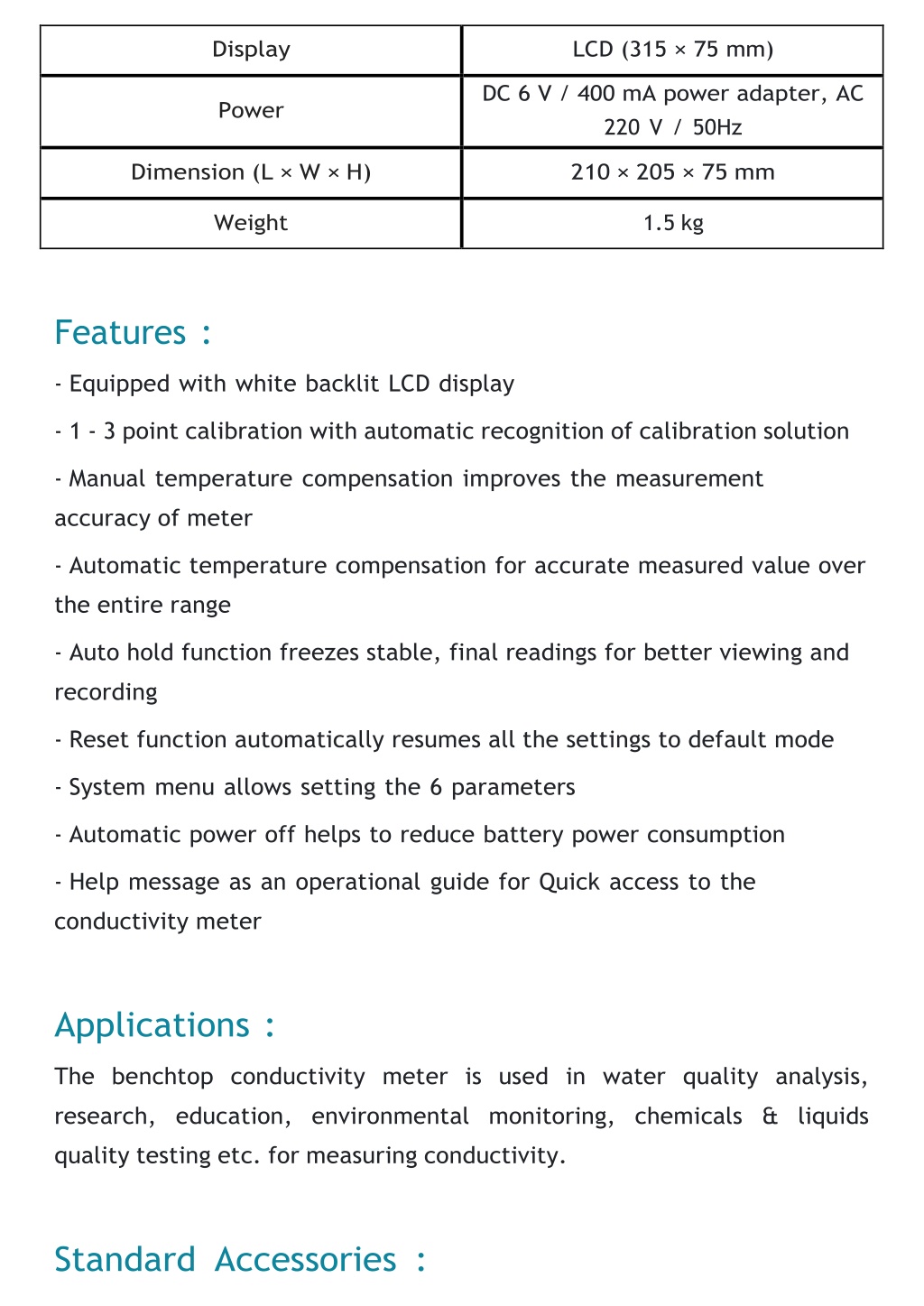

  3. Display LCD (315 × 75 mm) DC 6 V / 400 mA power adapter, AC 220 V / 50Hz Power Dimension (L × W × H) 210 × 205 × 75 mm Weight 1.5 kg Features : -Equipped with white backlit LCD display -1 - 3 point calibration with automatic recognition of calibration solution -Manual temperature compensation improves the measurement accuracy of meter -Automatic temperature compensation for accurate measured value over the entire range -Auto hold function freezes stable, final readings for better viewing and recording -Reset function automatically resumes all the settings to default mode -System menu allows setting the 6 parameters -Automatic power off helps to reduce battery power consumption -Help message as an operational guide for Quick access to the conductivity meter Applications : The benchtop conductivity meter is used in water quality analysis, research, education, environmental monitoring, chemicals & liquids quality testing etc. for measuring conductivity. Standard Accessories :

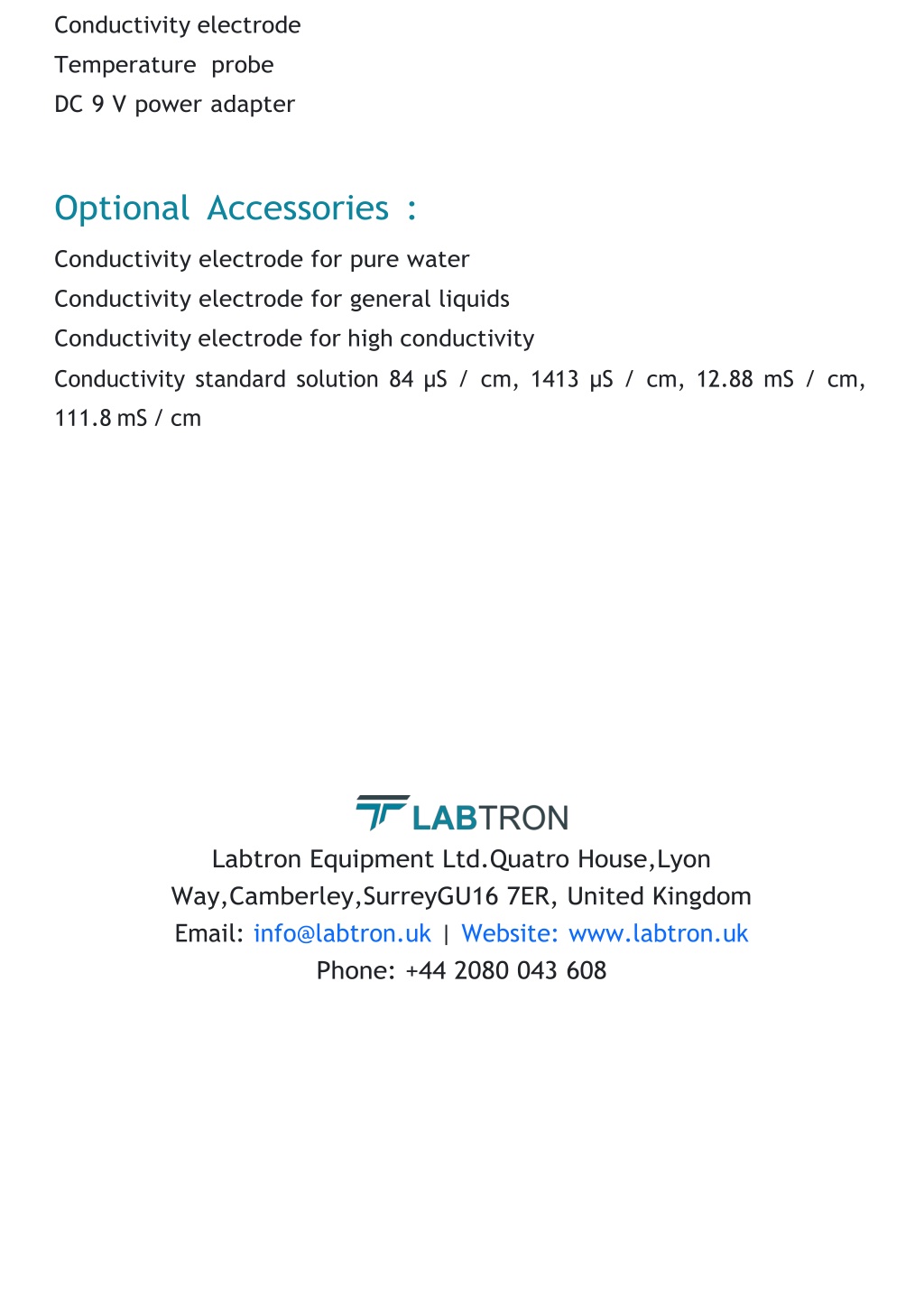

  4. Conductivity electrode Temperature probe DC 9 V power adapter Optional Accessories : Conductivity electrode for pure water Conductivity electrode for general liquids Conductivity electrode for high conductivity Conductivity standard solution 84 µS / cm, 1413 µS / cm, 12.88 mS / cm, 111.8 mS / cm Labtron Equipment Ltd.Quatro House,Lyon Way,Camberley,SurreyGU16 7ER, United Kingdom Email: info@labtron.uk | Website: www.labtron.uk Phone: +44 2080 043 608
