360° Rotation Biological-Microscope

Labtron biological microscope features a user-friendly design with a finite optical system and a sliding, 45u00b0 inclined binocular head. It includes an iris diaphragm and filter, WF10X eyepieces, a quadruple nosepiece with quick-stop, and a double-layer mechanical stage with wire movement.

Erica57
Download Presentation

360° Rotation Biological-Microscope

An Image/Link below is provided (as is) to download presentation Download Policy: Content on the Website is provided to you AS IS for your information and personal use and may not be sold / licensed / shared on other websites without getting consent from its author. Content is provided to you AS IS for your information and personal use only. Download presentation by click this link. While downloading, if for some reason you are not able to download a presentation, the publisher may have deleted the file from their server. During download, if you can't get a presentation, the file might be deleted by the publisher.

E N D

Presentation Transcript

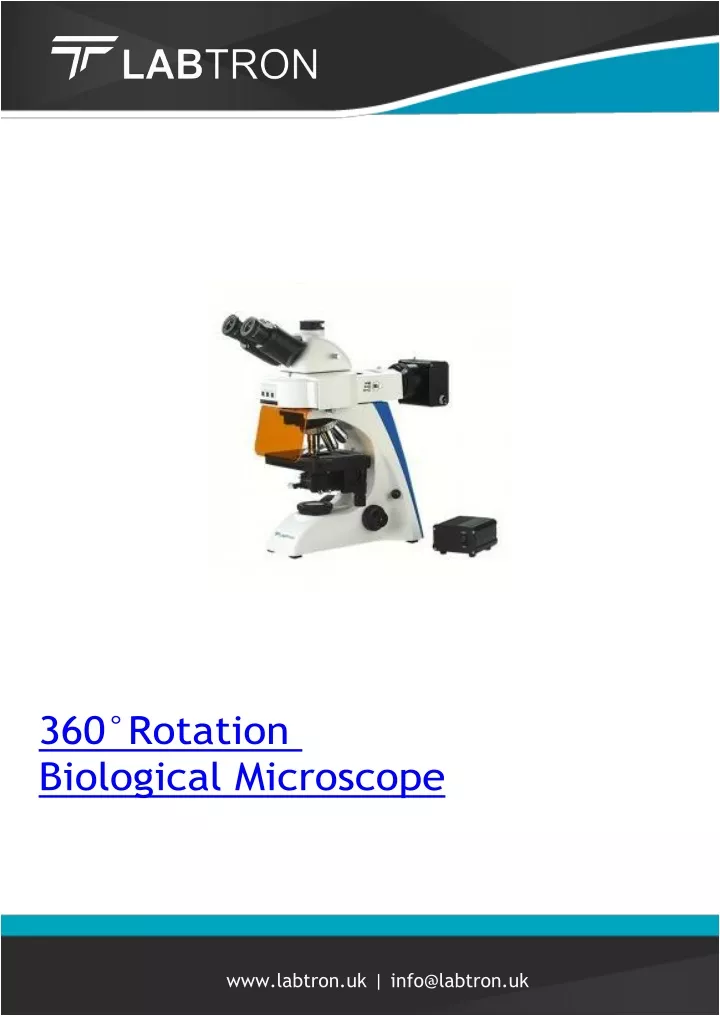

  1. 360°Rotation Biological Microscope www.labtron.uk | info@labtron.uk

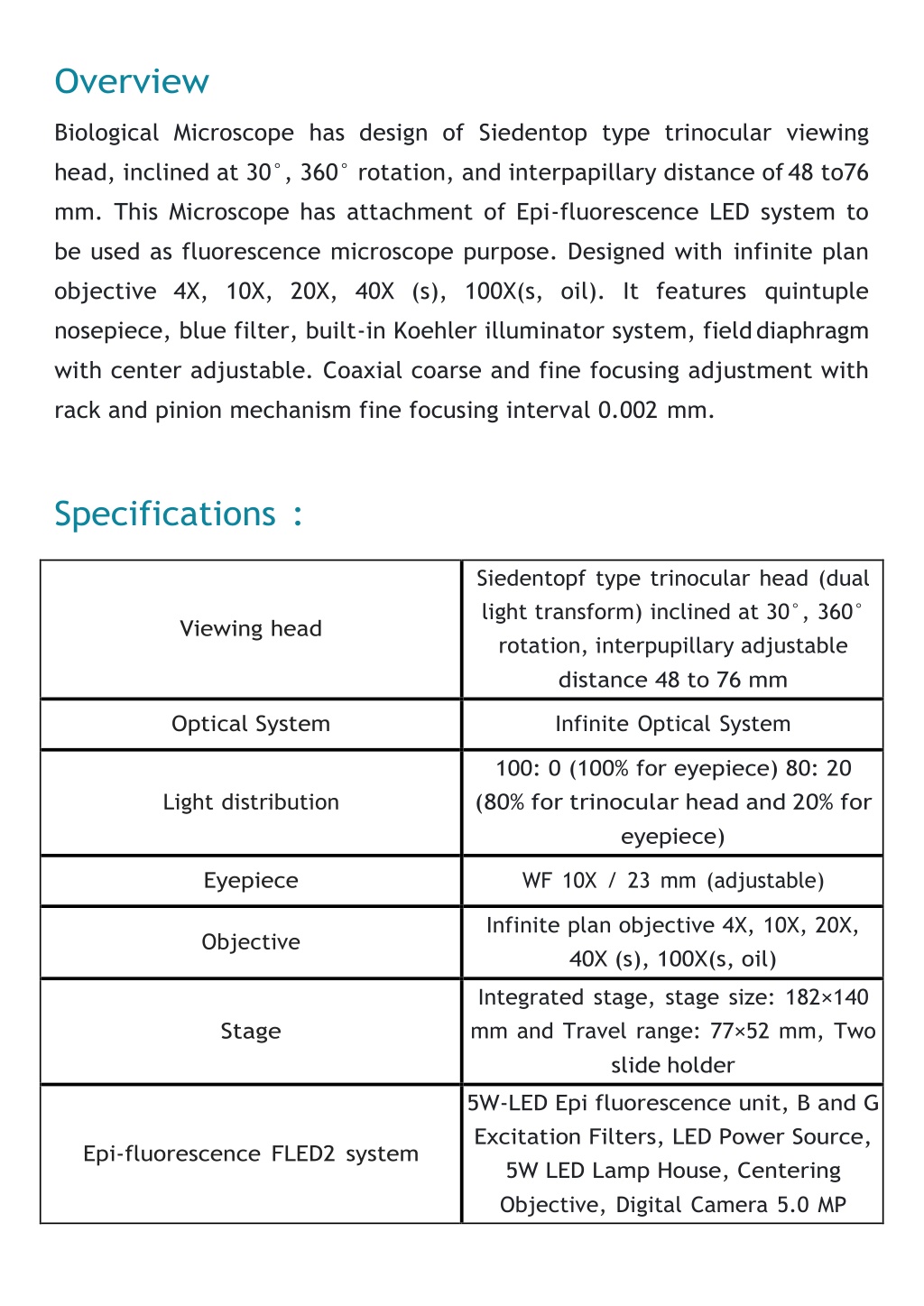

  2. Overview Biological Microscope has design of Siedentop type trinocular viewing head, inclined at 30°, 360° rotation, and interpapillary distance of 48 to76 mm. This Microscope has attachment of Epi-fluorescence LED system to be used as fluorescence microscope purpose. Designed with infinite plan objective 4X, 10X, 20X, 40X (s), 100X(s, oil). It features quintuple nosepiece, blue filter, built-in Koehler illuminator system, field diaphragm with center adjustable. Coaxial coarse and fine focusing adjustment with rack and pinion mechanism fine focusing interval 0.002 mm. Specifications : Siedentopf type trinocular head (dual light transform) inclined at 30°, 360° rotation, interpupillary adjustable distance 48 to 76 mm Viewing head Optical System Infinite Optical System 100: 0 (100% for eyepiece) 80: 20 (80% for trinocular head and 20% for eyepiece) Light distribution Eyepiece WF 10X / 23 mm (adjustable) Infinite plan objective 4X, 10X, 20X, 40X (s), 100X(s, oil) Objective Integrated stage, stage size: 182×140 mm and Travel range: 77×52 mm, Two slide holder Stage 5W-LED Epi fluorescence unit, B and G Excitation Filters, LED Power Source, 5W LED Lamp House, Centering Objective, Digital Camera 5.0 MP Epi-fluorescence FLED2 system

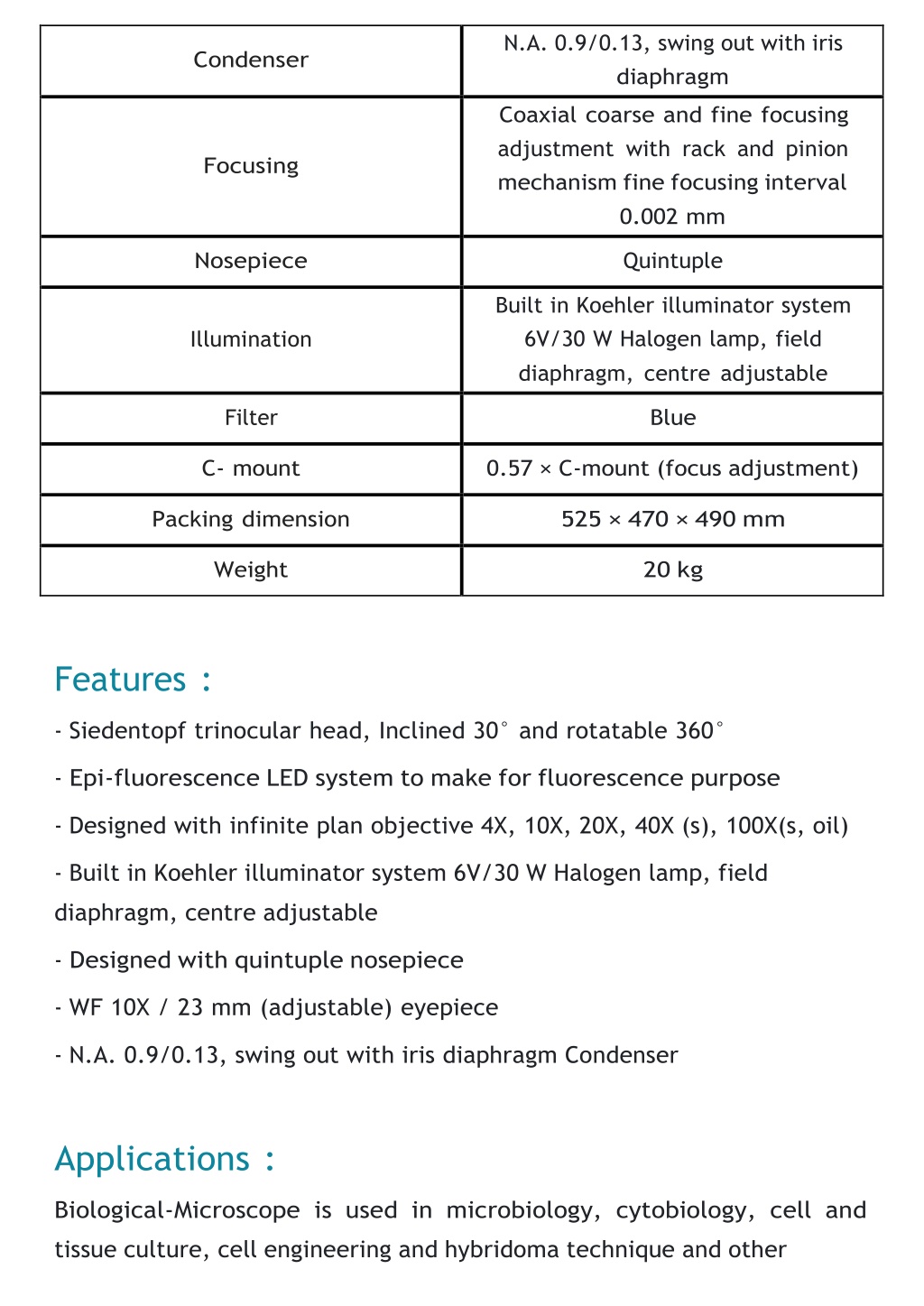

  3. N.A. 0.9/0.13, swing out with iris diaphragm Condenser Coaxial coarse and fine focusing adjustment with rack and pinion mechanism fine focusing interval 0.002 mm Focusing Nosepiece Quintuple Built in Koehler illuminator system 6V/30 W Halogen lamp, field diaphragm, centre adjustable Illumination Filter Blue C- mount 0.57 × C-mount (focus adjustment) Packing dimension 525 × 470 × 490 mm Weight 20 kg Features : -Siedentopf trinocular head, Inclined 30° and rotatable 360° -Epi-fluorescence LED system to make for fluorescence purpose -Designed with infinite plan objective 4X, 10X, 20X, 40X (s), 100X(s, oil) -Built in Koehler illuminator system 6V/30 W Halogen lamp, field diaphragm, centre adjustable -Designed with quintuple nosepiece -WF 10X / 23 mm (adjustable) eyepiece -N.A. 0.9/0.13, swing out with iris diaphragm Condenser Applications : Biological-Microscope is used in microbiology, cytobiology, cell and tissue culture, cell engineering and hybridoma technique and other

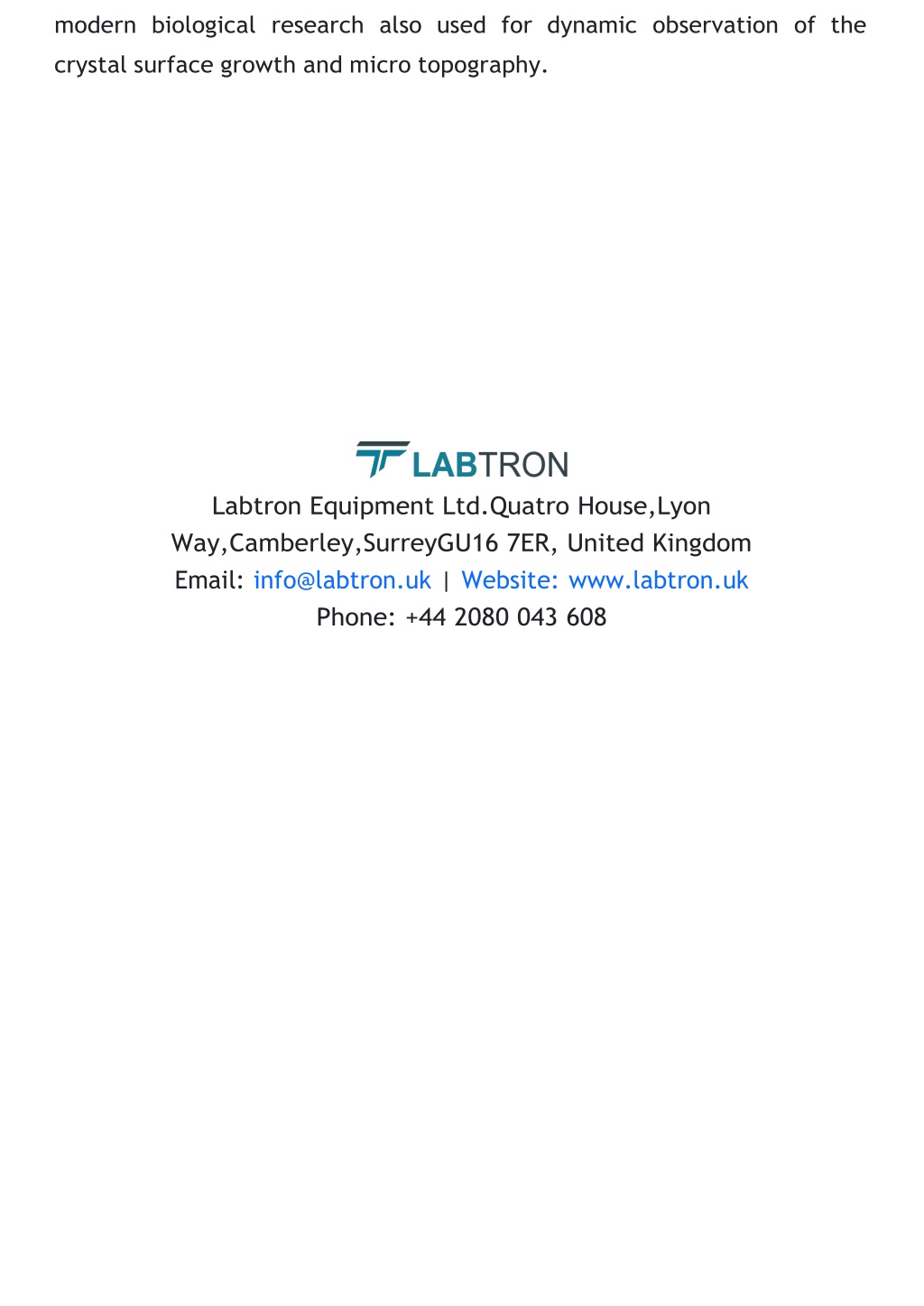

  4. modern biological research also used for dynamic observation of the crystal surface growth and micro topography. Labtron Equipment Ltd.Quatro House,Lyon Way,Camberley,SurreyGU16 7ER, United Kingdom Email: info@labtron.uk | Website: www.labtron.uk Phone: +44 2080 043 608
