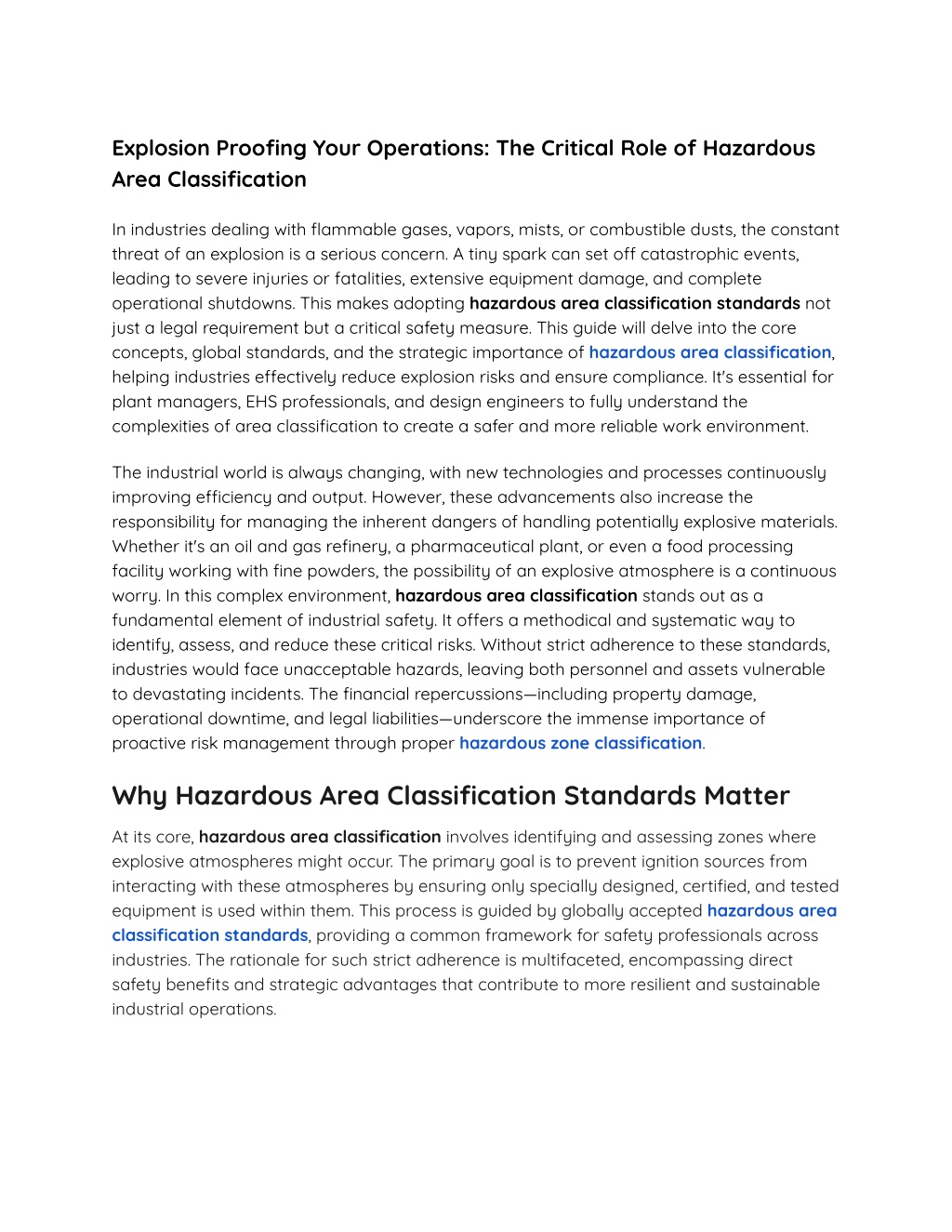

  1. Explosion Proofing Your Operations: The Critical Role of Hazardous Area Classification In industries dealing with flammable gases, vapors, mists, or combustible dusts, the constant threat of an explosion is a serious concern. A tiny spark can set o? catastrophic events, leading to severe injuries or fatalities, extensive equipment damage, and complete operational shutdowns. This makes adopting hazardous area classification standards not just a legal requirement but a critical safety measure. This guide will delve into the core concepts, global standards, and the strategic importance of hazardous area classification, helping industries e?ectively reduce explosion risks and ensure compliance. It's essential for plant managers, EHS professionals, and design engineers to fully understand the complexities of area classification to create a safer and more reliable work environment. The industrial world is always changing, with new technologies and processes continuously improving e?ciency and output. However, these advancements also increase the responsibility for managing the inherent dangers of handling potentially explosive materials. Whether it's an oil and gas refinery, a pharmaceutical plant, or even a food processing facility working with fine powders, the possibility of an explosive atmosphere is a continuous worry. In this complex environment, hazardous area classification stands out as a fundamental element of industrial safety. It o?ers a methodical and systematic way to identify, assess, and reduce these critical risks. Without strict adherence to these standards, industries would face unacceptable hazards, leaving both personnel and assets vulnerable to devastating incidents. The financial repercussions—including property damage, operational downtime, and legal liabilities—underscore the immense importance of proactive risk management through proper hazardous zone classification. Why Hazardous Area Classification Standards Matter At its core, hazardous area classification involves identifying and assessing zones where explosive atmospheres might occur. The primary goal is to prevent ignition sources from interacting with these atmospheres by ensuring only specially designed, certified, and tested equipment is used within them. This process is guided by globally accepted hazardous area classification standards, providing a common framework for safety professionals across industries. The rationale for such strict adherence is multifaceted, encompassing direct safety benefits and strategic advantages that contribute to more resilient and sustainable industrial operations.

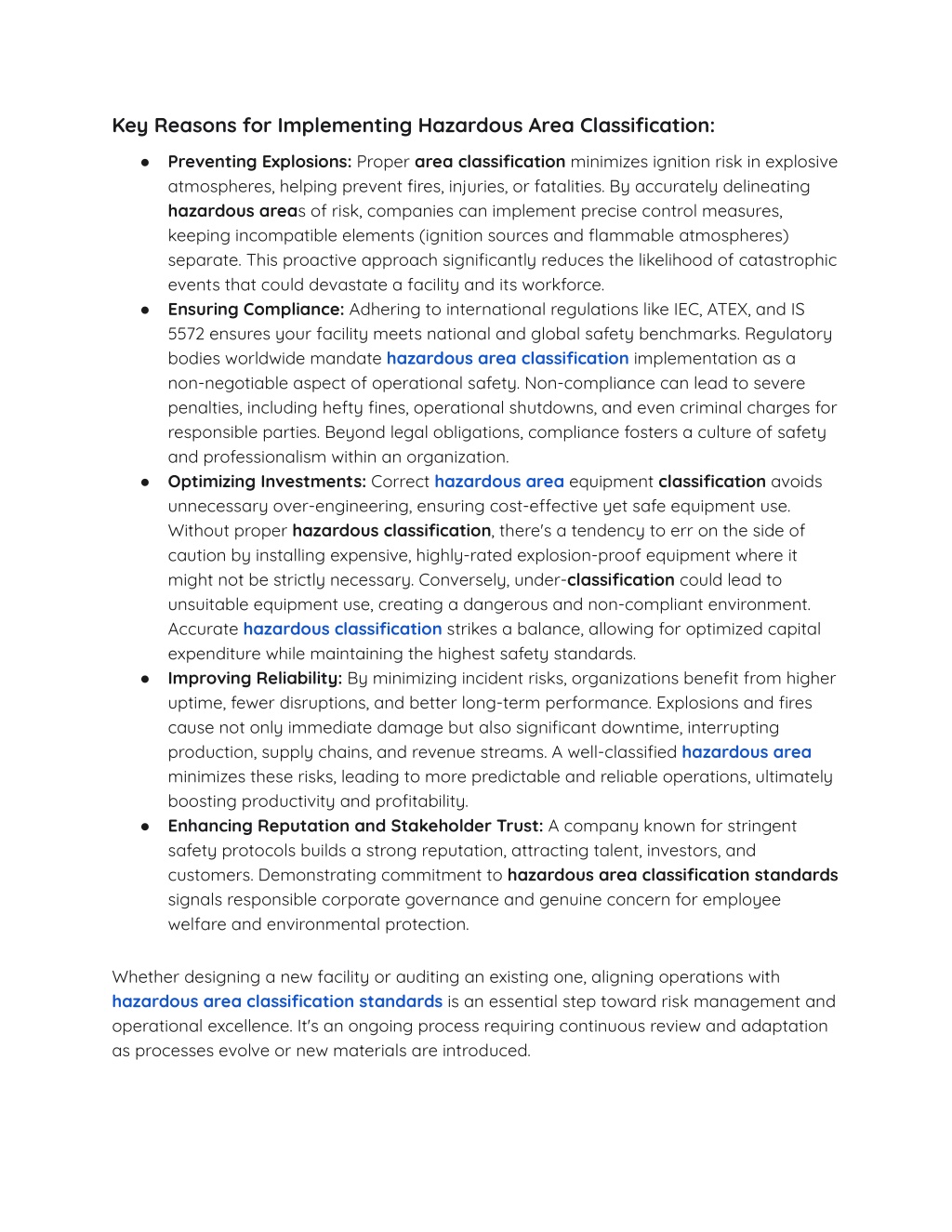

  2. Key Reasons for Implementing Hazardous Area Classification: ● Preventing Explosions: Proper area classification minimizes ignition risk in explosive atmospheres, helping prevent fires, injuries, or fatalities. By accurately delineating hazardous areas of risk, companies can implement precise control measures, keeping incompatible elements (ignition sources and flammable atmospheres) separate. This proactive approach significantly reduces the likelihood of catastrophic events that could devastate a facility and its workforce. ● Ensuring Compliance: Adhering to international regulations like IEC, ATEX, and IS 5572 ensures your facility meets national and global safety benchmarks. Regulatory bodies worldwide mandate hazardous area classification implementation as a non-negotiable aspect of operational safety. Non-compliance can lead to severe penalties, including hefty fines, operational shutdowns, and even criminal charges for responsible parties. Beyond legal obligations, compliance fosters a culture of safety and professionalism within an organization. ● Optimizing Investments: Correct hazardous area equipment classification avoids unnecessary over-engineering, ensuring cost-e?ective yet safe equipment use. Without proper hazardous classification, there's a tendency to err on the side of caution by installing expensive, highly-rated explosion-proof equipment where it might not be strictly necessary. Conversely, under-classification could lead to unsuitable equipment use, creating a dangerous and non-compliant environment. Accurate hazardous classification strikes a balance, allowing for optimized capital expenditure while maintaining the highest safety standards. ● Improving Reliability: By minimizing incident risks, organizations benefit from higher uptime, fewer disruptions, and better long-term performance. Explosions and fires cause not only immediate damage but also significant downtime, interrupting production, supply chains, and revenue streams. A well-classified hazardous area minimizes these risks, leading to more predictable and reliable operations, ultimately boosting productivity and profitability. ● Enhancing Reputation and Stakeholder Trust: A company known for stringent safety protocols builds a strong reputation, attracting talent, investors, and customers. Demonstrating commitment to hazardous area classification standards signals responsible corporate governance and genuine concern for employee welfare and environmental protection. Whether designing a new facility or auditing an existing one, aligning operations with hazardous area classification standards is an essential step toward risk management and operational excellence. It's an ongoing process requiring continuous review and adaptation as processes evolve or new materials are introduced.

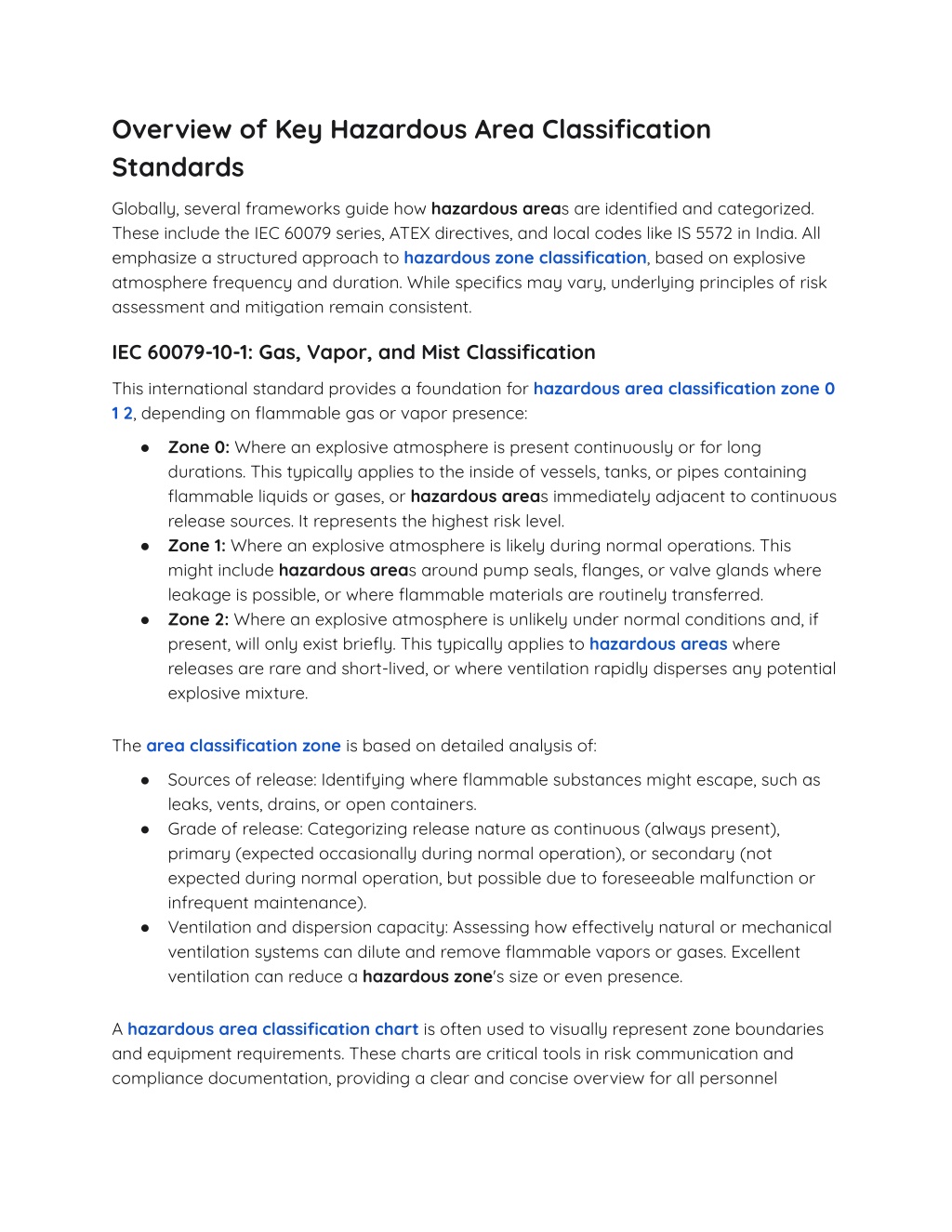

  3. Overview of Key Hazardous Area Classification Standards Globally, several frameworks guide how hazardous areas are identified and categorized. These include the IEC 60079 series, ATEX directives, and local codes like IS 5572 in India. All emphasize a structured approach to hazardous zone classification, based on explosive atmosphere frequency and duration. While specifics may vary, underlying principles of risk assessment and mitigation remain consistent. IEC 60079-10-1: Gas, Vapor, and Mist Classification This international standard provides a foundation for hazardous area classification zone 0 1 2, depending on flammable gas or vapor presence: ● Zone 0: Where an explosive atmosphere is present continuously or for long durations. This typically applies to the inside of vessels, tanks, or pipes containing flammable liquids or gases, or hazardous areas immediately adjacent to continuous release sources. It represents the highest risk level. ● Zone 1: Where an explosive atmosphere is likely during normal operations. This might include hazardous areas around pump seals, flanges, or valve glands where leakage is possible, or where flammable materials are routinely transferred. ● Zone 2: Where an explosive atmosphere is unlikely under normal conditions and, if present, will only exist briefly. This typically applies to hazardous areas where releases are rare and short-lived, or where ventilation rapidly disperses any potential explosive mixture. The area classification zone is based on detailed analysis of: ● Sources of release: Identifying where flammable substances might escape, such as leaks, vents, drains, or open containers. ● Grade of release: Categorizing release nature as continuous (always present), primary (expected occasionally during normal operation), or secondary (not expected during normal operation, but possible due to foreseeable malfunction or infrequent maintenance). ● Ventilation and dispersion capacity: Assessing how e?ectively natural or mechanical ventilation systems can dilute and remove flammable vapors or gases. Excellent ventilation can reduce a hazardous zone's size or even presence. A hazardous area classification chart is often used to visually represent zone boundaries and equipment requirements. These charts are critical tools in risk communication and compliance documentation, providing a clear and concise overview for all personnel

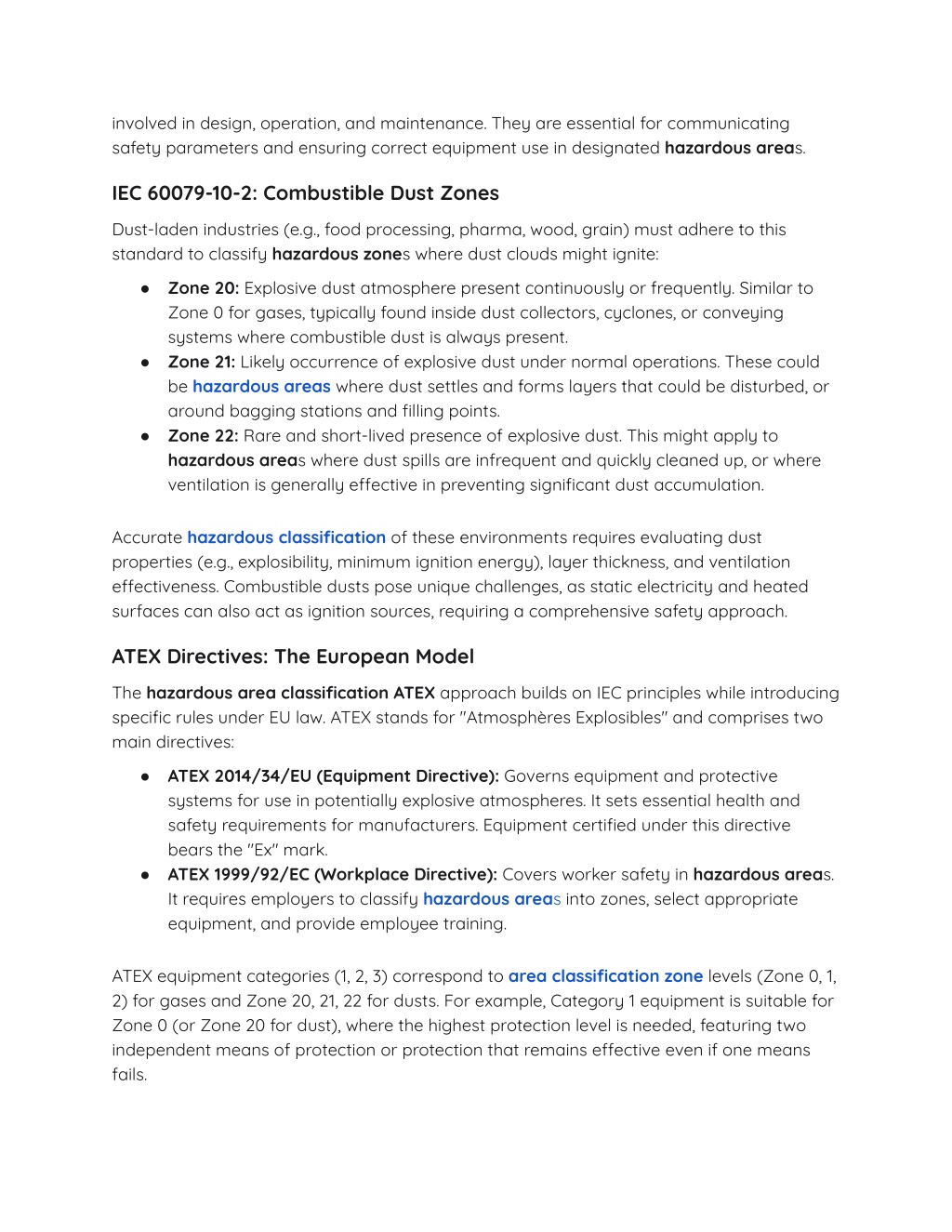

  4. involved in design, operation, and maintenance. They are essential for communicating safety parameters and ensuring correct equipment use in designated hazardous areas. IEC 60079-10-2: Combustible Dust Zones Dust-laden industries (e.g., food processing, pharma, wood, grain) must adhere to this standard to classify hazardous zones where dust clouds might ignite: ● Zone 20: Explosive dust atmosphere present continuously or frequently. Similar to Zone 0 for gases, typically found inside dust collectors, cyclones, or conveying systems where combustible dust is always present. ● Zone 21: Likely occurrence of explosive dust under normal operations. These could behazardous areaswhere dust settles and forms layers that could be disturbed, or around bagging stations and filling points. ● Zone 22: Rare and short-lived presence of explosive dust. This might apply to hazardous areas where dust spills are infrequent and quickly cleaned up, or where ventilation is generally e?ective in preventing significant dust accumulation. Accurate hazardous classification of these environments requires evaluating dust properties (e.g., explosibility, minimum ignition energy), layer thickness, and ventilation e?ectiveness. Combustible dusts pose unique challenges, as static electricity and heated surfaces can also act as ignition sources, requiring a comprehensive safety approach. ATEX Directives: The European Model The hazardous area classification ATEX approach builds on IEC principles while introducing specific rules under EU law. ATEX stands for "Atmosphères Explosibles" and comprises two main directives: ● ATEX 2014/34/EU (Equipment Directive): Governs equipment and protective systems for use in potentially explosive atmospheres. It sets essential health and safety requirements for manufacturers. Equipment certified under this directive bears the "Ex" mark. ● ATEX 1999/92/EC (Workplace Directive): Covers worker safety in hazardous areas. It requires employers to classify hazardous areas into zones, select appropriate equipment, and provide employee training. ATEX equipment categories (1, 2, 3) correspond to area classification zone levels (Zone 0, 1, 2) for gases and Zone 20, 21, 22 for dusts. For example, Category 1 equipment is suitable for Zone 0 (or Zone 20 for dust), where the highest protection level is needed, featuring two independent means of protection or protection that remains e?ective even if one means fails.

  5. Each certified device must carry specific markings that indicate: ● Type of protection: (e.g., Ex d – flameproof enclosure, Ex e – increased safety, Ex i – intrinsic safety). ● Explosion group and temperature class: These specify the types of gases/vapors the equipment is safe for and the maximum surface temperature it can reach, ensuring it won't ignite the surrounding atmosphere. ● Suitable gas/dust zone: Indicates the specific hazardous zones the equipment is approved for. Adherence to ATEX is mandatory for all equipment placed on the market within the EU, underscoring its broad impact on global manufacturers. IS 5572: India's Standard for Area Classification In India, IS 5572 provides national guidelines for hazardous area classification, focusing on explosive gas atmospheres. It aligns closely with IEC norms but also addresses Indian environmental conditions and infrastructure practices. This local standard is crucial for ensuring facilities within India meet specific national safety requirements, which may include nuances related to local climate, materials, and operational practices. Compliance with IS 5572 is mandatory for Indian industries operating in sectors like oil & gas, pharmaceuticals, food processing, and manufacturing. Indian regulators may also require documentation such as a hazardous area classification pdf or a visual hazardous area classification chart during audits to verify adherence to these national guidelines. This local specificity highlights the importance of understanding regional regulations in addition to international standards. Secure Your Operations: Expert Guidance for Hazardous Zones Need help with hazardous zones? Our hazardous area classification servicesoffer expert guidance to ensure your operations are safe and compliant. Let our trusted hazardous area classification consultants provide the solutions you need. Contact us today to secure your operations!

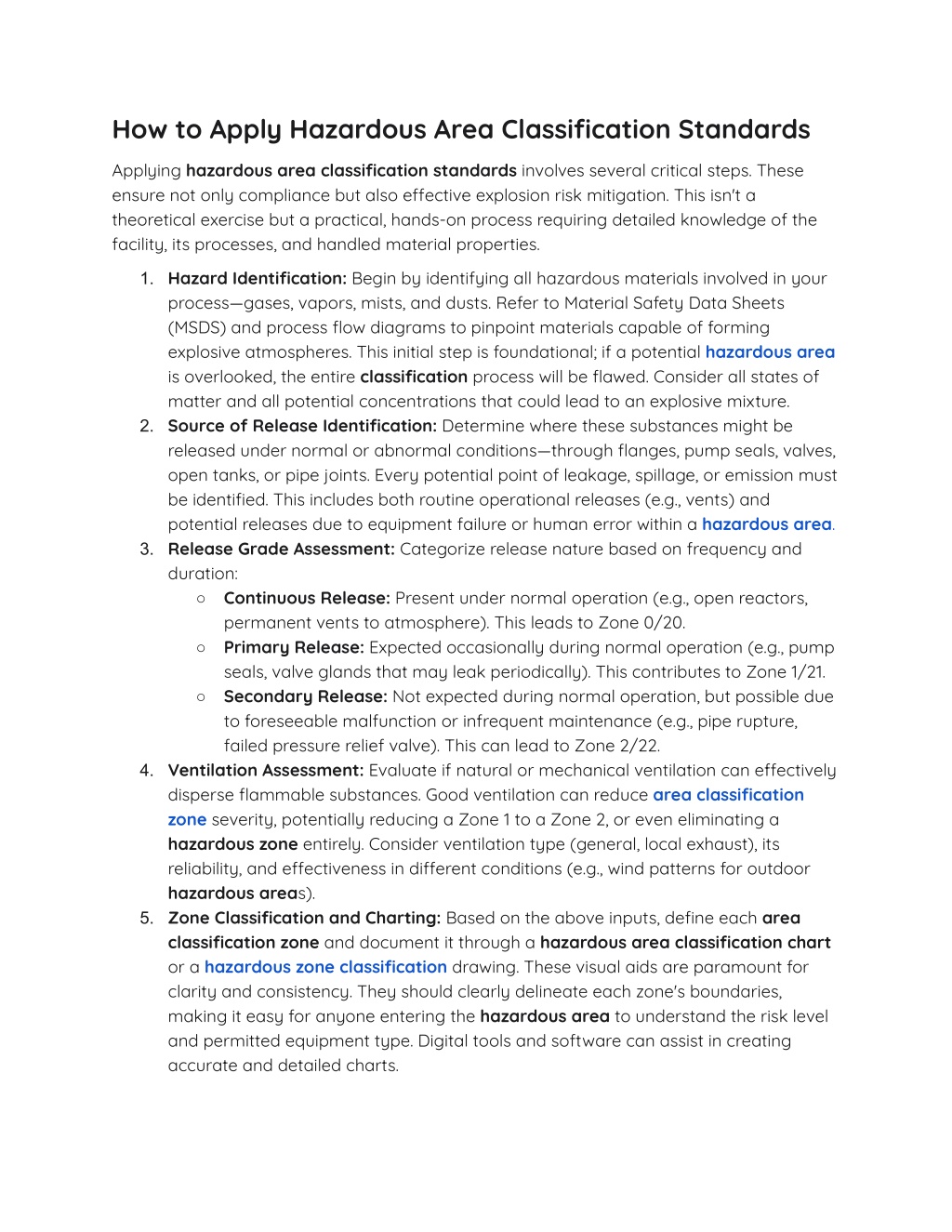

  6. How to Apply Hazardous Area Classification Standards Applying hazardous area classification standards involves several critical steps. These ensure not only compliance but also e?ective explosion risk mitigation. This isn't a theoretical exercise but a practical, hands-on process requiring detailed knowledge of the facility, its processes, and handled material properties. 1. Hazard Identification: Begin by identifying all hazardous materials involved in your process—gases, vapors, mists, and dusts. Refer to Material Safety Data Sheets (MSDS) and process flow diagrams to pinpoint materials capable of forming explosive atmospheres. This initial step is foundational; if a potential hazardous area is overlooked, the entire classification process will be flawed. Consider all states of matter and all potential concentrations that could lead to an explosive mixture. 2. Source of Release Identification: Determine where these substances might be released under normal or abnormal conditions—through flanges, pump seals, valves, open tanks, or pipe joints. Every potential point of leakage, spillage, or emission must be identified. This includes both routine operational releases (e.g., vents) and potential releases due to equipment failure or human error within a hazardous area. 3. Release Grade Assessment: Categorize release nature based on frequency and duration: ○ Continuous Release: Present under normal operation (e.g., open reactors, permanent vents to atmosphere). This leads to Zone 0/20. ○ Primary Release: Expected occasionally during normal operation (e.g., pump seals, valve glands that may leak periodically). This contributes to Zone 1/21. ○ Secondary Release: Not expected during normal operation, but possible due to foreseeable malfunction or infrequent maintenance (e.g., pipe rupture, failed pressure relief valve). This can lead to Zone 2/22. 4. Ventilation Assessment: Evaluate if natural or mechanical ventilation can e?ectively disperse flammable substances. Good ventilation can reduce area classification zone severity, potentially reducing a Zone 1 to a Zone 2, or even eliminating a hazardous zone entirely. Consider ventilation type (general, local exhaust), its reliability, and e?ectiveness in di?erent conditions (e.g., wind patterns for outdoor hazardous areas). 5. Zone Classification and Charting: Based on the above inputs, define each area classification zone and document it through a hazardous area classification chart or a hazardous zone classification drawing. These visual aids are paramount for clarity and consistency. They should clearly delineate each zone's boundaries, making it easy for anyone entering the hazardous area to understand the risk level and permitted equipment type. Digital tools and software can assist in creating accurate and detailed charts.

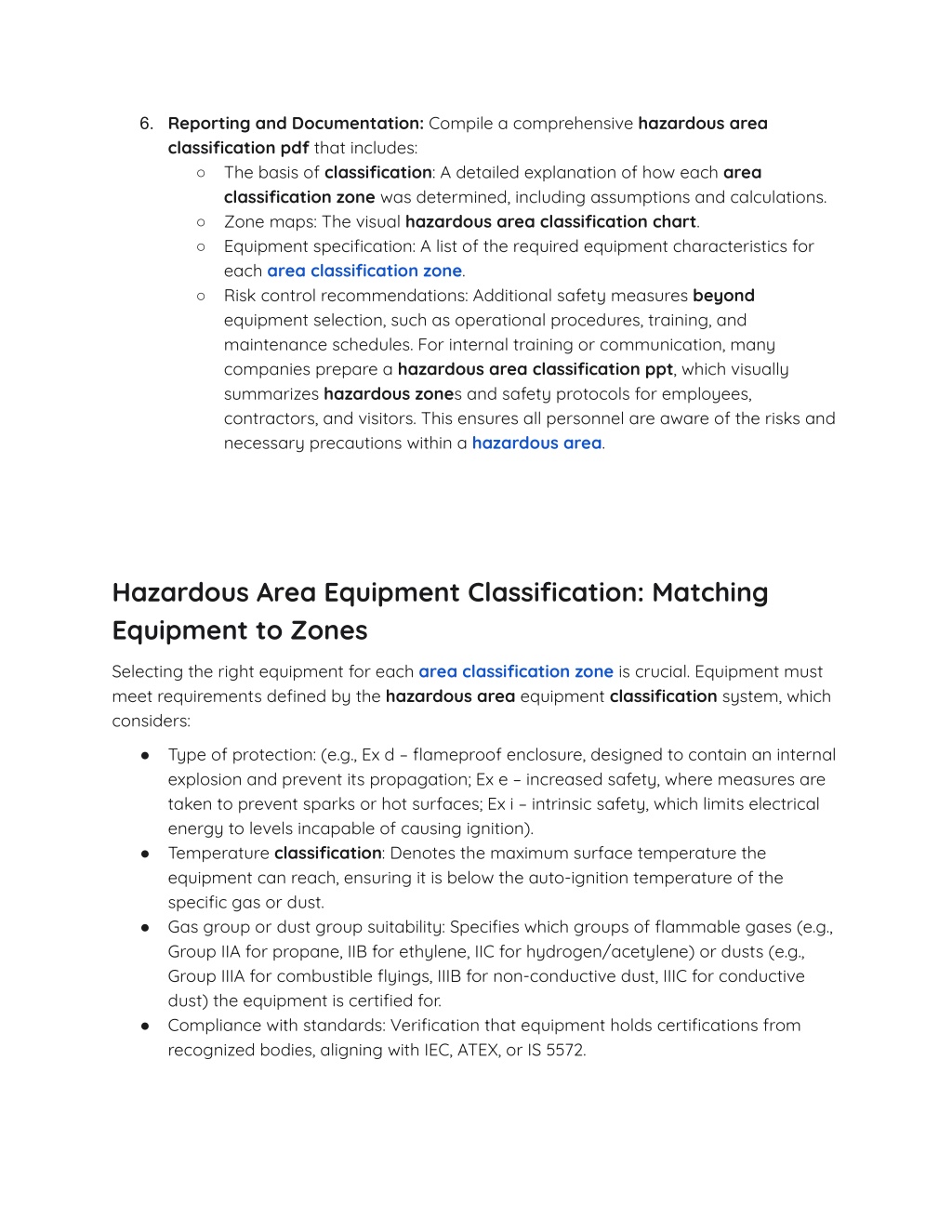

  7. 6. Reporting and Documentation: Compile a comprehensive hazardous area classification pdf that includes: ○ The basis of classification: A detailed explanation of how each area classification zone was determined, including assumptions and calculations. ○ Zone maps: The visual hazardous area classification chart. ○ Equipment specification: A list of the required equipment characteristics for each area classification zone. ○ Risk control recommendations: Additional safety measures beyond equipment selection, such as operational procedures, training, and maintenance schedules. For internal training or communication, many companies prepare a hazardous area classification ppt, which visually summarizes hazardous zones and safety protocols for employees, contractors, and visitors. This ensures all personnel are aware of the risks and necessary precautions within a hazardous area. Hazardous Area Equipment Classification: Matching Equipment to Zones Selecting the right equipment for each area classification zone is crucial. Equipment must meet requirements defined by the hazardous area equipment classification system, which considers: ● Type of protection: (e.g., Ex d – flameproof enclosure, designed to contain an internal explosion and prevent its propagation; Ex e – increased safety, where measures are taken to prevent sparks or hot surfaces; Ex i – intrinsic safety, which limits electrical energy to levels incapable of causing ignition). ● Temperature classification: Denotes the maximum surface temperature the equipment can reach, ensuring it is below the auto-ignition temperature of the specific gas or dust. ● Gas group or dust group suitability: Specifies which groups of flammable gases (e.g., Group IIA for propane, IIB for ethylene, IIC for hydrogen/acetylene) or dusts (e.g., Group IIIA for combustible flyings, IIIB for non-conductive dust, IIIC for conductive dust) the equipment is certified for. ● Compliance with standards: Verification that equipment holds certifications from recognized bodies, aligning with IEC, ATEX, or IS 5572.

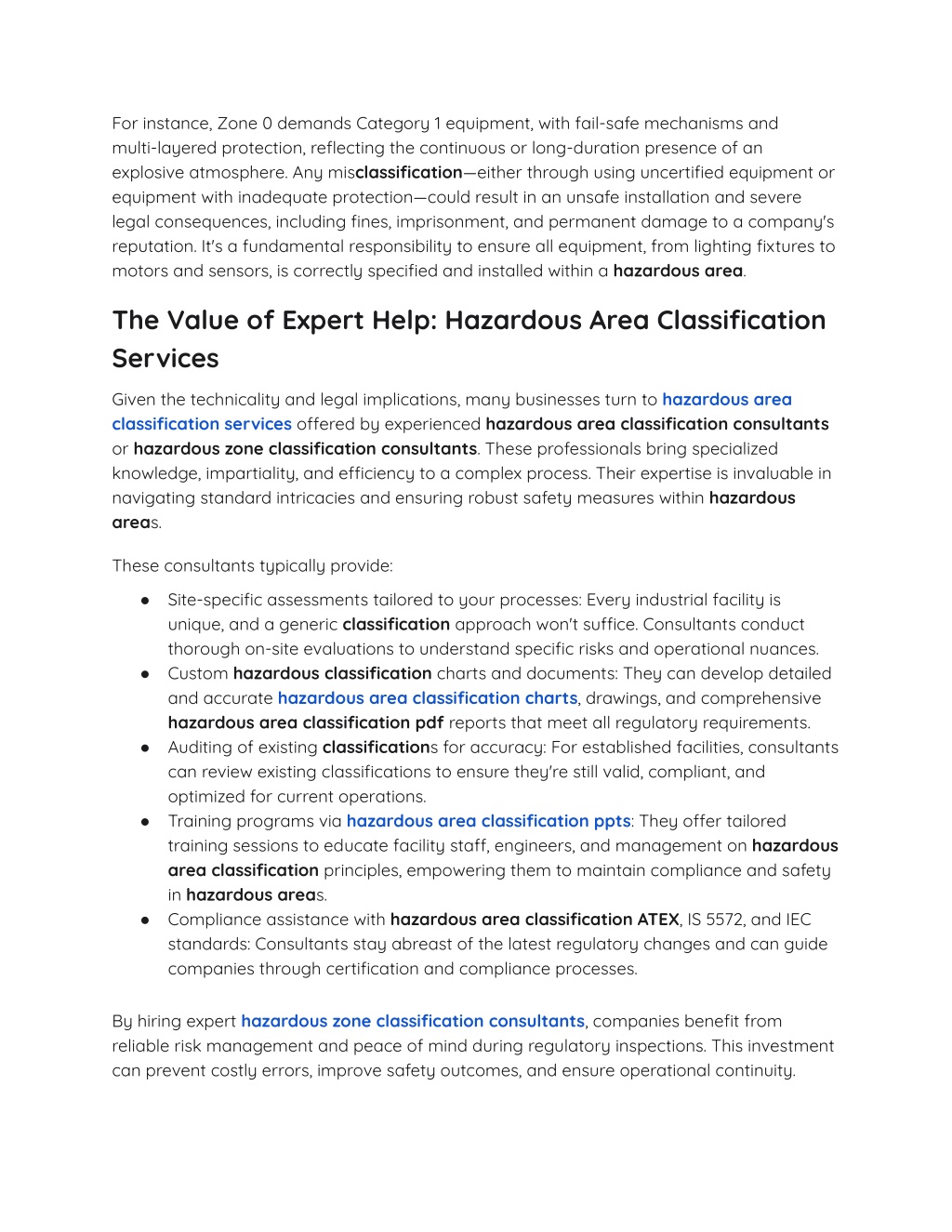

  8. For instance, Zone 0 demands Category 1 equipment, with fail-safe mechanisms and multi-layered protection, reflecting the continuous or long-duration presence of an explosive atmosphere. Any misclassification—either through using uncertified equipment or equipment with inadequate protection—could result in an unsafe installation and severe legal consequences, including fines, imprisonment, and permanent damage to a company's reputation. It's a fundamental responsibility to ensure all equipment, from lighting fixtures to motors and sensors, is correctly specified and installed within a hazardous area. The Value of Expert Help: Hazardous Area Classification Services Given the technicality and legal implications, many businesses turn to hazardous area classification services o?ered by experienced hazardous area classification consultants or hazardous zone classification consultants. These professionals bring specialized knowledge, impartiality, and e?ciency to a complex process. Their expertise is invaluable in navigating standard intricacies and ensuring robust safety measures within hazardous areas. These consultants typically provide: ● Site-specific assessments tailored to your processes: Every industrial facility is unique, and a generic classification approach won't su?ce. Consultants conduct thorough on-site evaluations to understand specific risks and operational nuances. ● Custom hazardous classification charts and documents: They can develop detailed and accurate hazardous area classification charts, drawings, and comprehensive hazardous area classification pdf reports that meet all regulatory requirements. ● Auditing of existing classifications for accuracy: For established facilities, consultants can review existing classifications to ensure they're still valid, compliant, and optimized for current operations. ● Training programs via hazardous area classification ppts: They o?er tailored training sessions to educate facility sta?, engineers, and management on hazardous area classification principles, empowering them to maintain compliance and safety in hazardous areas. ● Compliance assistance with hazardous area classification ATEX, IS 5572, and IEC standards: Consultants stay abreast of the latest regulatory changes and can guide companies through certification and compliance processes. By hiring expert hazardous zone classification consultants, companies benefit from reliable risk management and peace of mind during regulatory inspections. This investment can prevent costly errors, improve safety outcomes, and ensure operational continuity.

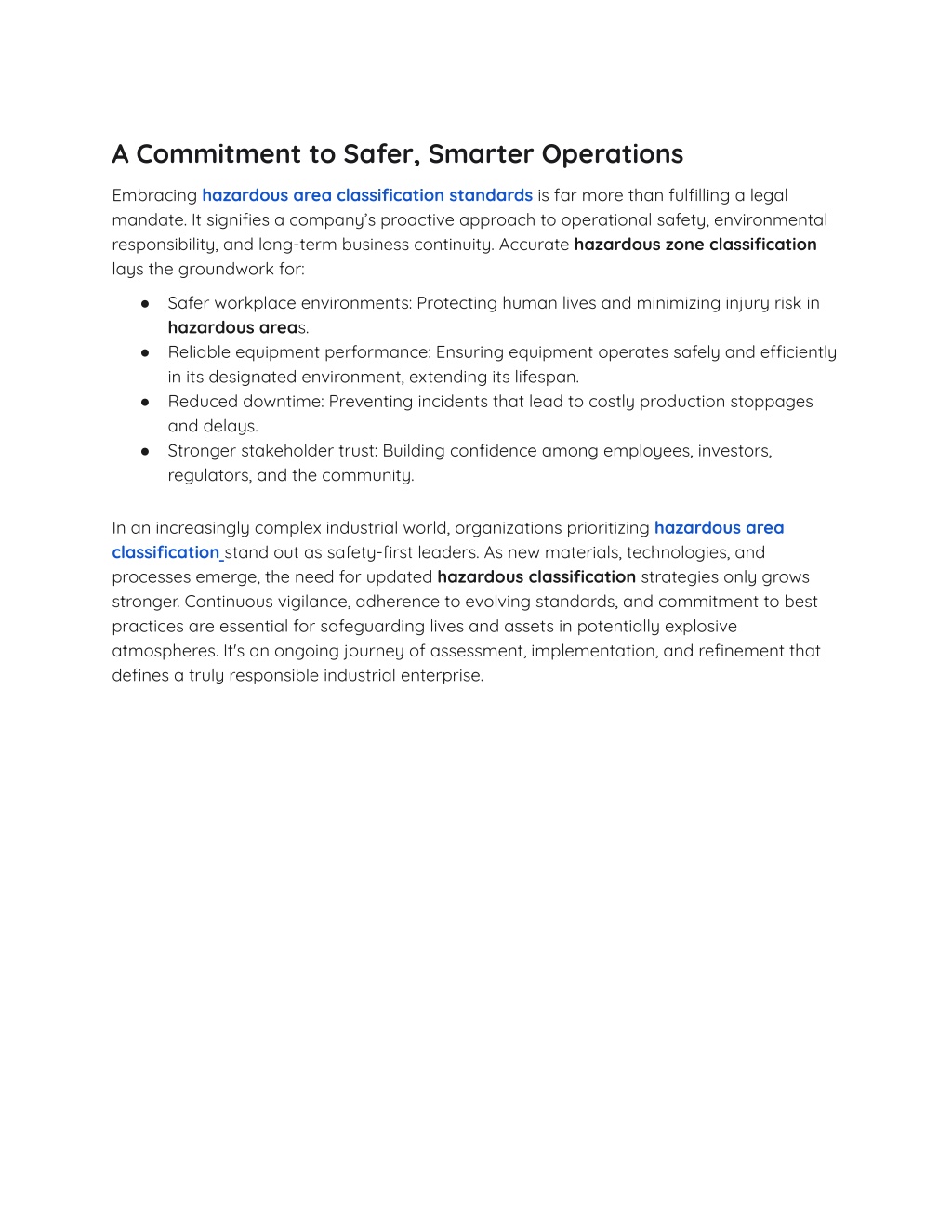

  9. A Commitment to Safer, Smarter Operations Embracinghazardous area classification standards is far more than fulfilling a legal mandate. It signifies a company’s proactive approach to operational safety, environmental responsibility, and long-term business continuity. Accurate hazardous zone classification lays the groundwork for: ● Safer workplace environments: Protecting human lives and minimizing injury risk in hazardous areas. ● Reliable equipment performance: Ensuring equipment operates safely and e?ciently in its designated environment, extending its lifespan. ● Reduced downtime: Preventing incidents that lead to costly production stoppages and delays. ● Stronger stakeholder trust: Building confidence among employees, investors, regulators, and the community. In an increasingly complex industrial world, organizations prioritizing hazardous area classificationstand out as safety-first leaders. As new materials, technologies, and processes emerge, the need for updated hazardous classification strategies only grows stronger. Continuous vigilance, adherence to evolving standards, and commitment to best practices are essential for safeguarding lives and assets in potentially explosive atmospheres. It's an ongoing journey of assessment, implementation, and refinement that defines a truly responsible industrial enterprise.
