Beyond the Obvious_ Mastering Hazardous Area Classification to Safeguard Your Operations

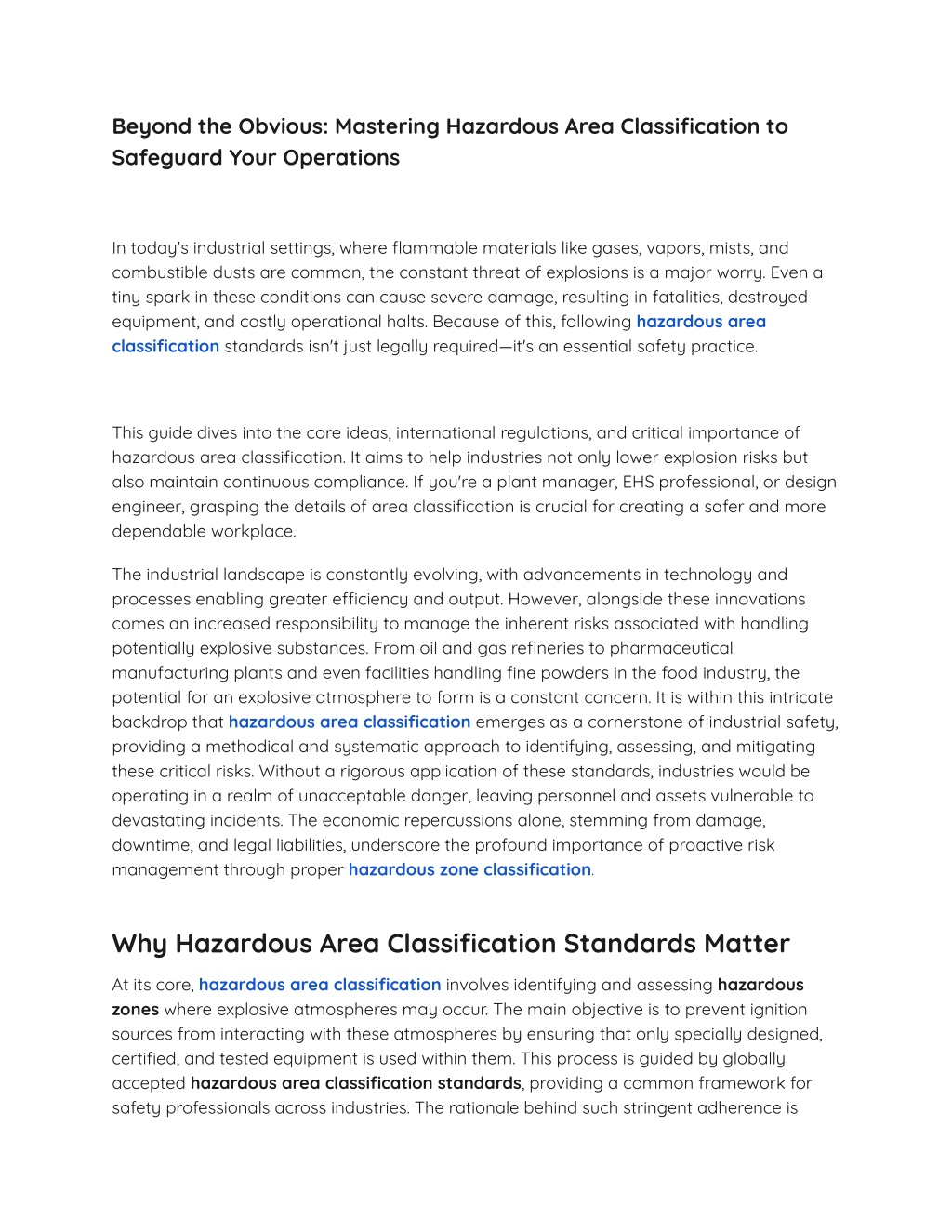

1. Beyond the Obvious: Mastering Hazardous Area Classification to Safeguard Your Operations In today's industrial settings, where flammable materials like gases, vapors, mists, and combustible dusts are common, the constant threat of explosions is a major worry. Even a tiny spark in these conditions can cause severe damage, resulting in fatalities, destroyed equipment, and costly operational halts. Because of this, followinghazardous area classification standards isn't just legally required—it's an essential safety practice. This guide dives into the core ideas, international regulations, and critical importance of hazardous area classification. It aims to help industries not only lower explosion risks but also maintain continuous compliance. If you're a plant manager, EHS professional, or design engineer, grasping the details of area classification is crucial for creating a safer and more dependable workplace. The industrial landscape is constantly evolving, with advancements in technology and processes enabling greater e?ciency and output. However, alongside these innovations comes an increased responsibility to manage the inherent risks associated with handling potentially explosive substances. From oil and gas refineries to pharmaceutical manufacturing plants and even facilities handling fine powders in the food industry, the potential for an explosive atmosphere to form is a constant concern. It is within this intricate backdrop that hazardous area classificationemerges as a cornerstone of industrial safety, providing a methodical and systematic approach to identifying, assessing, and mitigating these critical risks. Without a rigorous application of these standards, industries would be operating in a realm of unacceptable danger, leaving personnel and assets vulnerable to devastating incidents. The economic repercussions alone, stemming from damage, downtime, and legal liabilities, underscore the profound importance of proactive risk management through proper hazardous zone classification. Why Hazardous Area Classification Standards Matter At its core, hazardous area classification involves identifying and assessing hazardous zones where explosive atmospheres may occur. The main objective is to prevent ignition sources from interacting with these atmospheres by ensuring that only specially designed, certified, and tested equipment is used within them. This process is guided by globally accepted hazardous area classification standards, providing a common framework for safety professionals across industries. The rationale behind such stringent adherence is

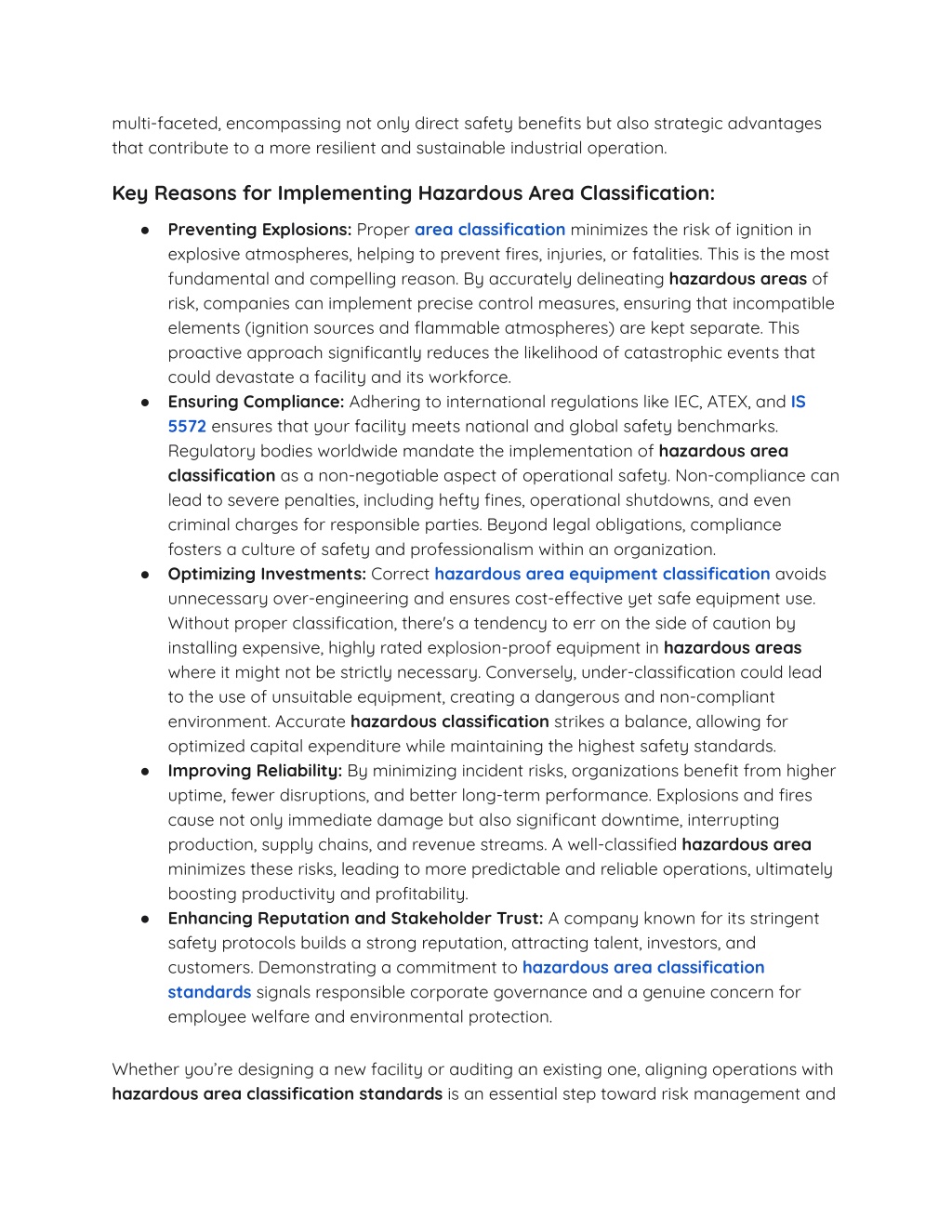

2. multi-faceted, encompassing not only direct safety benefits but also strategic advantages that contribute to a more resilient and sustainable industrial operation. Key Reasons for Implementing Hazardous Area Classification: ● Preventing Explosions: Properarea classification minimizes the risk of ignition in explosive atmospheres, helping to prevent fires, injuries, or fatalities. This is the most fundamental and compelling reason. By accurately delineating hazardous areas of risk, companies can implement precise control measures, ensuring that incompatible elements (ignition sources and flammable atmospheres) are kept separate. This proactive approach significantly reduces the likelihood of catastrophic events that could devastate a facility and its workforce. ● Ensuring Compliance: Adhering to international regulations like IEC, ATEX, andIS 5572 ensures that your facility meets national and global safety benchmarks. Regulatory bodies worldwide mandate the implementation of hazardous area classification as a non-negotiable aspect of operational safety. Non-compliance can lead to severe penalties, including hefty fines, operational shutdowns, and even criminal charges for responsible parties. Beyond legal obligations, compliance fosters a culture of safety and professionalism within an organization. ● Optimizing Investments: Correct hazardous area equipment classification avoids unnecessary over-engineering and ensures cost-e?ective yet safe equipment use. Without proper classification, there's a tendency to err on the side of caution by installing expensive, highly rated explosion-proof equipment in hazardous areas where it might not be strictly necessary. Conversely, under-classification could lead to the use of unsuitable equipment, creating a dangerous and non-compliant environment. Accurate hazardous classification strikes a balance, allowing for optimized capital expenditure while maintaining the highest safety standards. ● Improving Reliability: By minimizing incident risks, organizations benefit from higher uptime, fewer disruptions, and better long-term performance. Explosions and fires cause not only immediate damage but also significant downtime, interrupting production, supply chains, and revenue streams. A well-classified hazardous area minimizes these risks, leading to more predictable and reliable operations, ultimately boosting productivity and profitability. ● Enhancing Reputation and Stakeholder Trust: A company known for its stringent safety protocols builds a strong reputation, attracting talent, investors, and customers. Demonstrating a commitment to hazardous area classification standards signals responsible corporate governance and a genuine concern for employee welfare and environmental protection. Whether you’re designing a new facility or auditing an existing one, aligning operations with hazardous area classification standards is an essential step toward risk management and

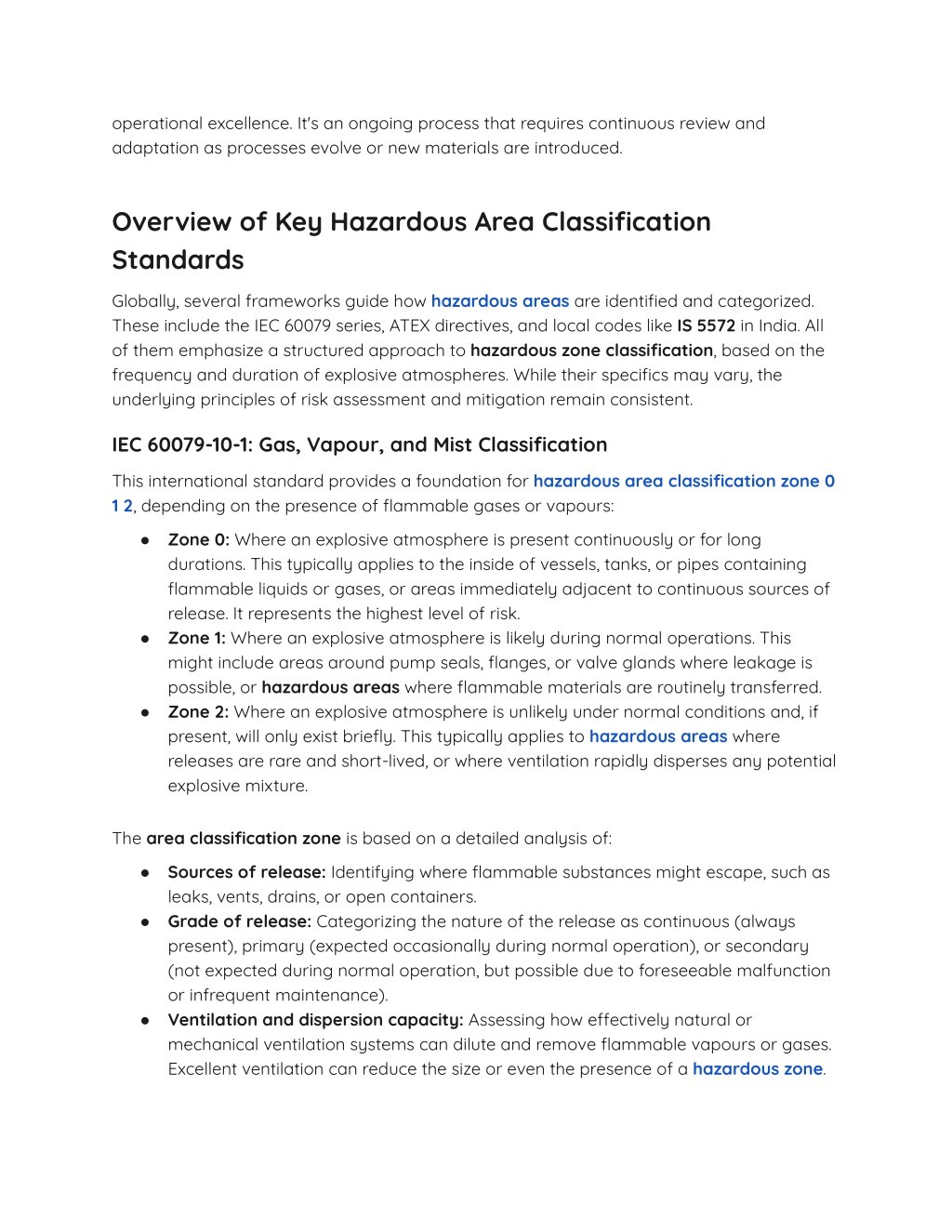

3. operational excellence. It's an ongoing process that requires continuous review and adaptation as processes evolve or new materials are introduced. Overview of Key Hazardous Area Classification Standards Globally, several frameworks guide how hazardous areas are identified and categorized. These include the IEC 60079 series, ATEX directives, and local codes like IS 5572 in India. All of them emphasize a structured approach to hazardous zone classification, based on the frequency and duration of explosive atmospheres. While their specifics may vary, the underlying principles of risk assessment and mitigation remain consistent. IEC 60079-10-1: Gas, Vapour, and Mist Classification This international standard provides a foundation forhazardous area classification zone 0 1 2, depending on the presence of flammable gases or vapours: ● Zone 0: Where an explosive atmosphere is present continuously or for long durations. This typically applies to the inside of vessels, tanks, or pipes containing flammable liquids or gases, or areas immediately adjacent to continuous sources of release. It represents the highest level of risk. ● Zone 1: Where an explosive atmosphere is likely during normal operations. This might include areas around pump seals, flanges, or valve glands where leakage is possible, or hazardous areas where flammable materials are routinely transferred. ● Zone 2: Where an explosive atmosphere is unlikely under normal conditions and, if present, will only exist briefly. This typically applies to hazardous areas where releases are rare and short-lived, or where ventilation rapidly disperses any potential explosive mixture. The area classification zone is based on a detailed analysis of: ● Sources of release: Identifying where flammable substances might escape, such as leaks, vents, drains, or open containers. ● Grade of release: Categorizing the nature of the release as continuous (always present), primary (expected occasionally during normal operation), or secondary (not expected during normal operation, but possible due to foreseeable malfunction or infrequent maintenance). ● Ventilation and dispersion capacity: Assessing how e?ectively natural or mechanical ventilation systems can dilute and remove flammable vapours or gases. Excellent ventilation can reduce the size or even the presence of a hazardous zone.

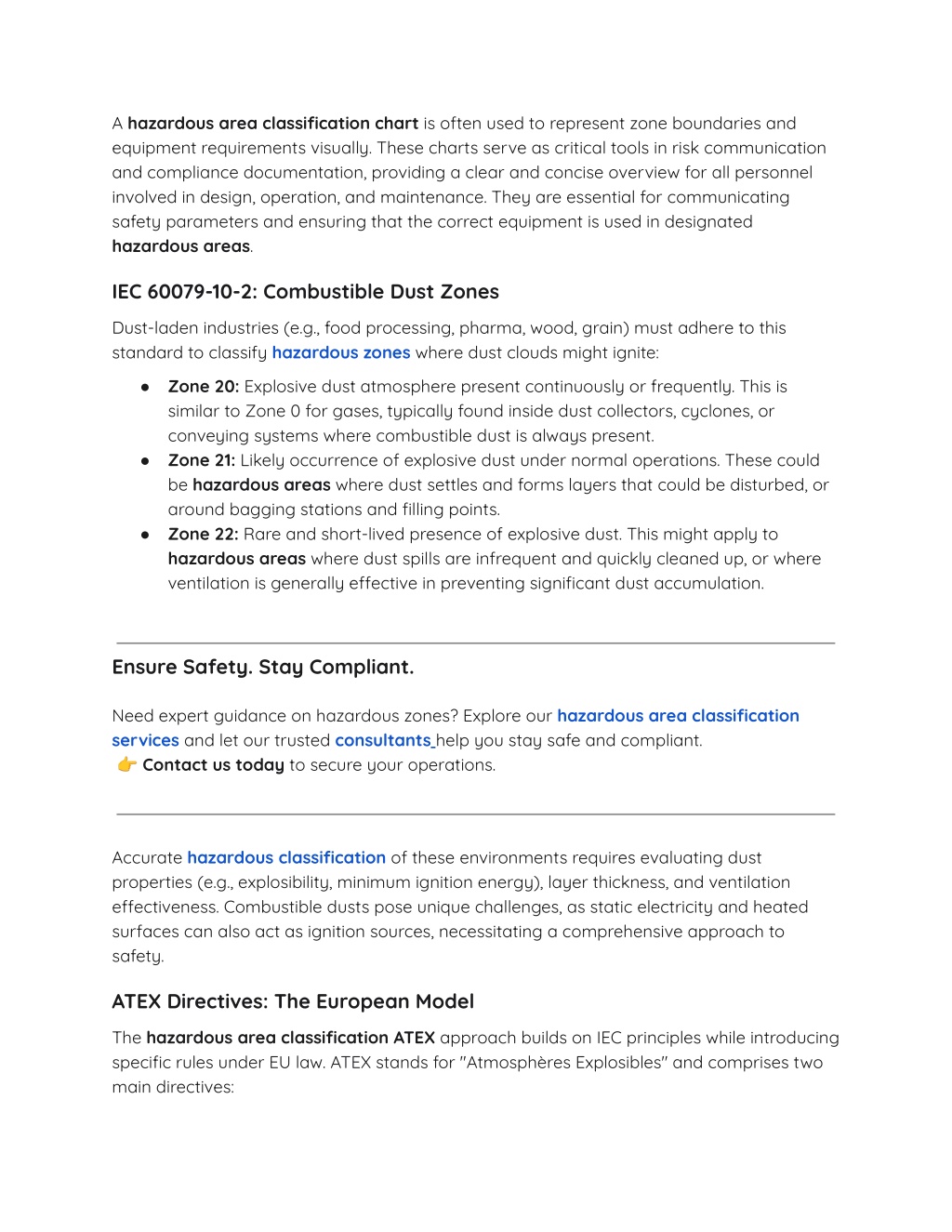

4. A hazardous area classification chart is often used to represent zone boundaries and equipment requirements visually. These charts serve as critical tools in risk communication and compliance documentation, providing a clear and concise overview for all personnel involved in design, operation, and maintenance. They are essential for communicating safety parameters and ensuring that the correct equipment is used in designated hazardous areas. IEC 60079-10-2: Combustible Dust Zones Dust-laden industries (e.g., food processing, pharma, wood, grain) must adhere to this standard to classify hazardous zones where dust clouds might ignite: ● Zone 20: Explosive dust atmosphere present continuously or frequently. This is similar to Zone 0 for gases, typically found inside dust collectors, cyclones, or conveying systems where combustible dust is always present. ● Zone 21: Likely occurrence of explosive dust under normal operations. These could be hazardous areas where dust settles and forms layers that could be disturbed, or around bagging stations and filling points. ● Zone 22: Rare and short-lived presence of explosive dust. This might apply to hazardous areas where dust spills are infrequent and quickly cleaned up, or where ventilation is generally e?ective in preventing significant dust accumulation. Ensure Safety. Stay Compliant. Need expert guidance on hazardous zones? Explore our hazardous area classification services and let our trusted consultantshelp you stay safe and compliant. ?Contact us today to secure your operations. Accurate hazardous classification of these environments requires evaluating dust properties (e.g., explosibility, minimum ignition energy), layer thickness, and ventilation e?ectiveness. Combustible dusts pose unique challenges, as static electricity and heated surfaces can also act as ignition sources, necessitating a comprehensive approach to safety. ATEX Directives: The European Model The hazardous area classification ATEX approach builds on IEC principles while introducing specific rules under EU law. ATEX stands for "Atmosphères Explosibles" and comprises two main directives:

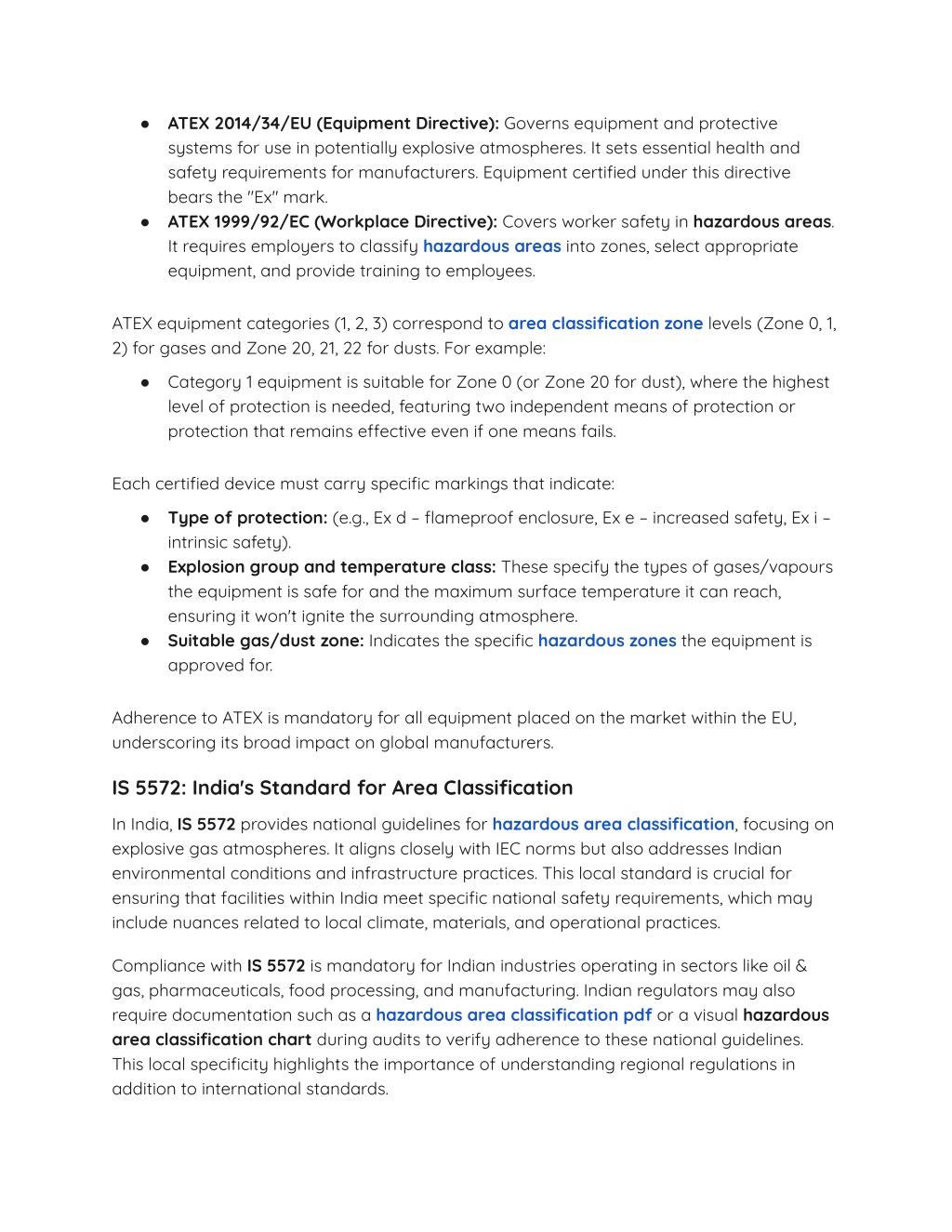

5. ● ATEX 2014/34/EU (Equipment Directive): Governs equipment and protective systems for use in potentially explosive atmospheres. It sets essential health and safety requirements for manufacturers. Equipment certified under this directive bears the "Ex" mark. ● ATEX 1999/92/EC (Workplace Directive): Covers worker safety in hazardous areas. It requires employers to classify hazardous areas into zones, select appropriate equipment, and provide training to employees. ATEX equipment categories (1, 2, 3) correspond to area classification zone levels (Zone 0, 1, 2) for gases and Zone 20, 21, 22 for dusts. For example: ● Category 1 equipment is suitable for Zone 0 (or Zone 20 for dust), where the highest level of protection is needed, featuring two independent means of protection or protection that remains e?ective even if one means fails. Each certified device must carry specific markings that indicate: ● Type of protection: (e.g., Ex d – flameproof enclosure, Ex e – increased safety, Ex i – intrinsic safety). ● Explosion group and temperature class: These specify the types of gases/vapours the equipment is safe for and the maximum surface temperature it can reach, ensuring it won't ignite the surrounding atmosphere. ● Suitable gas/dust zone: Indicates the specific hazardous zones the equipment is approved for. Adherence to ATEX is mandatory for all equipment placed on the market within the EU, underscoring its broad impact on global manufacturers. IS 5572: India's Standard for Area Classification In India, IS 5572 provides national guidelines for hazardous area classification, focusing on explosive gas atmospheres. It aligns closely with IEC norms but also addresses Indian environmental conditions and infrastructure practices. This local standard is crucial for ensuring that facilities within India meet specific national safety requirements, which may include nuances related to local climate, materials, and operational practices. Compliance with IS 5572 is mandatory for Indian industries operating in sectors like oil & gas, pharmaceuticals, food processing, and manufacturing. Indian regulators may also require documentation such as a hazardous area classification pdfor a visual hazardous area classification chart during audits to verify adherence to these national guidelines. This local specificity highlights the importance of understanding regional regulations in addition to international standards.

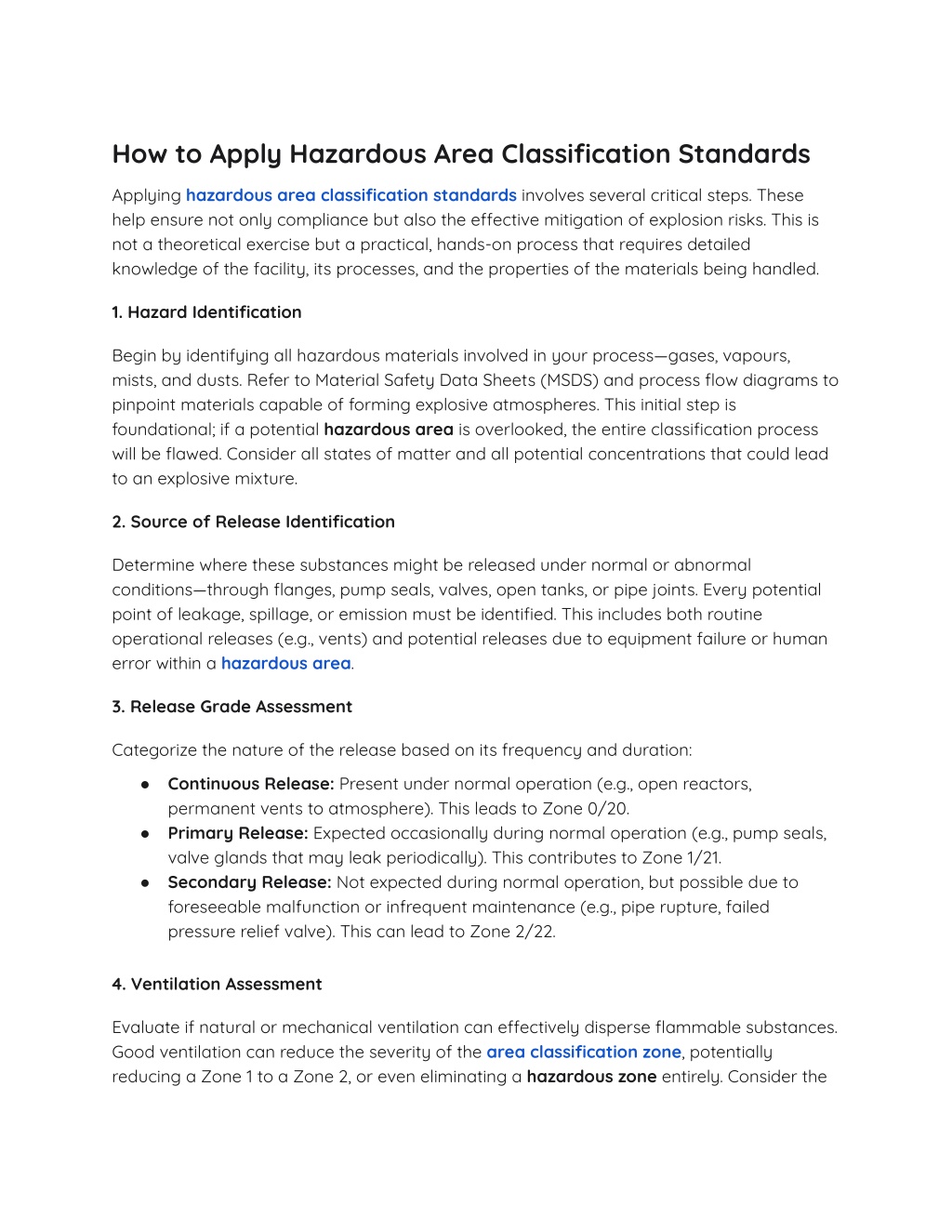

6. How to Apply Hazardous Area Classification Standards Applying hazardous area classification standards involves several critical steps. These help ensure not only compliance but also the e?ective mitigation of explosion risks. This is not a theoretical exercise but a practical, hands-on process that requires detailed knowledge of the facility, its processes, and the properties of the materials being handled. 1. Hazard Identification Begin by identifying all hazardous materials involved in your process—gases, vapours, mists, and dusts. Refer to Material Safety Data Sheets (MSDS) and process flow diagrams to pinpoint materials capable of forming explosive atmospheres. This initial step is foundational; if a potential hazardous area is overlooked, the entire classification process will be flawed. Consider all states of matter and all potential concentrations that could lead to an explosive mixture. 2. Source of Release Identification Determine where these substances might be released under normal or abnormal conditions—through flanges, pump seals, valves, open tanks, or pipe joints. Every potential point of leakage, spillage, or emission must be identified. This includes both routine operational releases (e.g., vents) and potential releases due to equipment failure or human error within a hazardous area. 3. Release Grade Assessment Categorize the nature of the release based on its frequency and duration: ● Continuous Release: Present under normal operation (e.g., open reactors, permanent vents to atmosphere). This leads to Zone 0/20. ● Primary Release: Expected occasionally during normal operation (e.g., pump seals, valve glands that may leak periodically). This contributes to Zone 1/21. ● Secondary Release: Not expected during normal operation, but possible due to foreseeable malfunction or infrequent maintenance (e.g., pipe rupture, failed pressure relief valve). This can lead to Zone 2/22. 4. Ventilation Assessment Evaluate if natural or mechanical ventilation can e?ectively disperse flammable substances. Good ventilation can reduce the severity of the area classification zone, potentially reducing a Zone 1 to a Zone 2, or even eliminating a hazardous zone entirely. Consider the

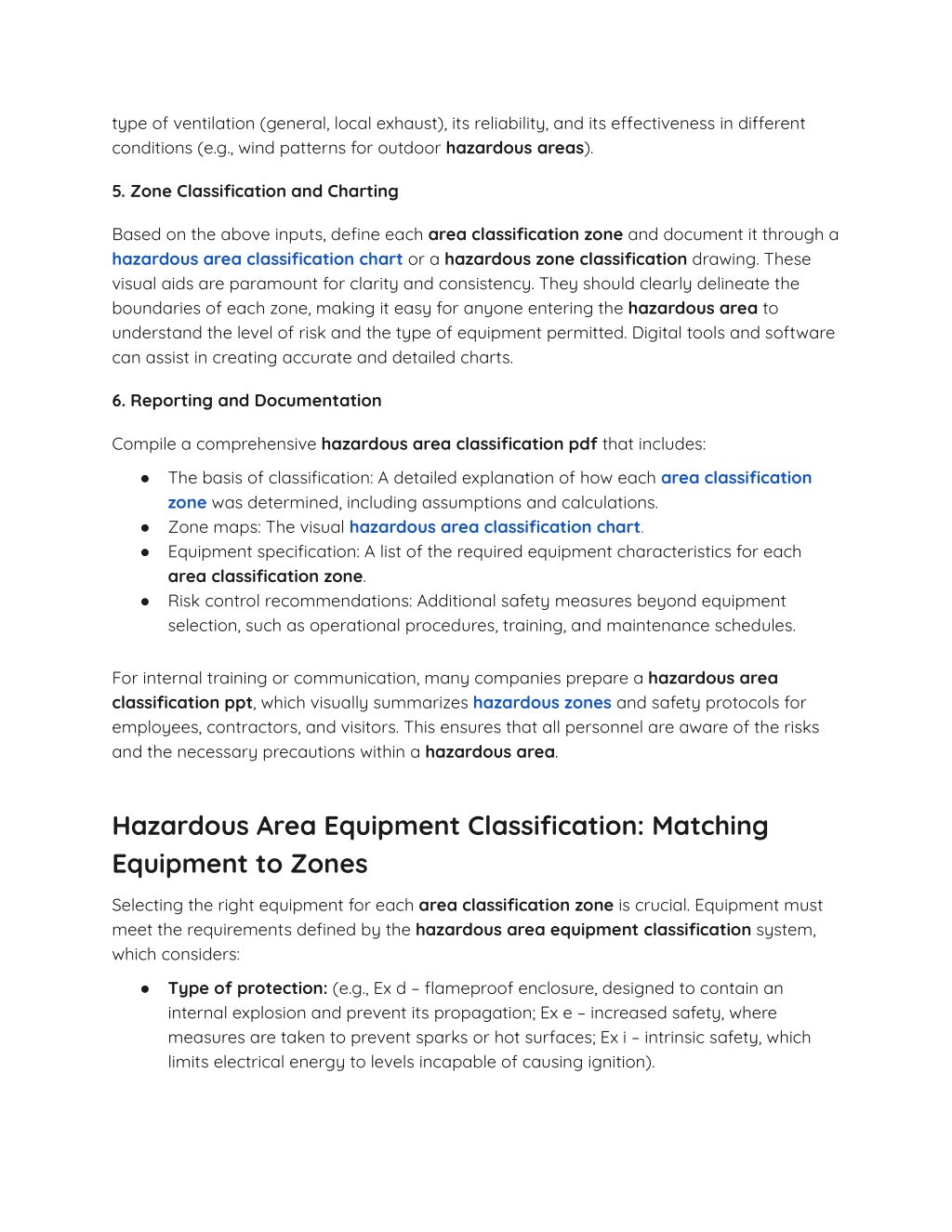

7. type of ventilation (general, local exhaust), its reliability, and its e?ectiveness in di?erent conditions (e.g., wind patterns for outdoor hazardous areas). 5. Zone Classification and Charting Based on the above inputs, define each area classification zone and document it through a hazardous area classification chart or a hazardous zone classification drawing. These visual aids are paramount for clarity and consistency. They should clearly delineate the boundaries of each zone, making it easy for anyone entering the hazardous area to understand the level of risk and the type of equipment permitted. Digital tools and software can assist in creating accurate and detailed charts. 6. Reporting and Documentation Compile a comprehensive hazardous area classification pdf that includes: ● The basis of classification: A detailed explanation of how each area classification zone was determined, including assumptions and calculations. ● Zone maps: The visual hazardous area classification chart. ● Equipment specification: A list of the required equipment characteristics for each area classification zone. ● Risk control recommendations: Additional safety measures beyond equipment selection, such as operational procedures, training, and maintenance schedules. For internal training or communication, many companies prepare a hazardous area classification ppt, which visually summarizes hazardous zonesand safety protocols for employees, contractors, and visitors. This ensures that all personnel are aware of the risks and the necessary precautions within a hazardous area. Hazardous Area Equipment Classification: Matching Equipment to Zones Selecting the right equipment for each area classification zone is crucial. Equipment must meet the requirements defined by the hazardous area equipment classification system, which considers: ● Type of protection: (e.g., Ex d – flameproof enclosure, designed to contain an internal explosion and prevent its propagation; Ex e – increased safety, where measures are taken to prevent sparks or hot surfaces; Ex i – intrinsic safety, which limits electrical energy to levels incapable of causing ignition).

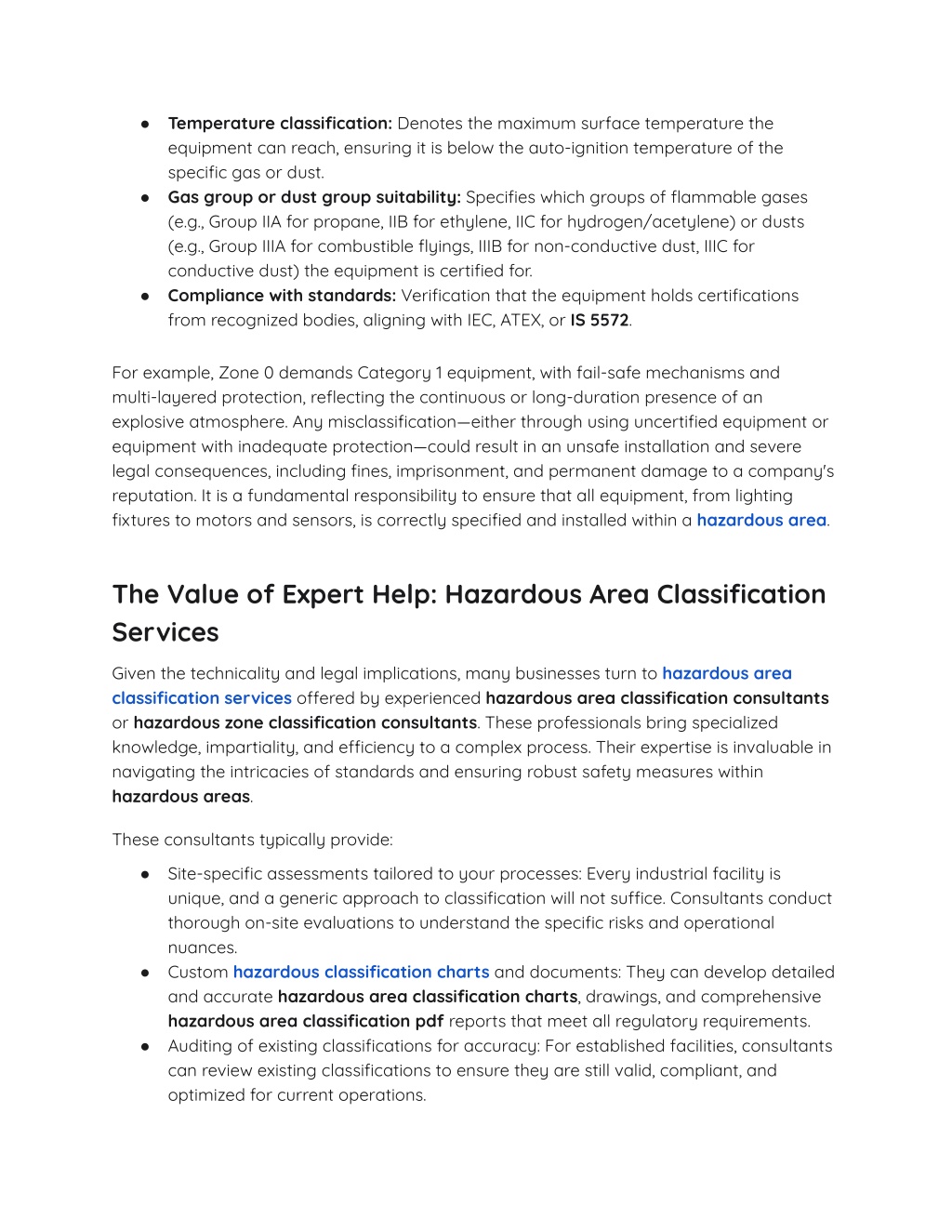

8. ● Temperature classification: Denotes the maximum surface temperature the equipment can reach, ensuring it is below the auto-ignition temperature of the specific gas or dust. ● Gas group or dust group suitability: Specifies which groups of flammable gases (e.g., Group IIA for propane, IIB for ethylene, IIC for hydrogen/acetylene) or dusts (e.g., Group IIIA for combustible flyings, IIIB for non-conductive dust, IIIC for conductive dust) the equipment is certified for. ● Compliance with standards: Verification that the equipment holds certifications from recognized bodies, aligning with IEC, ATEX, or IS 5572. For example, Zone 0 demands Category 1 equipment, with fail-safe mechanisms and multi-layered protection, reflecting the continuous or long-duration presence of an explosive atmosphere. Any misclassification—either through using uncertified equipment or equipment with inadequate protection—could result in an unsafe installation and severe legal consequences, including fines, imprisonment, and permanent damage to a company's reputation. It is a fundamental responsibility to ensure that all equipment, from lighting fixtures to motors and sensors, is correctly specified and installed within a hazardous area. The Value of Expert Help: Hazardous Area Classification Services Given the technicality and legal implications, many businesses turn to hazardous area classification services o?ered by experienced hazardous area classification consultants or hazardous zone classification consultants. These professionals bring specialized knowledge, impartiality, and e?ciency to a complex process. Their expertise is invaluable in navigating the intricacies of standards and ensuring robust safety measures within hazardous areas. These consultants typically provide: ● Site-specific assessments tailored to your processes: Every industrial facility is unique, and a generic approach to classification will not su?ce. Consultants conduct thorough on-site evaluations to understand the specific risks and operational nuances. ● Custom hazardous classification charts and documents: They can develop detailed and accurate hazardous area classification charts, drawings, and comprehensive hazardous area classification pdf reports that meet all regulatory requirements. ● Auditing of existing classifications for accuracy: For established facilities, consultants can review existing classifications to ensure they are still valid, compliant, and optimized for current operations.

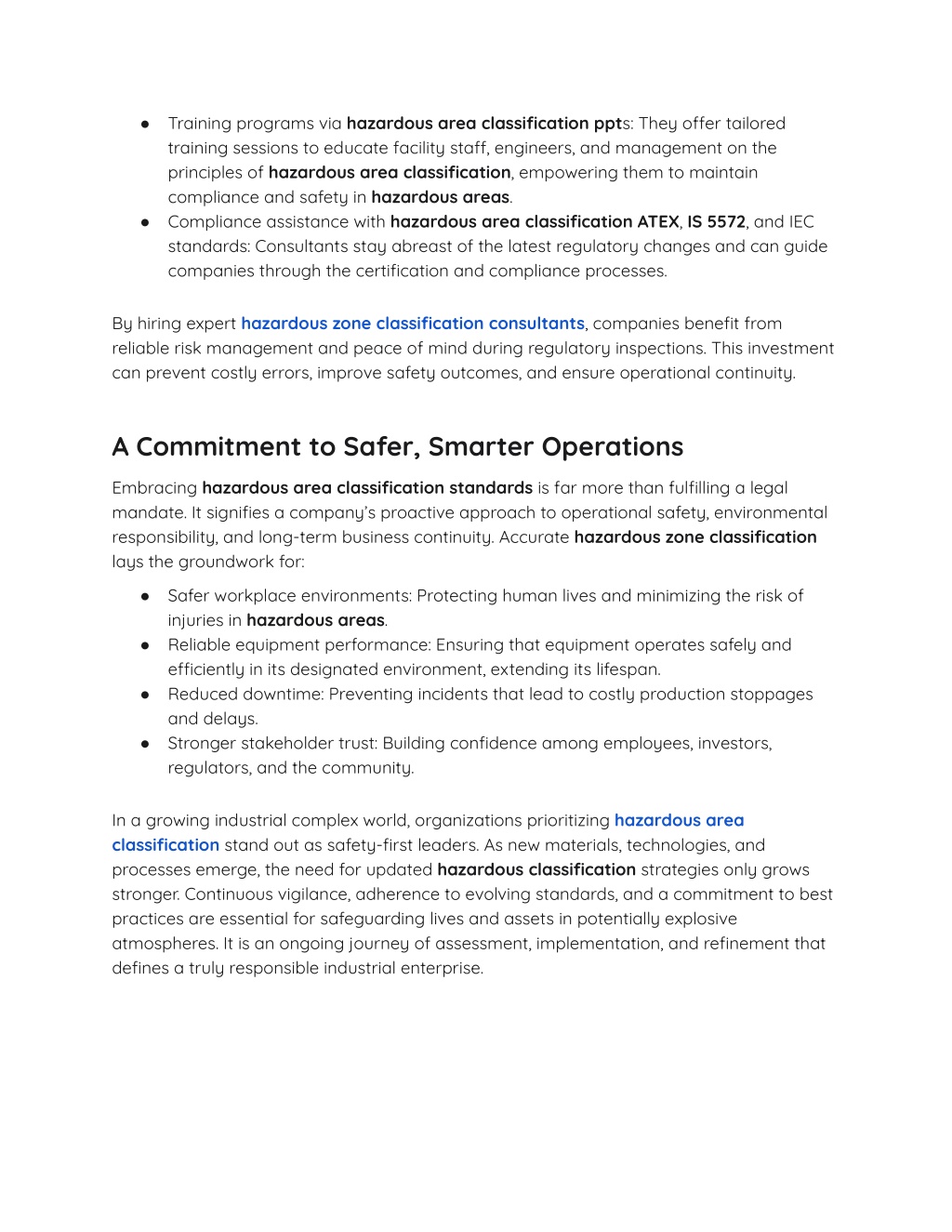

9. ● Training programs via hazardous area classification ppts: They o?er tailored training sessions to educate facility sta?, engineers, and management on the principles of hazardous area classification, empowering them to maintain compliance and safety in hazardous areas. ● Compliance assistance with hazardous area classification ATEX, IS 5572, and IEC standards: Consultants stay abreast of the latest regulatory changes and can guide companies through the certification and compliance processes. By hiring expert hazardous zone classification consultants, companies benefit from reliable risk management and peace of mind during regulatory inspections. This investment can prevent costly errors, improve safety outcomes, and ensure operational continuity. A Commitment to Safer, Smarter Operations Embracing hazardous area classification standards is far more than fulfilling a legal mandate. It signifies a company’s proactive approach to operational safety, environmental responsibility, and long-term business continuity. Accurate hazardous zone classification lays the groundwork for: ● Safer workplace environments: Protecting human lives and minimizing the risk of injuries in hazardous areas. ● Reliable equipment performance: Ensuring that equipment operates safely and e?ciently in its designated environment, extending its lifespan. ● Reduced downtime: Preventing incidents that lead to costly production stoppages and delays. ● Stronger stakeholder trust: Building confidence among employees, investors, regulators, and the community. In a growing industrial complex world, organizations prioritizing hazardous area classification stand out as safety-first leaders. As new materials, technologies, and processes emerge, the need for updated hazardous classification strategies only grows stronger. Continuous vigilance, adherence to evolving standards, and a commitment to best practices are essential for safeguarding lives and assets in potentially explosive atmospheres. It is an ongoing journey of assessment, implementation, and refinement that defines a truly responsible industrial enterprise.
