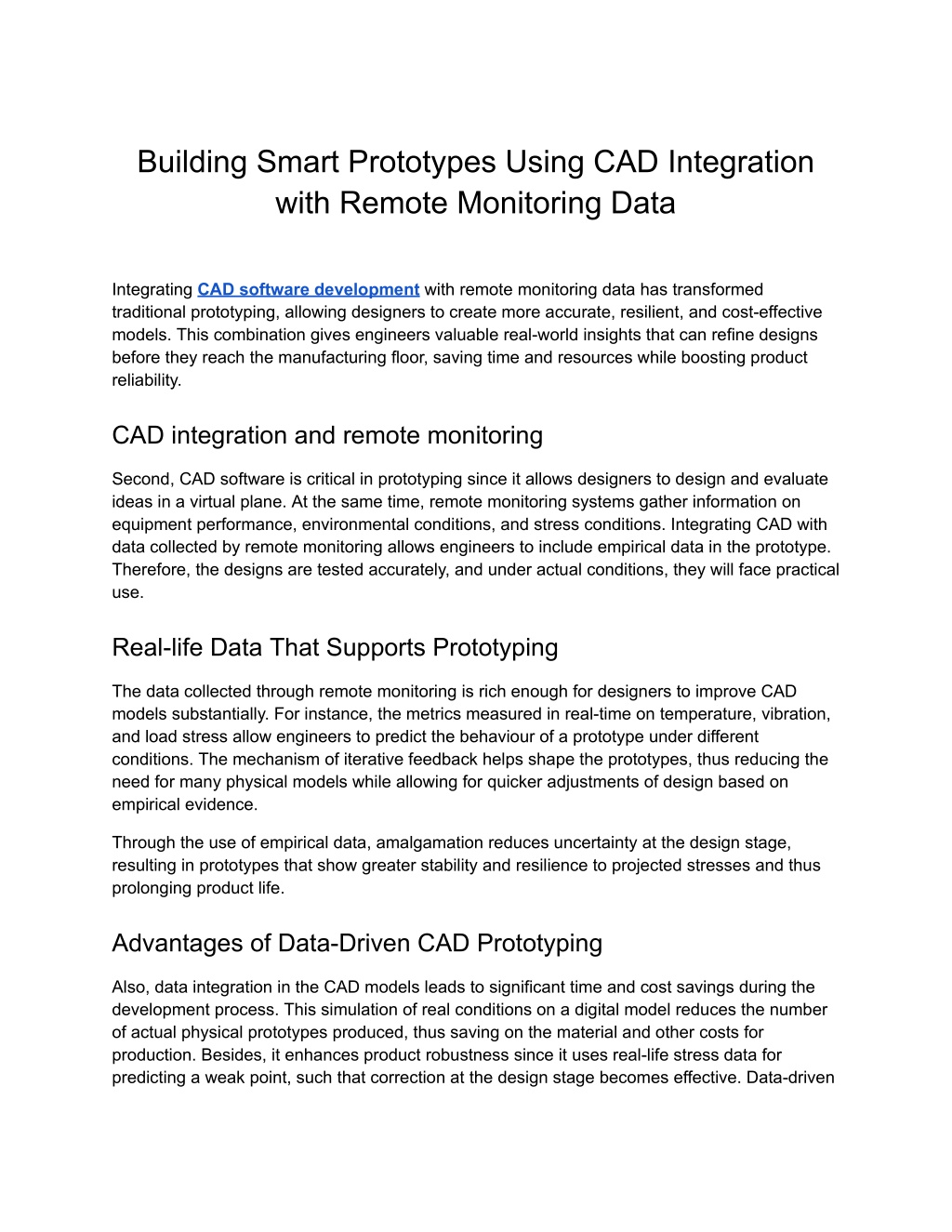

1. Building Smart Prototypes Using CAD Integration with Remote Monitoring Data Integrating CAD software development with remote monitoring data has transformed traditional prototyping, allowing designers to create more accurate, resilient, and cost-effective models. This combination gives engineers valuable real-world insights that can refine designs before they reach the manufacturing floor, saving time and resources while boosting product reliability. CAD integration and remote monitoring Second, CAD software is critical in prototyping since it allows designers to design and evaluate ideas in a virtual plane. At the same time, remote monitoring systems gather information on equipment performance, environmental conditions, and stress conditions. Integrating CAD with data collected by remote monitoring allows engineers to include empirical data in the prototype. Therefore, the designs are tested accurately, and under actual conditions, they will face practical use. Real-life Data That Supports Prototyping The data collected through remote monitoring is rich enough for designers to improve CAD models substantially. For instance, the metrics measured in real-time on temperature, vibration, and load stress allow engineers to predict the behaviour of a prototype under different conditions. The mechanism of iterative feedback helps shape the prototypes, thus reducing the need for many physical models while allowing for quicker adjustments of design based on empirical evidence. Through the use of empirical data, amalgamation reduces uncertainty at the design stage, resulting in prototypes that show greater stability and resilience to projected stresses and thus prolonging product life. Advantages of Data-Driven CAD Prototyping Also, data integration in the CAD models leads to significant time and cost savings during the development process. This simulation of real conditions on a digital model reduces the number of actual physical prototypes produced, thus saving on the material and other costs for production. Besides, it enhances product robustness since it uses real-life stress data for predicting a weak point, such that correction at the design stage becomes effective. Data-driven

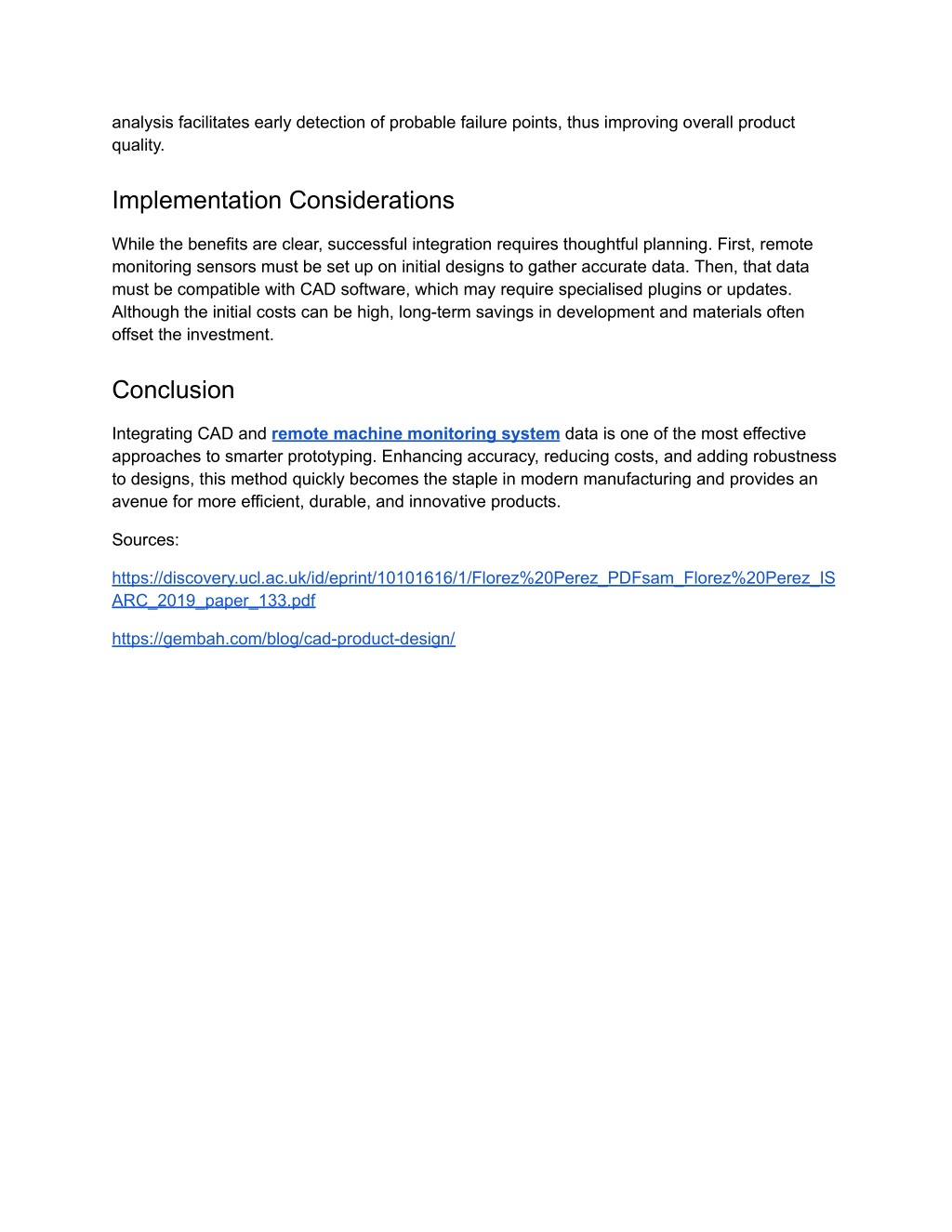

2. analysis facilitates early detection of probable failure points, thus improving overall product quality. Implementation Considerations While the benefits are clear, successful integration requires thoughtful planning. First, remote monitoring sensors must be set up on initial designs to gather accurate data. Then, that data must be compatible with CAD software, which may require specialised plugins or updates. Although the initial costs can be high, long-term savings in development and materials often offset the investment. Conclusion Integrating CAD and remote machine monitoring system data is one of the most effective approaches to smarter prototyping. Enhancing accuracy, reducing costs, and adding robustness to designs, this method quickly becomes the staple in modern manufacturing and provides an avenue for more efficient, durable, and innovative products. Sources: https://discovery.ucl.ac.uk/id/eprint/10101616/1/Florez%20Perez_PDFsam_Florez%20Perez_IS ARC_2019_paper_133.pdf https://gembah.com/blog/cad-product-design/
