Polarizing Microscope

Polarizing microscope offers high definition image quality <br>in polarized light, using contrast-enhancing technique. <br>This microscope comes with quintuple click stop revolving <br>mechanism with multiple ball bearing. This polarizing microscope <br>has siedentopf type 30u00ba inclined binocular head. It can be <br>equipped with filters e.g. blue, ground glass for more even<br>and diffused light.

Eleanor96
Download Presentation

Polarizing Microscope

An Image/Link below is provided (as is) to download presentation Download Policy: Content on the Website is provided to you AS IS for your information and personal use and may not be sold / licensed / shared on other websites without getting consent from its author. Content is provided to you AS IS for your information and personal use only. Download presentation by click this link. While downloading, if for some reason you are not able to download a presentation, the publisher may have deleted the file from their server. During download, if you can't get a presentation, the file might be deleted by the publisher.

E N D

Presentation Transcript

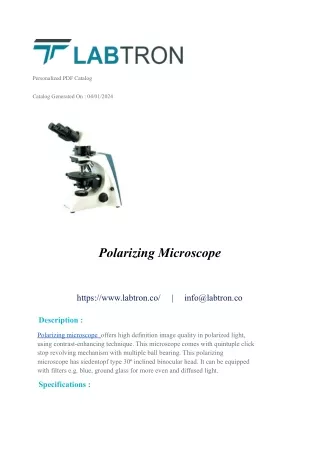

  1. Personalized PDF Catalog Catalog Generated On : 04/01/2024 Polarizing Microscope https://www.labtron.co/ | info@labtron.co Description : Polarizing microscope offers high definition image quality in polarized light, using contrast-enhancing technique. This microscope comes with quintuple click stop revolving mechanism with multiple ball bearing. This polarizing microscope has siedentopf type 30º inclined binocular head. It can be equipped with filters e.g. blue, ground glass for more even and diffused light. Specifications :

  2. Siedentopf type binocular head, 30° inclined, eyepiece rotation Viewing 360º Head Interpupillary adjustable distance 50 to 75 mm Eyepiece WF10X/20 mm, WF10X/20 mm (reticle 0.1 mm) Quintuple click stop revolving mechanism with multiple ball Nosepiece bearing Condenser Swing type N.A. 1.25 with iris diaphragm and filter Objective Non-stress infinite plan objective: 4x, 10x, 20x, 40x(s) Stage Rotable 360°, center adjustable, division 1°, vernier division 6’ Coaxial coarse & fine adjustment, focusing range 30 mm, Focusing focusing interval 0.002 mm Collector High brightness light collector Illumination 6 V/20 W Halogen lamp, brightness adjustable Dimension 570×290×400 mm Net weight 12 kg Gross Weight 14 kg

  3. Features : Swing type N.A. 1.25 with iris diaphragm and filter Non-stress infinite plan objectives Polarizing attached mechanical stage User-friendly operations Applications : Used to study polarized light effect on a specimen in the field of science, forensic analysis, geology, medicine, chemistry, biology & metallurgy.

  4. www.labtron.co Labtron Equipment Ltd. Quatro House, Lyon Way, Camberley, Surrey GU16 7ER United Kingdom Email: info@labtron.co | Website: https://www.labtron.co/ | Phone: +44 2080 043 608
