deionized water system

Deionized Water System is smallest and most compact lab water system from tap to ultrapure water, integrating pretreatment, <br>RO, DI, UV, UF and terminal filter into one. Its output ranges from 15 to 30 liters/hour and offers flow rate up to 2 <br>liters/minute (with pressure tank). Features with tap water inlet, it can produce single stage RO water and deionized water.<br>The single stage RO wateru2019s ion rejection rate is more than 96%, and the deionized wateru2019s resistivity is more than 15 Mu03a9.cm,<br>near to 18.2 Mu03a9.cm. It completely meets the requirements of general chemical or biological experiments fo

Eleanor96
Download Presentation

deionized water system

An Image/Link below is provided (as is) to download presentation Download Policy: Content on the Website is provided to you AS IS for your information and personal use and may not be sold / licensed / shared on other websites without getting consent from its author. Content is provided to you AS IS for your information and personal use only. Download presentation by click this link. While downloading, if for some reason you are not able to download a presentation, the publisher may have deleted the file from their server. During download, if you can't get a presentation, the file might be deleted by the publisher.

E N D

Presentation Transcript

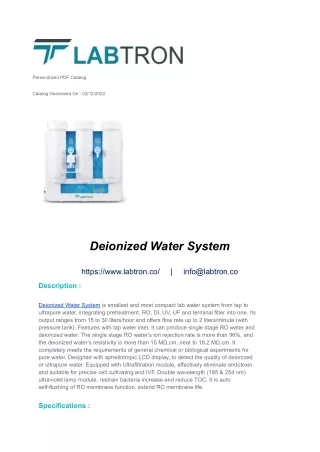

  1. Personalized PDF Catalog Catalog Generated On : 02/12/2023 Deionized Water System https://www.labtron.co/ | info@labtron.co Description : Deionized Water System is smallest and most compact lab water system from tap to ultrapure water, integrating pretreatment, RO, DI, UV, UF and terminal filter into one. Its output ranges from 15 to 30 liters/hour and offers flow rate up to 2 liters/minute (with pressure tank). Features with tap water inlet, it can produce single stage RO water and deionized water. The single stage RO water’s ion rejection rate is more than 96%, and the deionized water’s resistivity is more than 15 MΩ.cm, near to 18.2 MΩ.cm. It completely meets the requirements of general chemical or biological experiments for pure water. Designed with apheliotropic LCD display, to detect the quality of deionized or ultrapure water. Equipped with Ultrafiltration module, effectively eliminate endotoxin and suitable for precise cell cultivating and IVF. Double wavelength (185 & 254 nm) ultraviolet lamp module, restrain bacteria increase and reduce TOC. It is auto self-flushing of RO membrane function, extend RO membrane life. Specifications :

  2. Output 30 liters/hour Flow rate Up to 2 liters/minute (with pressure tank) Pure water outlet 2 reverse osmosis water, deionized water Resistivity: 16 to 18.2 M Ω cm Deionized Water Bacteria: N/A Quality Particle (>0.1 µm): N/A Ion rejection rate: 97 % to 99% (new RO membrane) RO Water Quality Organic rejection rate: >99 %, when MW >200 Dalton Particles and bacteria rejection rate: >99 % Feed water Tap water, Temperature 5 to 45°C, Pressure 1.0 to 4.0 requirements Kgf/cm2 Dimension 410 × 220 × 420 mm Power Consumption 72 W Power Supply AC100 to 240 V, 50/60 Hz Weight about 18 kg Standard Main body (Including 1 set of cartridge) +15 liters pressure configuration tank+ TDS/conductivity test pen

  3. Features : Designed with microcomputer controlling system and electronic pressure sensor Auto self-flushing of RO membrane function, extend RO membrane life Equipped with top cap of pretreatment in the case can be rapidly opened to replace the cartridges without opening the case Offers 4 independent ultrapure cartridges Ultrapure water quality up to 18.2 MΩ.cm, with the lowest TOC level and running cost Whole unit with one time injection molding process Material used polypropylene, avoid rusting and keep clean, to meet GLP standard Designed with apheliotropic LCD display, to detect the quality of deionized or ultrapure water Offers attached portable TDS (total dissolved solid) conductivity test pen, with dry cell design, to detect the quality of feed water and RO water Double wavelength (185 & 254 nm) ultraviolet lamp module, restrain bacteria´s increase and reduce TOC Ultrafiltration module, effectively eliminate endotoxin and suitable for precise cell cultivating and IVF Double layer PES terminal disinfection filter, assure that terminal pure water is absolutely axenic

  4. Applications : Deionized Water System is used in general chemical or biological experiments to obtain deionized and RO water across Healthcare, Food & Beverage and Biochemistry microanalysis etc. www.labtron.co Labtron Equipment Ltd. Quatro House, Lyon Way, Camberley, Surrey GU16 7ER United Kingdom

  5. Email: info@labtron.co | Website: https://www.labtron.co/ | Phone: +44 2080 043 608
