colorimeters

<br>Colorimeter is a durable photoelectric colorimeter with benchtop design. <br>Equipped with specific light filters of the visible range (420 to 660 nm) to <br>measure the concertation and determine the color. <br>Its three digit LED display shows Transmittance and Absorbance values.

Eleanor96
Download Presentation

colorimeters

An Image/Link below is provided (as is) to download presentation Download Policy: Content on the Website is provided to you AS IS for your information and personal use and may not be sold / licensed / shared on other websites without getting consent from its author. Content is provided to you AS IS for your information and personal use only. Download presentation by click this link. While downloading, if for some reason you are not able to download a presentation, the publisher may have deleted the file from their server. During download, if you can't get a presentation, the file might be deleted by the publisher.

E N D

Presentation Transcript

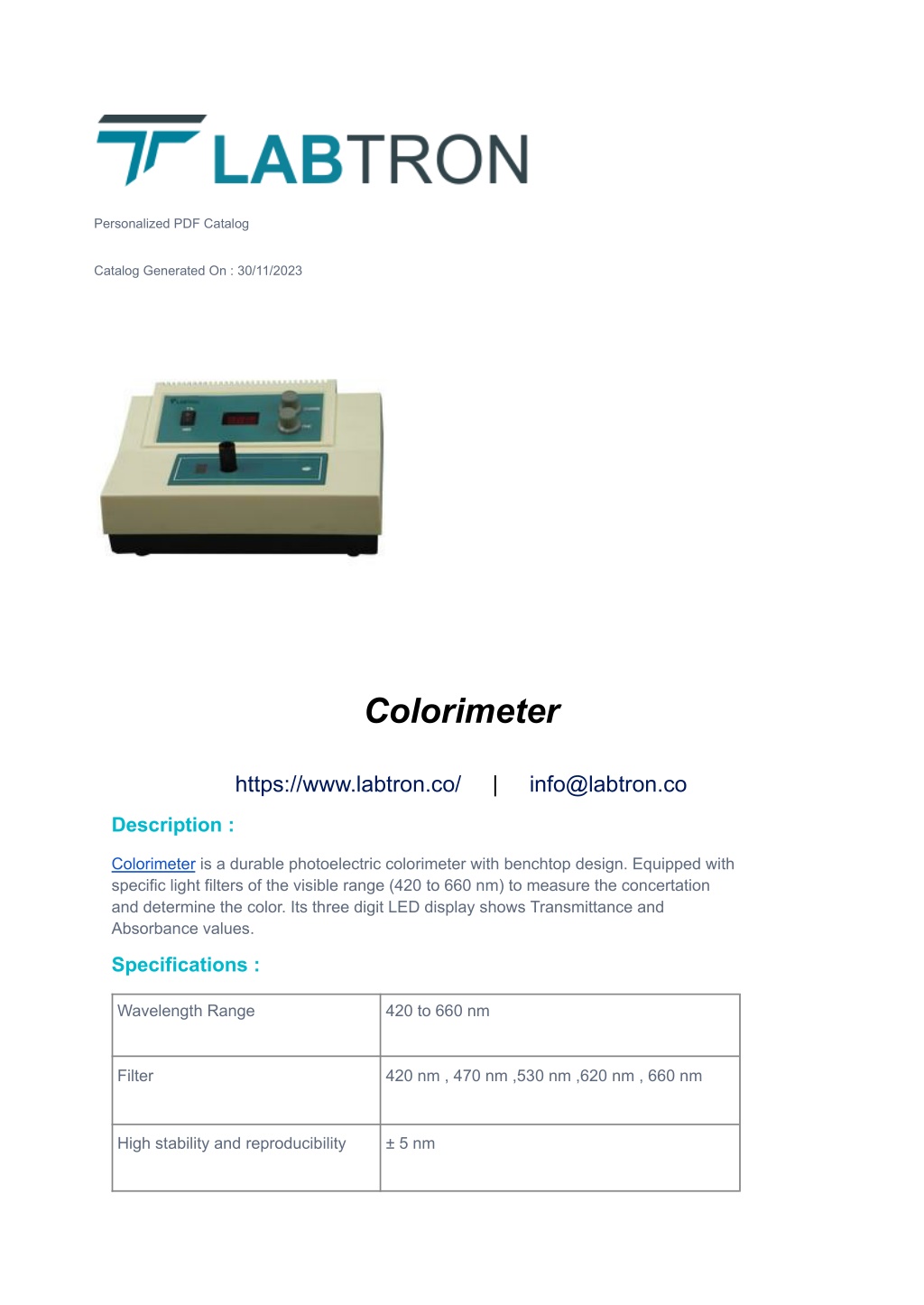

  1. Personalized PDF Catalog Catalog Generated On : 30/11/2023 Colorimeter https://www.labtron.co/ | info@labtron.co Description : Colorimeter is a durable photoelectric colorimeter with benchtop design. Equipped with specific light filters of the visible range (420 to 660 nm) to measure the concertation and determine the color. Its three digit LED display shows Transmittance and Absorbance values. Specifications : Wavelength Range 420 to 660 nm Filter 420 nm , 470 nm ,530 nm ,620 nm , 660 nm High stability and reproducibility ± 5 nm

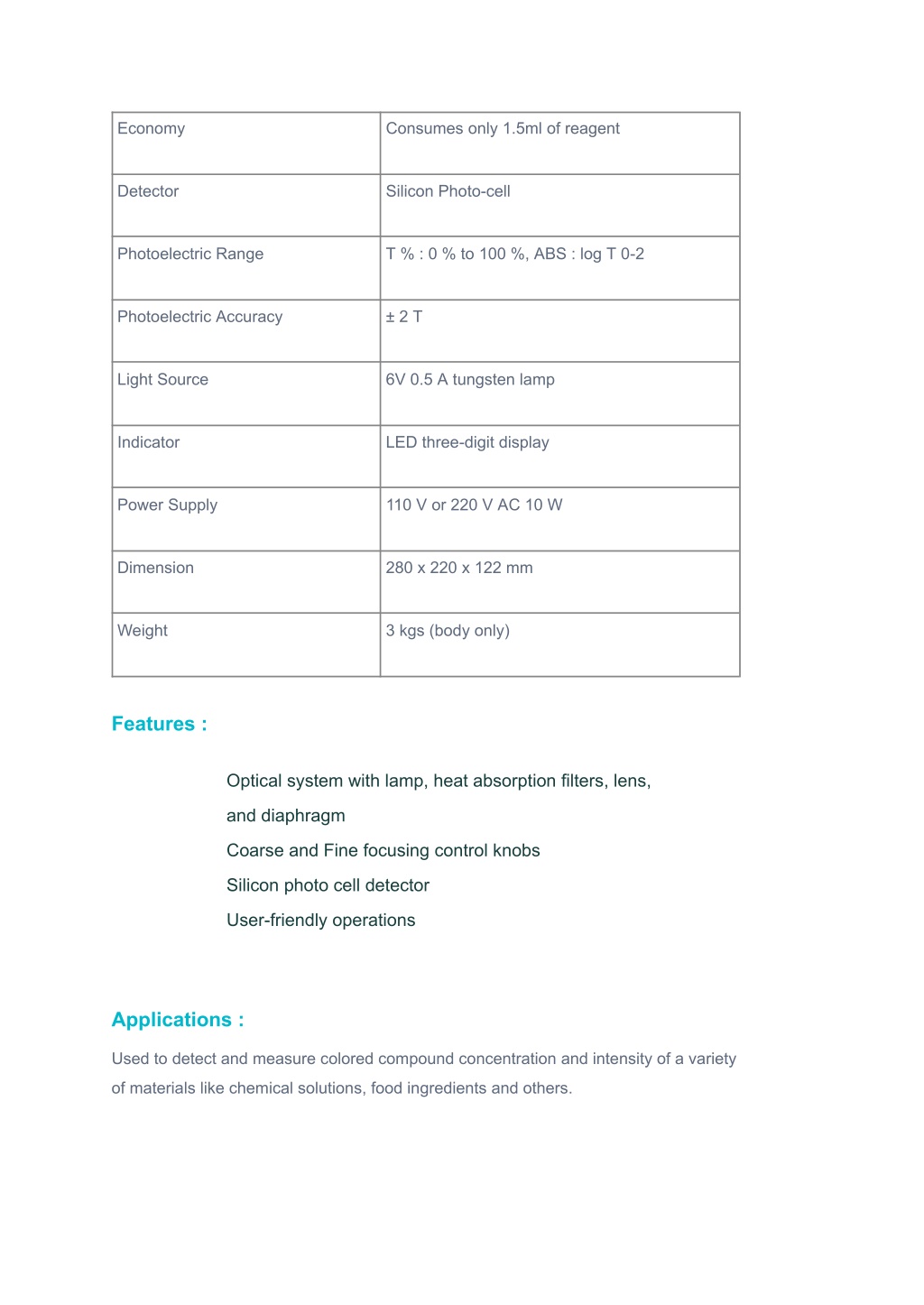

  2. Economy Consumes only 1.5ml of reagent Detector Silicon Photo-cell Photoelectric Range T % : 0 % to 100 %, ABS : log T 0-2 Photoelectric Accuracy ± 2 T Light Source 6V 0.5 A tungsten lamp Indicator LED three-digit display Power Supply 110 V or 220 V AC 10 W Dimension 280 x 220 x 122 mm Weight 3 kgs (body only) Features : Optical system with lamp, heat absorption filters, lens, and diaphragm Coarse and Fine focusing control knobs Silicon photo cell detector User-friendly operations Applications : Used to detect and measure colored compound concentration and intensity of a variety of materials like chemical solutions, food ingredients and others.

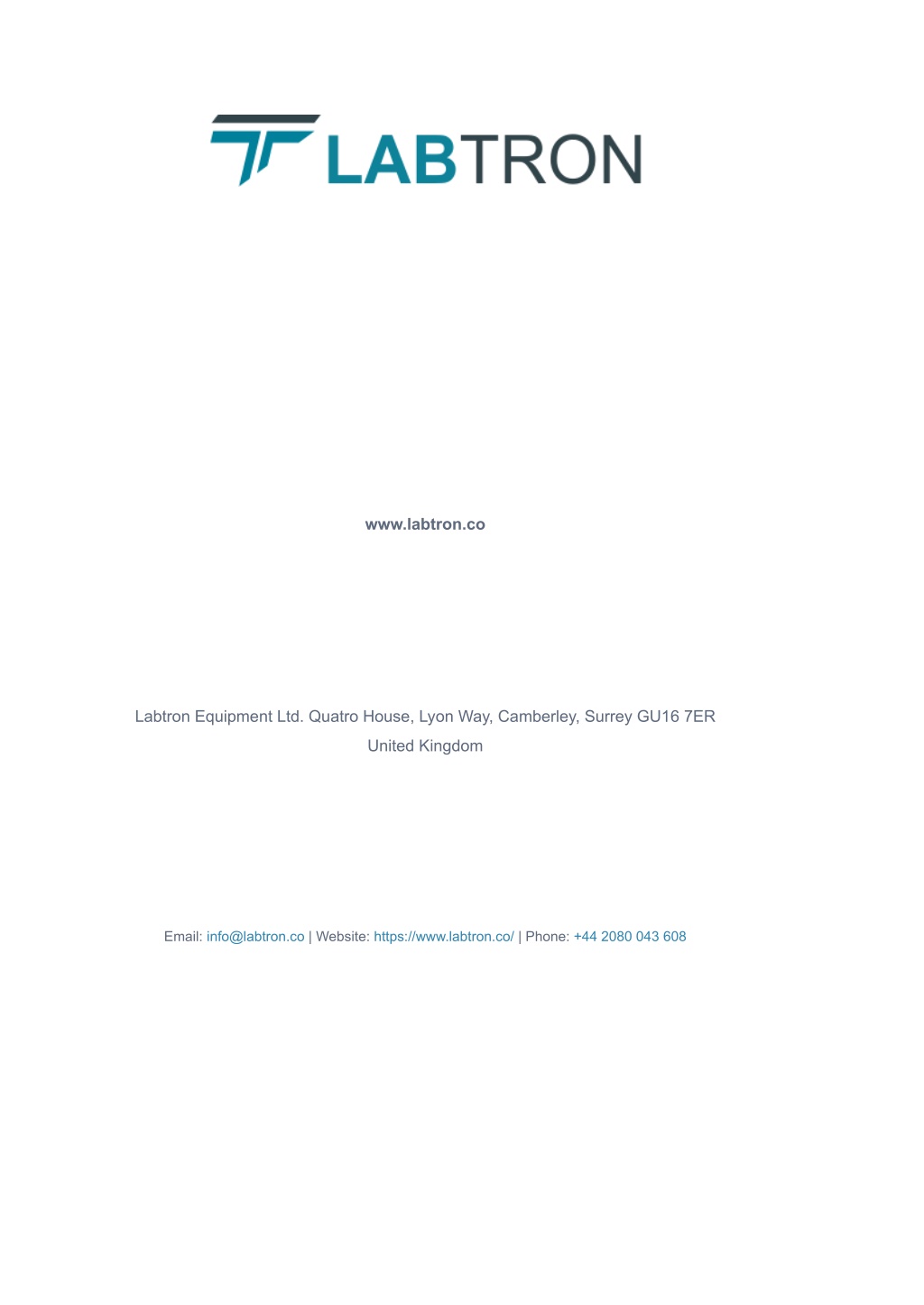

  3. www.labtron.co Labtron Equipment Ltd. Quatro House, Lyon Way, Camberley, Surrey GU16 7ER United Kingdom Email: info@labtron.co | Website: https://www.labtron.co/ | Phone: +44 2080 043 608
