circulating water bath

Circulating Water Bath is a benchtop heating circulating (constant temperature) bath offers 6.7 L of<br>capacity, temperature range from RT 5 to 100u02daC with u00b10.1u02daC precision. Designed with powerful pressure suction<br>pump, having interface for external water bath. Equipped with PID microprocessor temperature control, audible and<br>visible tracking alarm system for temperature and water level ensures precise and reliable operation.

Eleanor96
Download Presentation

circulating water bath

An Image/Link below is provided (as is) to download presentation Download Policy: Content on the Website is provided to you AS IS for your information and personal use and may not be sold / licensed / shared on other websites without getting consent from its author. Content is provided to you AS IS for your information and personal use only. Download presentation by click this link. While downloading, if for some reason you are not able to download a presentation, the publisher may have deleted the file from their server. During download, if you can't get a presentation, the file might be deleted by the publisher.

E N D

Presentation Transcript

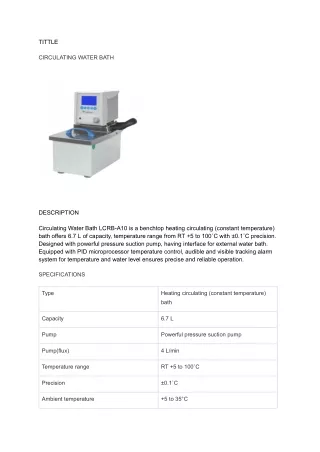

  1. TITTLE CIRCULATING WATER BATH DESCRIPTION Circulating Water Bath LCRB-A10 is a benchtop heating circulating (constant temperature) bath offers 6.7 L of capacity, temperature range from RT +5 to 100˚C with ±0.1˚C precision. Designed with powerful pressure suction pump, having interface for external water bath. Equipped with PID microprocessor temperature control, audible and visible tracking alarm system for temperature and water level ensures precise and reliable operation. SPECIFICATIONS Type Heating circulating (constant temperature) bath Capacity 6.7 L Pump Powerful pressure suction pump Pump(flux) 4 L/min Temperature range RT +5 to 100˚C Precision ±0.1˚C Ambient temperature +5 to 35°C

  2. Controller PID Intelligent microprocessor temperature controller Liquid medium Pure water (≤80˚C); Mineral oil (>80˚C); Antifreeze (<5˚C) Water bath interface External Alarm system over-temperature and low temperature, liquid level protecting function Heating power 1000 W Power supply 220 V/50 Hz Internal dimension (W×D×H) 150×160×150 mm Packaging dimension (W×D×H) 470×300×560 mm Net weight 6 kg Gross weight 8 kg https://www.labtron.co/water-testing/circulating water bath?utm _source=https://www.slideserve.com//&utm_medium=CDA-grace
