Types of a Wheel Loader

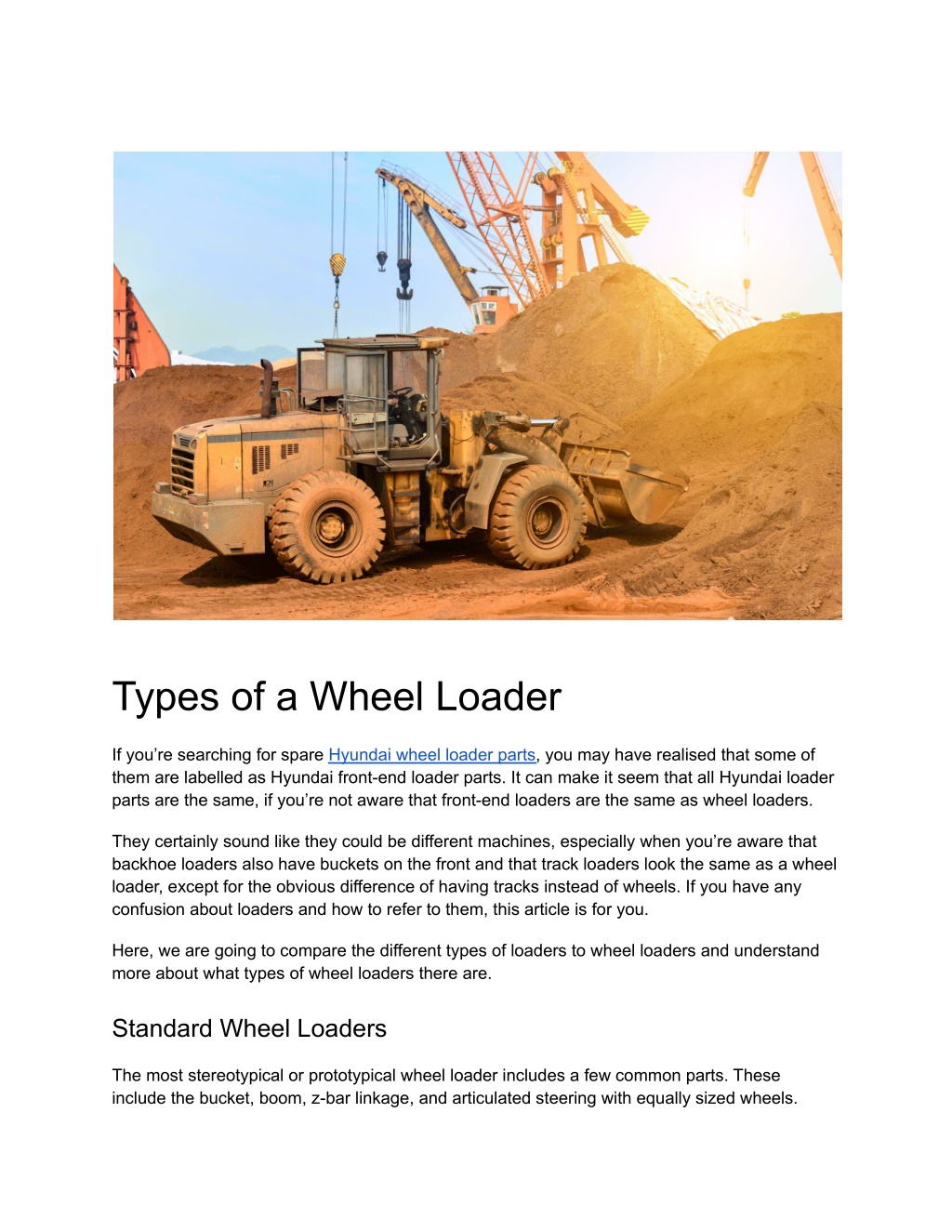

1. Types of a Wheel Loader If you’re searching for spare Hyundai wheel loader parts, you may have realised that some of them are labelled as Hyundai front-end loader parts. It can make it seem that all Hyundai loader parts are the same, if you’re not aware that front-end loaders are the same as wheel loaders. They certainly sound like they could be different machines, especially when you’re aware that backhoe loaders also have buckets on the front and that track loaders look the same as a wheel loader, except for the obvious difference of having tracks instead of wheels. If you have any confusion about loaders and how to refer to them, this article is for you. Here, we are going to compare the different types of loaders to wheel loaders and understand more about what types of wheel loaders there are. Standard Wheel Loaders The most stereotypical or prototypical wheel loader includes a few common parts. These include the bucket, boom, z-bar linkage, and articulated steering with equally sized wheels.

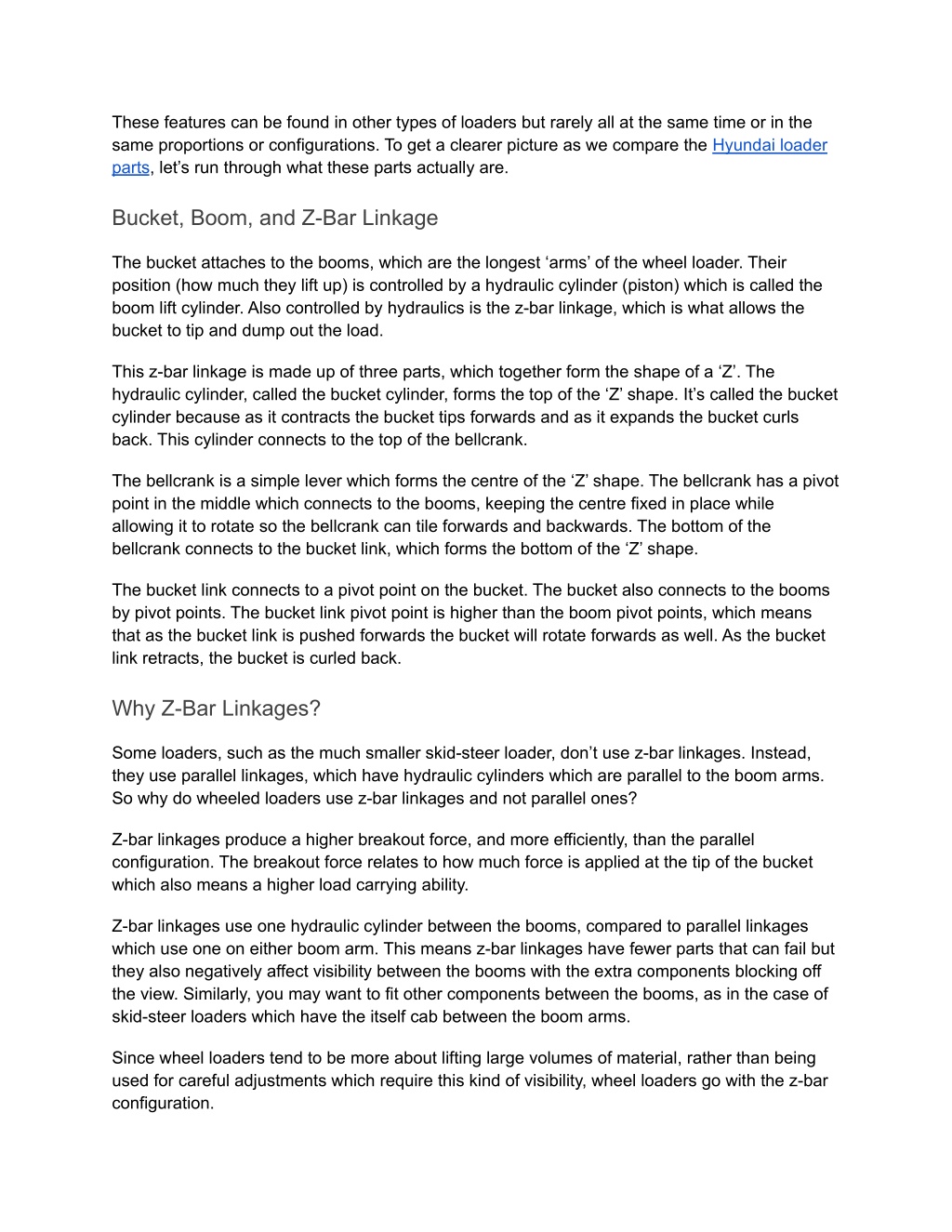

2. These features can be found in other types of loaders but rarely all at the same time or in the same proportions or configurations. To get a clearer picture as we compare the Hyundai loader parts, let’s run through what these parts actually are. Bucket, Boom, and Z-Bar Linkage The bucket attaches to the booms, which are the longest ‘arms’ of the wheel loader. Their position (how much they lift up) is controlled by a hydraulic cylinder (piston) which is called the boom lift cylinder. Also controlled by hydraulics is the z-bar linkage, which is what allows the bucket to tip and dump out the load. This z-bar linkage is made up of three parts, which together form the shape of a ‘Z’. The hydraulic cylinder, called the bucket cylinder, forms the top of the ‘Z’ shape. It’s called the bucket cylinder because as it contracts the bucket tips forwards and as it expands the bucket curls back. This cylinder connects to the top of the bellcrank. The bellcrank is a simple lever which forms the centre of the ‘Z’ shape. The bellcrank has a pivot point in the middle which connects to the booms, keeping the centre fixed in place while allowing it to rotate so the bellcrank can tile forwards and backwards. The bottom of the bellcrank connects to the bucket link, which forms the bottom of the ‘Z’ shape. The bucket link connects to a pivot point on the bucket. The bucket also connects to the booms by pivot points. The bucket link pivot point is higher than the boom pivot points, which means that as the bucket link is pushed forwards the bucket will rotate forwards as well. As the bucket link retracts, the bucket is curled back. Why Z-Bar Linkages? Some loaders, such as the much smaller skid-steer loader, don’t use z-bar linkages. Instead, they use parallel linkages, which have hydraulic cylinders which are parallel to the boom arms. So why do wheeled loaders use z-bar linkages and not parallel ones? Z-bar linkages produce a higher breakout force, and more efficiently, than the parallel configuration. The breakout force relates to how much force is applied at the tip of the bucket which also means a higher load carrying ability. Z-bar linkages use one hydraulic cylinder between the booms, compared to parallel linkages which use one on either boom arm. This means z-bar linkages have fewer parts that can fail but they also negatively affect visibility between the booms with the extra components blocking off the view. Similarly, you may want to fit other components between the booms, as in the case of skid-steer loaders which have the itself cab between the boom arms. Since wheel loaders tend to be more about lifting large volumes of material, rather than being used for careful adjustments which require this kind of visibility, wheel loaders go with the z-bar configuration.

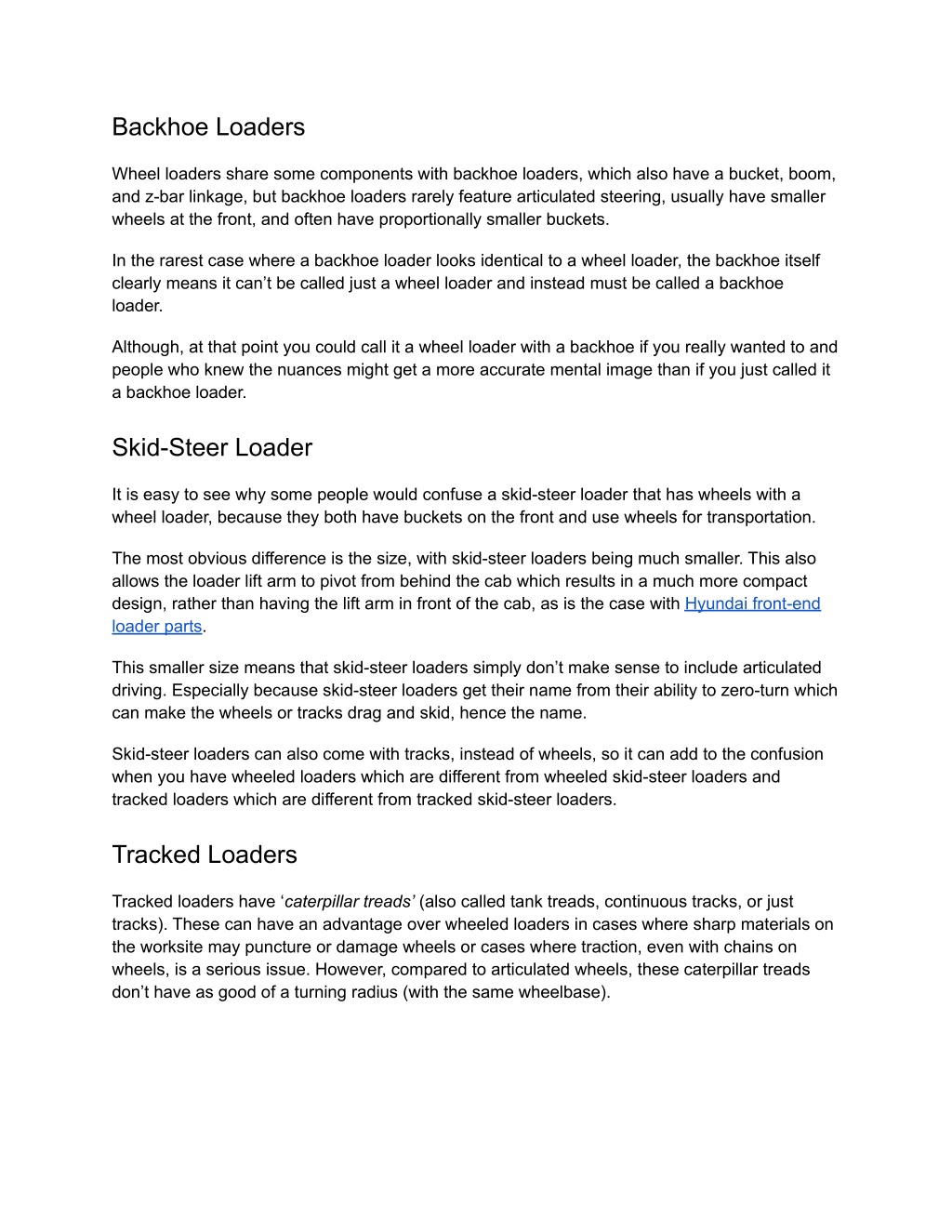

3. Backhoe Loaders Wheel loaders share some components with backhoe loaders, which also have a bucket, boom, and z-bar linkage, but backhoe loaders rarely feature articulated steering, usually have smaller wheels at the front, and often have proportionally smaller buckets. In the rarest case where a backhoe loader looks identical to a wheel loader, the backhoe itself clearly means it can’t be called just a wheel loader and instead must be called a backhoe loader. Although, at that point you could call it a wheel loader with a backhoe if you really wanted to and people who knew the nuances might get a more accurate mental image than if you just called it a backhoe loader. Skid-Steer Loader It is easy to see why some people would confuse a skid-steer loader that has wheels with a wheel loader, because they both have buckets on the front and use wheels for transportation. The most obvious difference is the size, with skid-steer loaders being much smaller. This also allows the loader lift arm to pivot from behind the cab which results in a much more compact design, rather than having the lift arm in front of the cab, as is the case with Hyundai front-end loader parts. This smaller size means that skid-steer loaders simply don’t make sense to include articulated driving. Especially because skid-steer loaders get their name from their ability to zero-turn which can make the wheels or tracks drag and skid, hence the name. Skid-steer loaders can also come with tracks, instead of wheels, so it can add to the confusion when you have wheeled loaders which are different from wheeled skid-steer loaders and tracked loaders which are different from tracked skid-steer loaders. Tracked Loaders Tracked loaders have ‘caterpillar treads’ (also called tank treads, continuous tracks, or just tracks). These can have an advantage over wheeled loaders in cases where sharp materials on the worksite may puncture or damage wheels or cases where traction, even with chains on wheels, is a serious issue. However, compared to articulated wheels, these caterpillar treads don’t have as good of a turning radius (with the same wheelbase).

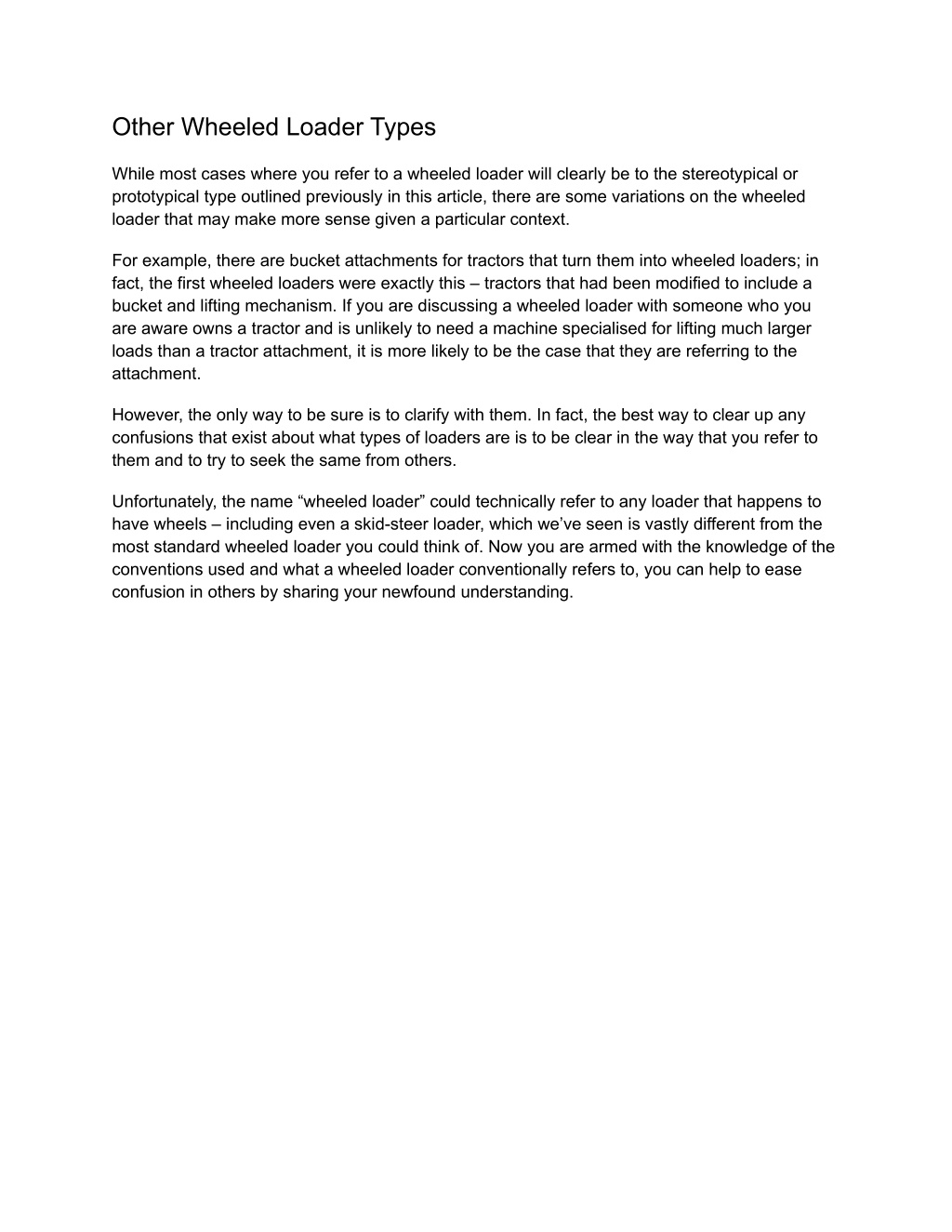

4. Other Wheeled Loader Types While most cases where you refer to a wheeled loader will clearly be to the stereotypical or prototypical type outlined previously in this article, there are some variations on the wheeled loader that may make more sense given a particular context. For example, there are bucket attachments for tractors that turn them into wheeled loaders; in fact, the first wheeled loaders were exactly this – tractors that had been modified to include a bucket and lifting mechanism. If you are discussing a wheeled loader with someone who you are aware owns a tractor and is unlikely to need a machine specialised for lifting much larger loads than a tractor attachment, it is more likely to be the case that they are referring to the attachment. However, the only way to be sure is to clarify with them. In fact, the best way to clear up any confusions that exist about what types of loaders are is to be clear in the way that you refer to them and to try to seek the same from others. Unfortunately, the name “wheeled loader” could technically refer to any loader that happens to have wheels – including even a skid-steer loader, which we’ve seen is vastly different from the most standard wheeled loader you could think of. Now you are armed with the knowledge of the conventions used and what a wheeled loader conventionally refers to, you can help to ease confusion in others by sharing your newfound understanding.
