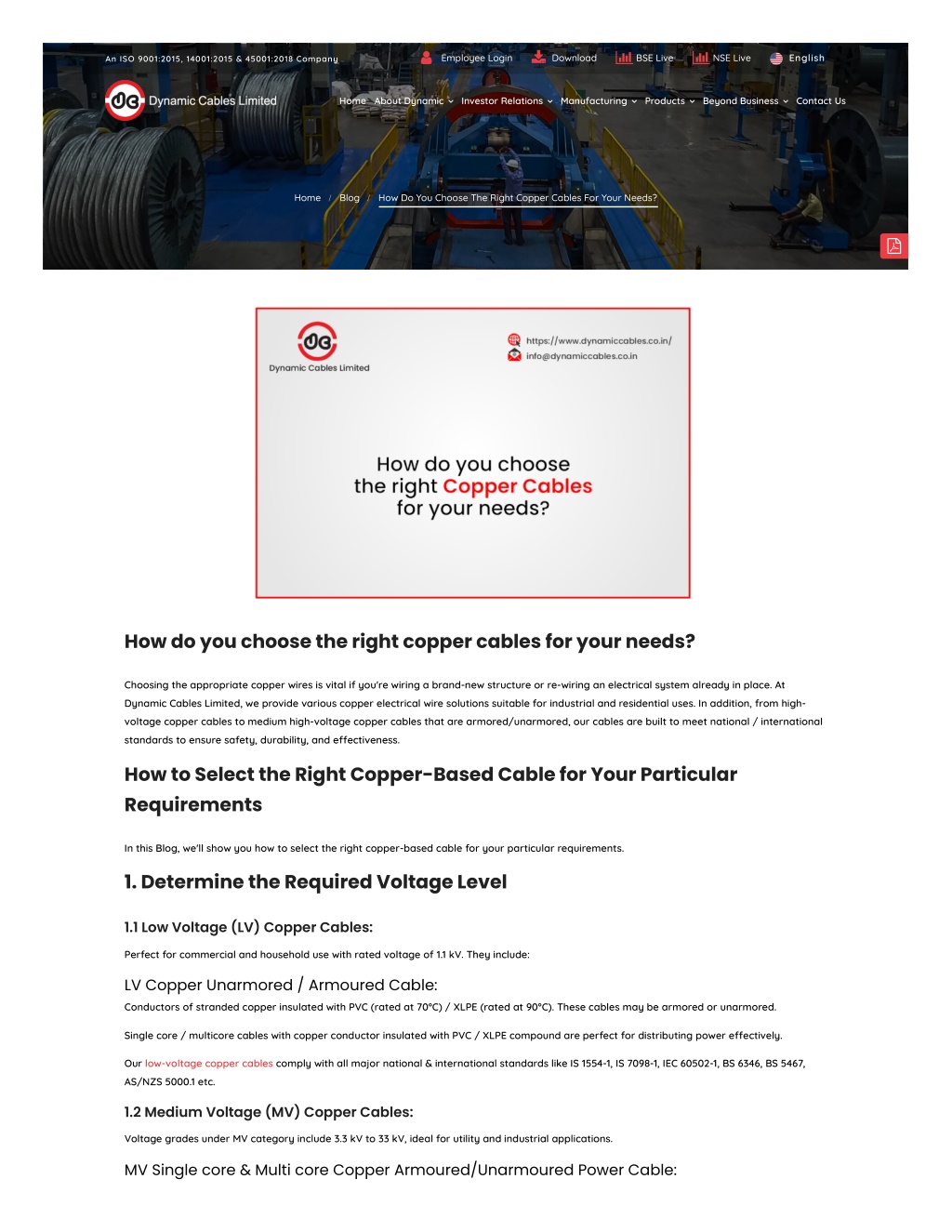

1.   Download BSE Live NSE Live English Employee Login An ISO 9001:2015, 14001:2015 & 45001:2018 Company Home About Dynamic  Investor Relations  Manufacturing  Products  Beyond Business  Contact Us Home / Blog / How Do You Choose The Right Copper Cables For Your Needs?  How do you choose the right copper cables for your needs? Choosing the appropriate copper wires is vital if you're wiring a brand-new structure or re-wiring an electrical system already in place. At Dynamic Cables Limited, we provide various copper electrical wire solutions suitable for industrial and residential uses. In addition, from high- voltage copper cables to medium high-voltage copper cables that are armored/unarmored, our cables are built to meet national / international standards to ensure safety, durability, and e?ectiveness. How to Select the Right Copper-Based Cable for Your Particular Requirements In this Blog, we'll show you how to select the right copper-based cable for your particular requirements. 1. Determine the Required Voltage Level 1.1 Low Voltage (LV) Copper Cables: Perfect for commercial and household use with rated voltage of 1.1 kV. They include: LV Copper Unarmored / Armoured Cable: Conductors of stranded copper insulated with PVC (rated at 70°C) / XLPE (rated at 90°C). These cables may be armored or unarmored. Single core / multicore cables with copper conductor insulated with PVC / XLPE compound are perfect for distributing power e?ectively. Our low-voltage copper cables comply with all major national & international standards like IS 1554-1, IS 7098-1, IEC 60502-1, BS 6346, BS 5467, AS/NZS 5000.1 etc. 1.2 Medium Voltage (MV) Copper Cables: Voltage grades under MV category include 3.3 kV to 33 kV, ideal for utility and industrial applications. MV Single core & Multi core Copper Armoured/Unarmoured Power Cable:

2. It comprises stranded copper conductor, XLPE insulation, non metallic (semiconducting) & metallic screen, Galvanized Steel (for multicore) / Aluminium (for single core) armouring with PVC/PE/LSZH sheath. Our MV copper cables comply with all major national & international standards like IS 7098-2, IEC 60502-2, BS 6622, AS/NZS 1429.1 etc. 2. Decide Between the Single Core or Multicore Cables Single Core Copper Cable: It is ideal for installations or applications requiring high current and ?exibility. Multicore Copper Cable:  It is ideal for more complex systems requiring multiple circuits. Both models come with various options depending on your installation requirements, from armored to non-armored versions, which provide maximum versatility in their installation process. 3. Take into Consideration Mechanical and Environmental Conditions Pick cables that are armored to: Underground installations The areas that have high mechanical stress Harsh environments Copper cables that are armored o?er a layer of protection that reduces the chance of physical injury and increases the life of wires. 4. Compare Prices for Copper Wire Prices and Quality When selecting cables, look at the cost of copper wire, copper cable cost, and copper wire price speci?cations and certi?cates o?ered. We are Dynamic Cables Limited. We ensure: Competitive prices for every copper wire and copper cables Conformity to national/international quality standards Performance and reliability over the long term 5. Match Specifications to the Specifications for the Application Each project demands speci?c characteristics. Here's a quick reference: Application Area Suggested Cable Type Home Wiring LV Copper Power Cable, LV Twin Wire Cable O?ce/Commercial LV Multi Core Copper Cable Industrial Use MV Armoured Copper Power Cable Underground InstallationLV or MV Single Core Armoured Copper Cable Conclusion Be aware of your requirements speci?cations, voltage requirements, environmental conditions, and compliance requirements. We at Dynamic Cables Limited provide a complete selection of copper electrical wire and copper cables that conform to international standards and provide unbeatable quality and reliability. Frequently Asked Questions (FAQs) What is the di?erence between single-core and multicore copper cables? Single-core cables contain one conductor, which is ideal for high-current installations. Multicore cables contain multiple conductors that are used in more complex systems. Why choose armored copper cables? Armored copper cables provide mechanical protection, making them ideal for underground and heavy-duty installations. What temperature rating should I look for in copper cables? Most of our copper cables are rated at 70°C (PVC) / 90°C (XLPE), suitable for standard electrical installations. How can I check the copper cable or wire price before buying? Contact us at Dynamic Cables Limited for updated pricing based on type, length, and speci?cations. Are your copper cables certi?ed to international standards?

3. Yes, our copper electrical wire and cables comply with IEC 60502, BS 6346, BS 5467 and BS 6622 standards. Quick Links Our Products Board Of Directors Bare Conductors LV Power Cables Aluminium Testimonials Insulated Conductors LV Control Cables F-260, Road No. 13 VKI Area Jaipur  R & D 66KV HV Power Cables 302013, Rajasthan, India LV Concentric Cables CIN No. L31300RJ2007PLC024139 Quality Certi?cations & MV Aerial Bunched Cables Assurance Railway Signaling Cables MV Power Cables Copper info@dynamiccables.co.in CSR MV Power Cables Aluminium Galvanized Stay Wire/ Earth Career At Dynamic +91-141-4042005 Wire LV Aerial Bunched Cables +91-141-2262589 Plants LV Power Cables Copper Blog Follow Us: FAQ Our Marketing Offices:      New Delhi Mumbai Vadodara Kolkata Hyderabad Goa Indore © 2024 Dynamic Cables Limited. All rights reserved. Design By Rams Creative Technologies Pvt. Ltd.
