Presentation Transcript
Not a bore issues of tidal power in the severn estuary l.jpg

Not a Bore? Issues of Tidal Power in the Severn Estuary

Agenda

University of the West of England

30th June 2008


Agenda l.jpg

6 - 6.10 pm Introduction and Welcome

Jim Longhurst and Eric Albone

6.10- 6.40 pm Presentations

Mervyn Bramley, Tom Appleby,

Chris Spencer and David Bird

6.40 - 7.20 pm Discussion at Tables.

One key issue for the Feasibility Study

7.20 -7.30 pm Report Back on one key issue for the Feasibility Study

7.30pm Close

AGENDA


Severn tidal power not a bore engineering factors and technologies l.jpg

Severn Tidal Power ‘Not a Bore?’Engineering factors and technologies

Dr Mervyn Bramley

Visiting research fellow


Technologies tidal range and tidal stream l.jpg
Technologies – Tidal range and tidal stream

Tidal stream technology is now at prototype development stage

Low head housed turbines as used in tidal range barrages and lagoons – e.g. La Rance – are production technology


Potential tidal energy capture l.jpg

From tidal range: Power ≈ k1A H2

H = level difference across barrage / lagoon

A = wetted surface area upstream of empoundment

From tidal stream: Power ≈ k2V3

V = mean free-stream tidal current

Potential tidal energy capture


Tidal stream array l.jpg

Prototype stage moving to full-scale demonstration

Small commercial array up to 5 MW

Large array up to 30MW

Potential interference with shipping lanes

Tidal stream array


Tidal lagoon swansea l.jpg

Impoundment by 9 km length embankment

Plan area of 5km2

Mean spring tidal range ≈ 8.5 m

Installed capacity 50MW

Annual energy output 124 GWh

Cardiff Weston barrage ≈ 135 tidal lagoons

Estimated cost ≈ £250m

Tidal lagoon – Swansea


Tidal barrage options different sites l.jpg

Cardiff – Weston Barrage

Location: Lavernock Point to Brean Down

Length: 16 km (10 miles)

Generating capacity: 8.6 GW or 8,600 MW

Annual average output: 17 TWh or 17,000 GWh

Percentage of UK electricity supply: 4.4%

Estimated cost ≈ £15bn

Tidal barrage options – different sites

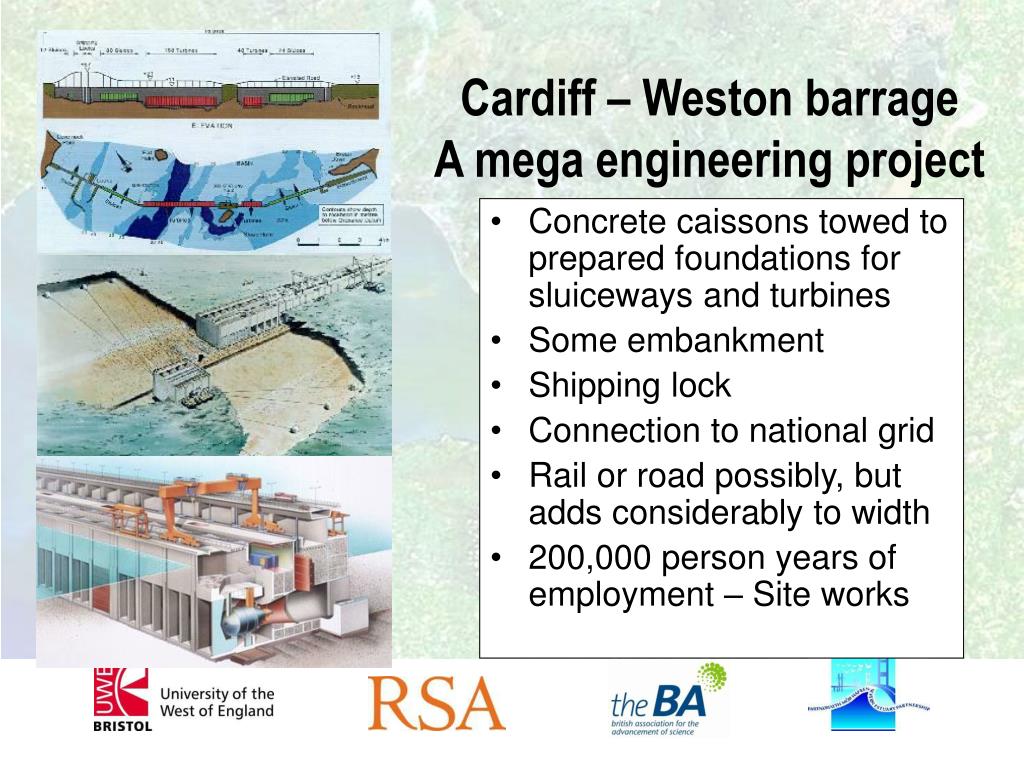

Cardiff weston barrage a mega engineering project l.jpg

Concrete caissons towed to prepared foundations for sluiceways and turbines

Some embankment

Shipping lock

Connection to national grid

Rail or road possibly, but adds considerably to width

200,000 person years of employment – Site works

Cardiff – Weston barrage A mega engineering project


Issues for consideration l.jpg

Are the technologies sufficiently proven and appropriate to be applied at a significant scale in the Severn Estuary?

Can the environmental impact of a Severn tidal scheme both during and after construction be adequately mitigated?

Can the other uses of the Severn Estuary, in particular ports, commerce and shipping, be accommodated?

Could the UK finance and handle a project of the size of the larger Severn barrage proposals?

Can the carbon embedded in a Severn tidal scheme be adequately offset by the low-carbon power it generates ?

Can we envision a multi-functional scheme and a managed changing environment, or is this our philosopher’s stone?

Issues for consideration


Not a bore a barrage of legislation l.jpg

‘Not a Bore?’ be applied at a significant scale in the Severn Estuary?A Barrage of Legislation

thomas.appleby@uwe.ac.uk

Law Lecturer


Slide12 l.jpg

How does the law view the estuary? be applied at a significant scale in the Severn Estuary?

  • Law views it as land covered by water

  • Needs consent of the owners of the seabed

  • Otherwise compulsory purchase requirements


Rights in the estuary l.jpg
Rights in the estuary be applied at a significant scale in the Severn Estuary?

  • Public right to navigate

  • Public right to fish

  • Private fishing rights

  • Private drainage rights


The effect of human rights l.jpg
The effect of human rights be applied at a significant scale in the Severn Estuary?

  • Compensation for interference with those rights

  • Difficult to assess at this stage


Environmental legislation l.jpg
Environmental legislation be applied at a significant scale in the Severn Estuary?

  • Habitats Directive

  • Severn candidate ‘Special Area of Conservation’

  • Requirement to form compensatory habitat for protected features lost to power scheme


Not that difficult l.jpg

Capital engineering costs plus be applied at a significant scale in the Severn Estuary?

Compensation costs for people’s rights

Compensation for the environment

Not that difficult?

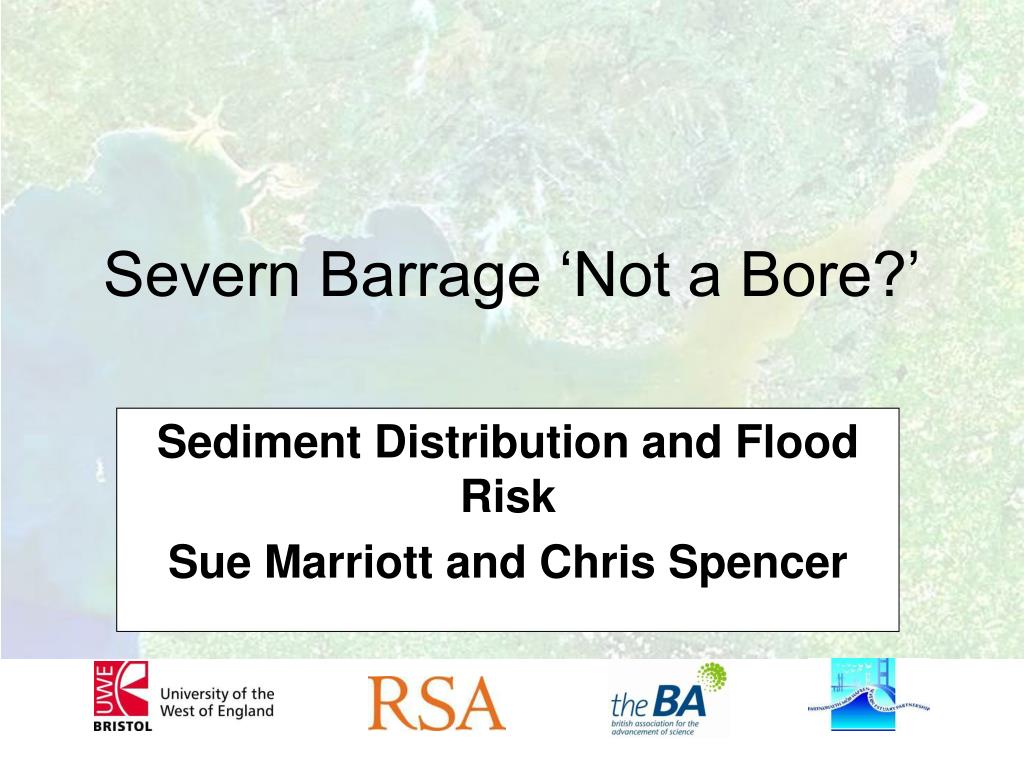

Severn barrage not a bore l.jpg

Severn Barrage ‘Not a Bore?’ be applied at a significant scale in the Severn Estuary?

Sediment Distribution and Flood Risk

Sue Marriott and Chris Spencer


Current issues l.jpg

Sediment be applied at a significant scale in the Severn Estuary?

What types of sediments exist in the estuary and how are they distributed?

Where does the sediment come from?

Is the sediment contaminated?

Flood risk

Current issues


Slide19 l.jpg

Sediment be applied at a significant scale in the Severn Estuary?

McLaren et al. 1993


Sediments l.jpg

How will the barrage impact on sediments? be applied at a significant scale in the Severn Estuary?

Circulation by tidal currents restricted to Bristol Channel below barrage

Fine sediment can settle in lagoon behind barrage making water clearer, allowing ultraviolet penetration therefore cleaner water plus photosynthesis and phytoplankton blooms

Contaminated sediment from floodplains may build up

Build up of sediment may reduce volume of upper estuary

Sediments


Flooding l.jpg

Flooding be applied at a significant scale in the Severn Estuary?

What contributes to flood risk in the area?

What will the effects of the barrage be?

Lagoon will raise water tables so river water may not drain away so quickly

May cause extra deposition of mud in lower reaches of rivers due to lower gradients reducing capacity

Increased flood risk in lower reaches and backing upstream

Flooding


Increased flood risk upstream l.jpg
Increased flood risk upstream? be applied at a significant scale in the Severn Estuary?


Future sea level rise l.jpg

Sea-level rise will have impacts on coastal areas due to increased erosion and increased flood risk

Would also cause backing up of river water in lower reaches

Barrage may be opened during high river flows to move water out quicker

Erosion energy will be reduced behind barrage

Could a barrage help mitigate against future sea-level rise?

Future Sea-Level Rise


Issues for consideration24 l.jpg

Would a barrage result in changes to sediment distribution? increased erosion and increased flood risk

Will changes have impacts in the Bristol Channel?

What are the implications of raised water tables in the surrounding areas?

What is the likelihood of an increase in contamination of estuarine sediment?

What are the likely impacts on sediment and flood risk of other tidal power generation options?

Costs of extra coastal and flood defences needed due to future sea-level rise vs cost of barrage?

Issues for consideration


Severn barrage not a bore the estuarine ecosystem l.jpg

Severn Barrage ‘Not a Bore?’ increased erosion and increased flood riskThe Estuarine Ecosystem

david.bird@uwe.ac.uk

Environmental Biologist



Estuaries support huge numbers of invertebrates but few species l.jpg

Edible cockle ecosystems

(Cerastoderma edule)

Baltic tellin

(Macoma balthica)

Ragworm

(Hediste diversicolor)

Lugworm

(Arenicola marina)

Estuaries support huge numbers of invertebrates – but few species


Estuaries support huge numbers of invertebrates but few species28 l.jpg

Mud snails ( ecosystemsHydrobia ulvae) – density may exceed 35,000 m-2

Brown shrimp (Crangon crangon)

estimated population ~10000 million shrimps

Estuaries support huge numbers of invertebrates – but few species


100 fish species have been recorded from the severn estuary bristol channel l.jpg

1. Sand goby ecosystems

2. Bass

3. Whiting

100+ fish species have been recorded from the Severn Estuary & Bristol Channel

  • just 10 species contribute to 90% of all fish


Slide30 l.jpg

Herring ecosystems

Sprat

European eel

River lamprey

  • Important nursery for many marine species

  • Used as a migratory corridor by some species


Slide31 l.jpg

4,000 ecosystems

6,600

44,445

3,800

Golden plover

(Pluvialis apricaria)

Ringed plover

(Charadrius hiaticula)

Dunlin

(Calidris alpina)

Knot

(Calidris canutus)

Invertebrates & fish support an average wading bird population of 88,500 individuals


Issues for consideration32 l.jpg
Issues for consideration: ecosystems

  • How do we balance the need for energy against the potential for environmental damage?

  • The ecosystem will not be destroyed – but it will be changed – for better or worse?

  • How do we put a value on species & biodiversity – are salmon more important than lampreys?


Questions for the berr feasibility study to address l.jpg

The following slides provide a list of questions for the BERR Feasibility Study to address as formulated by the participants at the Not a Bore Science Café Event.

Some 85 people drawn from the Bristol hinterland attended the Science Café event held at the University of the West of England on 30th June 2008.

Following a series of short scene setting presentations participants discussed the implications of tidal power from the Severn estuary.

Arising from these discussions are a list of questions that the BERR Feasibility Study should address.

Questions for the BERR Feasibility Study to Address

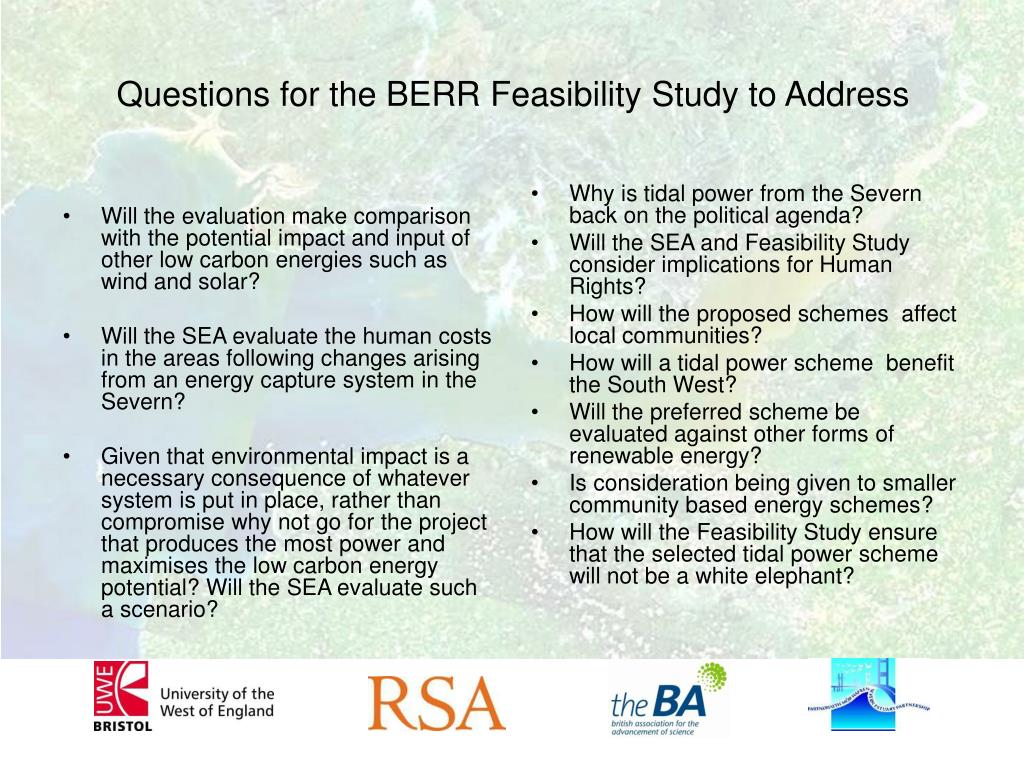

Questions for the berr feasibility study to address34 l.jpg

Will the evaluation make comparison with the potential impact and input of other low carbon energies such as wind and solar?

Will the SEA evaluate the human costs in the areas following changes arising from an energy capture system in the Severn?

Given that environmental impact is a necessary consequence of whatever system is put in place, rather than compromise why not go for the project that produces the most power and maximises the low carbon energy potential? Will the SEA evaluate such a scenario?

Why is tidal power from the Severn back on the political agenda?

Will the SEA and Feasibility Study consider implications for Human Rights?

How will the proposed schemes affect local communities?

How will a tidal power scheme benefit the South West?

Will the preferred scheme be evaluated against other forms of renewable energy?

Is consideration being given to smaller community based energy schemes?

How will the Feasibility Study ensure that the selected tidal power scheme will not be a white elephant?

Questions for the BERR Feasibility Study to Address


Questions for the berr feasibility study to address35 l.jpg

How confident can we be that the Feasibility Study methodology is not biased in favour of any particular type of technology or size of scheme and that it takes account of the cost effectiveness of non-tidal power alternatives to put the study’s conclusions in context?

What are the likely health impacts of a barrage particularly in construction and also through increased risk of flooding.

How are the cultural aspects/damage/change to be costed?

The Severn bore is a unique natural phenomenon – how can a monetary values be put on it?

If a barrage is the preferred option how will sufficient aggregate be sourced to build the structure?

Will the Feasibility Study identify the responsible parties to undertake environmental compensation?

What will be the impact of any scheme on flood risks?  Will the flood scenarios considered actually be worst case?

How will the commercial effect on the Bristol's Docks be taken into account?

Questions for the BERR Feasibility Study to Address


Questions for the berr feasibility study to address36 l.jpg

How is the lack of scientific and engineering knowledge being addressed?

Will ownership of a scheme be considered in the feasibility study?

How certain are the cost estimates? Are allowances made for the legal compensation that will be required?

How seriously are the alternatives to a barrage being considered?

How much energy conservation could the likely cost of a Weston – Lavernock Barrage buy?

What is the payback period for the carbon footprint?

What will be the impacts on the ecology and how certain can we be that the ecological compensation schemes will be able to replace the lost biodiversity?

How confident are we that a tidal power scheme will be future proof? Will a scheme be as efficient in 10 years time as the day it is commissioned?

What effect will the discontinuous operation of a tidal power scheme have on the supply of electricity and on the maintenance of the site?

Questions for the BERR Feasibility Study to Address
