Rectangular-Horizontal-Autoclave-LBN-RH151

Labnic Rectangular Horizontal Autoclave is a compact, floor-standing steam sterilizer with a 100L chamber. It operates with saturated steam at 115u00b0-134u00b0C and 0.22 MPa pressure. Features include u00b12u00b0C heat precision, 0-99 min drying time, automatic steam availability, and a water-level safety lock.

Donna58
Download Presentation

Rectangular-Horizontal-Autoclave-LBN-RH151

An Image/Link below is provided (as is) to download presentation Download Policy: Content on the Website is provided to you AS IS for your information and personal use and may not be sold / licensed / shared on other websites without getting consent from its author. Content is provided to you AS IS for your information and personal use only. Download presentation by click this link. While downloading, if for some reason you are not able to download a presentation, the publisher may have deleted the file from their server. During download, if you can't get a presentation, the file might be deleted by the publisher.

E N D

Presentation Transcript

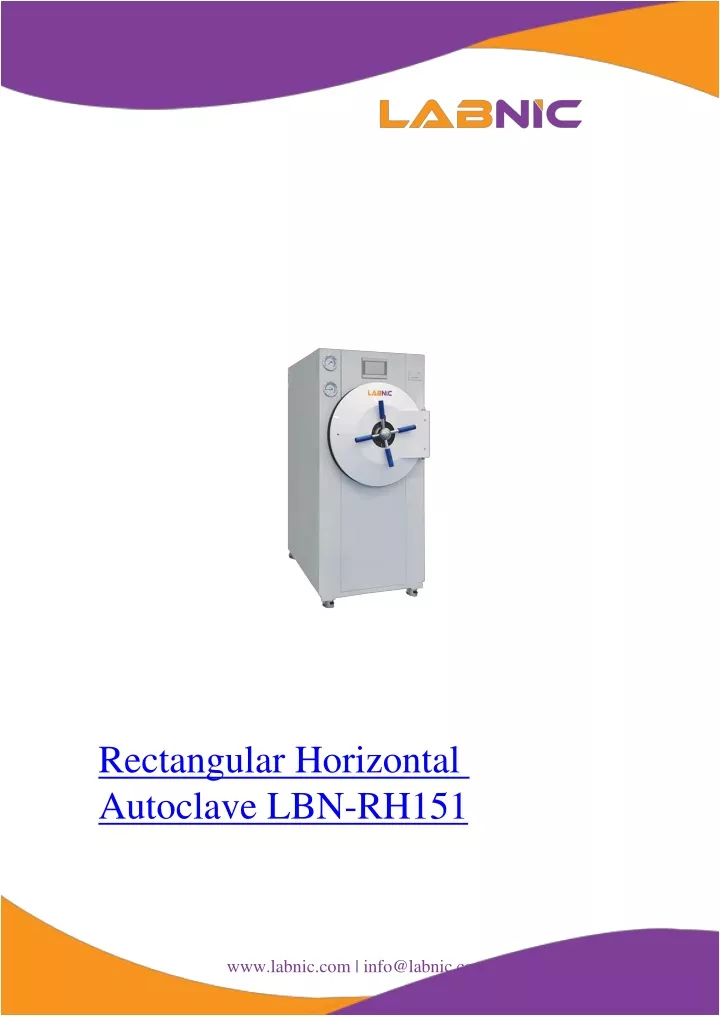

  1. Rectangular Horizontal Autoclave LBN-RH151 www.labnic.com | info@labnic.com

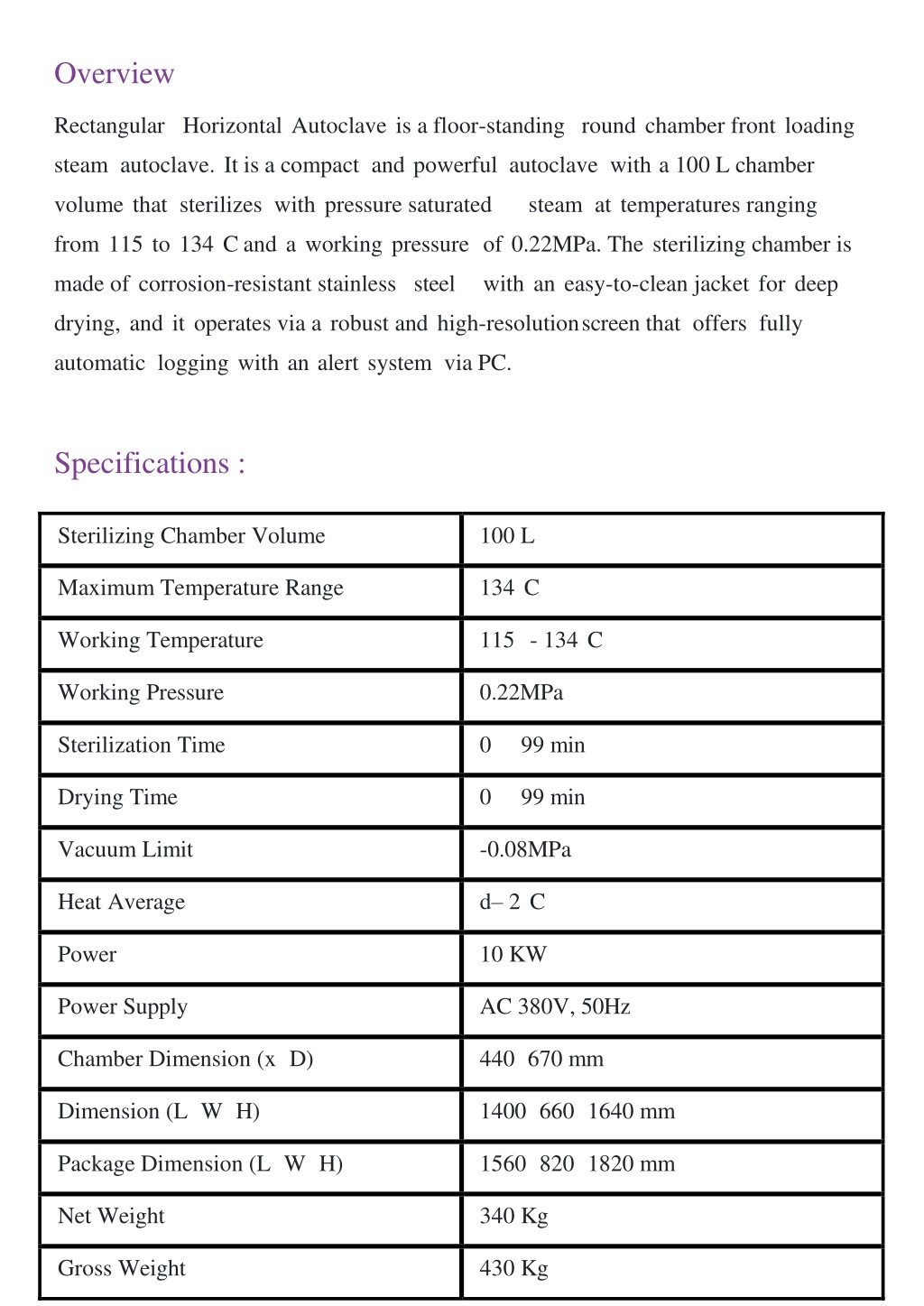

  2. Overview Rectangular Horizontal Autoclave is a floor-standing round chamber front loading steam autoclave. It is a compact and powerful autoclave with a 100 L chamber volume that sterilizes with pressure saturated steam at temperatures ranging from 115 to 134 C and a working pressure of 0.22MPa. The sterilizing chamber is made of corrosion-resistant stainless steel with an easy-to-clean jacket for deep drying, and it operates via a robust and high-resolution screen that offers fully automatic logging with an alert system via PC. Specifications : Sterilizing Chamber Volume 100 L Maximum Temperature Range 134 C Working Temperature 115 - 134 C Working Pressure 0.22MPa Sterilization Time 0 99 min Drying Time 0 99 min Vacuum Limit -0.08MPa Heat Average d– 2 C Power 10 KW Power Supply AC 380V, 50Hz Chamber Dimension (xD) 440670 mm Dimension (LWH) 14006601640 mm Package Dimension (LWH) 15608201820 mm Net Weight 340 Kg Gross Weight 430 Kg

  3. Only two pages were converted. Please Sign Up to convert the full document. www.freepdfconvert.com/membership
