pH-Meter-LBN-PH181 .

Labnic bench-top pH Meter has a water-resistant keypad, a dual display for pH and temperature, and a 7-inch color screen. It features auto/manual temperature compensation (-10u00b0C to 110u00b0C), a pH range of -2.00 to 19.99, and stores up to 1000 data sets with real-time calibration logs.

Donna58
Download Presentation

pH-Meter-LBN-PH181 .

An Image/Link below is provided (as is) to download presentation Download Policy: Content on the Website is provided to you AS IS for your information and personal use and may not be sold / licensed / shared on other websites without getting consent from its author. Content is provided to you AS IS for your information and personal use only. Download presentation by click this link. While downloading, if for some reason you are not able to download a presentation, the publisher may have deleted the file from their server. During download, if you can't get a presentation, the file might be deleted by the publisher.

E N D

Presentation Transcript

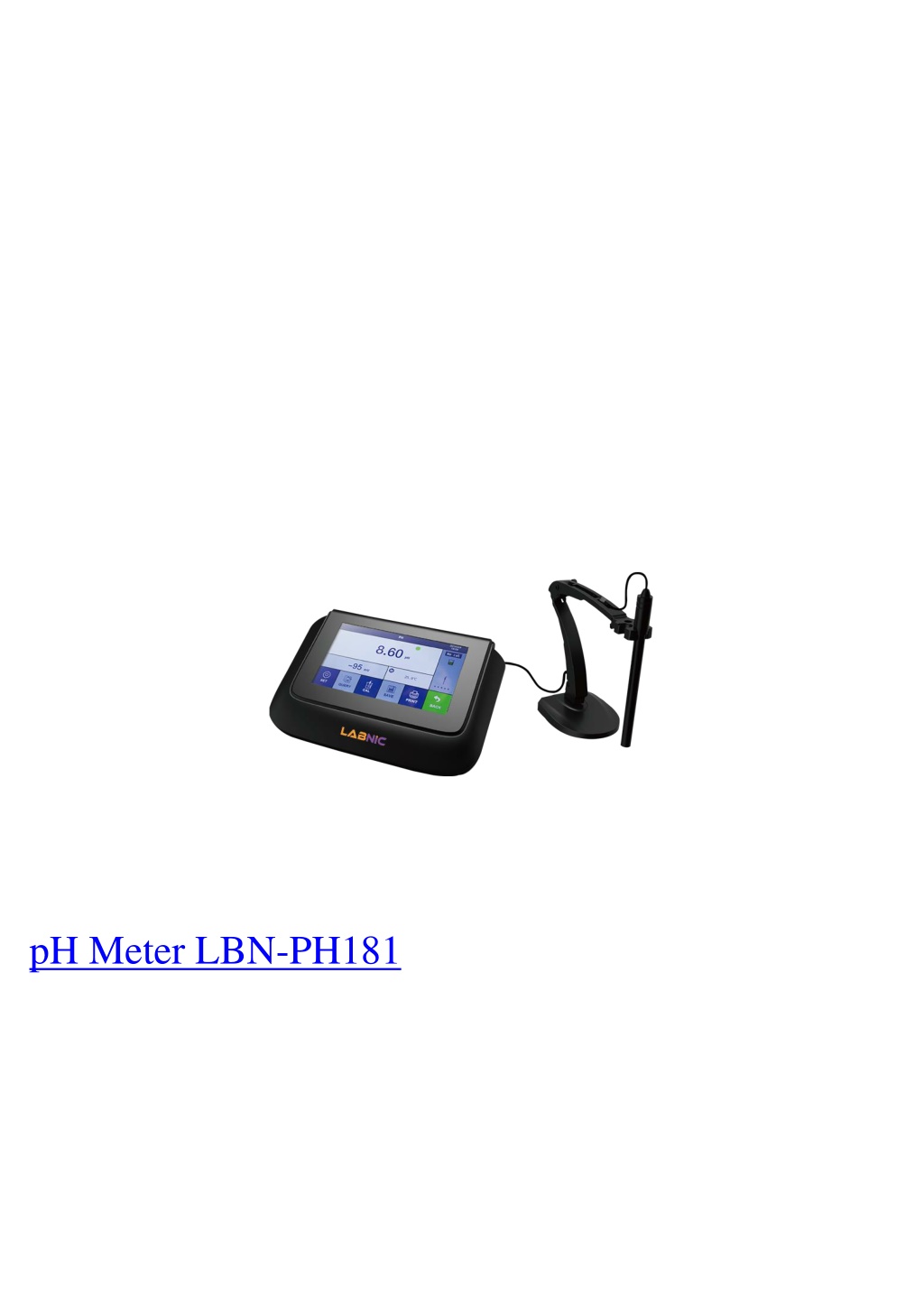

  1. pH Meter LBN-PH181

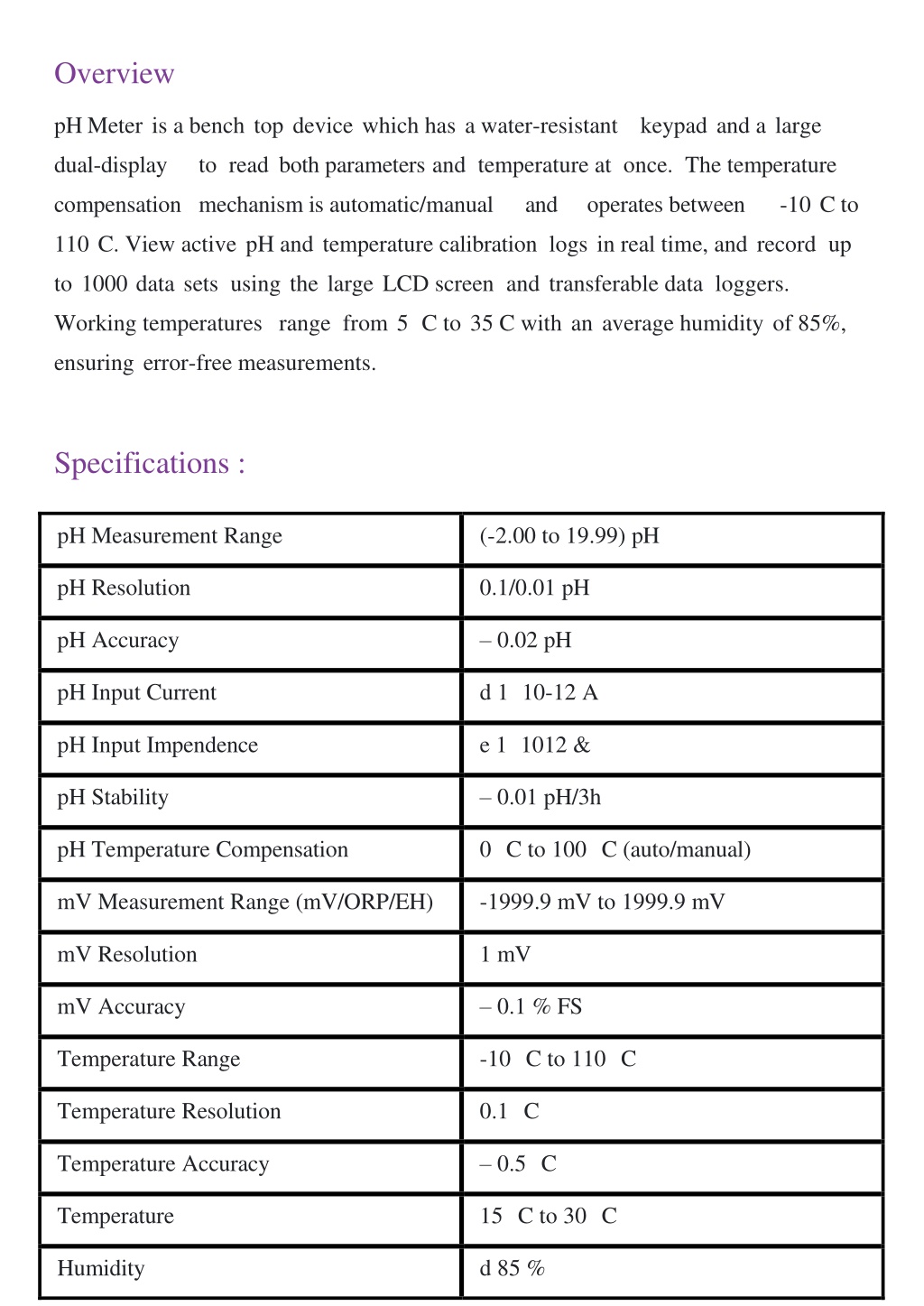

  2. Overview pH Meter is a bench top device which has a water-resistant keypad and a large dual-display to read both parameters and temperature at once. The temperature compensation mechanism is automatic/manual and operates between -10 C to 110 C. View active pH and temperature calibration logs in real time, and record up to 1000 data sets using the large LCD screen and transferable data loggers. Working temperatures range from 5 C to 35 C with an average humidity of 85%, ensuring error-free measurements. Specifications : pH Measurement Range (-2.00 to 19.99) pH pH Resolution 0.1/0.01 pH pH Accuracy – 0.02 pH pH Input Current d 110-12 A pH Input Impendence e 11012 & pH Stability – 0.01 pH/3h pH Temperature Compensation 0 C to 100 C (auto/manual) mV Measurement Range (mV/ORP/EH) -1999.9 mV to 1999.9 mV mV Resolution 1 mV mV Accuracy – 0.1 % FS Temperature Range -10 C to 110 C Temperature Resolution 0.1 C Temperature Accuracy – 0.5 C Temperature 15 C to 30 C Humidity d 85 %

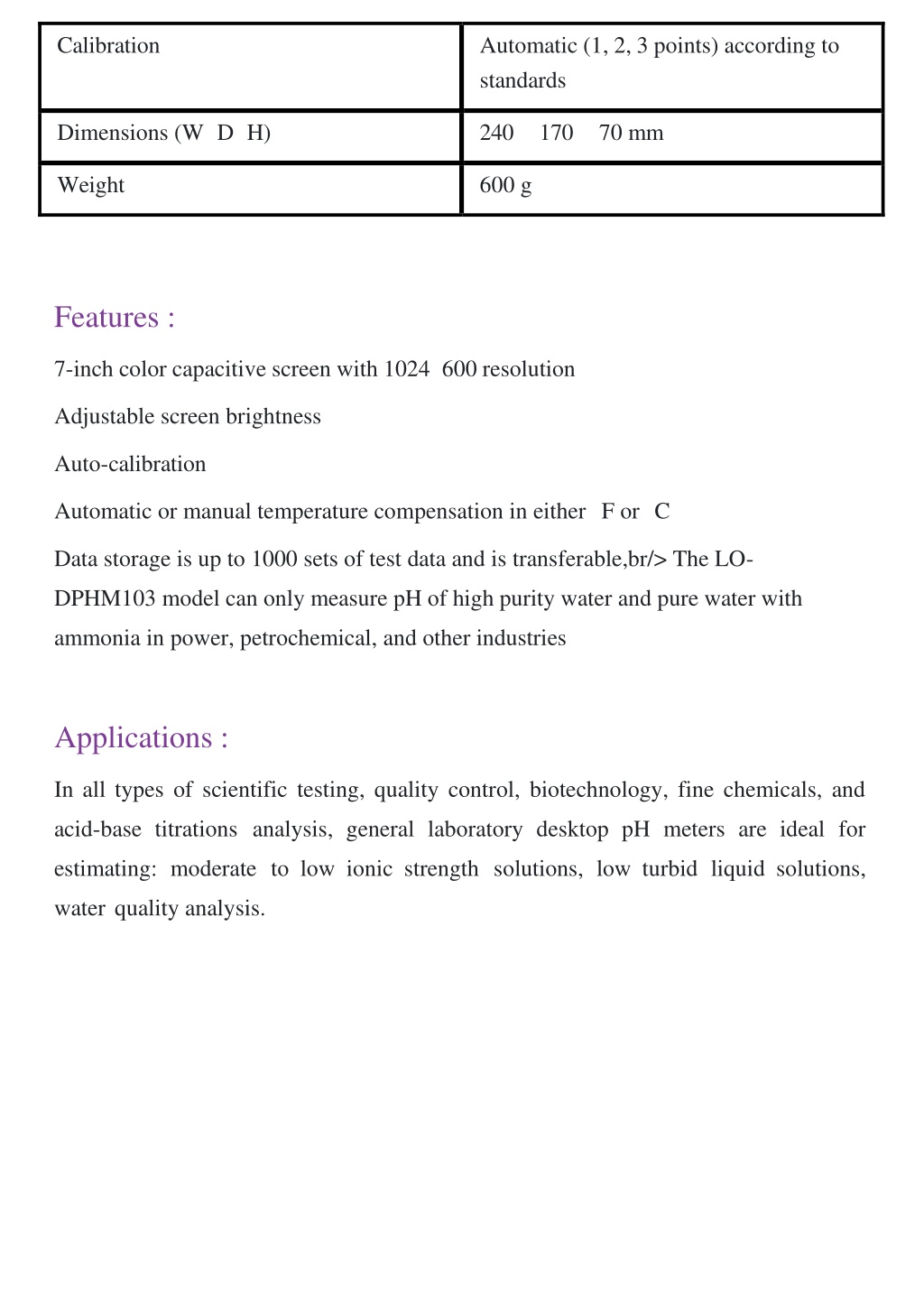

  3. Calibration Automatic (1, 2, 3 points) according to standards Dimensions (WDH) 240 170 70 mm Weight 600 g Features : 7-inch color capacitive screen with 1024 600 resolution Adjustable screen brightness Auto-calibration Automatic or manual temperature compensation in either F or C Data storage is up to 1000 sets of test data and is transferable,br/> The LO- DPHM103 model can only measure pH of high purity water and pure water with ammonia in power, petrochemical, and other industries Applications : In all types of scientific testing, quality control, biotechnology, fine chemicals, and acid-base titrations analysis, general laboratory desktop pH meters are ideal for estimating: moderate to low ionic strength solutions, low turbid liquid solutions, water quality analysis.

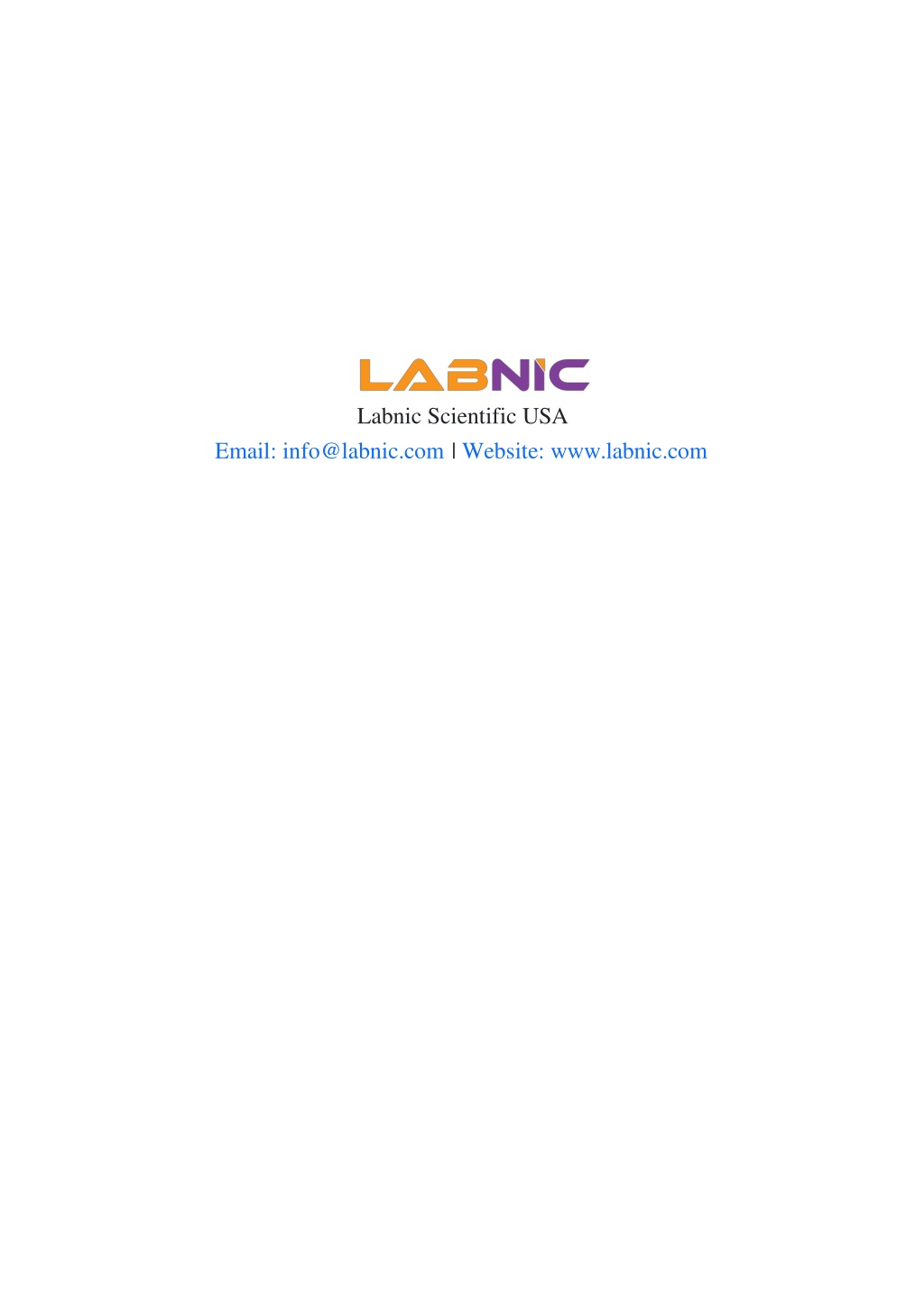

  4. Labnic Scientific USA Email: info@labnic.com | Website: www.labnic.com
