Manual-Disc-Polarimeter-LBN-MP141

Labnic Manual Disc Polarimeter measures optical rotation with 0.05u00b0 accuracy, using a 200 mm sample chamber and a 589 nm sodium lamp. With a u00b1180u00b0 range and 1u00b0 scale value, it enables easy reading, calibration, and concentration measurement for optically active solutions.

Donna58
Download Presentation

Manual-Disc-Polarimeter-LBN-MP141

An Image/Link below is provided (as is) to download presentation Download Policy: Content on the Website is provided to you AS IS for your information and personal use and may not be sold / licensed / shared on other websites without getting consent from its author. Content is provided to you AS IS for your information and personal use only. Download presentation by click this link. While downloading, if for some reason you are not able to download a presentation, the publisher may have deleted the file from their server. During download, if you can't get a presentation, the file might be deleted by the publisher.

E N D

Presentation Transcript

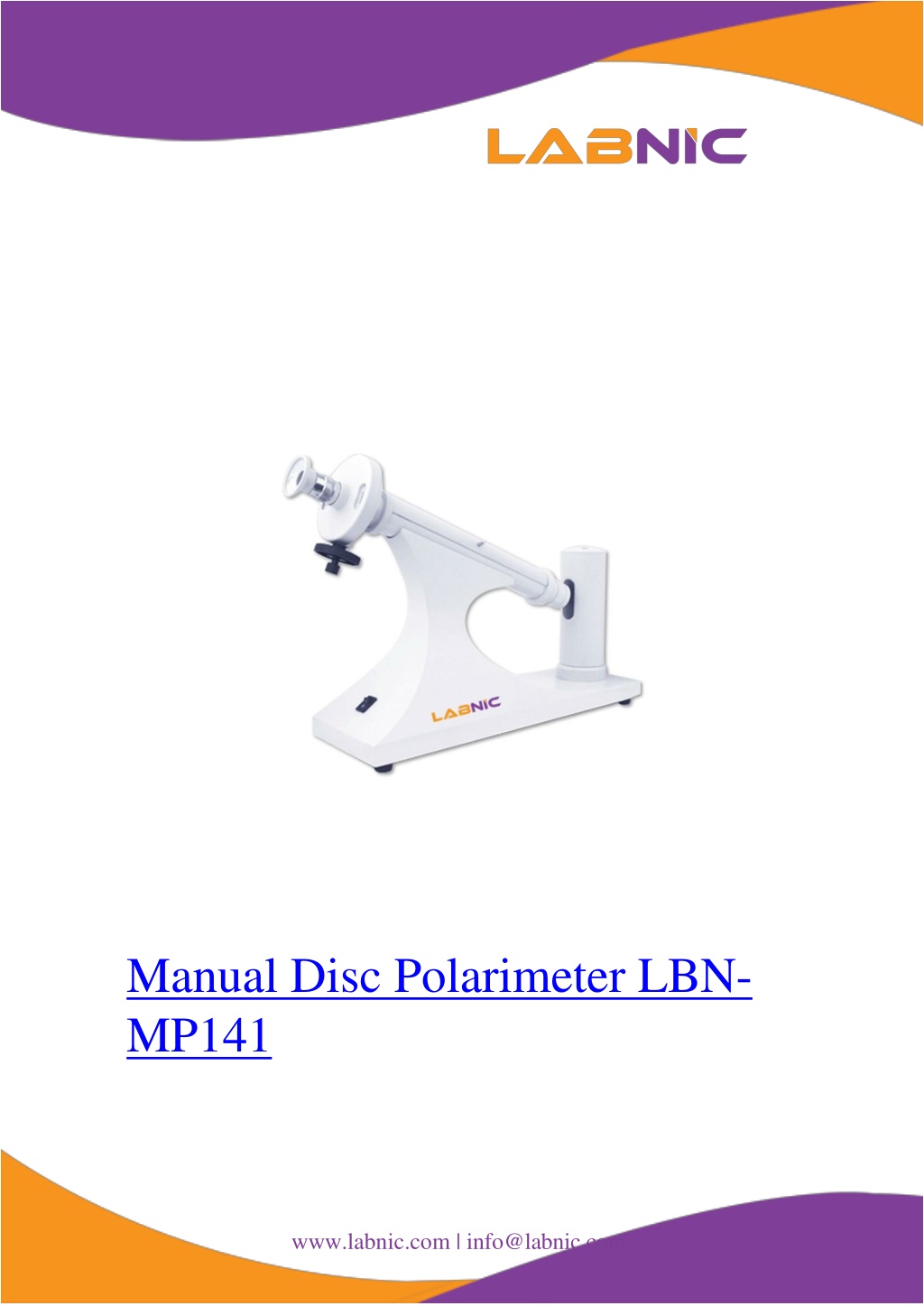

  1. Manual Disc Polarimeter LBN- MP141 www.labnic.com | info@labnic.com

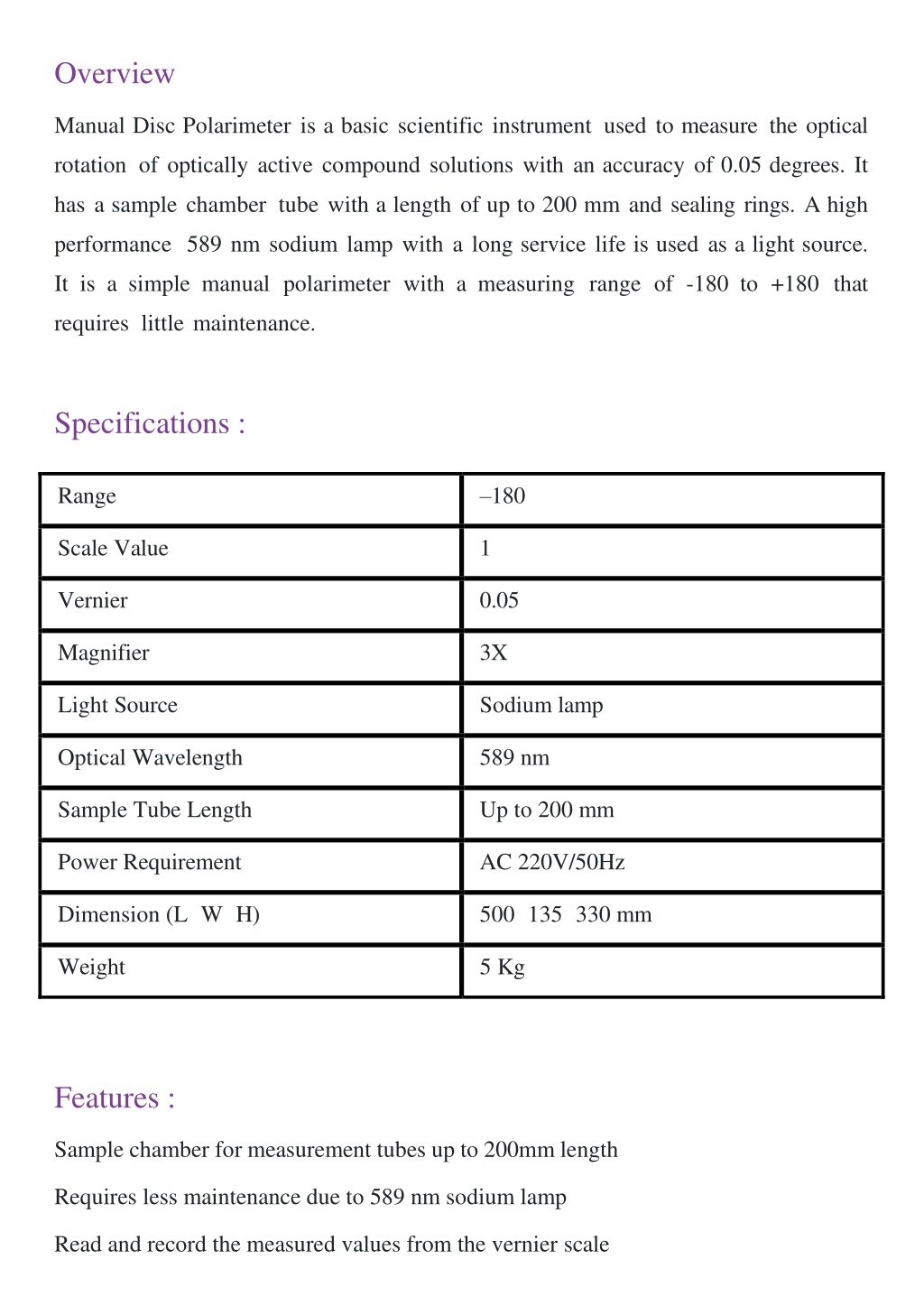

  2. Overview Manual Disc Polarimeter is a basic scientific instrument used to measure the optical rotation of optically active compound solutions with an accuracy of 0.05 degrees. It has a sample chamber tube with a length of up to 200 mm and sealing rings. A high performance589 nm sodium lamp with a long service life is used as a light source. It is a simple manual polarimeter with a measuring range of -180 to +180 that requires little maintenance. Specifications : Range –180 Scale Value 1 Vernier 0.05 Magnifier 3X Light Source Sodium lamp Optical Wavelength 589 nm Sample Tube Length Up to 200 mm Power Requirement AC 220V/50Hz Dimension (LWH) 500135330 mm Weight 5 Kg Features : Sample chamber for measurement tubes up to 200mm length Requires less maintenance due to 589 nm sodium lamp Read and record the measured values from the vernier scale
