Horizontal-Clean-Bench-LBN-HC131

Labnic Horizontal Clean Bench features a single workspace with horizontal airflow, HEPA filters offering 99.99% efficacy, and adjustable wind speeds (0.3u20130.6 m/s). It operates at 10u201330u00b0C with <70% humidity, using clean air technology and a low-power motor for efficient performance.

Donna58
Download Presentation

Horizontal-Clean-Bench-LBN-HC131

An Image/Link below is provided (as is) to download presentation Download Policy: Content on the Website is provided to you AS IS for your information and personal use and may not be sold / licensed / shared on other websites without getting consent from its author. Content is provided to you AS IS for your information and personal use only. Download presentation by click this link. While downloading, if for some reason you are not able to download a presentation, the publisher may have deleted the file from their server. During download, if you can't get a presentation, the file might be deleted by the publisher.

E N D

Presentation Transcript

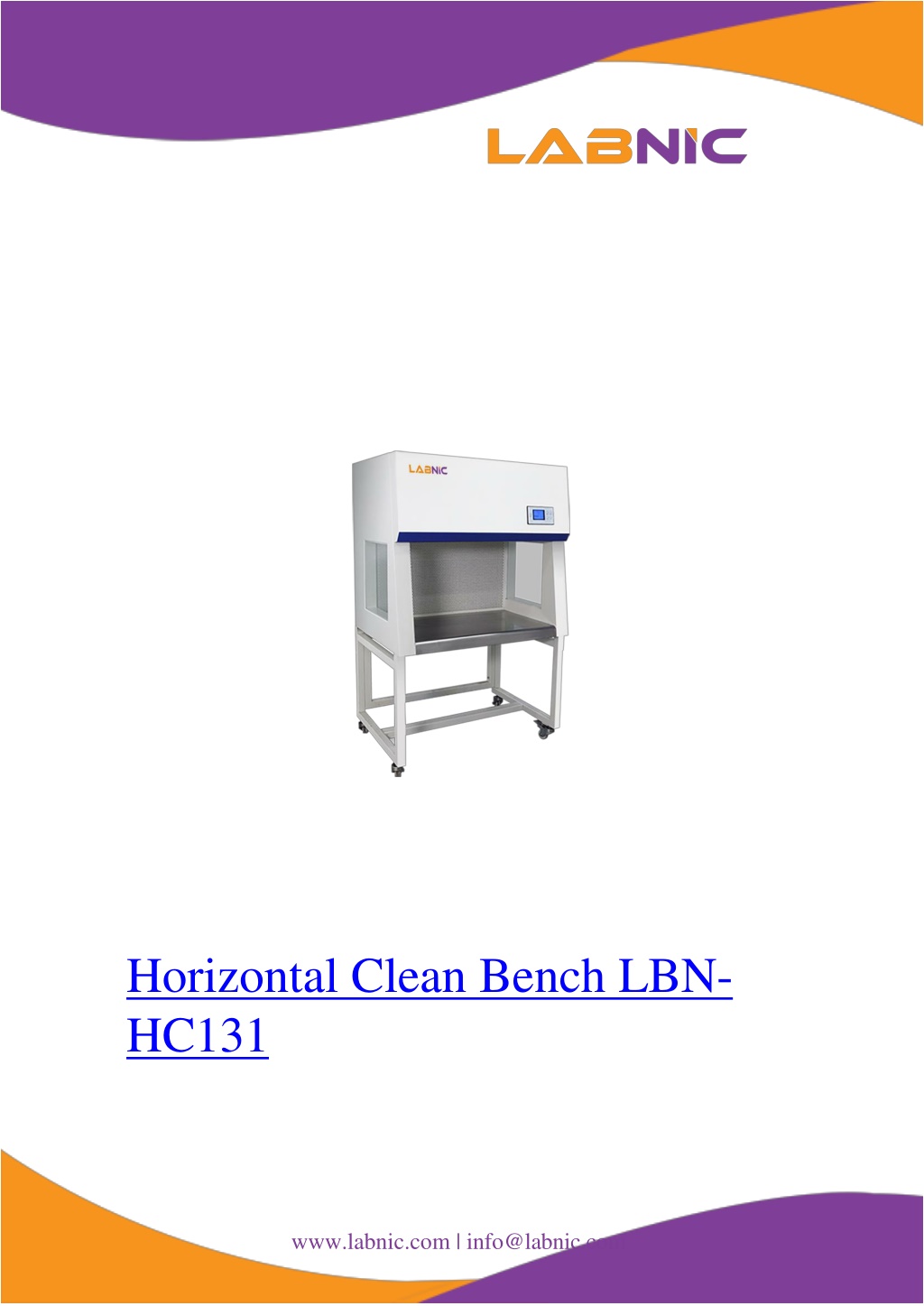

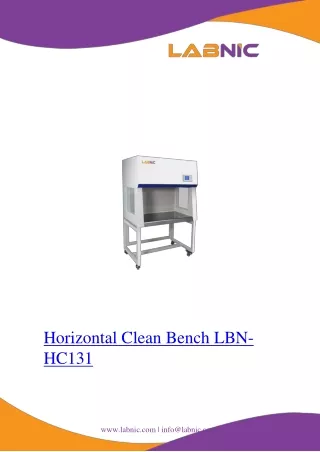

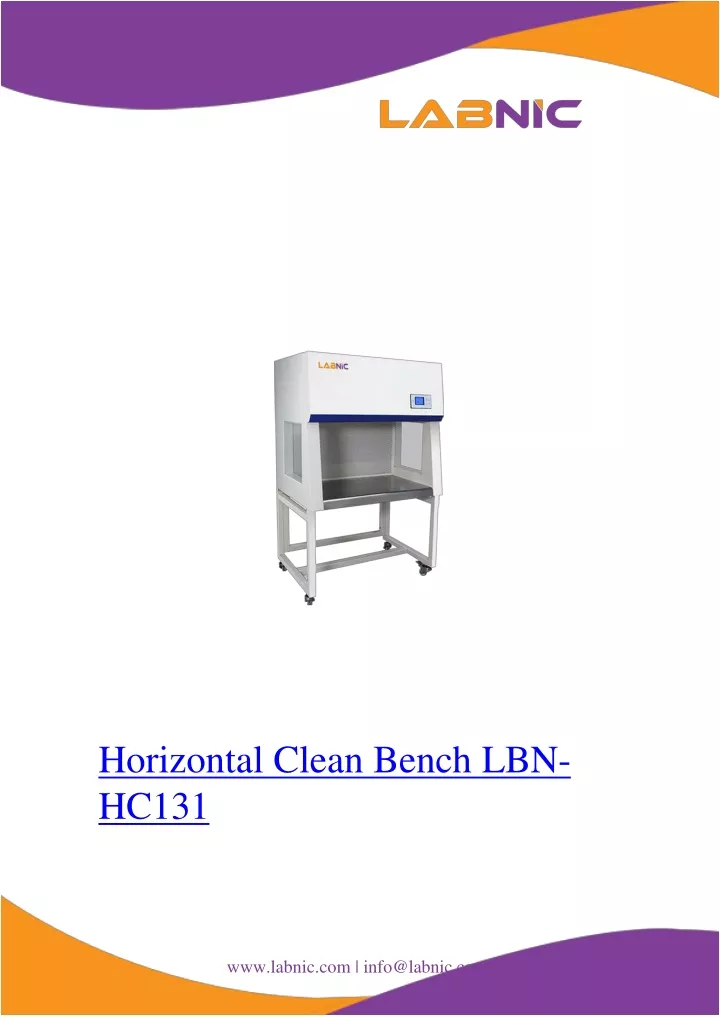

  1. Horizontal Clean Bench LBN- HC131 www.labnic.com | info@labnic.com

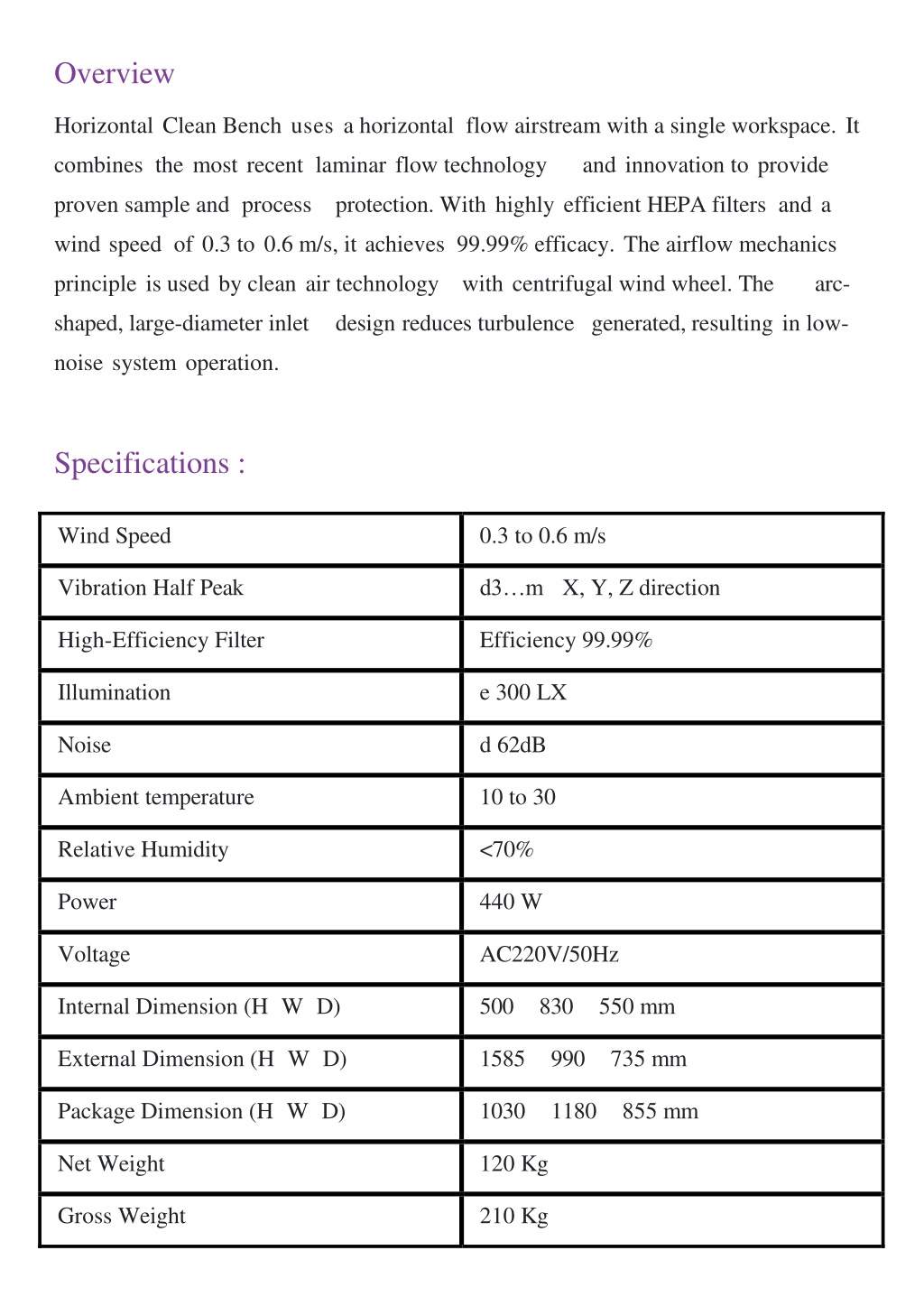

  2. Overview Horizontal Clean Bench uses a horizontal flow airstream with a single workspace. It combines the most recent laminar flow technology and innovation to provide proven sample and process protection. With highly efficient HEPA filters and a wind speed of 0.3 to 0.6 m/s, it achieves 99.99% efficacy. The airflow mechanics principle is used by clean air technology with centrifugal wind wheel. The arc- shaped, large-diameter inlet design reduces turbulence generated, resulting in low- noise system operation. Specifications : Wind Speed 0.3 to 0.6 m/s Vibration Half Peak d3…m X, Y, Z direction High-Efficiency Filter Efficiency 99.99% Illumination e 300 LX Noise d 62dB Ambient temperature 10 to 30 Relative Humidity <70% Power 440 W Voltage AC220V/50Hz Internal Dimension (HWD) 500 830 550 mm External Dimension (HWD) 1585 990 735 mm Package Dimension (HWD) 1030 1180 855 mm Net Weight 120 Kg Gross Weight 210 Kg

  3. Only two pages were converted. Please Sign Up to convert the full document. www.freepdfconvert.com/membership
