Horizontal-Autoclave-LBN-CH151

Labnic Horizontal Autoclave is a 150L, front-loading sterilizer designed for large-scale use. It features programmable steam cycles, adjustable temperature (40u00b0-134u00b0C), 0-60 minute sterilization and drying times, u00b12u00b0C precision, digital controls, 0.22 MPa pressure, and a safety door lock.<br>

Donna58
Download Presentation

Horizontal-Autoclave-LBN-CH151

An Image/Link below is provided (as is) to download presentation Download Policy: Content on the Website is provided to you AS IS for your information and personal use and may not be sold / licensed / shared on other websites without getting consent from its author. Content is provided to you AS IS for your information and personal use only. Download presentation by click this link. While downloading, if for some reason you are not able to download a presentation, the publisher may have deleted the file from their server. During download, if you can't get a presentation, the file might be deleted by the publisher.

E N D

Presentation Transcript

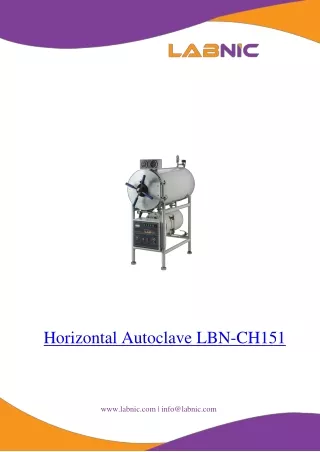

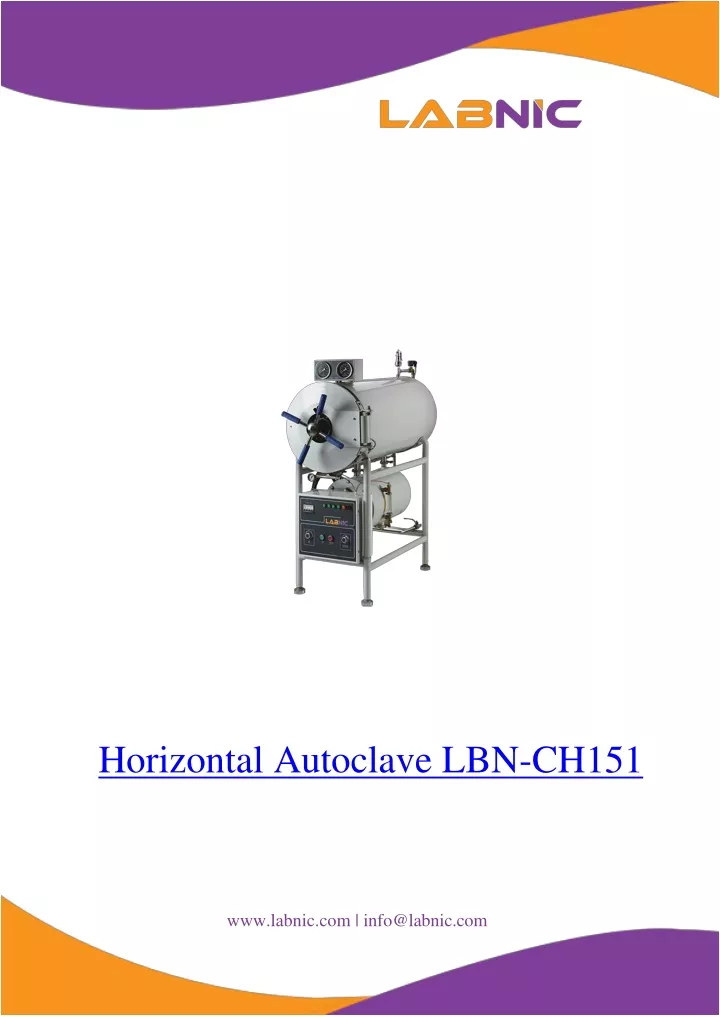

  1. Horizontal Autoclave LBN-CH151 www.labnic.com | info@labnic.com

  2. Overview Horizontal Autoclave is a front-loading cylindrical autoclave with a 150-liter chamber capacity designed to meet large capacity sterilization needs. It is a programmable cylindrical vessel that enables automatic steam sterilization with precise cycles operating within a timer range of 0 - 60 minutes and a working temperature range of 134 C.The chamber is made of stainless steel for increased durability and reliability, and it has an auto-protect function that shuts off the power if there is insufficient water supply while the process is running. Specifications : Sterilizing Chamber Volume 150 L Working Temperature 134 C Adjustable Temperature Range 40 - 134 C Working Pressure 0.22MPa Sterilization Time 0 60 minutes Drying Time 0 60 minutes Heat Average d –2 C Power 9 KW Power Supply AC 380V, 50Hz Chamber Dimension (xD) 440 1000 mm Dimension (LWH) 14006001300 mm Package Dimension (LWH) 15507501850 mm Net Weight 240 Kg Gross Weight 320 Kg

  3. Only two pages were converted. Please Sign Up to convert the full document. www.freepdfconvert.com/membership
