High-Speed-Homogenizer-LBN-HSH121

Labnic High-Speed Homogenizer features an LED speed display, an AC carbon brush motor with stepless speed control for stable operation, and a 300-23,000 rpm range. It offers a 316 stainless steel head, 300 ml max volume, and manual lift. The head is easy to clean and disassemble.

Donna58
Download Presentation

High-Speed-Homogenizer-LBN-HSH121

An Image/Link below is provided (as is) to download presentation Download Policy: Content on the Website is provided to you AS IS for your information and personal use and may not be sold / licensed / shared on other websites without getting consent from its author. Content is provided to you AS IS for your information and personal use only. Download presentation by click this link. While downloading, if for some reason you are not able to download a presentation, the publisher may have deleted the file from their server. During download, if you can't get a presentation, the file might be deleted by the publisher.

E N D

Presentation Transcript

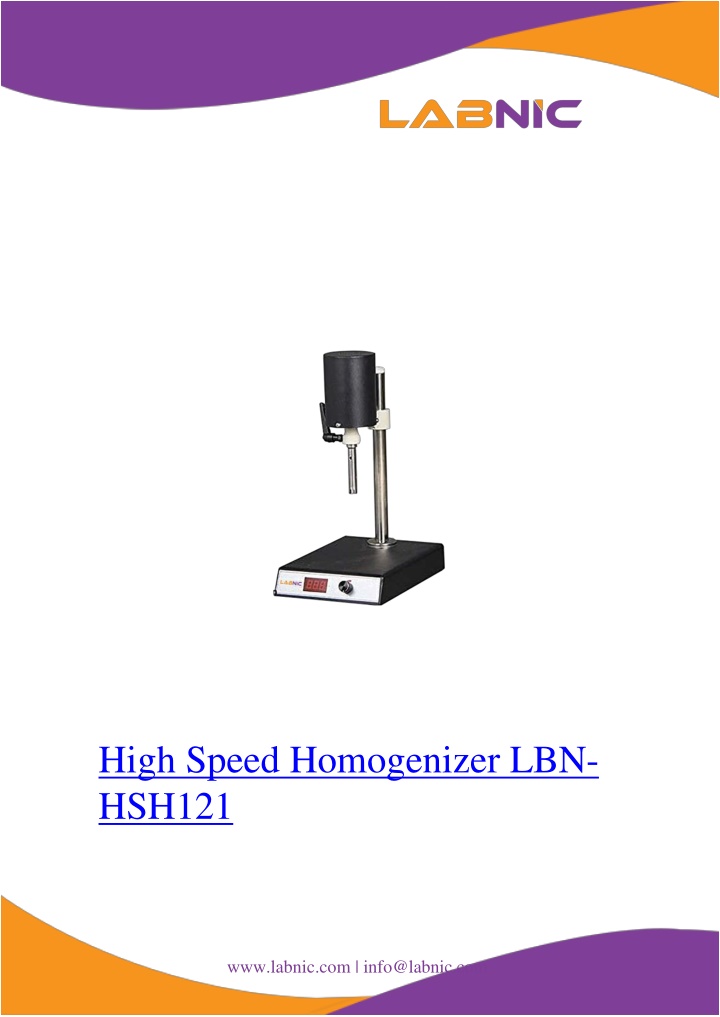

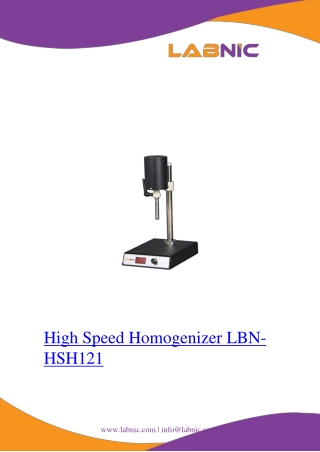

  1. High Speed Homogenizer LBN- HSH121 www.labnic.com | info@labnic.com

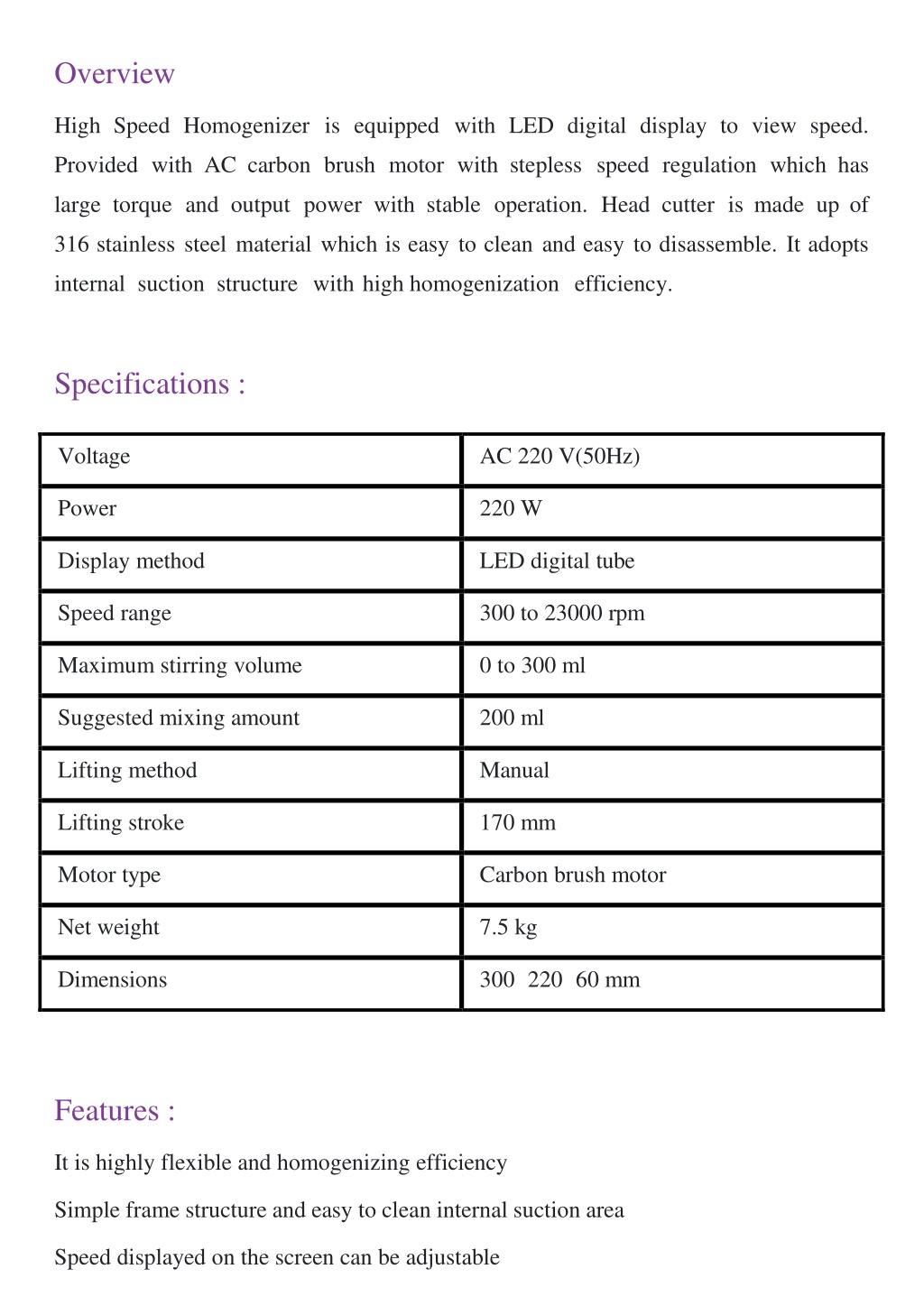

  2. Overview High Speed Homogenizer is equipped with LED digital display to view speed. Provided with AC carbon brush motor with stepless speed regulation which has large torque and output power with stable operation. Head cutter is made up of 316 stainless steel material which is easy to clean and easy to disassemble. It adopts internal suction structurewith high homogenizationefficiency. Specifications : Voltage AC 220 V(50Hz) Power 220 W Display method LED digital tube Speed range 300 to 23000 rpm Maximum stirring volume 0 to 300 ml Suggested mixing amount 200 ml Lifting method Manual Lifting stroke 170 mm Motor type Carbon brush motor Net weight 7.5 kg Dimensions 30022060 mm Features : It is highly flexible and homogenizing efficiency Simple frame structure and easy to clean internal suction area Speed displayed on the screen can be adjustable
