High-Speed-Centrifuge-LBN-HC145

Labnic high-speed centrifuge is a clinical benchtop model with a max speed of 16,000 rpm and RCF of 17,000 u00d7 g. It has brushless motors for low noise and vibration, a 0-99 min timer, 12-slot rotor, 9 kg weight, and operates at 110V/220V. Features include a strong plastic case, metal lid, and LCD display for speed, RCF, and time.

Donna58
Download Presentation

High-Speed-Centrifuge-LBN-HC145

An Image/Link below is provided (as is) to download presentation Download Policy: Content on the Website is provided to you AS IS for your information and personal use and may not be sold / licensed / shared on other websites without getting consent from its author. Content is provided to you AS IS for your information and personal use only. Download presentation by click this link. While downloading, if for some reason you are not able to download a presentation, the publisher may have deleted the file from their server. During download, if you can't get a presentation, the file might be deleted by the publisher.

E N D

Presentation Transcript

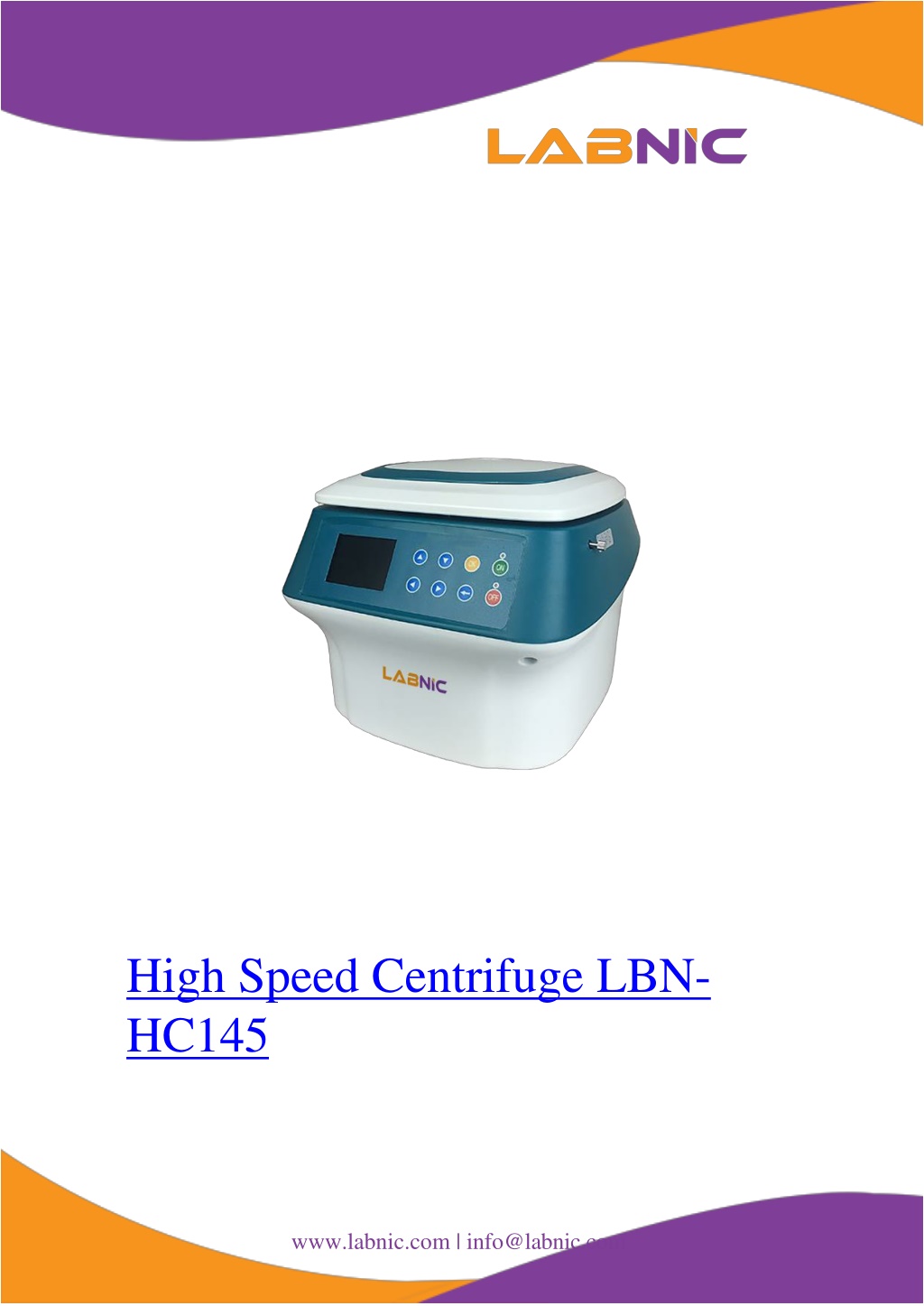

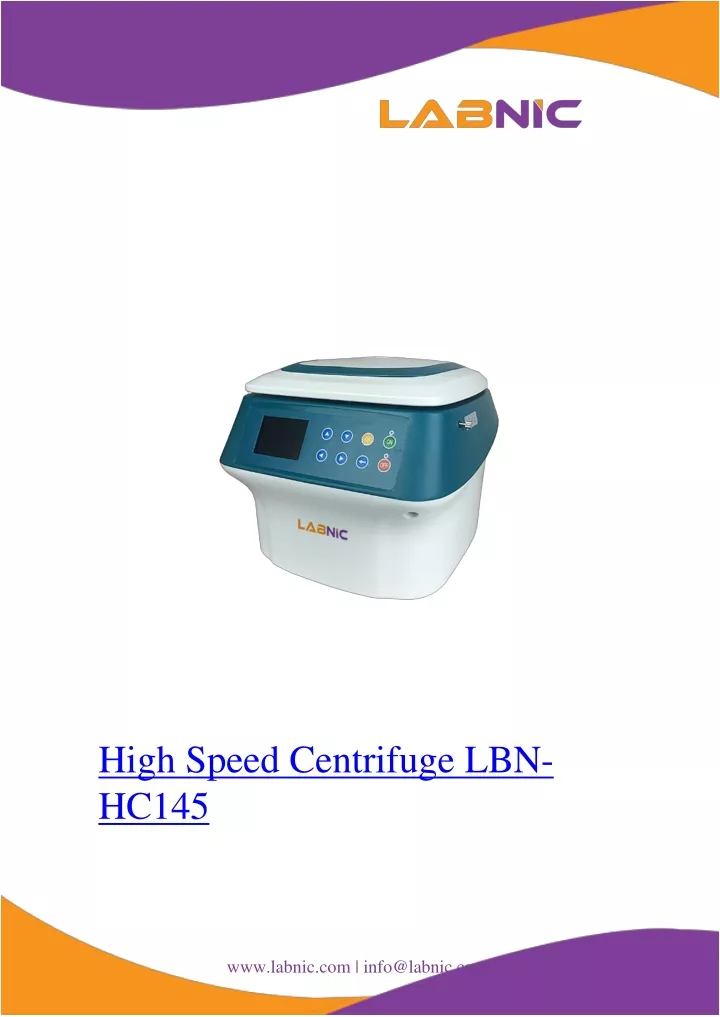

  1. High Speed Centrifuge LBN- HC145 www.labnic.com | info@labnic.com

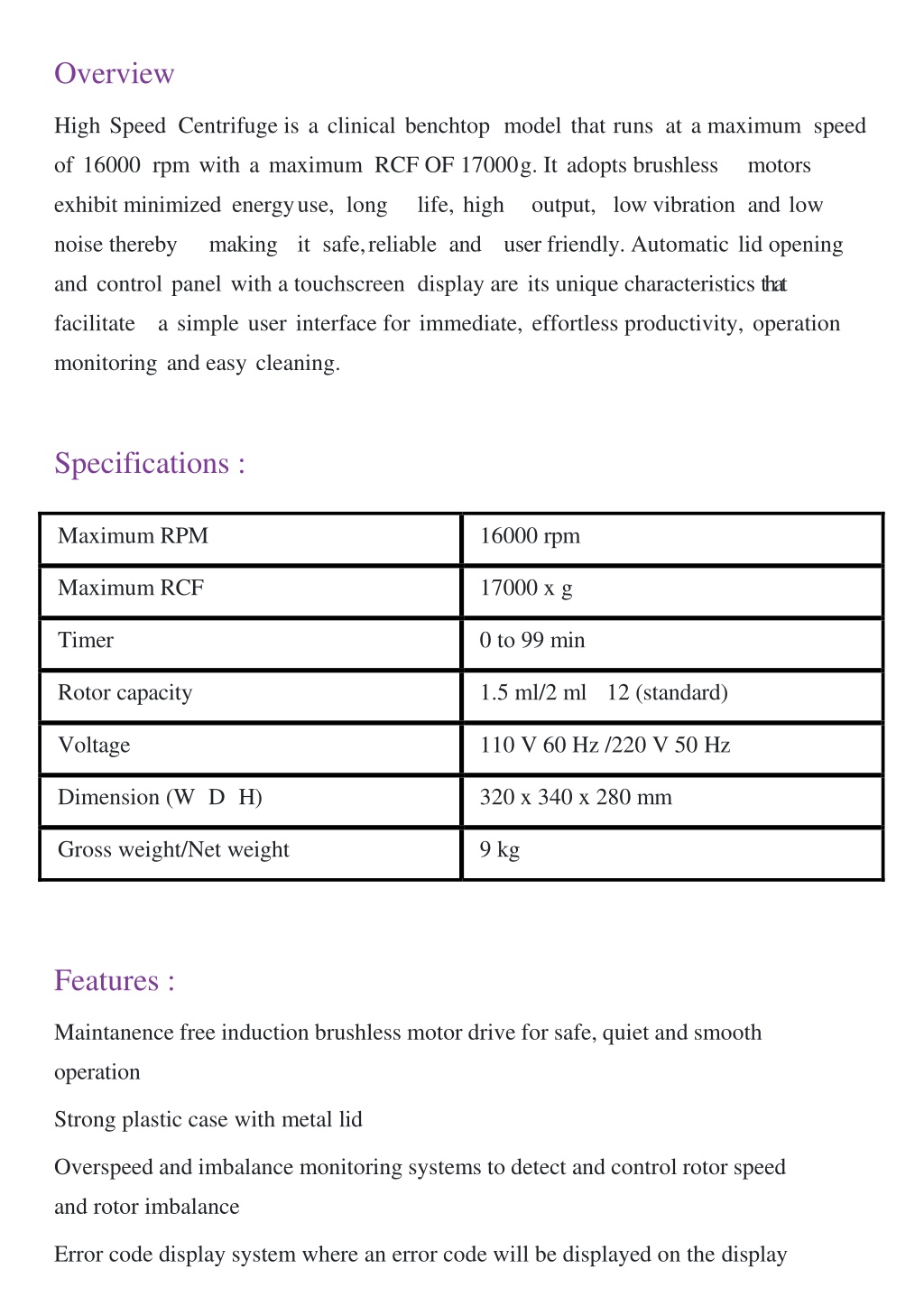

  2. Overview High Speed Centrifuge is a clinical benchtop model that runs at a maximum speed of 16000 rpm with a maximum RCF OF 17000 g. It adopts brushless motors exhibit minimized energy use, long life, high output, low vibration and low noise thereby making it safe, reliable and user friendly. Automatic lid opening and control panel with a touchscreen display are its unique characteristics that facilitate a simple user interface for immediate, effortless productivity, operation monitoring and easy cleaning. Specifications : Maximum RPM 16000 rpm Maximum RCF 17000 x g Timer 0 to 99 min Rotor capacity 1.5 ml/2 ml 12 (standard) Voltage 110 V 60 Hz /220 V 50 Hz Dimension (WDH) 320 x 340 x 280 mm Gross weight/Net weight 9 kg Features : Maintanence free induction brushless motor drive for safe, quiet and smooth operation Strong plastic case with metal lid Overspeed and imbalance monitoring systems to detect and control rotor speed and rotor imbalance Error code display system where an error code will be displayed on the display
