Digital-Polarimeter-LBN-DP141

Labnic Digital Polarimeter measures rotating substances with a 589.3 nm wavelength and auto-calibration from -45u00b0 to 45u00b0. It features precise Peltier temperature control (10u00b0-50u00b0C), u00b10.004u00b0 accuracy, u00b190u00b0 optical rotation, network printing, data retrieval, and reliable performance.

Donna58
Download Presentation

Digital-Polarimeter-LBN-DP141

An Image/Link below is provided (as is) to download presentation Download Policy: Content on the Website is provided to you AS IS for your information and personal use and may not be sold / licensed / shared on other websites without getting consent from its author. Content is provided to you AS IS for your information and personal use only. Download presentation by click this link. While downloading, if for some reason you are not able to download a presentation, the publisher may have deleted the file from their server. During download, if you can't get a presentation, the file might be deleted by the publisher.

E N D

Presentation Transcript

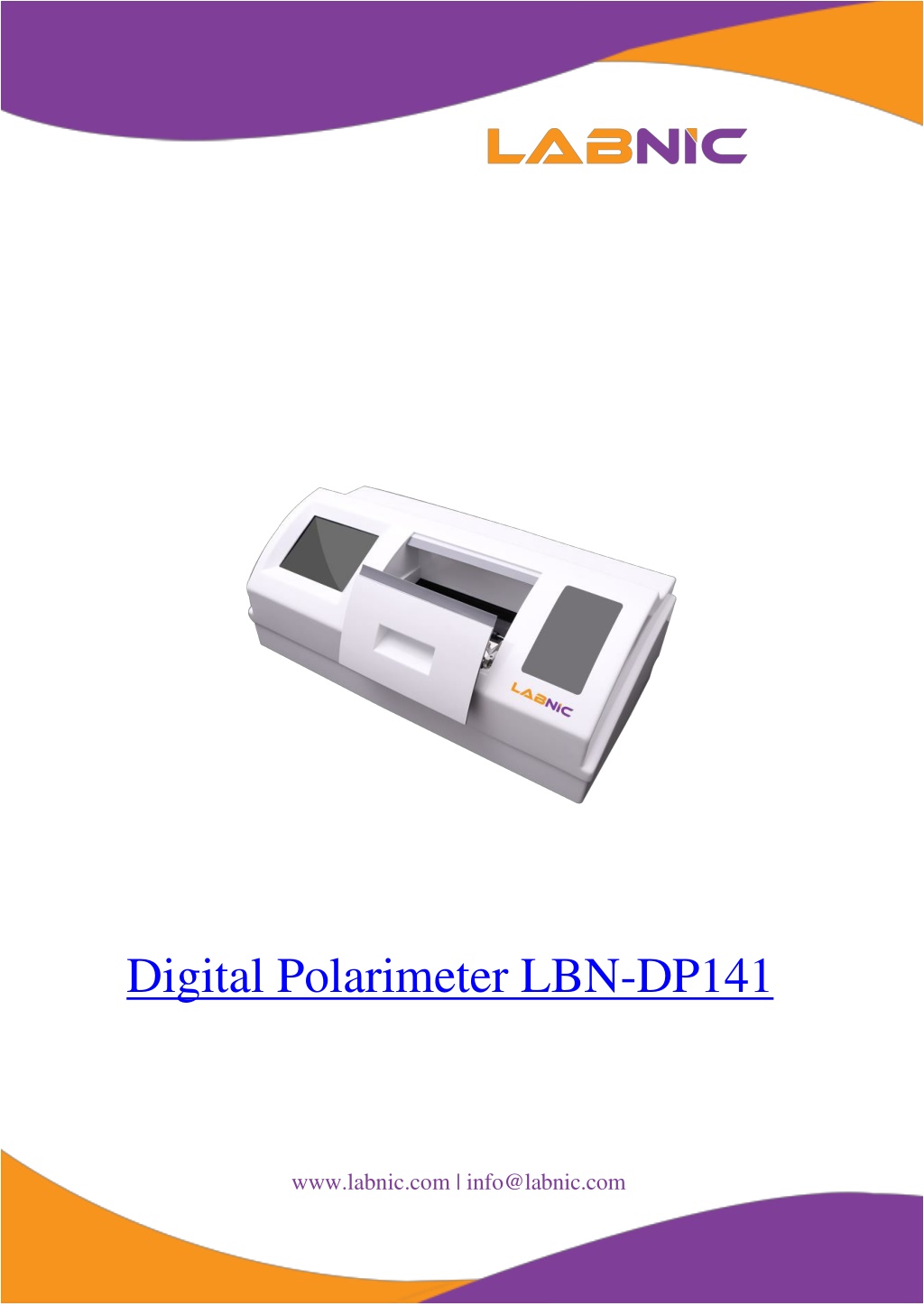

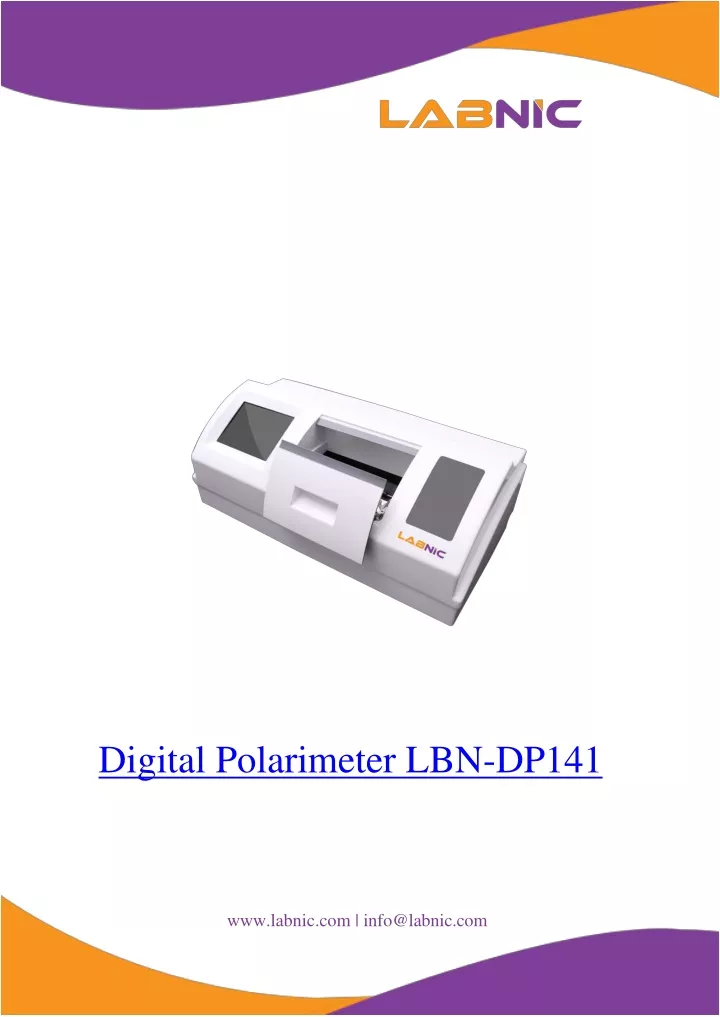

  1. Digital Polarimeter LBN-DP141 www.labnic.com | info@labnic.com

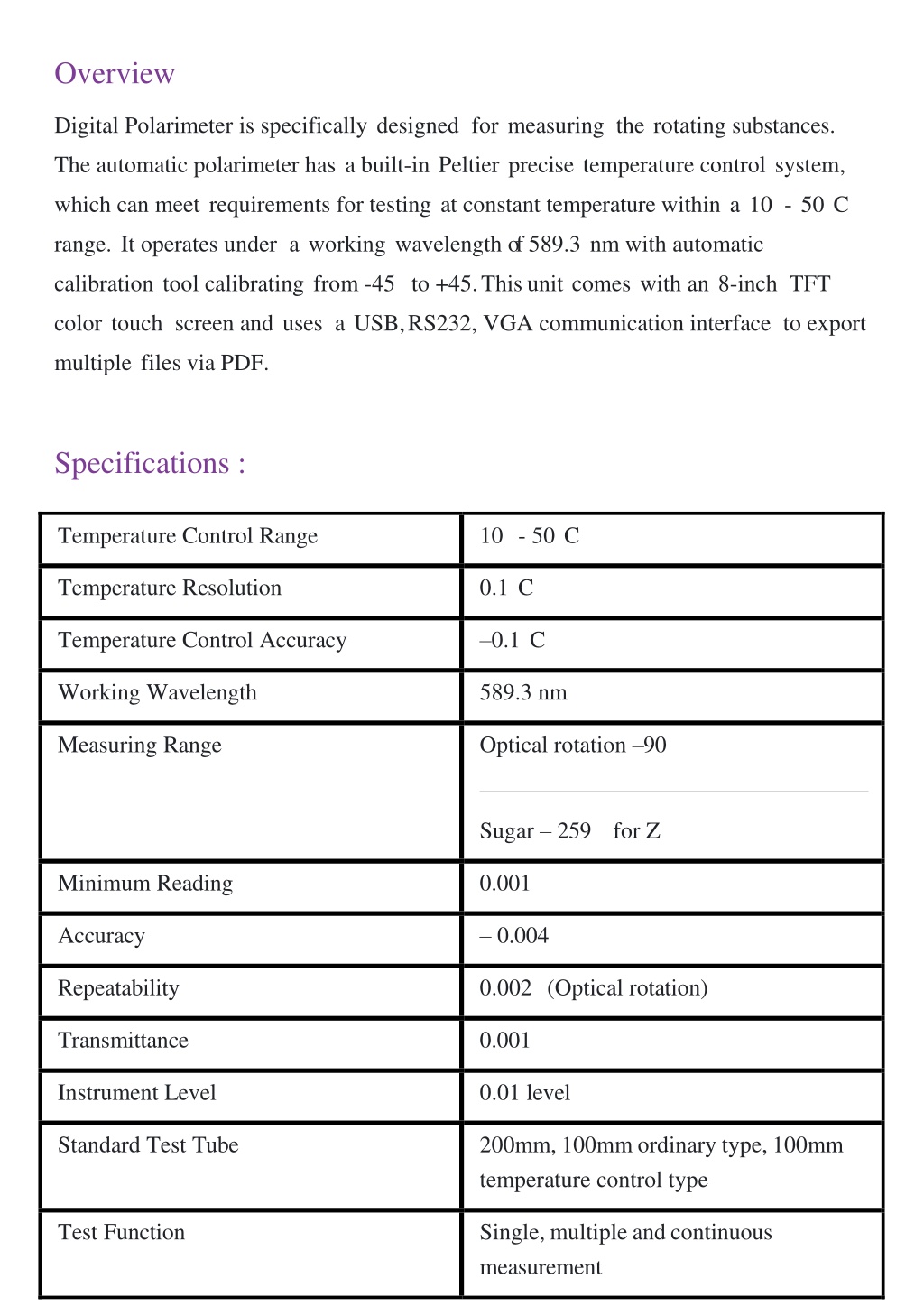

  2. Overview Digital Polarimeter is specifically designed for measuring the rotating substances. The automatic polarimeter has a built-in Peltier precise temperature control system, which can meet requirements for testing at constant temperature within a 10 - 50 C range. It operates under a working wavelength of 589.3 nm with automatic calibration tool calibrating from -45 to +45. This unit comes with an 8-inch TFT color touch screen and uses a USB, RS232, VGA communication interface to export multiple files via PDF. Specifications : Temperature Control Range 10 - 50 C Temperature Resolution 0.1 C Temperature Control Accuracy –0.1 C Working Wavelength 589.3 nm Measuring Range Optical rotation –90 Sugar – 259 for Z Minimum Reading 0.001 Accuracy – 0.004 Repeatability 0.002 (Optical rotation) Transmittance 0.001 Instrument Level 0.01 level Standard Test Tube 200mm, 100mm ordinary type, 100mm temperature control type Test Function Single, multiple and continuous measurement

  3. Only two pages were converted. Please Sign Up to convert the full document. www.freepdfconvert.com/membership
