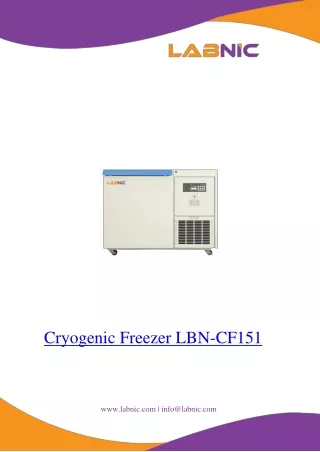

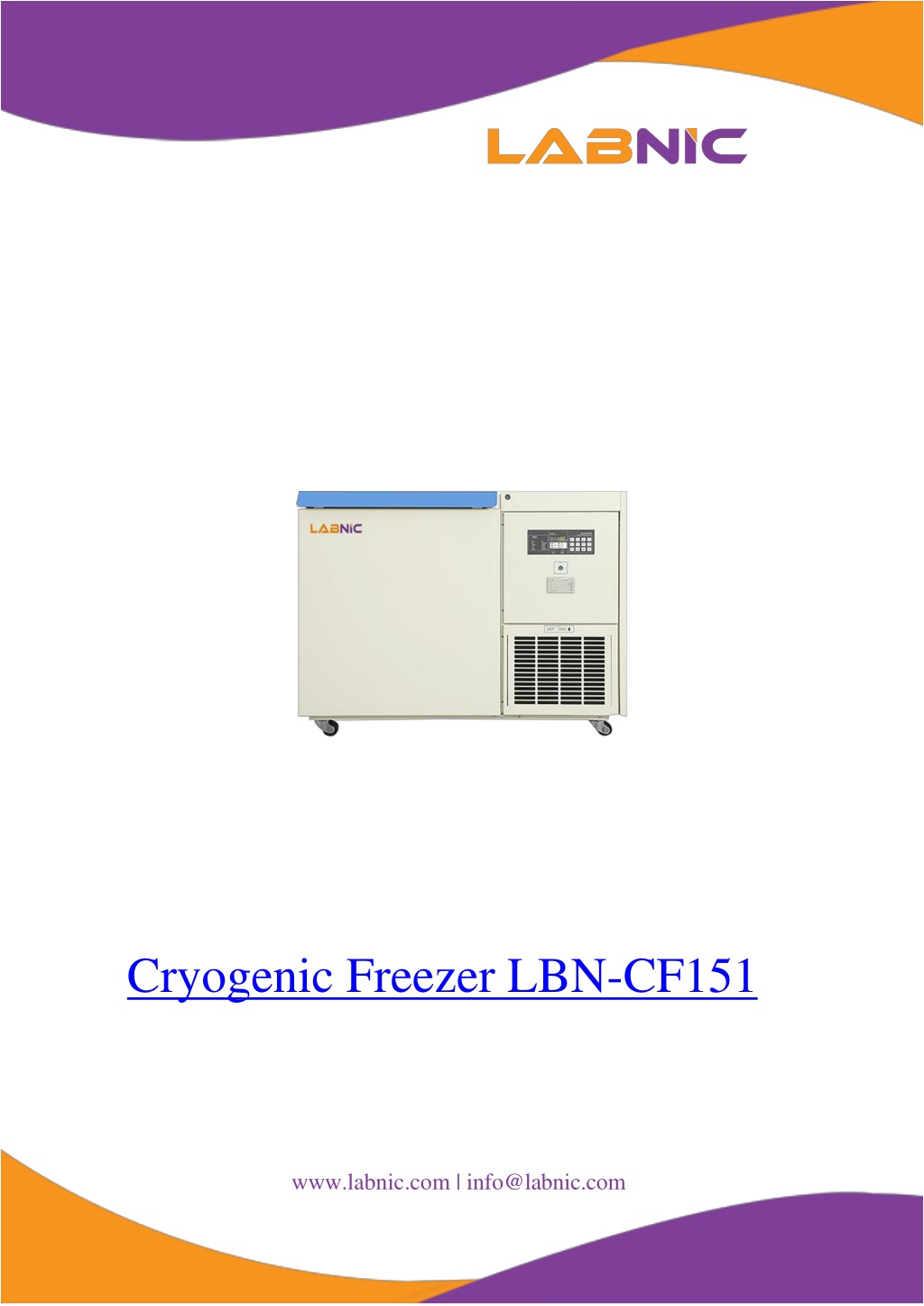

  1. Cryogenic Freezer LBN-CF151 www.labnic.com | info@labnic.com

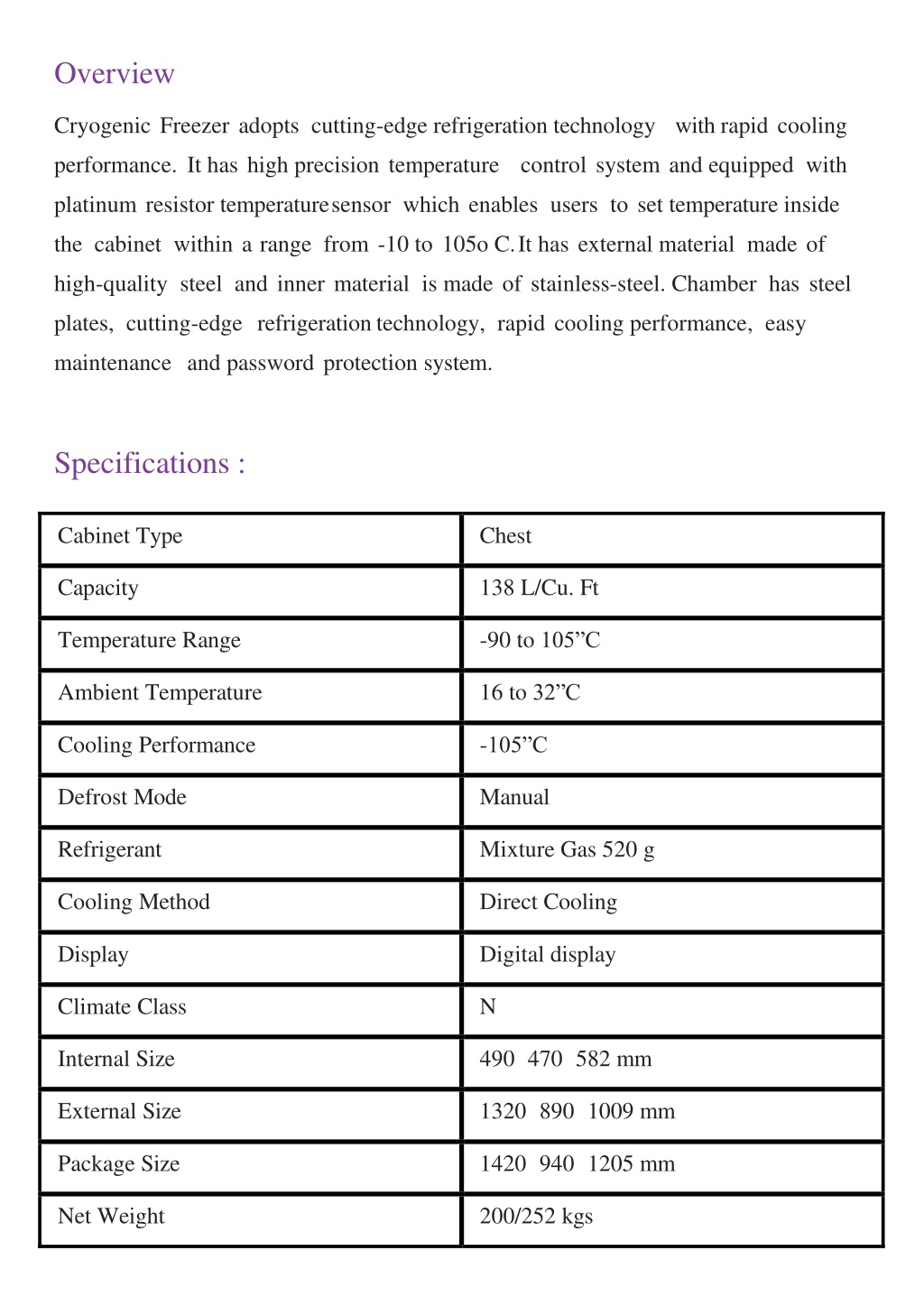

  2. Overview Cryogenic Freezer adopts cutting-edge refrigeration technology with rapid cooling performance. It has high precision temperature control system and equipped with platinum resistor temperature sensor which enables users to set temperature inside the cabinet within a range from -10 to 105o C. It has external material made of high-quality steel and inner material is made of stainless-steel. Chamber has steel plates, cutting-edge refrigeration technology, rapid cooling performance, easy maintenance and password protection system. Specifications : Cabinet Type Chest Capacity 138 L/Cu. Ft Temperature Range -90 to 105”C Ambient Temperature 16 to 32”C Cooling Performance -105”C Defrost Mode Manual Refrigerant Mixture Gas 520 g Cooling Method Direct Cooling Display Digital display Climate Class N Internal Size 490470582 mm External Size 13208901009 mm Package Size 14209401205 mm Net Weight 200/252 kgs

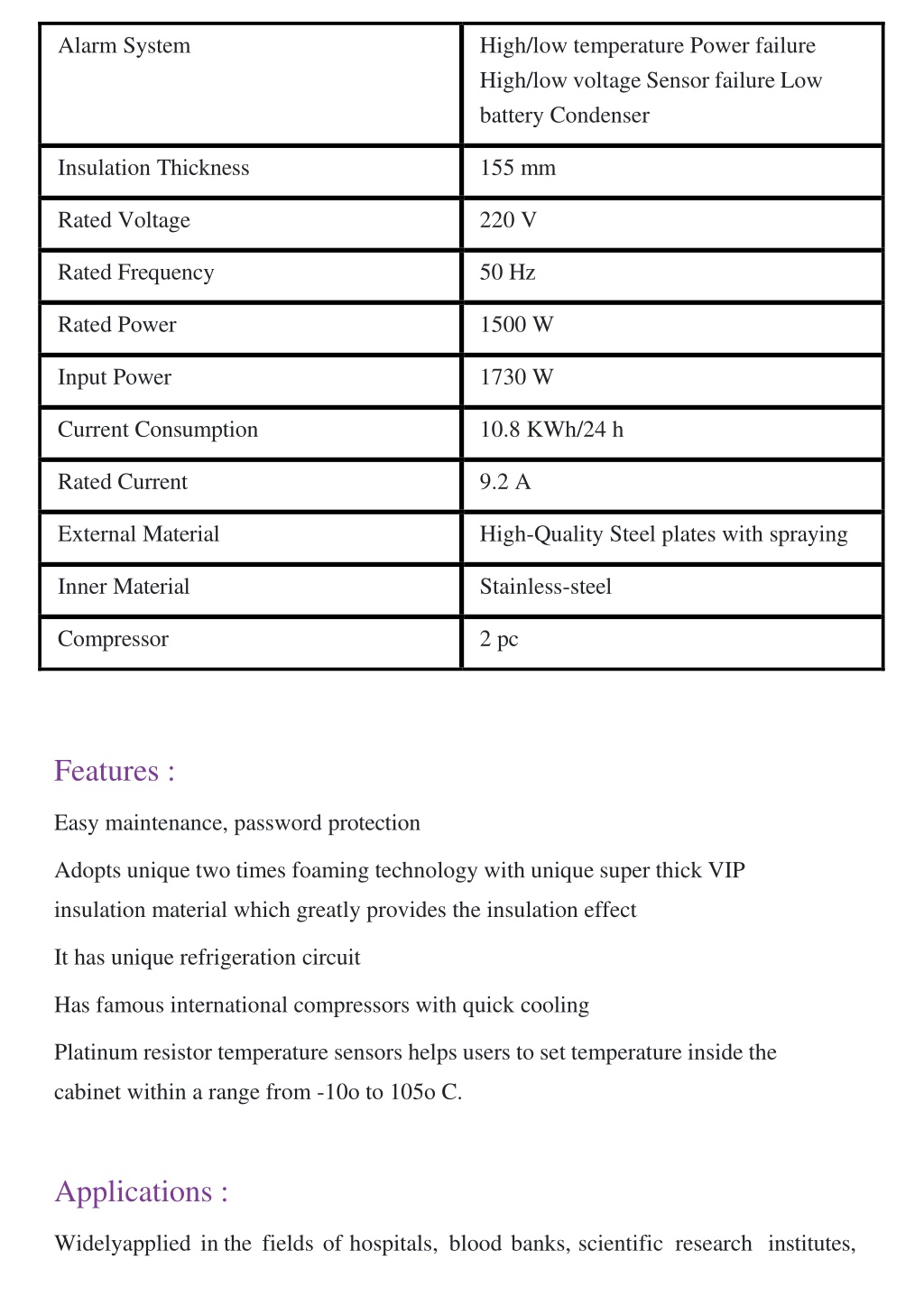

  3. Alarm System High/low temperature Power failure High/low voltage Sensor failure Low battery Condenser Insulation Thickness 155 mm Rated Voltage 220 V Rated Frequency 50 Hz Rated Power 1500 W Input Power 1730 W Current Consumption 10.8 KWh/24 h Rated Current 9.2 A External Material High-Quality Steel plates with spraying Inner Material Stainless-steel Compressor 2 pc Features : Easy maintenance, password protection Adopts unique two times foaming technology with unique super thick VIP insulation material which greatly provides the insulation effect It has unique refrigeration circuit Has famous international compressors with quick cooling Platinum resistor temperature sensors helps users to set temperature inside the cabinet within a range from -10o to 105o C. Applications : Widelyapplied in the fields of hospitals, blood banks, scientificresearch institutes,

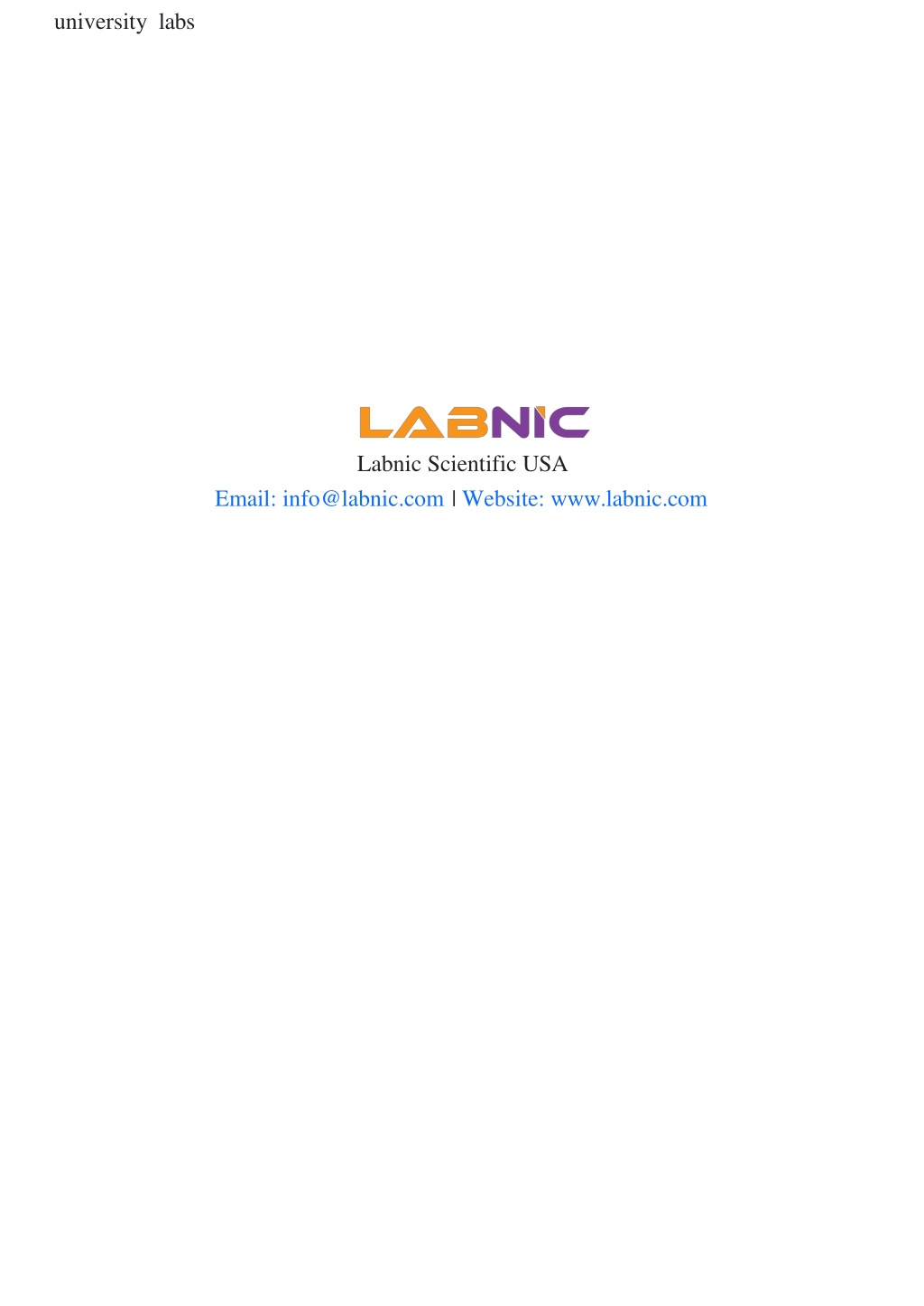

  4. university labs Labnic Scientific USA Email: info@labnic.com | Website: www.labnic.com
