Analytical-Balance-LBN-AB123

Labnic Analytical Balance has a measuring range of 10g to 220g, delivering precise results in 8 seconds with electromagnetic force compensation. It features a 90mm stainless steel pan, high-resolution display, operates at 17.5u00b0Cu201322.5u00b0C, and offers automatic internal calibration for accuracy.

Donna58
Download Presentation

Analytical-Balance-LBN-AB123

An Image/Link below is provided (as is) to download presentation Download Policy: Content on the Website is provided to you AS IS for your information and personal use and may not be sold / licensed / shared on other websites without getting consent from its author. Content is provided to you AS IS for your information and personal use only. Download presentation by click this link. While downloading, if for some reason you are not able to download a presentation, the publisher may have deleted the file from their server. During download, if you can't get a presentation, the file might be deleted by the publisher.

E N D

Presentation Transcript

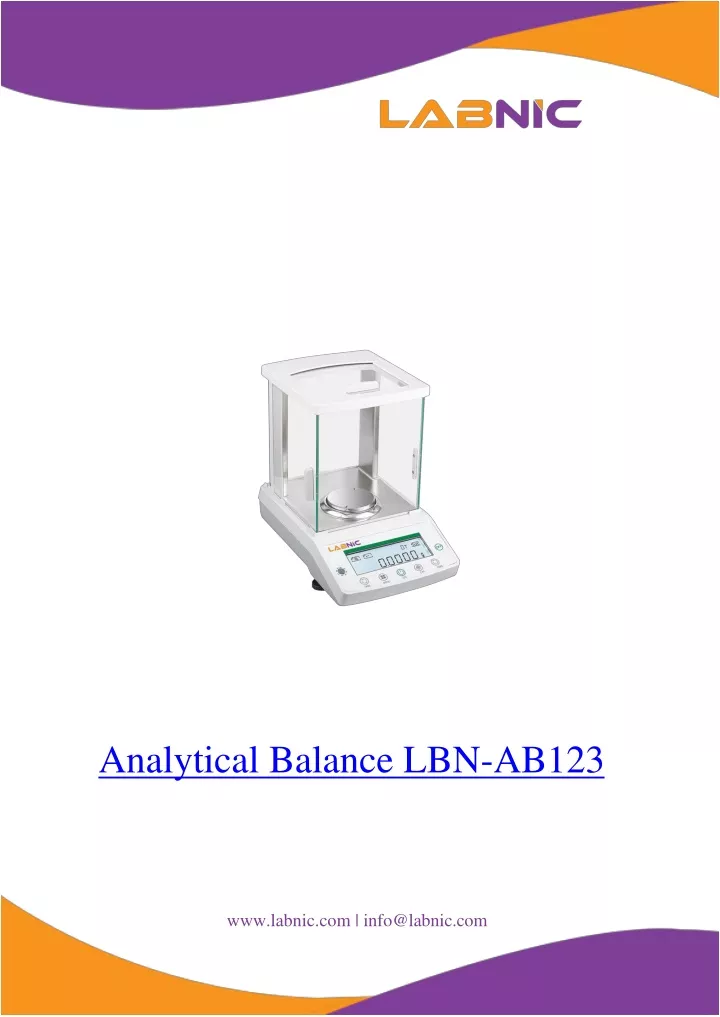

  1. Analytical Balance LBN-AB123 www.labnic.com | info@labnic.com

  2. Overview Analytical Balance is an accurate magnetic balance that comes with a maximum weighing capacity of 220g and uses electromagnetic force compensation technology. With a high-resolution display, the internally calibrated balance delivers full range resultsin 8s. It is fitted with a glass wind shield with sliding doors to ensure stable weighing environment and also includes an 80mm measuring pan made of high-grade stainless-steel, to avoid dust and air current influences. Specifications : Calibration Internal Weighing Range 220 g Minimum Capacity 10 g Division 0.0001 g Pan Size 90 mm Verification Scale Value 0.001 g Repeatability –0.0002 g Operating Temperature 17.5 - 22.5 Fluctuation Range <1 /h Relative Humidity 50% - 75% Stable Time <8s Power Supply AC110V - 220V 50Hz Windshield Dimension 225 220 265 mm Dimension (L W H) 355 230 350 mm Net Weight 7.2 Kg
