Keeping listeria at bay the battle that ready to eat processors can t afford to lose l.jpg

Keeping Listeria at Bay:The battle that ready-to-eat processors can’t afford to lose

Host: Bill Kinross, Publisher, Meatingplace

Moderator: Lisa Keefe, Editor, Meatinglace

Presenter l.jpg

Harshavardhan Thippareddi,

Associate Professor of Food Science, Department of Food Science and Technology, University of Nebraska, Lincoln

Listeria control old problem new solutions l.jpg

Listeria Control:Old Problem, New Solutions

Harshavardhan Thippareddi, Ph. D.

Sept 9, 2009

Prepared by: Martin Wiedmann, Ph. D., Cornell University, Ithaca, NY

Well known facts l.jpg
Well Known “Facts”

Human listeriosis can occur as an epidemic or as sporadic cases

L. monocytogenes common in certain/many environments

L. monocytogenes grows at refrigeration temperatures

Infectious dose is high

Growth in foods is usually needed to reach levels likely to cause human disease

Martin Wiedman, Cornell University

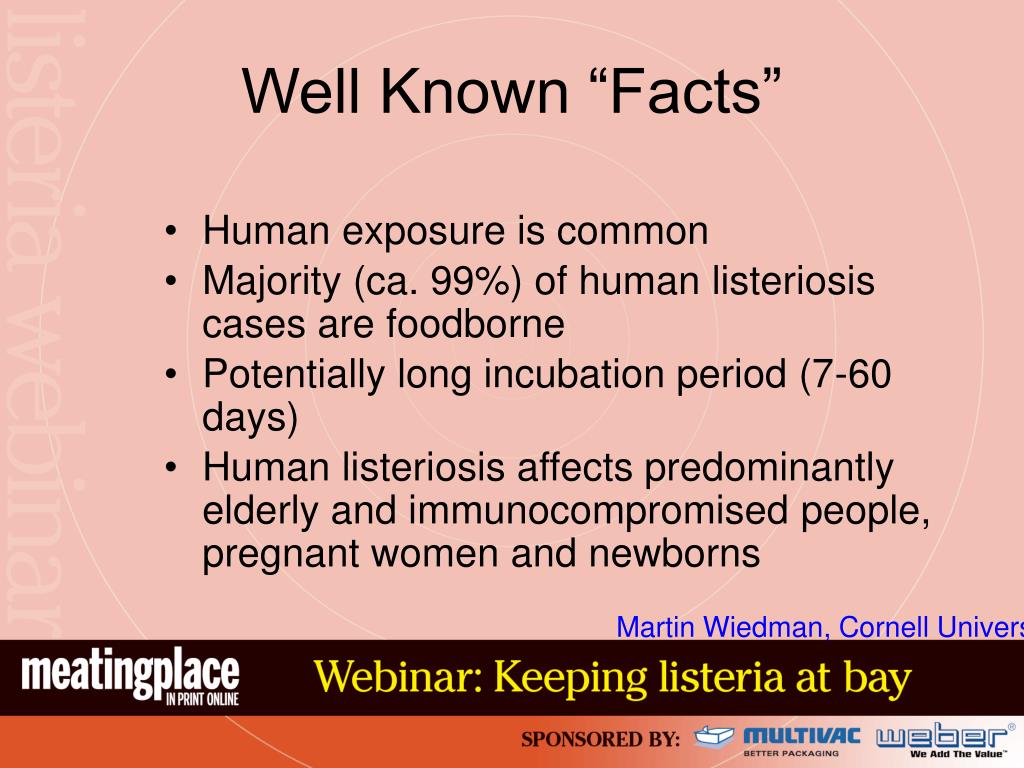

Well known facts5 l.jpg

Human exposure is common

Majority (ca. 99%) of human listeriosis cases are foodborne

Potentially long incubation period (7-60 days)

Human listeriosis affects predominantly elderly and immunocompromised people, pregnant women and newborns

Well Known “Facts”

Martin Wiedman, Cornell University

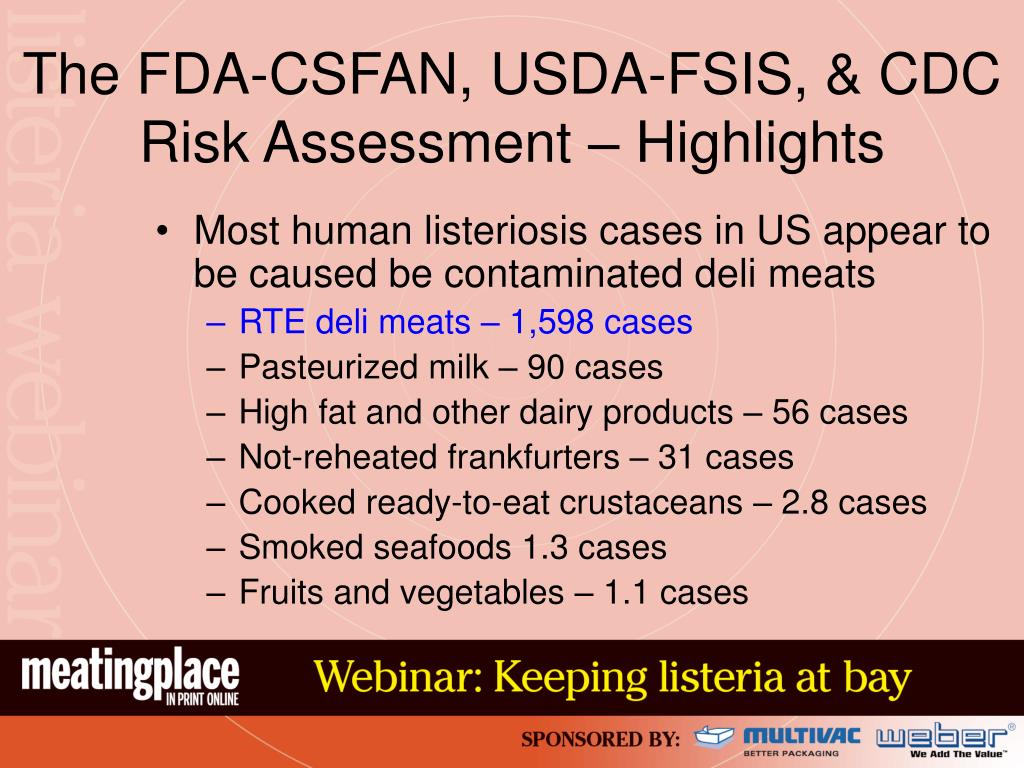

The fda csfan usda fsis cdc risk assessment highlights l.jpg
The FDA-CSFAN, USDA-FSIS, & CDC Risk Assessment – Highlights

Most human listeriosis cases in US appear to be caused be contaminated deli meats

RTE deli meats – 1,598 cases

Pasteurized milk – 90 cases

High fat and other dairy products – 56 cases

Not-reheated frankfurters – 31 cases

Cooked ready-to-eat crustaceans – 2.8 cases

Smoked seafoods 1.3 cases

Fruits and vegetables – 1.1 cases

Prevalence of listeria monocytogenes on rte meat and poultry products l.jpg
Prevalence Of HighlightsListeria Monocytogenes On RTE Meat And Poultry Products*

Percent Positives

*FSIS results of ready-to-eat products analyzed for Listeria monocytogenes

Human listeriosis trends l.jpg
Human Listeriosis - Trends Highlights

Listeria monocytogenes prevalence on rte meat and poultry 2008 l.jpg
Listeria Monocytogenes Highlights Prevalence(%) On RTE Meat And Poultry, 2008

Challenges towards continuous reduction of human listeriosis l.jpg
Challenges Towards Continuous Reduction Of Human Listeriosis Highlights

LM is common throughout the food chain

A single magic bullet will not work

Focusing on one product (RTE deli meats) at one point (processing) does not seem to work

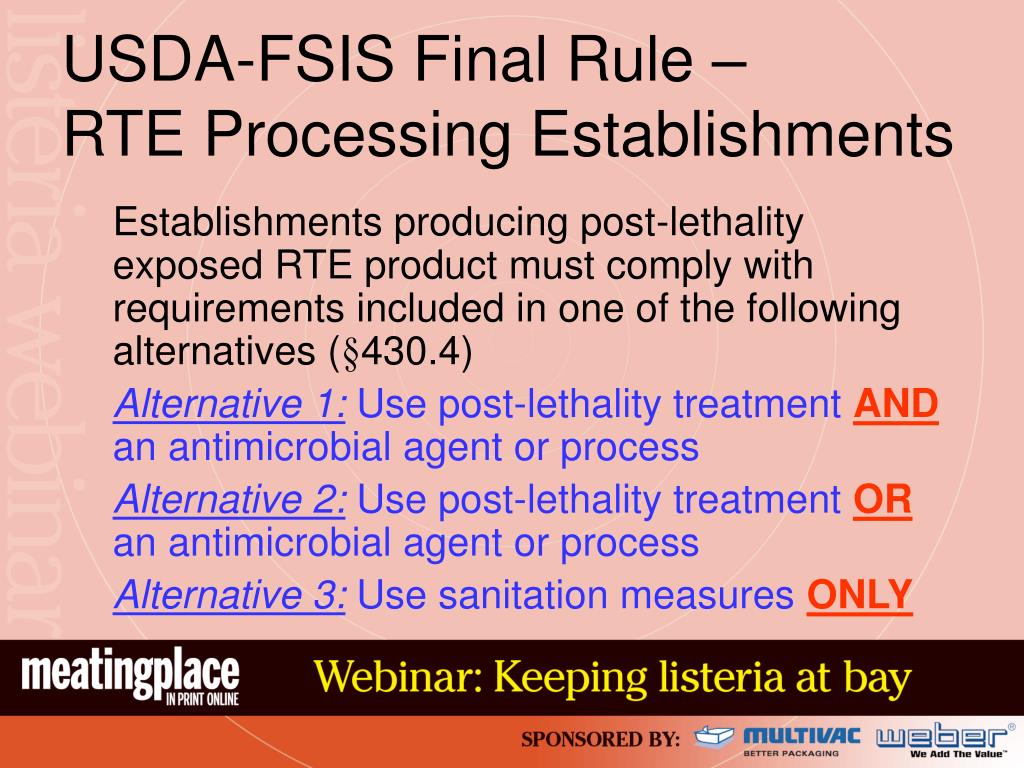

Usda fsis final rule rte processing establishments l.jpg
USDA-FSIS Final Rule – HighlightsRTE Processing Establishments

Establishments producing post-lethality exposed RTE product must comply with requirements included in one of the following alternatives (§430.4)

Alternative 1:Use post-lethality treatment AND an antimicrobial agent or process

Alternative 2: Use post-lethality treatment OR an antimicrobial agent or process

Alternative 3: Use sanitation measures ONLY

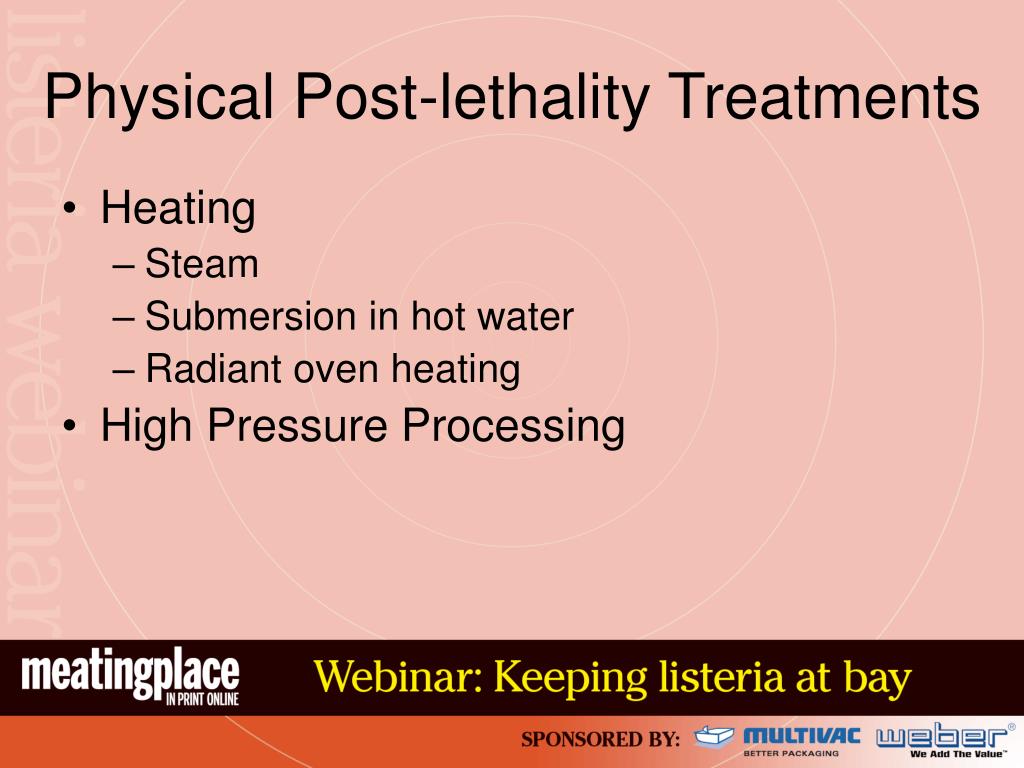

Physical post lethality treatments l.jpg
Physical Post-lethality Treatments Highlights



Submersion in hot water

Radiant oven heating

High Pressure Processing

Thermal surface pasteurization systems for rte meat products l.jpg
Thermal (Surface) Pasteurization Systems for RTE Meat Products

Meat product type and composition

Whole muscle vs. restructured product - product surface characteristics

Thermal properties

Product packaging

Packaged vs. non-packaged

Film thickness and material

Product orientation & package design

Single vs. double layer – hot dogs

Sliced product – deli type products

Product orientation effects l.jpg
Product Orientation Effects Products



Separated Franks






Courtesy: Alkar

Product orientation effects16 l.jpg
Product Orientation Effects Products

Turkey breast

Roast beef


Courtesy: Alkar

Thermal surface pasteurization systems for rte meat products17 l.jpg
Thermal (Surface) Pasteurization Systems for RTE Meat Products

Hot water-based systems

Steam-based systems

Non-condensing steam

Condensing saturated steam

Flash steam system

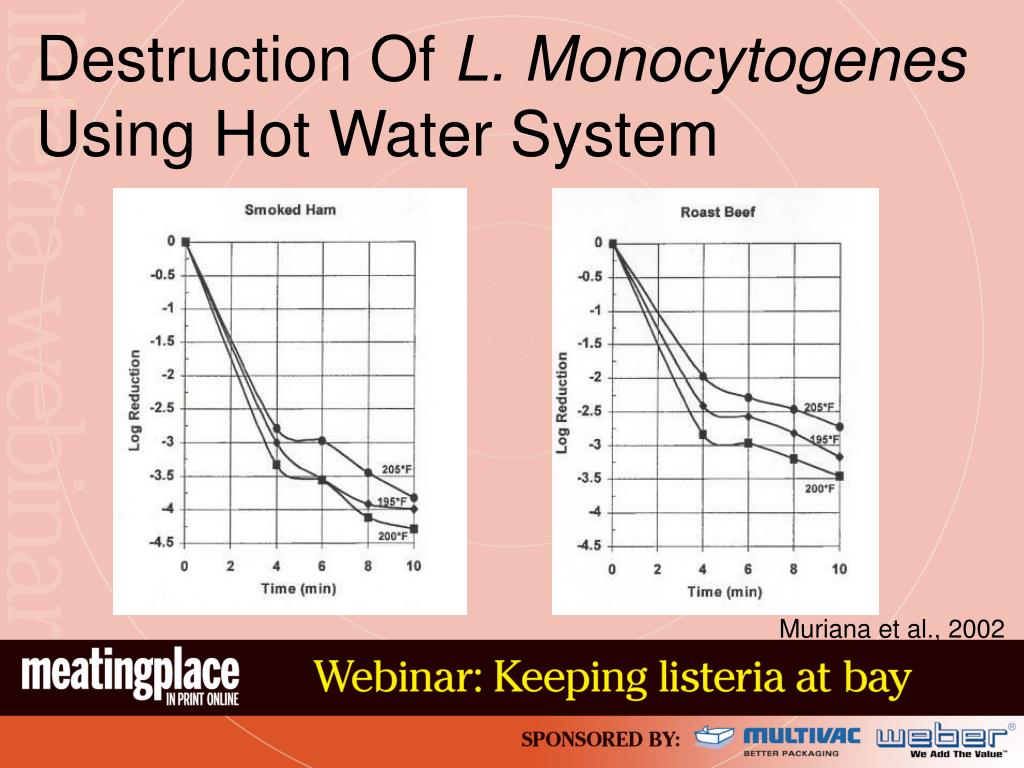

Destruction of l monocytogenes using hot water system l.jpg
Destruction Of ProductsL. Monocytogenes Using Hot Water System

Muriana et al., 2002

High hydrostatic pressure systems l.jpg
High Hydrostatic Pressure Systems Products

Non-thermal intervention technology

Minimal quality changes

Can be combined with other treatments such as heat

Pressures in the range of 250 MPa (36,260 PSI) to 600 MPa (87,023 PSI)

100 MPa=14,504 PSI

High hydrostatic pressure treatment factors controlling application l.jpg
High Hydrostatic Pressure Treatment – Factors Controlling Application

Product type and composition

Processing time and temperature

Types of microorganisms to be inactivated

Post process lethality treatments chemical interventions l.jpg
Post-process Lethality Treatments – ApplicationChemical Interventions

Antimicrobial agents lethality treatments l.jpg
Antimicrobial Agents – Lethality Treatments Application

Acidic calcium sulfate

Acidified sodium chlorite

Peracetic acid

Lauric arginate

ε- polylysine

Antimicrobial agents lethality treatments28 l.jpg
Antimicrobial Agents – Lethality Treatments Application

Liquid smoke fractions

Listeria phages

Octanoic acid

Ozone (ozonated water)

Acidic calcium sulfate l.jpg
Acidic Calcium Sulfate Application

Nunez et al., 2004

Acidic calcium sulfate30 l.jpg
Acidic Calcium Sulfate Application

Nunez et al., 2004

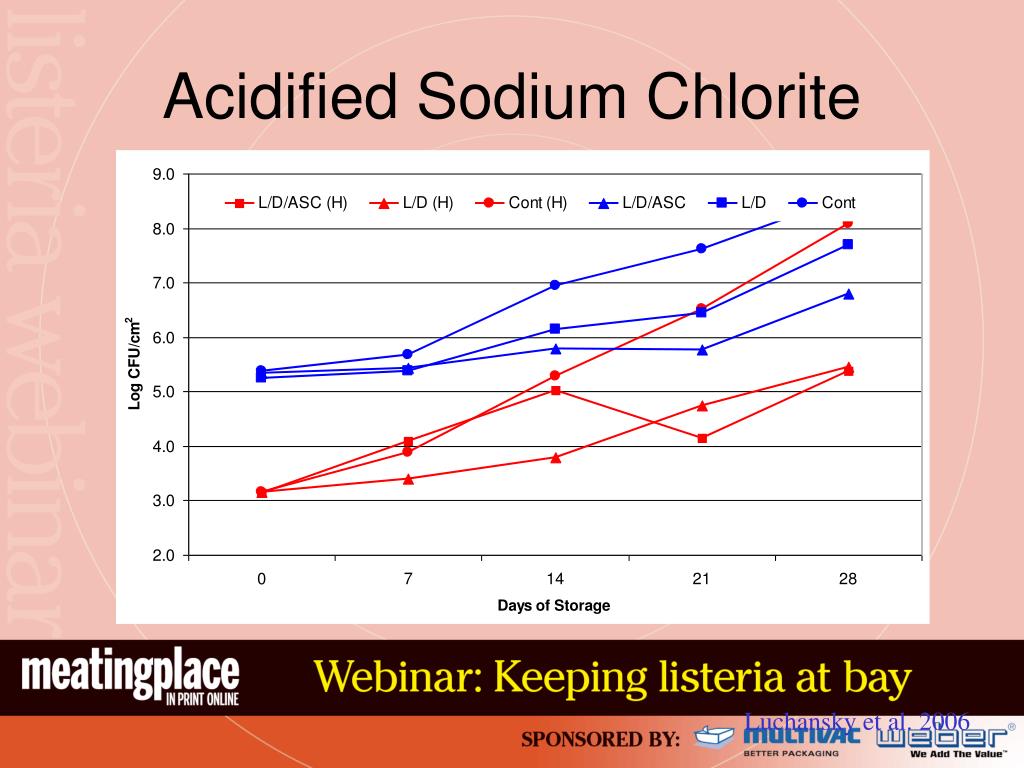

Acidified sodium chlorite l.jpg
Acidified Sodium Chlorite Application

Luchansky et al. 2006

Model system polylysine l.jpg
Model System – ApplicationΕ- Polylysine

Geornaras et al., 2005

Smoke derivatives l monocytogenes control l.jpg
Smoke Derivatives – ApplicationL. Monocytogenes Control

Gedela et al. 2007

Organic acids salts l.jpg
Organic Acids Salts Application

Approved for meat product use

Sodium or Potassium salts of lactic acid

Sodium acetate or diacetate

Sodium citrate buffered with citric acid to pH 5.6

Live bacteria – Canbiocin

Levulinate (not commercialized yet)

Control of listeria monocytogenes in taco meat aerobic l.jpg
Control Of ApplicationListeria Monocytogenes In Taco Meat (Aerobic)

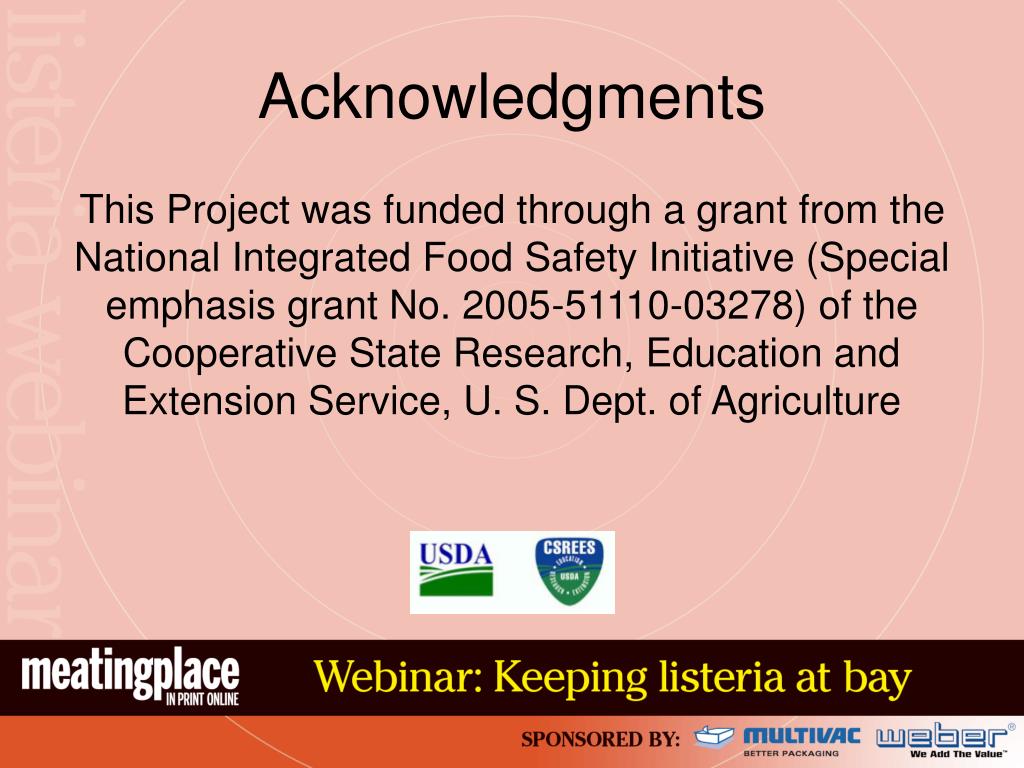

Acknowledgments l.jpg
Acknowledgments Application

This Project was funded through a grant from the National Integrated Food Safety Initiative (Special emphasis grant No. 2005-51110-03278) of the Cooperative State Research, Education and Extension Service, U. S. Dept. of Agriculture

Presenter40 l.jpg
Presenter Application

John N. Butts,

Vice President of Research,

Land O’ Frost

Data analysis investigation and corrective action l.jpg

Data Analysis, Investigation and Corrective Action Application

“Follow the data trail to the source but always be alert and aware to the organism’s ubiquitous presence and pervasive nature.”

John Butts

Land O’ Frost

Meatingplace Webinar

Sept 2009

Commitment model l.jpg
Commitment Model Application

Resistant – don’t believe it has value

Accepting – why not

“Buy-in” – we will do it

Engagement – involved in solution

Commitment – hold self and others accountable for achieving results

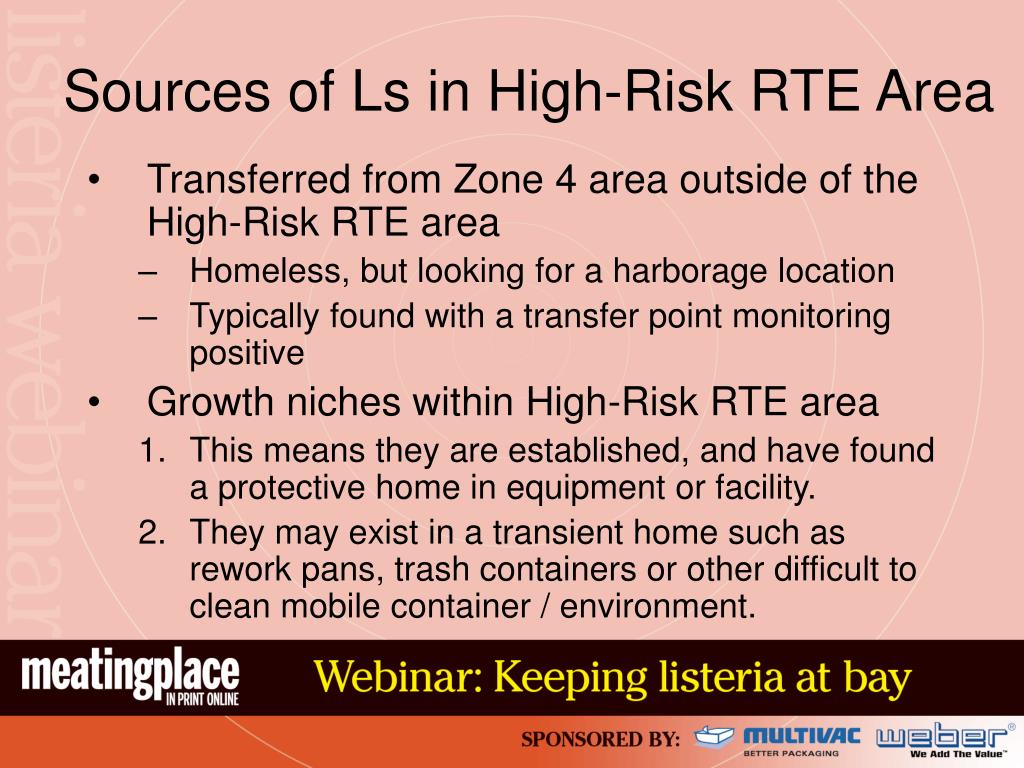

Sources of ls in high risk rte area l.jpg
Sources of Ls in High-Risk RTE Area Application

Transferred from Zone 4 area outside of the High-Risk RTE area

Homeless, but looking for a harborage location

Typically found with a transfer point monitoring positive

Growth niches within High-Risk RTE area

This means they are established, and have found a protective home in equipment or facility.

They may exist in a transient home such as rework pans, trash containers or other difficult to clean mobile container / environment.

Transfer points vs niches l.jpg
Transfer Points vs Niches Application

Many positive sites found during monitoring are not growth niches. They are transfer points (i.e., a product handler’s gloved hands, floor sample in high traffic pathway).

Transfer points are not growth niches because the organism is eliminated during the cleaning and sanitizing process.

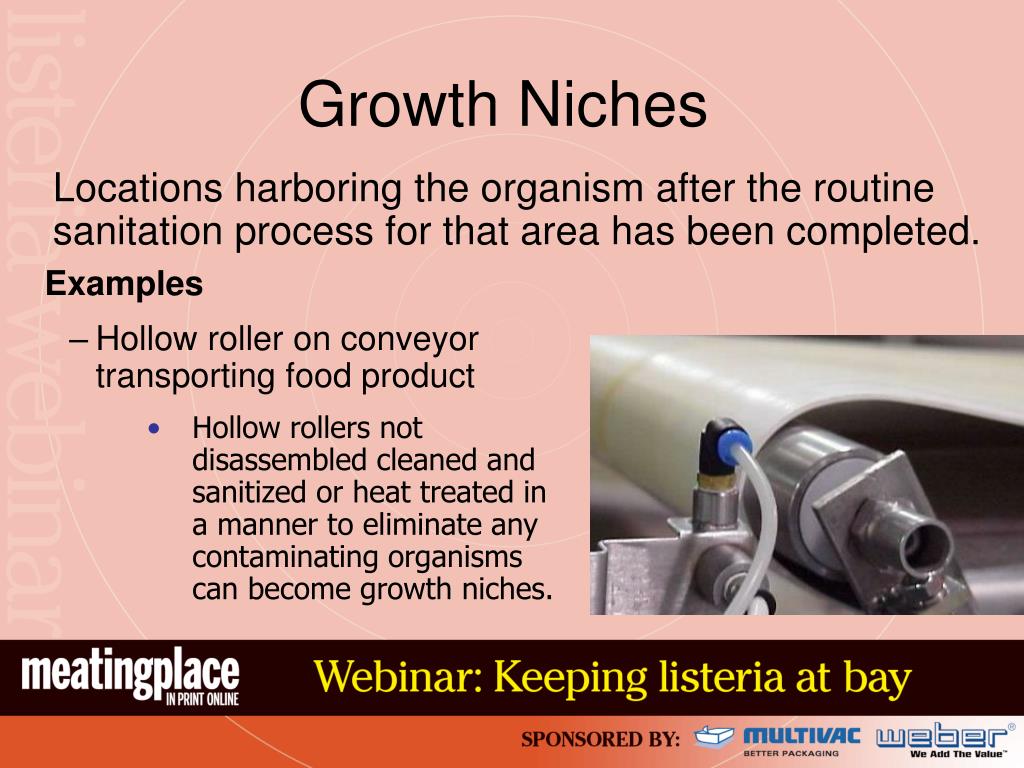

Growth niches l.jpg
Growth ApplicationNiches

Locations harboring the organism after the routine sanitation process for that area has been completed.


  • Hollow roller on conveyor transporting food product

    • Hollow rollers not disassembled cleaned and sanitized or heat treated in a manner to eliminate any contaminating organisms can become growth niches.

Slide48 l.jpg

Growth Niches Application

Hollow roller with solid stainless steel shaft in center (almost press fit).

When center shaft removed organic matter is evident.

Growth niches49 l.jpg
Growth ApplicationNiches

Must either be designed out of the system or managed as a part of the process.

Design Examples

Equipment is redesigned to eliminate or seal hollow areas

Hollow areas of equipment (e.g., frames, rollers) must be eliminated where possible or permanently sealed (caulking not acceptable). Bolts, studs, mounting plates, brackets, junction boxes, name plates, end caps, sleeves and other such items must be continuously welded to the surface of the equipment and not attached via drilled and tapped holes.

AMI Equipment Design Task Force

Growth niches50 l.jpg
Growth Niches Application

Minimize with process control techniques

The potential to support growth still exists within the machine, part or area

Whenever this becomes the chosen path remember to implement methods that will hold the gains with turnover in both hourly and management ranks.

Growth niches51 l.jpg
Growth Niches Application

Examples of how to minimize with process control techniques

Disassemble clean and sanitize

Heat sanitize

Cook in oven or smokehouse

Cover with tarp and inject steam

Place in COP tank

Slide54 l.jpg

Seek and Destroy Process Application

Normal cleaning and


Observe flood


Are all parts and

components being

Observe assembly


sanitized (chemical

or heat)?

Observe Post assembly sanitizer


Observe normal setup and

Are GMP's

start up activities


Stop operation before product

is placed on the line

Disassemble to normal daily

sanitation level

Disassemble any remaining

Inspect and swab

machine components

any suspect areas

Clean and flood or heat sanitize all

disassembled line components

Evidence of



Are cleaning

Is degree of






If APC growth is supported then

If area is Ls positive then it

the suspect area is a potential

is a growth niche

growth niche

Slide55 l.jpg

Time Study Application

Locating a Transfer Vector

The Time Study typically starts during setup and assembly . Samples will be taken as workers and product come to the line, repeated after line is running then every 2 hrs thereafter

A Time Study consists of sampling the line components and every thing that comes to the line over a period of time

Swat team sampling l.jpg
Swat Team Sampling Application

Sample during an idle period after sanitation, before production i.e. Saturday when no production is running

Sample large areas using sponges or gauze.

Sample areas not typically sampled during routine sampling

We found a transient growth niche using this method – COP basket handle

Presenter59 l.jpg
Presenter Application

Mike DeSmet,

Vice President of Food Safety,

West Liberty Foods

Slide60 l.jpg

Listeria Defense: ApplicationA Multi-Hurdle Approach

Slide61 l.jpg

Scope: It Takes More Than One Application

There is no one magic bullet.

There is no one department responsible.

Attitude must start from the top one down.

For every one dollar spent up front, multiple dollars are saved later.

No one is immune.

Slide62 l.jpg

Multiple Hurdle Approach Application

Building Design/Physical Barriers

Chemical Interventions

Preventive Programs

Product Design/Handling


Verification Activities

Slide63 l.jpg

Building Design/Physical Barriers Application

Each product slicing cell has separate positive pressure, air handling system.

HEPA air filtering systems keep with our clean room focus.

Separate slicing cells prevent cross contamination.

Encapsulated suits to prevent cross contamination from employees.

Slide64 l.jpg

Building Design/Physical Barriers Application

Separate drain system in each slicing cell with capability of back flooding each drain system.

Ceilings, floors and walls are designed for easy cleaning and sanitizing.

Exposed product production areas are targeted to <38°F.

Design eliminates cardboard and wood from entering exposed product areas.

Slide65 l.jpg

Chemical Interventions Application


Sanitizer challenge studies

Rotating Sanitizers

Equipment Fogging

Choosing the correct cleaners and sanitizers for your equipment, your environment and the organism.

Slide66 l.jpg

Preventive Programs Application

Equipment audits/repair

Deep cleaning programs (see next 2 slides for examples)

Use of indicator organisms to identify potential niches

GMP audits

Maintenance PM’s

Maintenance Tool Cleaning

Slide67 l.jpg

Operator Side Spindle Cover Application




Cover removed

When removed this cover exposed the spindle to allow for cleaning. This cover is removed and cleaned with a Solvaxx solution once a week.

Slide68 l.jpg

Flip Flop Electrical Cabinet Application

Operator side

Non-operator side

These cabinets are opened up and inspected weekly. These areas can be carefully cleaned with a Wypall lightly saturated with isopropyl alcohol by a qualified member of the maintenance department.

Slide69 l.jpg

Product Design/Handling Application

Proper Cooking

Antimicrobial Ingredients

Modified Atmosphere Packaging


Shelf Life Determination

Temperature Control (cold chain management)

Slide70 l.jpg

Training Application

Partnered with Iowa State

Use of Visual Aids

Food Safety Certification as a pre-hire concept

GAP Training (Getting Acquainted Period) successive classes throughout the first 90 days

Annual Re-training

Slide71 l.jpg

Verification Activities Application

Strong Listeria program

>3500 Listeria species swabs per month company wide

Zone 1 (conveyors, slicers, product beds)

Zone 2 – indirect contact (on off buttons, framework, etc.)

Slide72 l.jpg

Verification Activities Application

Zone 3 environmental (floors, ceilings walls)

Zone 4 adjacent to RTE areas (employee welfare areas, hallways, dry storage)

Every line, every week

Random product sampling

Rapid detection methods

Slide73 l.jpg

It Never Ends Application

The listeria control system is a never ending process.

Constant changes due to continuous education, extensive training and monitoring processes.

Watching for new technology.

Utilize Trade organizations as valuable resource for latest topics and technical expertise.

Utilize your chemical representatives and equipment representatives.

Slide74 l.jpg

Sharing Technology Application

Growing concept that Food Safety is not proprietary.

When one company stumbles we are all affected in the eyes of the consumer.

WLF and IA State teamed up to sponsor a food safety conference to share our training program with everyone.

Questions answers l.jpg

Questions & Answers Application

For more information l.jpg
For More Information Application

Harshavardhan Thippareddi:

John N. Butts:

Mike DeSmet:

Bill Kinross:

Lisa M. Keefe:

Download special supplement:
