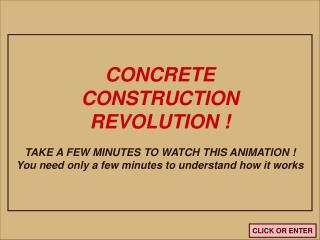

CONCRETE

CONSTRUCTION

REVOLUTION !

TAKE A FEW MINUTES TO WATCH THIS ANIMATION !

You need only a few minutes to understand how it works

CLICK OR ENTER

slide2

WHAT IS AND HOW IT WORKS

GORILLA NSL 200T ?

ELECTRO – HYDRAULIC SYSTEM

FOR CONCRETE SLABS LIFTING

IN BUILDING INDUSTRY

This animation is for process description only !

CLICK OR ENTER

slide4

Build concrete base

CLICK OR ENTER

slide7

Start lifting...

00:00:00

CLICK OR ENTER

slide8

Lifting...

01:00:00

slide9

Lifting...

01:30:00

slide10

Lifting...

02:00:00

slide11

Lifting...

02:30:00

slide12

Lifting...

03:00:00

slide13

Lifting...

03:30:00

slide14

Put the lifting columns...

04:00:00

CLICK OR ENTER

slide15

Lifting...

04:00:00

slide16

Lifting...

04:30:00

slide17

Lifting...

05:00:00

slide18

Lifting...

05:30:00

slide19

Lifting...

06:00:00

slide20

Lifting...

06:30:00

slide21

Lifting...

07:00:00

slide22

Lifting...

07:30:00

slide23

Lifting...

08:00:00

slide24

Lifting...

08:30:00

slide25

Lifting...

09:00:00

slide26

Lifting...

09:30:00

slide27

Lifting...

09:30:00

slide28

END

10:00:00

EVERYTHING IS ON ITS PLACE

CLICK OR ENTER

slide29

BENEFITS

  • There are no limits in floor numbers !
  • You can build big concrete slabs with more lifting points !
  • Extremely fast automatic lifting process - 10 floors per day !
  • A few workers will dothe whole operation with lifting concrete slabs !
  • All concrete slabs are produced on the ground level – even that slab for 35.floor !
  • You can use GORILLA equipment many times !
  • No more work on high, crane is free for other jobs, no more casings, stands !
  • Save more than 20% in concrete construction!
  • You can lift floors with walls, installations ...

CLICK OR ENTER

slide30

HOW IT WORKS

GORILLA NSL 200T ?

ELECTRO – HYDRAULIC SYSTEM

FOR CONCRETE SLABS LIFTING

IN BUILDING INDUSTRY

This animation is for process description only !

CLICK OR ENTER

slide31

STEP 1

Produce concrete slabs and lift columns on the ground level

Attach GORILLA equipments with our support

GORILLA UPPER AND LOWER LOCKS ARE LOCKED

LIFT COLUMNS

GORILLA

LOCKS

CONCRETE SLABS

CLICK OR ENTER

slide32

STEP 2

GORILLA WILL UNLOCK UPPER LOCKS

CLICK OR ENTER

slide33

STEP 3

CYLINDERS GOES UP WITHOUT LOAD

CLICK OR ENTER

slide34

STEP 4

GORILLA WILL LOCK UPPER LOCKS

CLICK OR ENTER

slide35

STEP 5

GORILLA WILL UNLOCK LOWER LOCKS

CLICK OR ENTER

slide36

STEP 6

GORILLA WILL LIFT CONCRETE SLABS UP

CLICK OR ENTER

slide37

STEP 7

GORILLA WILL LOCK LOWER LOCKS

GORILLA IS IN START POSITION FOR NEXT STEP

CLICK OR ENTER

slide41

WHEN LOWER SLAB IS IN LEVEL POSITION

SECURE AND RELASE IT

AND CONTINUE PROCESS…

SECURE

RELASE

CLICK OR ENTER

slide76

GORILLA NSL 200T

And So On …

Lift As Many Slabs As You Need…

Delta Electronics

office@deltael.com

www.deltael.com

CLICK OR ENTER

slide77

EXAMPLE 1

Lifting Many Floors

CLICK OR ENTER

slide78

Place lifting columns

CLICK OR ENTER

slide79

Build slabs package 1

CLICK OR ENTER

slide80

Lift slabs package 1

CLICK OR ENTER

slide81

Build slabs package 2

CLICK OR ENTER

slide82

Lift slabs package 1

CLICK OR ENTER

slide83

Lift slabs package 2

CLICK OR ENTER

slide84

Build slabs package 3

CLICK OR ENTER

slide86

Place slabs package 1

CLICK OR ENTER

slide92

Place slabs package2

CLICK OR ENTER

slide98

Place slabs package3

CLICK OR ENTER

slide104

ALL SLABS ON

PROJECTED LEVELS

CLICK OR ENTER

slide105

FINISHED OBJECT

CLICK OR ENTER

slide106

EXAMPLE 2

LIFTING CONCRETE SLABS

WITH THE WALLS, INSTALLATIONS…

CLICK OR ENTER

slide107

PLACE LIFTING COLUMNS

CLICK OR ENTER

slide108

BUILD CONCRETE

SLAB

CLICK OR ENTER

slide109

BUILD WALLS

CLICK OR ENTER

slide110

INSTALLATIONS…

CLICK OR ENTER

slide111

FLOOR 5

PAINT…

FINISH…

5

CLICK OR ENTER

slide113

LIFT FLOOR 5

5

CLICK OR ENTER

slide114

BUILD FLOOR 4

5

4

CLICK OR ENTER

slide115

LIFT FLOOR 5

5

4

CLICK OR ENTER

slide116

LIFT FLOOR 4

5

4

CLICK OR ENTER

slide117

5

4

slide118

5

4

slide119

5

BUILD FLOOR 3

4

3

CLICK OR ENTER

slide120

5

4

3

slide121

5

4

3

slide122

5

4

3

slide123

5

4

3

2

slide124

5

4

3

2

slide125

5

FINISHED OBJECT

4

3

2

1

CLICK OR ENTER

slide126

GORILLA NSL 200T

TAKE ADVANTAGE IN CONSTRUCTION !
