3 dimensional solid model technical data packages

3 Dimensional Solid Model Technical Data Packages

TACOM-ARDEC

Close Combat Armaments Center

Light Armament Division

http://w4.pica.army.mil/ardec-ri/tacom_3d.htm

Jeff Windham 309 782-8162 Windhamj@ria.army.mil

3d solid model tdp s
3D SOLID MODEL TDP’s
  • TACOM technical data system currently based on 2-D raster images of line drawings.
  • TACOM is converting to a system based on 3-D solid models.
  • This 3-D tech data will be used for production, design interface and upgrades, logistics support, configuration management, etc.
from this
FROM THIS

TO THIS

slide8
3D SOLID MODELS ALLOW AUTOMATED

CREATION OF TECHNICAL MANUAL PAGES

slide9
3D SOLID MODELS ALLOW AUTOMATED

CREATION OF TECHNICAL MANUAL PAGES

slide10
3D SOLID MODELS ALLOW AUTOMATED

CREATION OF TECHNICAL MANUAL PAGES

advantages of 3d tdp s
Advantages of 3D TDP’s
  • Faster design upgrades
  • Build virtual parts and assemblies in the computer
  • Infinite viewpoints and exploded views of assemblies
  • Rapid prototyping
  • Engineering analysis capabilities (stress, thermal, interference fit, tolerance stack-up, etc.)
  • Reduced manufacturing lead time and cost
  • Automated generation and update of line drawings
tacom ardec 3d tdp system
TACOM-ARDEC 3D TDP SYSTEM
  • Based on Pro/Engineer Solid Modeling and Pro/Intralink Product Data Management toolset.
  • Adobe Acrobat (.pdf) of Pro/E drawings will still be document of record (I.e 2-D Drawings are still going to be used).
  • Other 3D CAD packages (CATIA, SOLIDWORKS, Unigraphics, etc) may be used in the future.
3d technical data package tdp cd roms

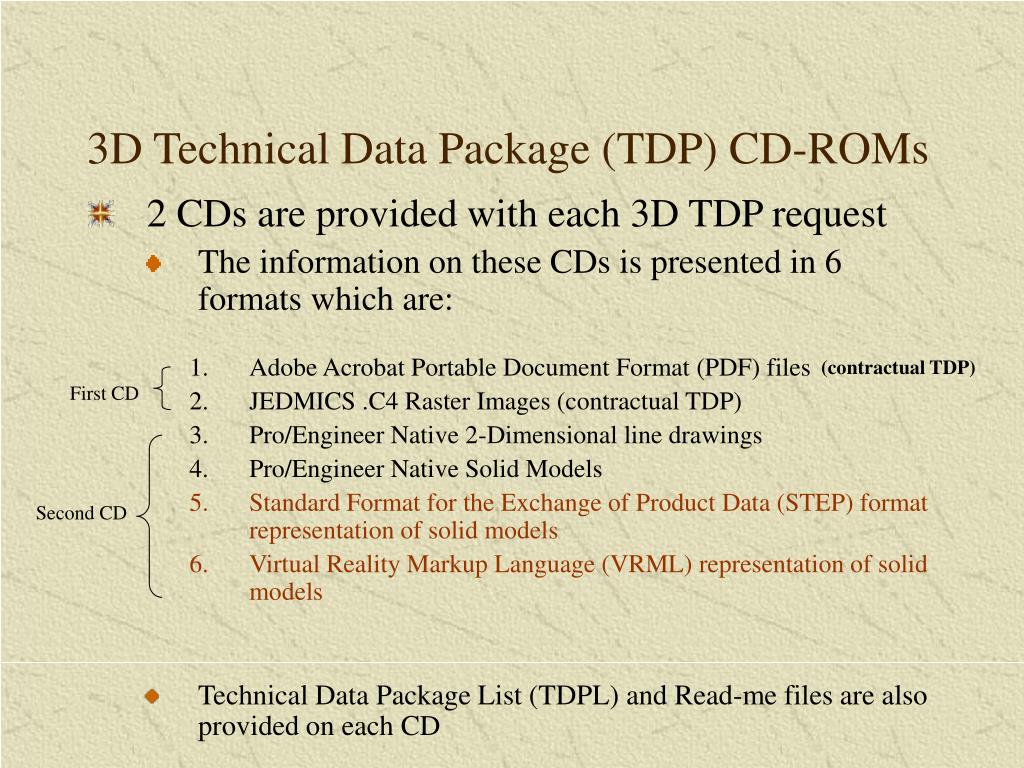

3D Technical Data Package (TDP) CD-ROMs
  • 2 CDs are provided with each 3D TDP request
    • The information on these CDs is presented in 6 formats which are:
      • Adobe Acrobat Portable Document Format (PDF) files
      • JEDMICS .C4 Raster Images (contractual TDP)
      • Pro/Engineer Native 2-Dimensional line drawings
      • Pro/Engineer Native Solid Models
      • Standard Format for the Exchange of Product Data (STEP) format representation of solid models
      • Virtual Reality Markup Language (VRML) representation of solid models
    • Technical Data Package List (TDPL) and Read-me files are also provided on each CD

(contractual TDP)

First CD

Second CD

how this affects you
How this affects you.
  • End item and spare parts manufacturers can take advantage of 3D to reduce manufacturing lead time and cost.
  • R&D contractors may be asked to provide Tech data in 3D Solid Model Format.
  • Interface issues become easier to solve as more equipment is defined by 3D solids.
items converted to 3d
Items Converted to 3D
  • M9 Pistol
  • M16 Series Rifles
  • M4 Series Carbines
  • M203 Grenade Launcher
  • Mk19 Grenade Machine Gun
  • Hydra-70 Warhead
  • 40mm M781 Training Round
for more information contact

For more information contact:

Jeff Windham 309-782-8162

Windhamj@ria.army.mil

http://w4.pica.army.mil/ardec-ri/tacom_3d.htm
