Threaded Half Coupling

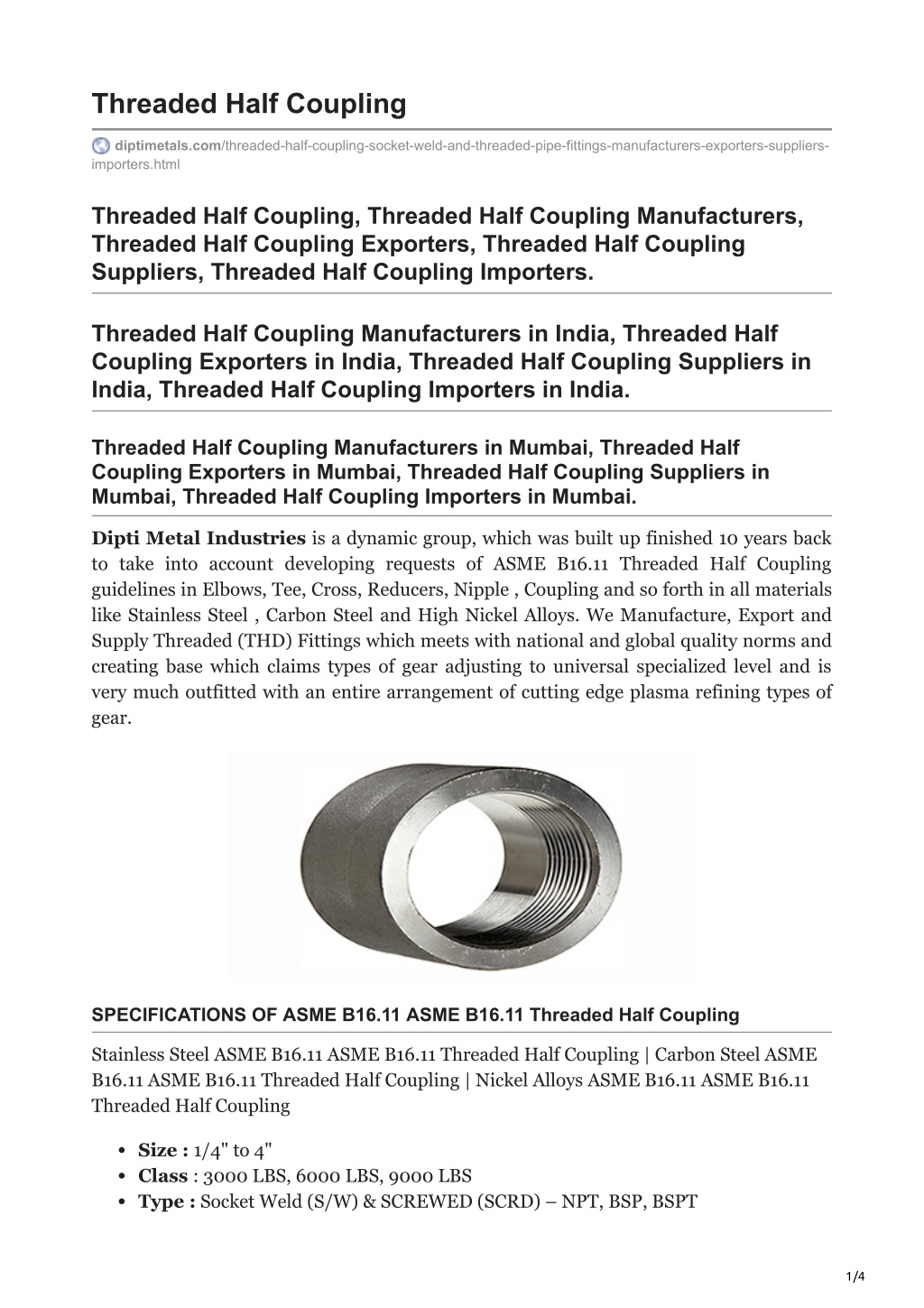

1. Threaded Half Coupling diptimetals.com/threaded-half-coupling-socket-weld-and-threaded-pipe-fittings-manufacturers-exporters-suppliers- importers.html Threaded Half Coupling, Threaded Half Coupling Manufacturers, Threaded Half Coupling Exporters, Threaded Half Coupling Suppliers, Threaded Half Coupling Importers. Threaded Half Coupling Manufacturers in India, Threaded Half Coupling Exporters in India, Threaded Half Coupling Suppliers in India, Threaded Half Coupling Importers in India. Threaded Half Coupling Manufacturers in Mumbai, Threaded Half Coupling Exporters in Mumbai, Threaded Half Coupling Suppliers in Mumbai, Threaded Half Coupling Importers in Mumbai. Dipti Metal Industries is a dynamic group, which was built up finished 10 years back to take into account developing requests of ASME B16.11 Threaded Half Coupling guidelines in Elbows, Tee, Cross, Reducers, Nipple , Coupling and so forth in all materials like Stainless Steel , Carbon Steel and High Nickel Alloys. We Manufacture, Export and Supply Threaded (THD) Fittings which meets with national and global quality norms and creating base which claims types of gear adjusting to universal specialized level and is very much outfitted with an entire arrangement of cutting edge plasma refining types of gear. SPECIFICATIONS OF ASME B16.11 ASME B16.11 Threaded Half Coupling Stainless Steel ASME B16.11 ASME B16.11 Threaded Half Coupling | Carbon Steel ASME B16.11 ASME B16.11 Threaded Half Coupling | Nickel Alloys ASME B16.11 ASME B16.11 Threaded Half Coupling Size : 1/4" to 4" Class : 3000 LBS, 6000 LBS, 9000 LBS Type : Socket Weld (S/W) & SCREWED (SCRD) – NPT, BSP, BSPT 1/4

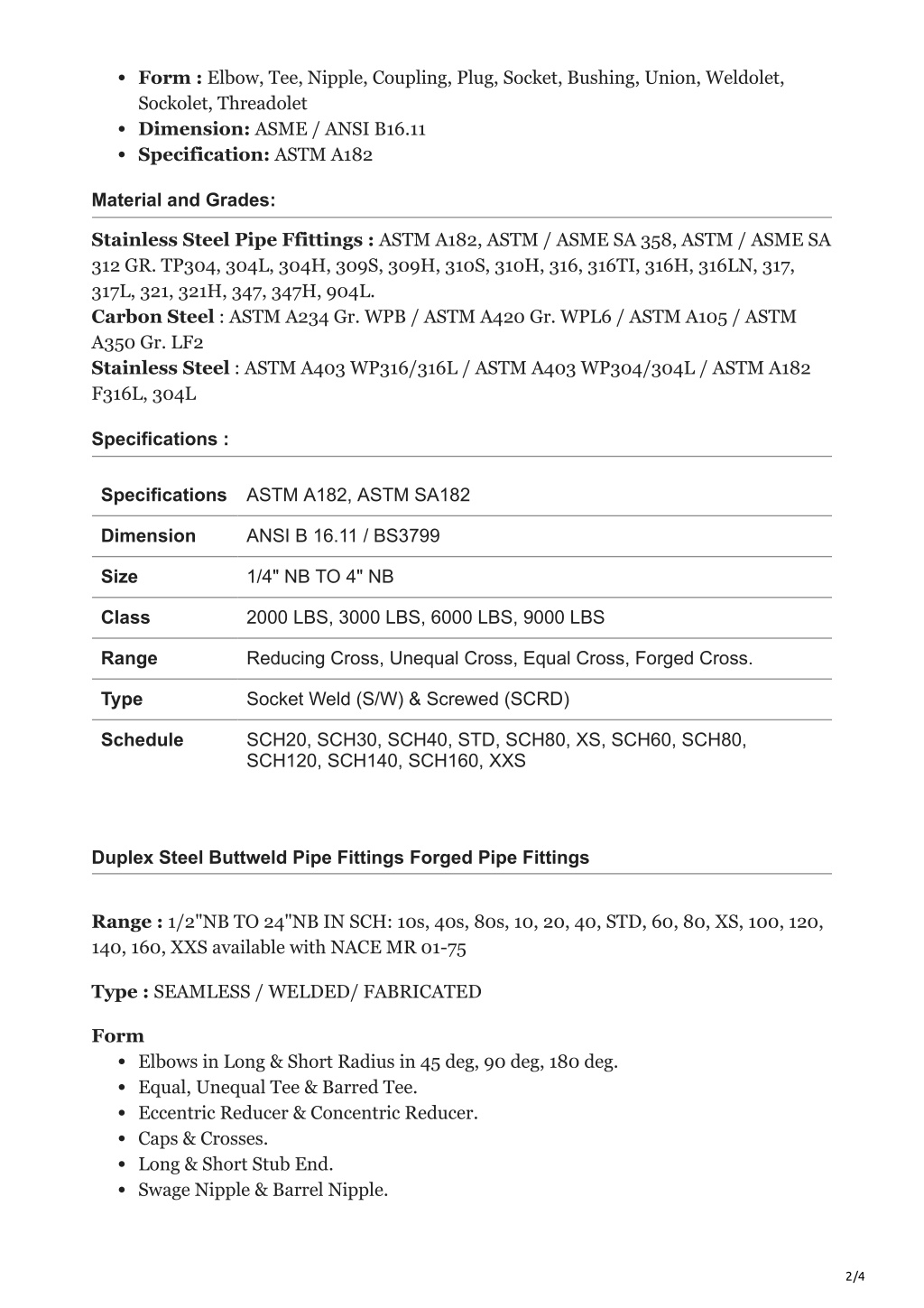

2. Form : Elbow, Tee, Nipple, Coupling, Plug, Socket, Bushing, Union, Weldolet, Sockolet, Threadolet Dimension: ASME / ANSI B16.11 Specification: ASTM A182 Material and Grades: Stainless Steel Pipe Ffittings : ASTM A182, ASTM / ASME SA 358, ASTM / ASME SA 312 GR. TP304, 304L, 304H, 309S, 309H, 310S, 310H, 316, 316TI, 316H, 316LN, 317, 317L, 321, 321H, 347, 347H, 904L. Carbon Steel : ASTM A234 Gr. WPB / ASTM A420 Gr. WPL6 / ASTM A105 / ASTM A350 Gr. LF2 Stainless Steel : ASTM A403 WP316/316L / ASTM A403 WP304/304L / ASTM A182 F316L, 304L Specifications : Specifications ASTM A182, ASTM SA182 Dimension ANSI B 16.11 / BS3799 Size 1/4" NB TO 4" NB Class 2000 LBS, 3000 LBS, 6000 LBS, 9000 LBS Range Reducing Cross, Unequal Cross, Equal Cross, Forged Cross. Type Socket Weld (S/W) & Screwed (SCRD) Schedule SCH20, SCH30, SCH40, STD, SCH80, XS, SCH60, SCH80, SCH120, SCH140, SCH160, XXS Duplex Steel Buttweld Pipe Fittings Forged Pipe Fittings Range : 1/2"NB TO 24"NB IN SCH: 10s, 40s, 80s, 10, 20, 40, STD, 60, 80, XS, 100, 120, 140, 160, XXS available with NACE MR 01-75 Type : SEAMLESS / WELDED/ FABRICATED Form Elbows in Long & Short Radius in 45 deg, 90 deg, 180 deg. Equal, Unequal Tee & Barred Tee. Eccentric Reducer & Concentric Reducer. Caps & Crosses. Long & Short Stub End. Swage Nipple & Barrel Nipple. 2/4

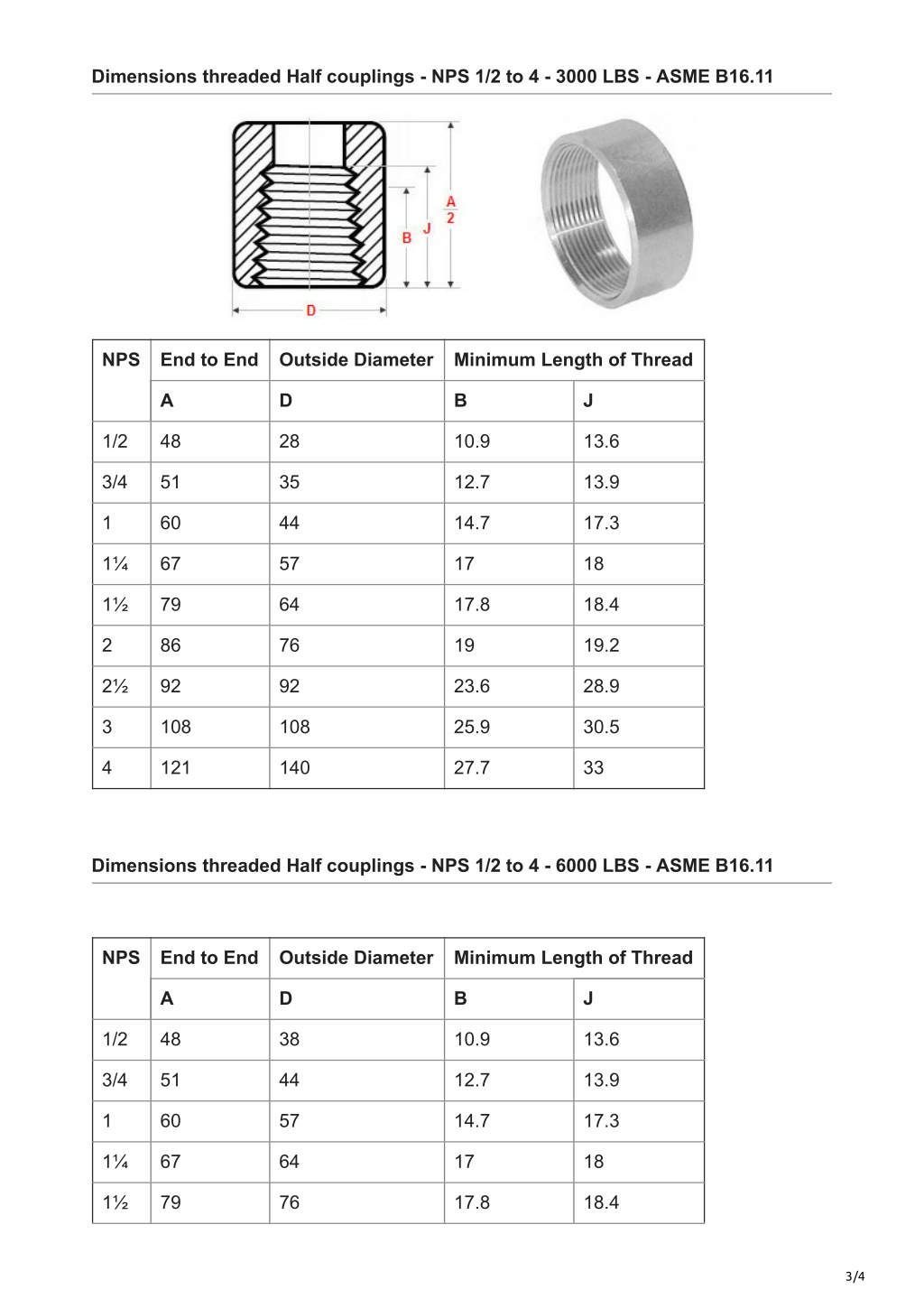

3. Dimensions threaded Half couplings - NPS 1/2 to 4 - 3000 LBS - ASME B16.11 NPS End to End Outside Diameter Minimum Length of Thread A D B J 1/2 48 28 10.9 13.6 3/4 51 35 12.7 13.9 1 60 44 14.7 17.3 1¼ 67 57 17 18 1½ 79 64 17.8 18.4 2 86 76 19 19.2 2½ 92 92 23.6 28.9 3 108 108 25.9 30.5 4 121 140 27.7 33 Dimensions threaded Half couplings - NPS 1/2 to 4 - 6000 LBS - ASME B16.11 NPS End to End Outside Diameter Minimum Length of Thread A D B J 1/2 48 38 10.9 13.6 3/4 51 44 12.7 13.9 1 60 57 14.7 17.3 1¼ 67 64 17 18 1½ 79 76 17.8 18.4 3/4

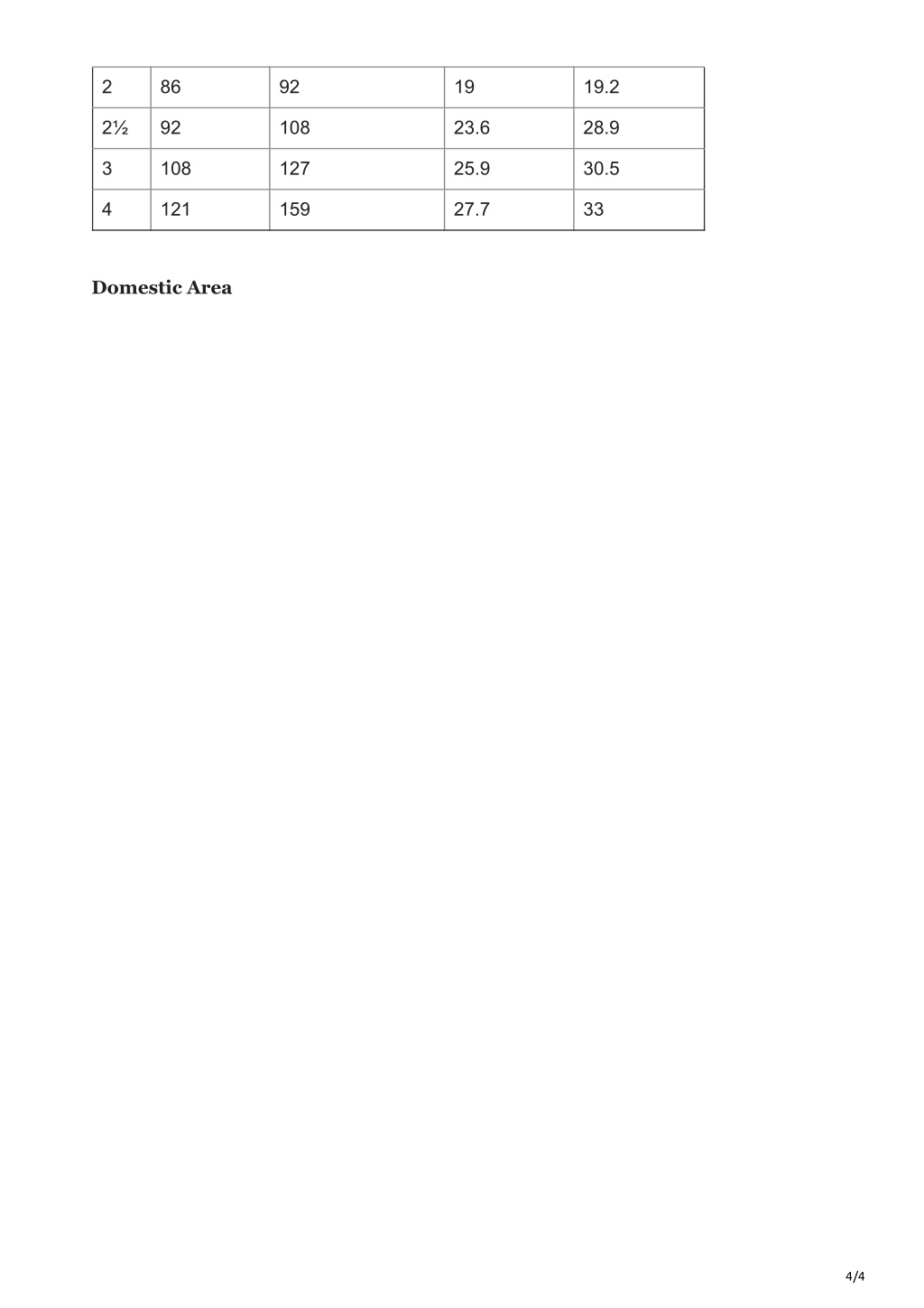

4. 2 86 92 19 19.2 2½ 92 108 23.6 28.9 3 108 127 25.9 30.5 4 121 159 27.7 33 Domestic Area 4/4
