How To Extend The Lifespan Of Your Power Transformer

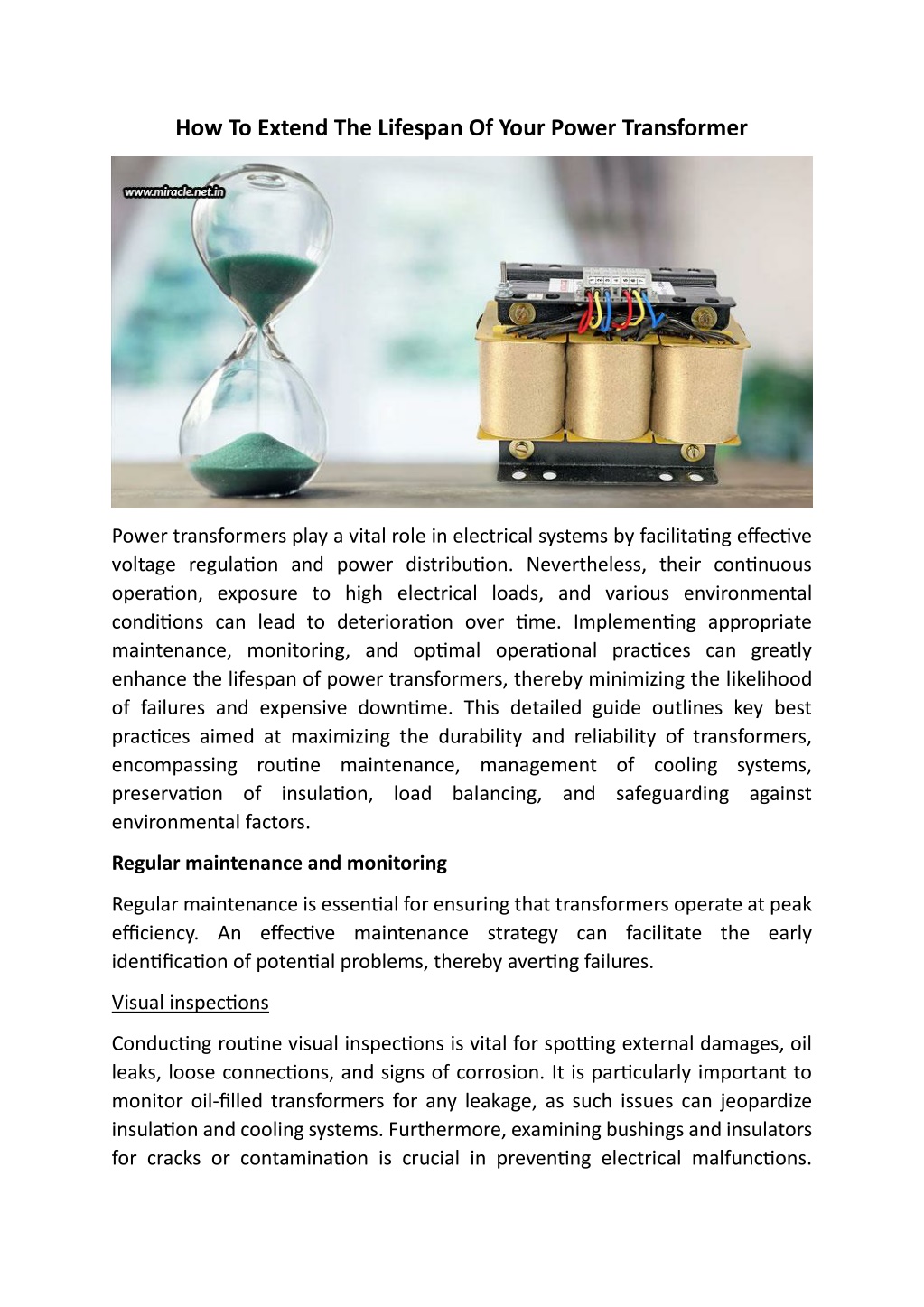

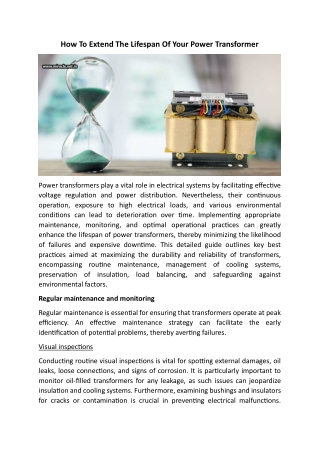

1. How To Extend The Lifespan Of Your Power Transformer Power transformers play a vital role in electrical systems by facilitating effective voltage regulation and power distribution. Nevertheless, their continuous operation, exposure to high electrical loads, and various environmental conditions can lead to deterioration over time. Implementing appropriate maintenance, monitoring, and optimal operational practices can greatly enhance the lifespan of power transformers, thereby minimizing the likelihood of failures and expensive downtime. This detailed guide outlines key best practices aimed at maximizing the durability and reliability of transformers, encompassing routine maintenance, management of cooling systems, preservation of insulation, load balancing, and safeguarding against environmental factors. Regular maintenance and monitoring Regular maintenance is essential for ensuring that transformers operate at peak efficiency. An effective maintenance strategy can facilitate the early identification of potential problems, thereby averting failures. Visual inspections Conducting routine visual inspections is vital for spotting external damages, oil leaks, loose connections, and signs of corrosion. It is particularly important to monitor oil-filled transformers for any leakage, as such issues can jeopardize insulation and cooling systems. Furthermore, examining bushings and insulators for cracks or contamination is crucial in preventing electrical malfunctions.

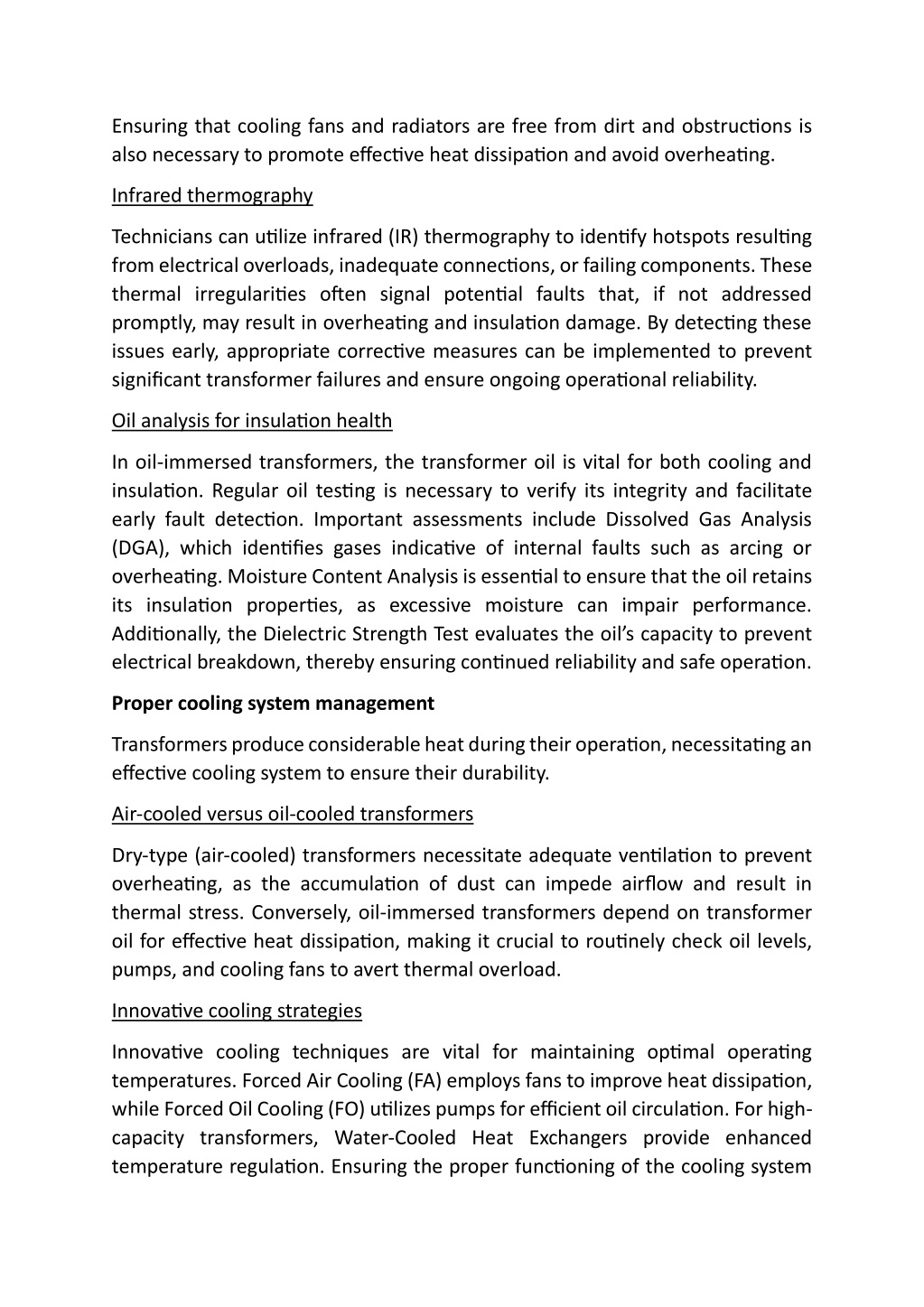

2. Ensuring that cooling fans and radiators are free from dirt and obstructions is also necessary to promote effective heat dissipation and avoid overheating. Infrared thermography Technicians can utilize infrared (IR) thermography to identify hotspots resulting from electrical overloads, inadequate connections, or failing components. These thermal irregularities often signal potential faults that, if not addressed promptly, may result in overheating and insulation damage. By detecting these issues early, appropriate corrective measures can be implemented to prevent significant transformer failures and ensure ongoing operational reliability. Oil analysis for insulation health In oil-immersed transformers, the transformer oil is vital for both cooling and insulation. Regular oil testing is necessary to verify its integrity and facilitate early fault detection. Important assessments include Dissolved Gas Analysis (DGA), which identifies gases indicative of internal faults such as arcing or overheating. Moisture Content Analysis is essential to ensure that the oil retains its insulation properties, as excessive moisture can impair performance. Additionally, the Dielectric Strength Test evaluates the oil’s capacity to prevent electrical breakdown, thereby ensuring continued reliability and safe operation. Proper cooling system management Transformers produce considerable heat during their operation, necessitating an effective cooling system to ensure their durability. Air-cooled versus oil-cooled transformers Dry-type (air-cooled) transformers necessitate adequate ventilation to prevent overheating, as the accumulation of dust can impede airflow and result in thermal stress. Conversely, oil-immersed transformers depend on transformer oil for effective heat dissipation, making it crucial to routinely check oil levels, pumps, and cooling fans to avert thermal overload. Innovative cooling strategies Innovative cooling techniques are vital for maintaining optimal operating temperatures. Forced Air Cooling (FA) employs fans to improve heat dissipation, while Forced Oil Cooling (FO) utilizes pumps for efficient oil circulation. For high- capacity transformers, Water-Cooled Heat Exchangers provide enhanced temperature regulation. Ensuring the proper functioning of the cooling system

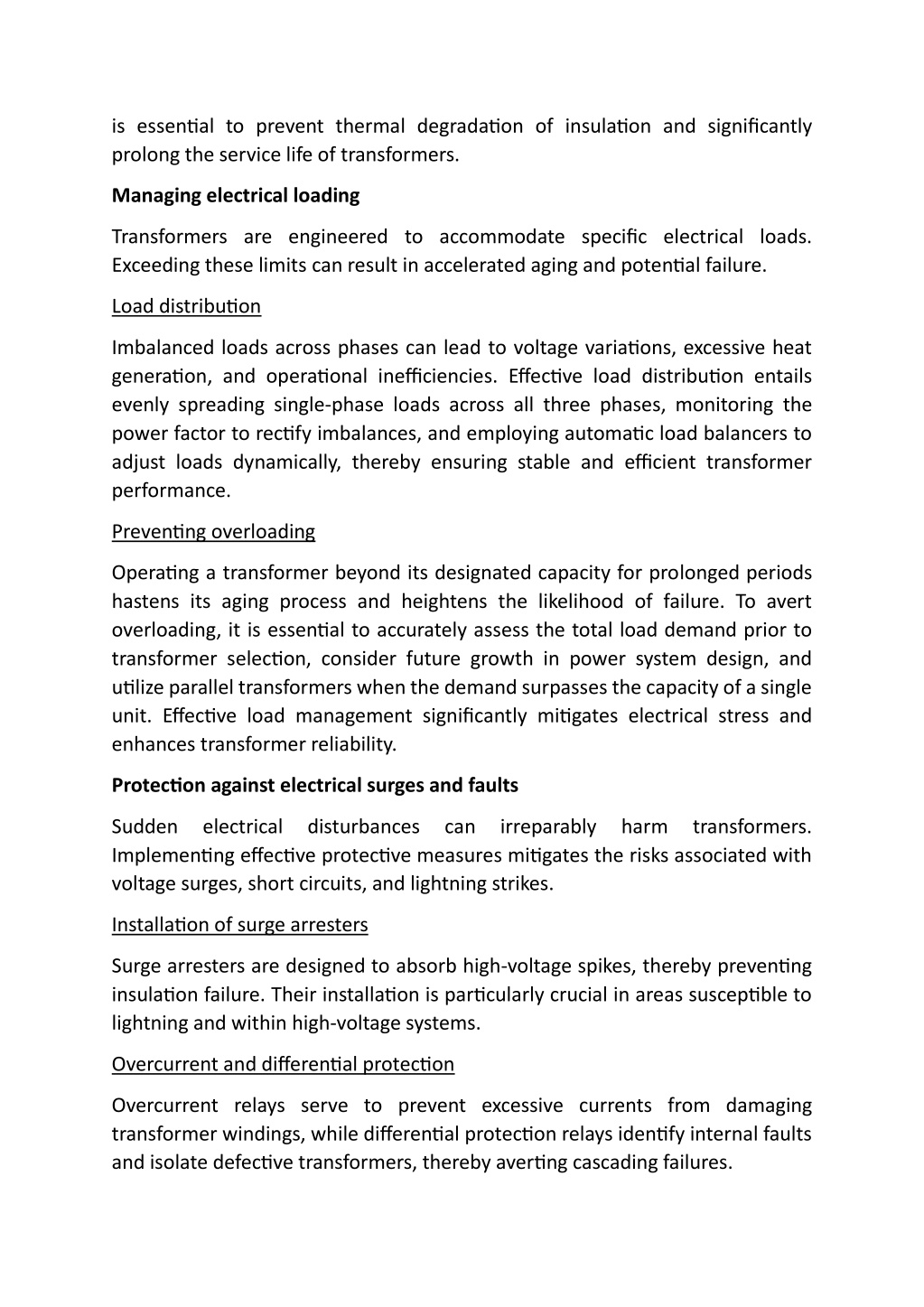

3. is essential to prevent thermal degradation of insulation and significantly prolong the service life of transformers. Managing electrical loading Transformers are engineered to accommodate specific electrical loads. Exceeding these limits can result in accelerated aging and potential failure. Load distribution Imbalanced loads across phases can lead to voltage variations, excessive heat generation, and operational inefficiencies. Effective load distribution entails evenly spreading single-phase loads across all three phases, monitoring the power factor to rectify imbalances, and employing automatic load balancers to adjust loads dynamically, thereby ensuring stable and efficient transformer performance. Preventing overloading Operating a transformer beyond its designated capacity for prolonged periods hastens its aging process and heightens the likelihood of failure. To avert overloading, it is essential to accurately assess the total load demand prior to transformer selection, consider future growth in power system design, and utilize parallel transformers when the demand surpasses the capacity of a single unit. Effective load management significantly mitigates electrical stress and enhances transformer reliability. Protection against electrical surges and faults Sudden Implementing effective protective measures mitigates the risks associated with voltage surges, short circuits, and lightning strikes. electrical disturbances can irreparably harm transformers. Installation of surge arresters Surge arresters are designed to absorb high-voltage spikes, thereby preventing insulation failure. Their installation is particularly crucial in areas susceptible to lightning and within high-voltage systems. Overcurrent and differential protection Overcurrent relays serve to prevent excessive currents from damaging transformer windings, while differential protection relays identify internal faults and isolate defective transformers, thereby averting cascading failures.

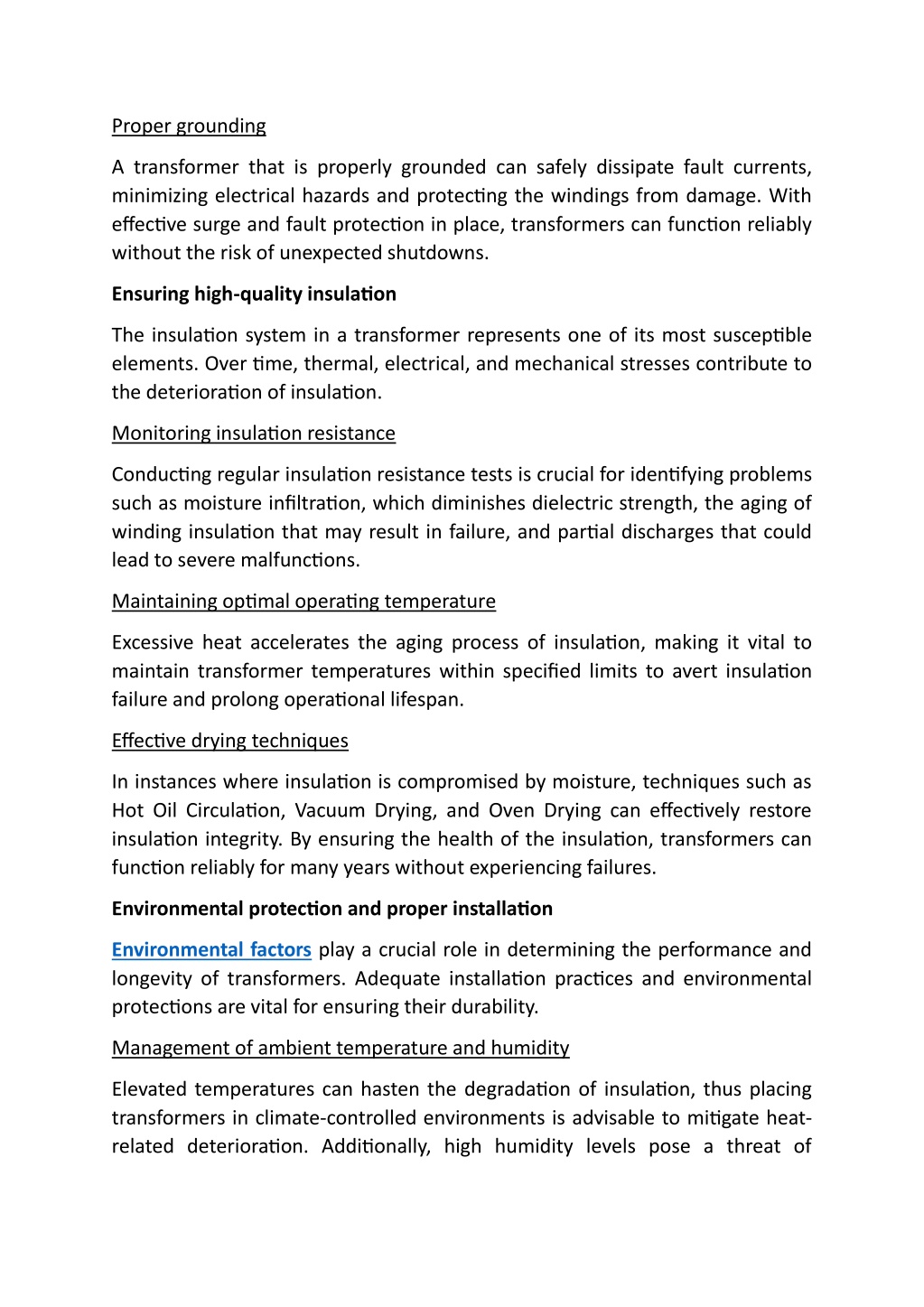

4. Proper grounding A transformer that is properly grounded can safely dissipate fault currents, minimizing electrical hazards and protecting the windings from damage. With effective surge and fault protection in place, transformers can function reliably without the risk of unexpected shutdowns. Ensuring high-quality insulation The insulation system in a transformer represents one of its most susceptible elements. Over time, thermal, electrical, and mechanical stresses contribute to the deterioration of insulation. Monitoring insulation resistance Conducting regular insulation resistance tests is crucial for identifying problems such as moisture infiltration, which diminishes dielectric strength, the aging of winding insulation that may result in failure, and partial discharges that could lead to severe malfunctions. Maintaining optimal operating temperature Excessive heat accelerates the aging process of insulation, making it vital to maintain transformer temperatures within specified limits to avert insulation failure and prolong operational lifespan. Effective drying techniques In instances where insulation is compromised by moisture, techniques such as Hot Oil Circulation, Vacuum Drying, and Oven Drying can effectively restore insulation integrity. By ensuring the health of the insulation, transformers can function reliably for many years without experiencing failures. Environmental protection and proper installation Environmental factors play a crucial role in determining the performance and longevity of transformers. Adequate installation practices and environmental protections are vital for ensuring their durability. Management of ambient temperature and humidity Elevated temperatures can hasten the degradation of insulation, thus placing transformers in climate-controlled environments is advisable to mitigate heat- related deterioration. Additionally, high humidity levels pose a threat of

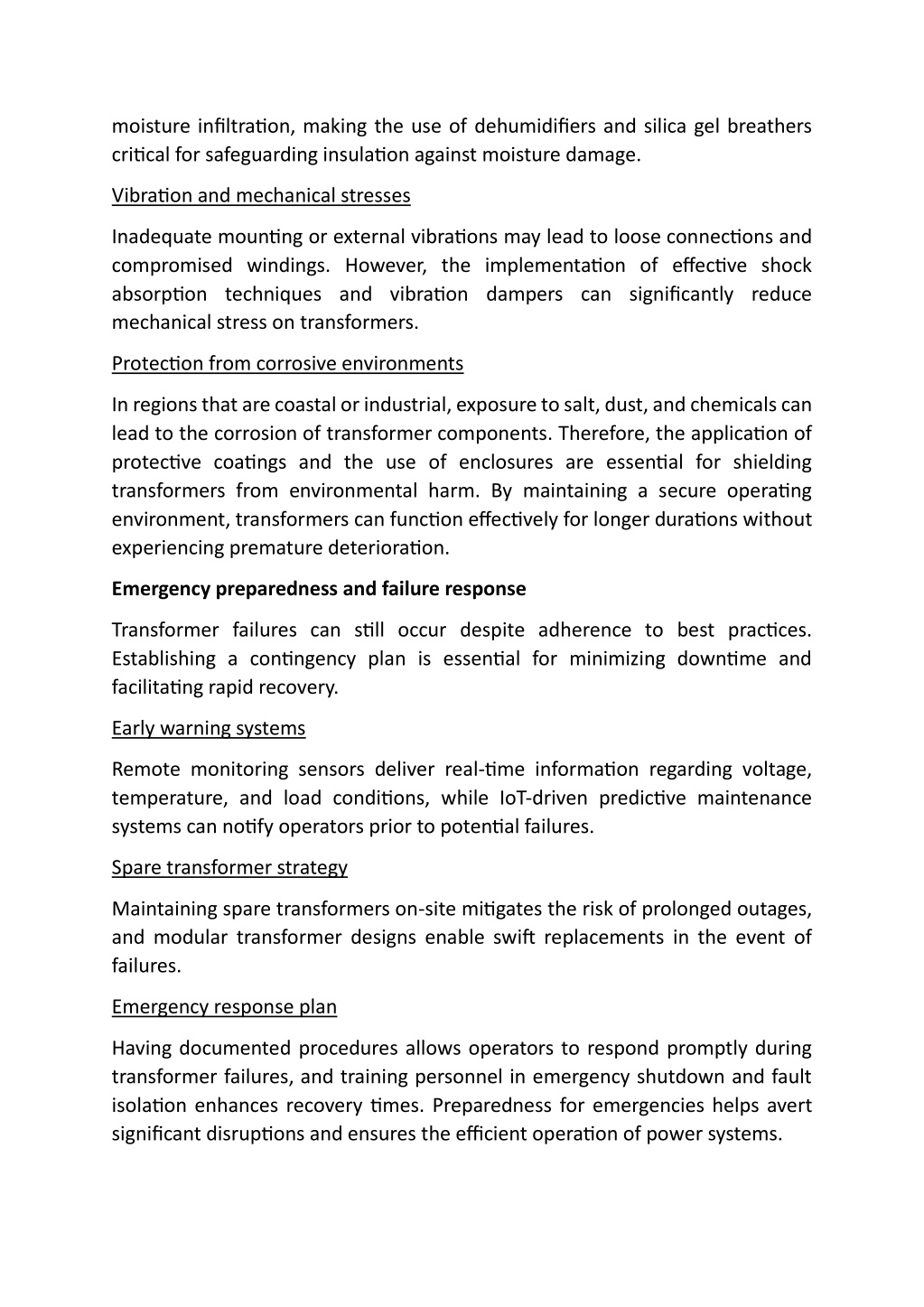

5. moisture infiltration, making the use of dehumidifiers and silica gel breathers critical for safeguarding insulation against moisture damage. Vibration and mechanical stresses Inadequate mounting or external vibrations may lead to loose connections and compromised windings. However, the implementation of effective shock absorption techniques and vibration dampers can significantly reduce mechanical stress on transformers. Protection from corrosive environments In regions that are coastal or industrial, exposure to salt, dust, and chemicals can lead to the corrosion of transformer components. Therefore, the application of protective coatings and the use of enclosures are essential for shielding transformers from environmental harm. By maintaining a secure operating environment, transformers can function effectively for longer durations without experiencing premature deterioration. Emergency preparedness and failure response Transformer failures can still occur despite adherence to best practices. Establishing a contingency plan is essential for minimizing downtime and facilitating rapid recovery. Early warning systems Remote monitoring sensors deliver real-time information regarding voltage, temperature, and load conditions, while IoT-driven predictive maintenance systems can notify operators prior to potential failures. Spare transformer strategy Maintaining spare transformers on-site mitigates the risk of prolonged outages, and modular transformer designs enable swift replacements in the event of failures. Emergency response plan Having documented procedures allows operators to respond promptly during transformer failures, and training personnel in emergency shutdown and fault isolation enhances recovery times. Preparedness for emergencies helps avert significant disruptions and ensures the efficient operation of power systems.

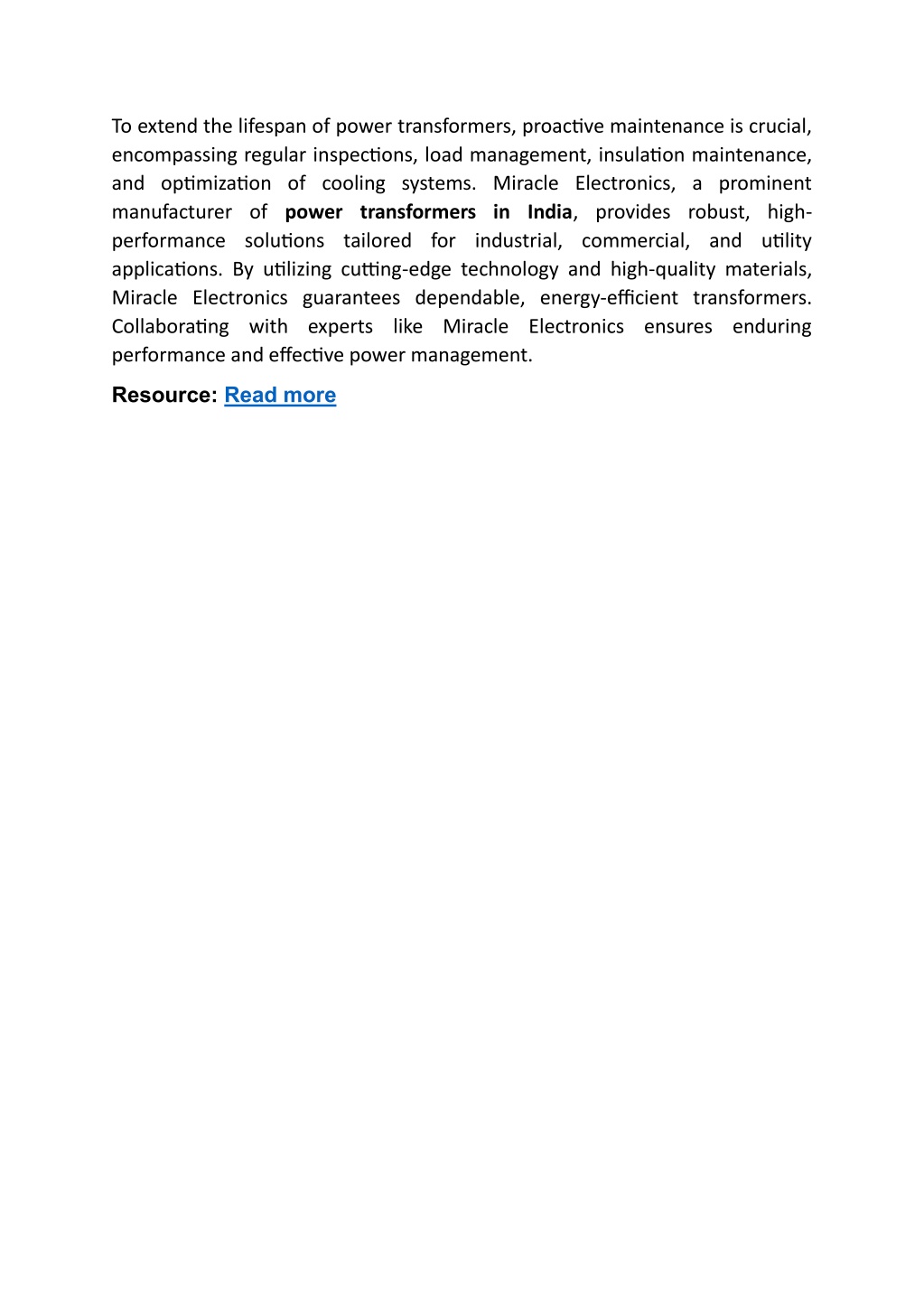

6. To extend the lifespan of power transformers, proactive maintenance is crucial, encompassing regular inspections, load management, insulation maintenance, and optimization of cooling systems. Miracle Electronics, a prominent manufacturer of power transformers in India, provides robust, high- performance solutions tailored for industrial, commercial, and utility applications. By utilizing cutting-edge technology and high-quality materials, Miracle Electronics guarantees dependable, energy-efficient transformers. Collaborating with experts like Miracle Electronics ensures enduring performance and effective power management. Resource: Read more
