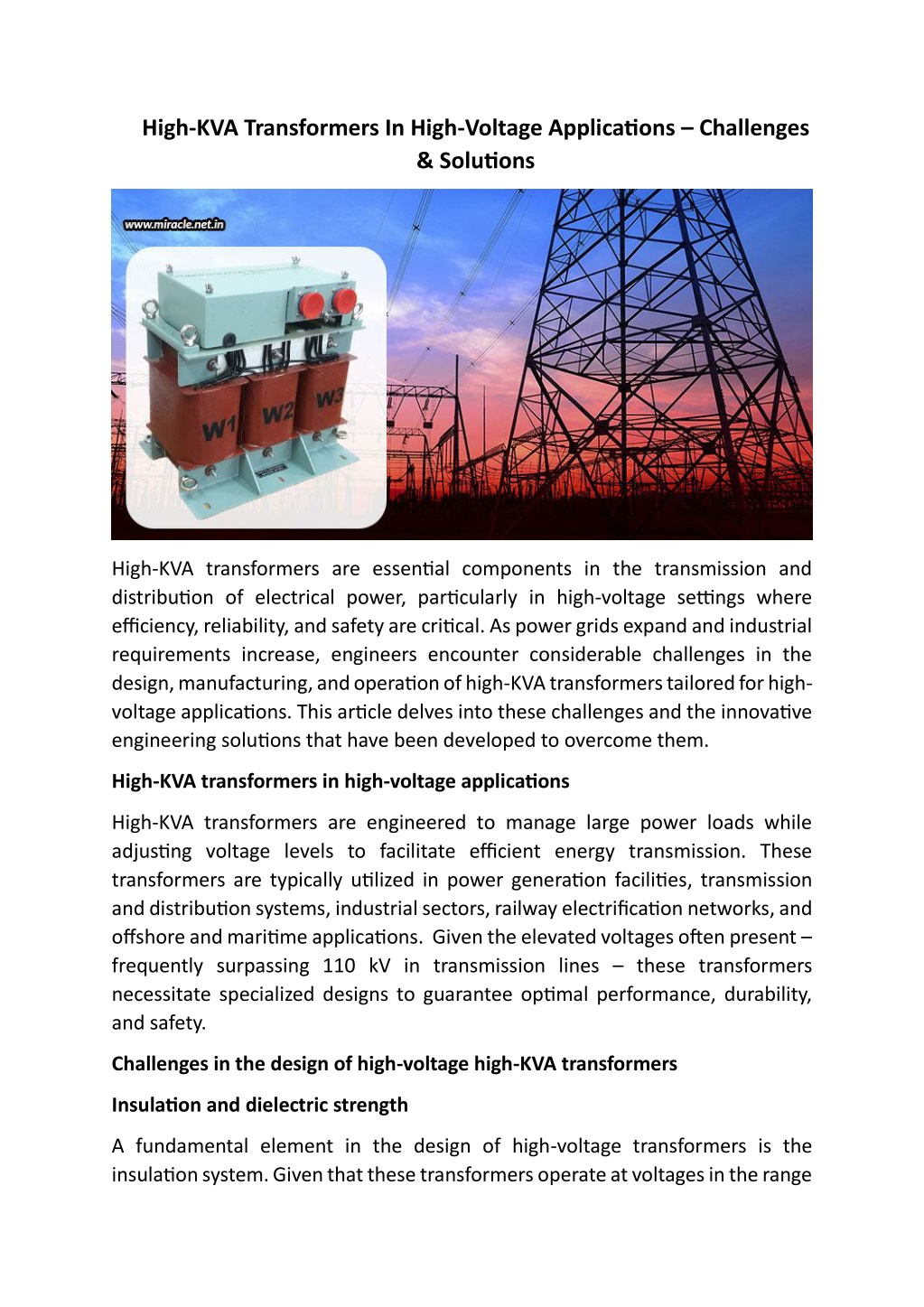

1. High-KVA Transformers In High-Voltage Applications – Challenges & Solutions High-KVA transformers are essential components in the transmission and distribution of electrical power, particularly in high-voltage settings where efficiency, reliability, and safety are critical. As power grids expand and industrial requirements increase, engineers encounter considerable challenges in the design, manufacturing, and operation of high-KVA transformers tailored for high- voltage applications. This article delves into these challenges and the innovative engineering solutions that have been developed to overcome them. High-KVA transformers in high-voltage applications High-KVA transformers are engineered to manage large power loads while adjusting voltage levels to facilitate efficient energy transmission. These transformers are typically utilized in power generation facilities, transmission and distribution systems, industrial sectors, railway electrification networks, and offshore and maritime applications. Given the elevated voltages often present – frequently surpassing 110 kV in transmission lines – these transformers necessitate specialized designs to guarantee optimal performance, durability, and safety. Challenges in the design of high-voltage high-KVA transformers Insulation and dielectric strength A fundamental element in the design of high-voltage transformers is the insulation system. Given that these transformers operate at voltages in the range

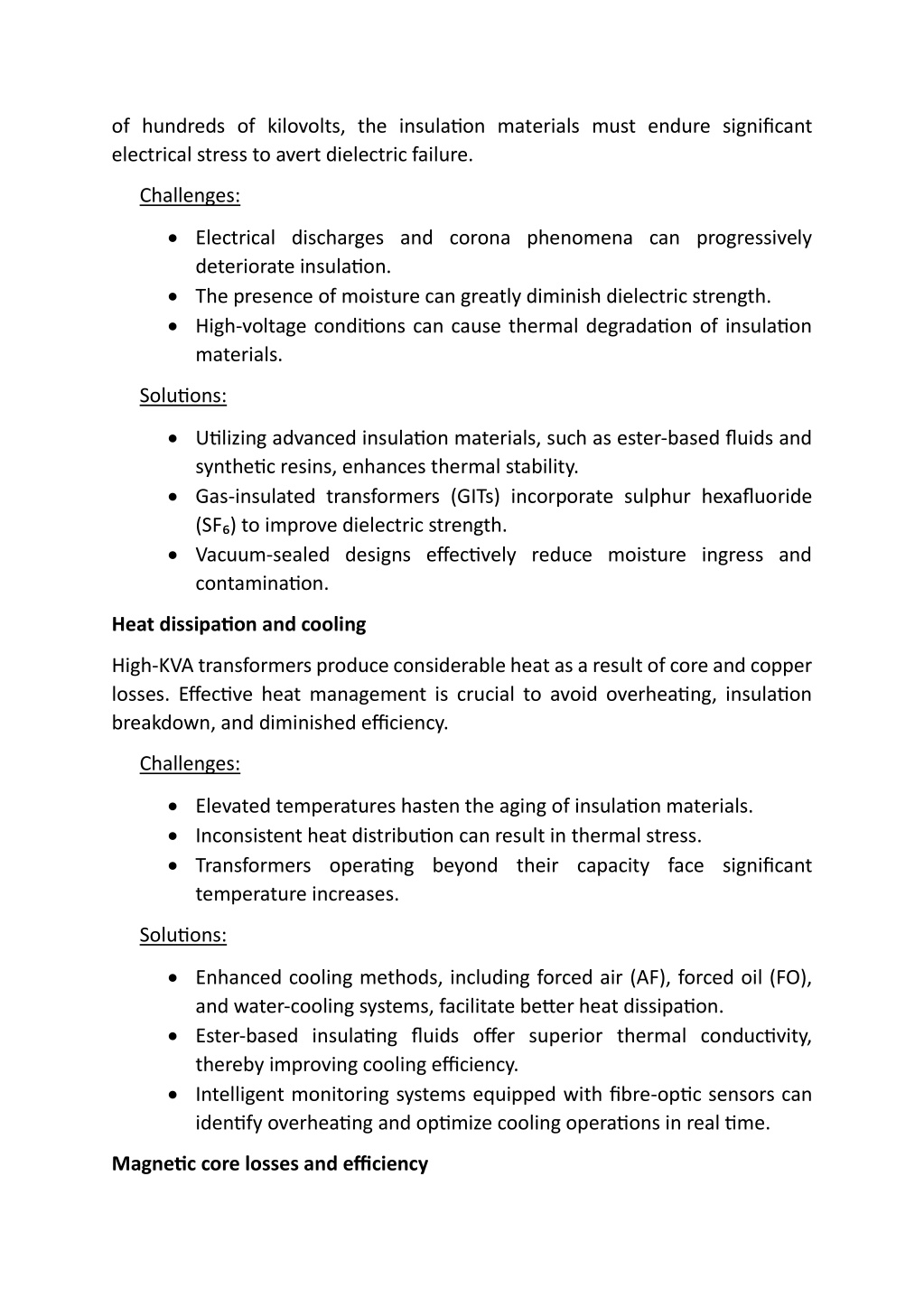

2. of hundreds of kilovolts, the insulation materials must endure significant electrical stress to avert dielectric failure. Challenges: •Electrical discharges and corona phenomena can progressively deteriorate insulation. •The presence of moisture can greatly diminish dielectric strength. •High-voltage conditions can cause thermal degradation of insulation materials. Solutions: •Utilizing advanced insulation materials, such as ester-based fluids and synthetic resins, enhances thermal stability. •Gas-insulated transformers (GITs) incorporate sulphur hexafluoride (SF₆) to improve dielectric strength. •Vacuum-sealed designs effectively reduce moisture ingress and contamination. Heat dissipation and cooling High-KVA transformers produce considerable heat as a result of core and copper losses. Effective heat management is crucial to avoid overheating, insulation breakdown, and diminished efficiency. Challenges: •Elevated temperatures hasten the aging of insulation materials. •Inconsistent heat distribution can result in thermal stress. •Transformers operating beyond their capacity face significant temperature increases. Solutions: •Enhanced cooling methods, including forced air (AF), forced oil (FO), and water-cooling systems, facilitate better heat dissipation. •Ester-based insulating fluids offer superior thermal conductivity, thereby improving cooling efficiency. •Intelligent monitoring systems equipped with fibre-optic sensors can identify overheating and optimize cooling operations in real time. Magnetic core losses and efficiency

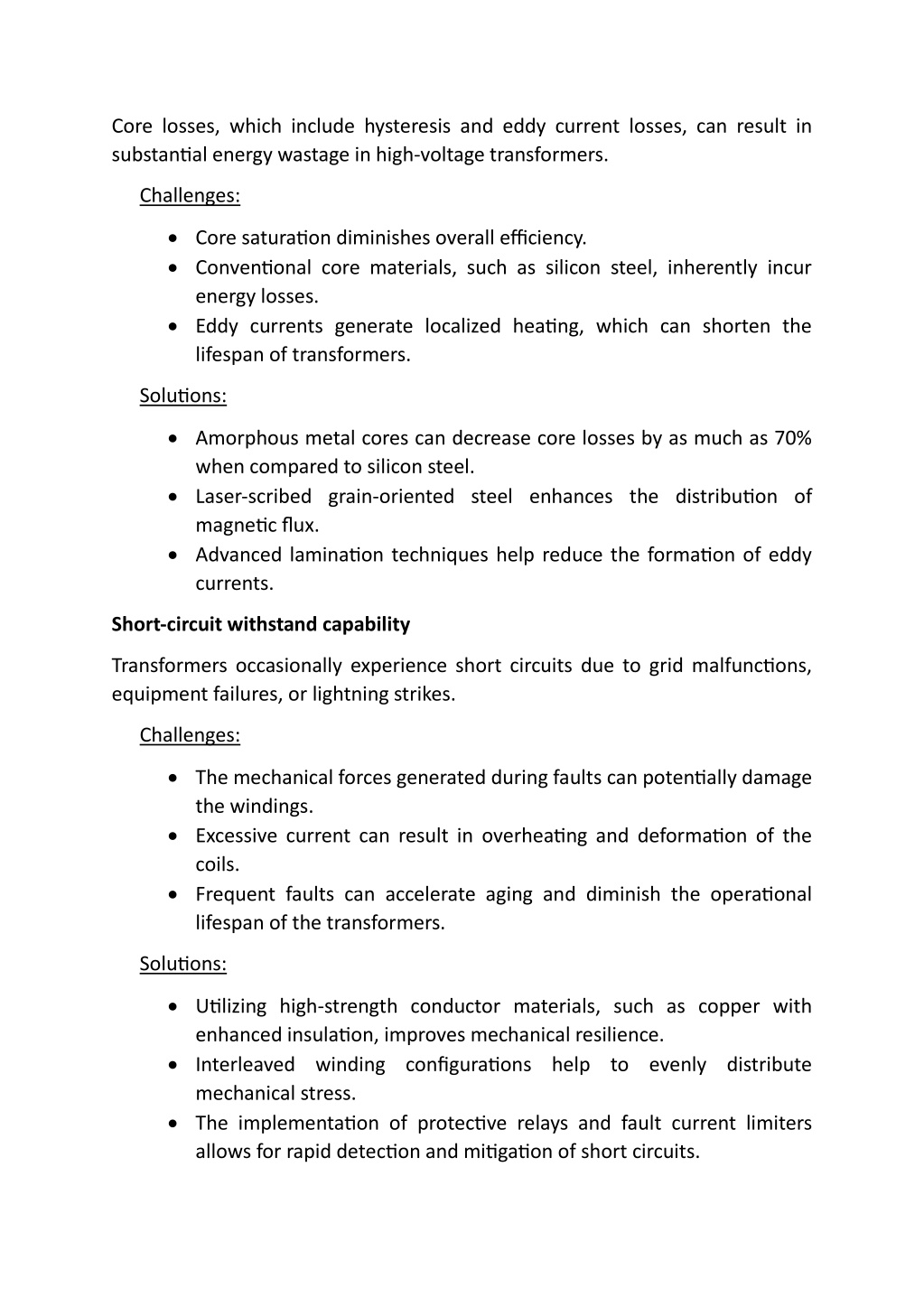

3. Core losses, which include hysteresis and eddy current losses, can result in substantial energy wastage in high-voltage transformers. Challenges: •Core saturation diminishes overall efficiency. •Conventional core materials, such as silicon steel, inherently incur energy losses. •Eddy currents generate localized heating, which can shorten the lifespan of transformers. Solutions: •Amorphous metal cores can decrease core losses by as much as 70% when compared to silicon steel. •Laser-scribed grain-oriented steel enhances the distribution of magnetic flux. •Advanced lamination techniques help reduce the formation of eddy currents. Short-circuit withstand capability Transformers occasionally experience short circuits due to grid malfunctions, equipment failures, or lightning strikes. Challenges: •The mechanical forces generated during faults can potentially damage the windings. •Excessive current can result in overheating and deformation of the coils. •Frequent faults can accelerate aging and diminish the operational lifespan of the transformers. Solutions: •Utilizing high-strength conductor materials, such as copper with enhanced insulation, improves mechanical resilience. •Interleaved winding configurations help to evenly distribute mechanical stress. •The implementation of protective relays and fault current limiters allows for rapid detection and mitigation of short circuits.

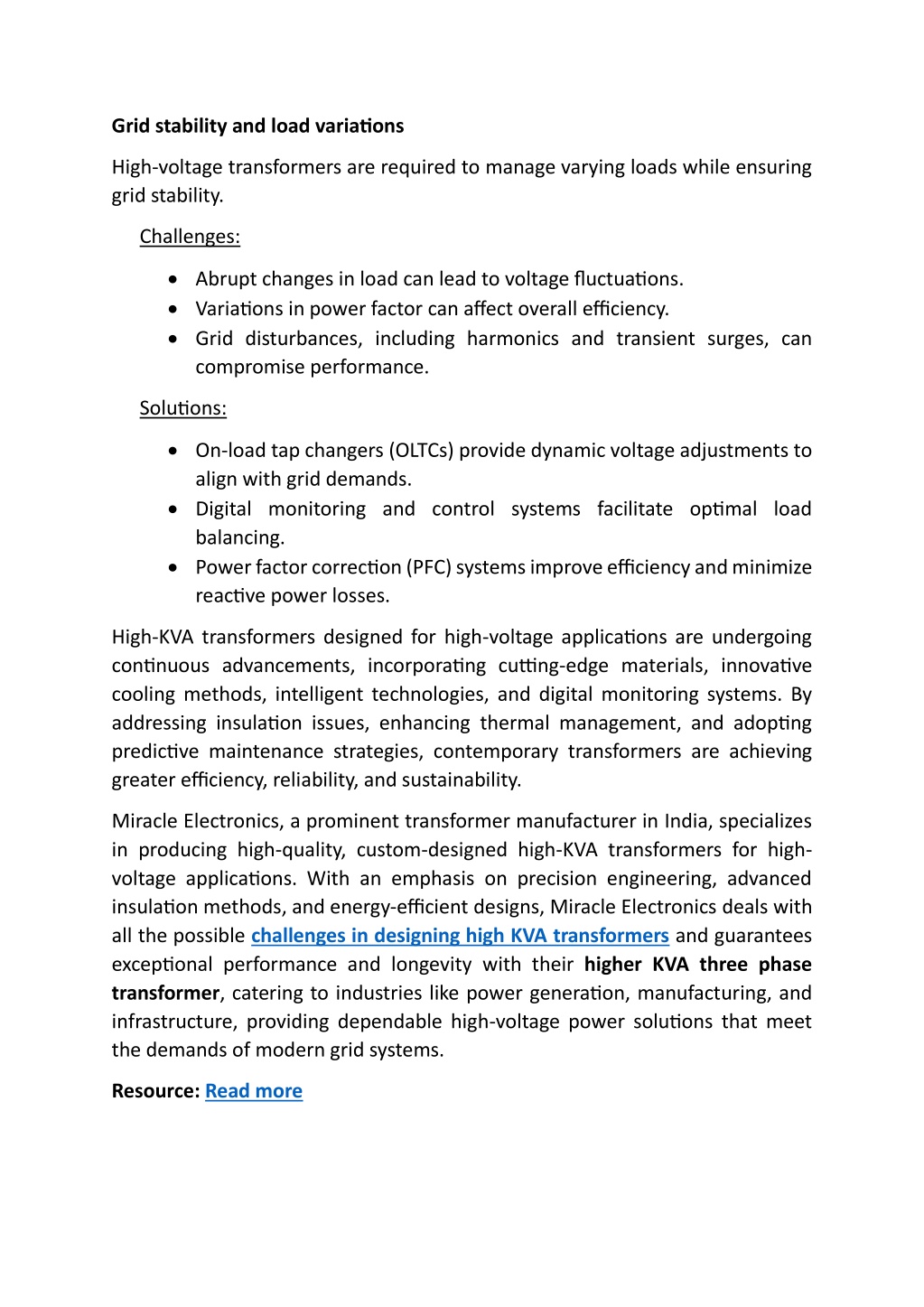

4. Grid stability and load variations High-voltage transformers are required to manage varying loads while ensuring grid stability. Challenges: •Abrupt changes in load can lead to voltage fluctuations. •Variations in power factor can affect overall efficiency. •Grid disturbances, including harmonics and transient surges, can compromise performance. Solutions: •On-load tap changers (OLTCs) provide dynamic voltage adjustments to align with grid demands. •Digital monitoring and control systems facilitate optimal load balancing. •Power factor correction (PFC) systems improve efficiency and minimize reactive power losses. High-KVA transformers designed for high-voltage applications are undergoing continuous advancements, incorporating cutting-edge materials, innovative cooling methods, intelligent technologies, and digital monitoring systems. By addressing insulation issues, enhancing thermal management, and adopting predictive maintenance strategies, contemporary transformers are achieving greater efficiency, reliability, and sustainability. Miracle Electronics, a prominent transformer manufacturer in India, specializes in producing high-quality, custom-designed high-KVA transformers for high- voltage applications. With an emphasis on precision engineering, advanced insulation methods, and energy-efficient designs, Miracle Electronics deals with all the possible challenges in designing high KVA transformers and guarantees exceptional performance and longevity with their higher KVA three phase transformer, catering to industries like power generation, manufacturing, and infrastructure, providing dependable high-voltage power solutions that meet the demands of modern grid systems. Resource: Read more
